Installation Guide
Danfoss Icon2™ / 24V RT
Room Thermostat
Installation

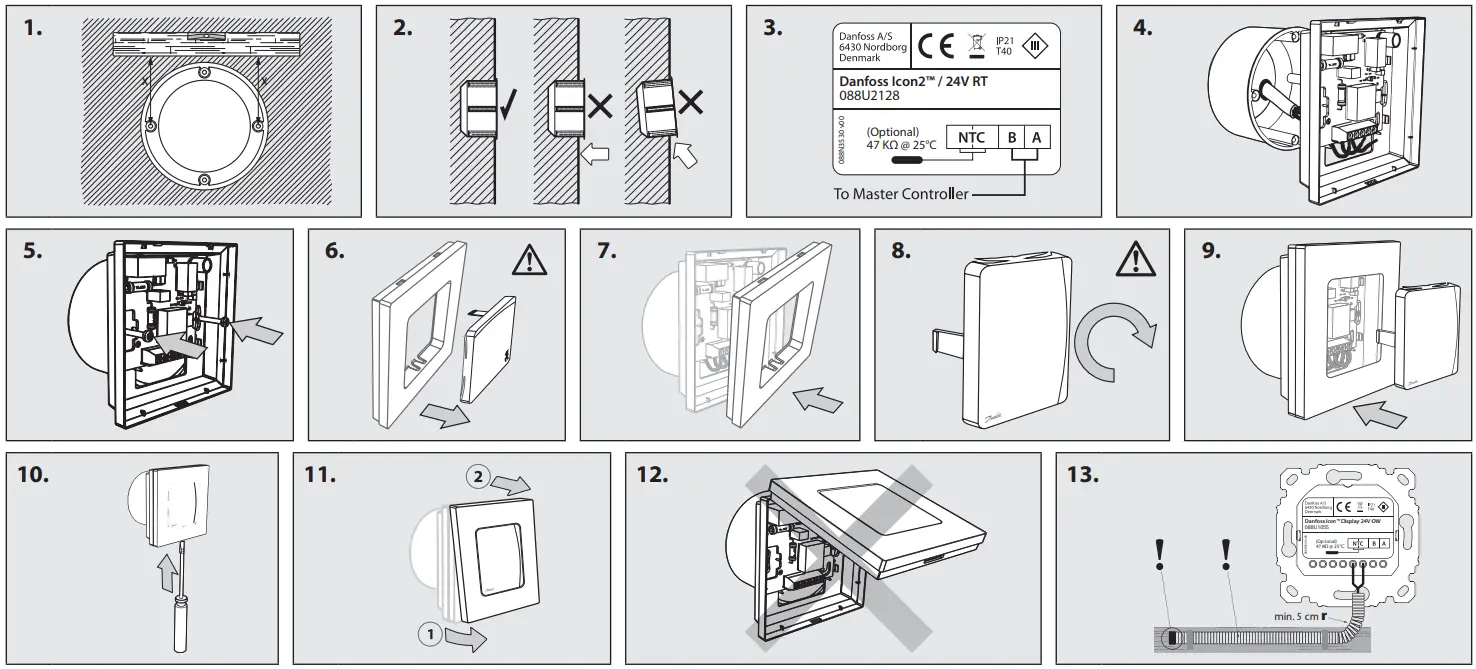

Follow the illustrations fig. 1 to 9 (dismantling, see fig. 10 to 12).
Note, fig. 3: Thermostats can be wired in either BUS or Star configuration, see Master Controller Installation Guide for more information.
Note, fig. 13: Optional floor sensor requires the use of an electrical conduit!
Installer Menu
Touch and hold
to access the Settings Menu. In the Settings menu, touch and hold to access the Installer Menu.

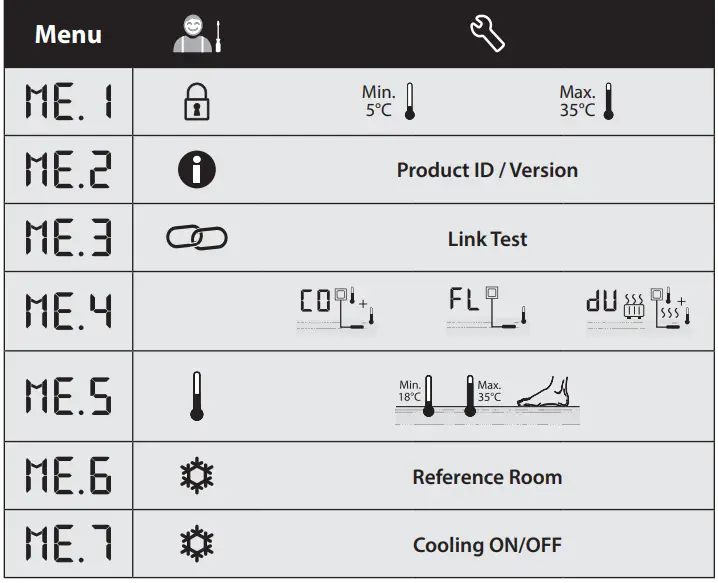

Menus
: Range limitation of setpoint for room temperature.
: Info/version number, can be used to identify products.
: Perform Link Test of connection with Master Controller. Returns result as 0-100% (80% or higher is a very strong connection).
: Floor sensor mode:
= Comfort mode. Both air- and floor sensor is used.
= Floor sensor mode. The end-user sets desired floor temperature.
= Dual mode. The thermostat controls a radiator and floor heating circuit(s). Floor heating circuits assure min. floor temperature and the radiator is used for peak load.
: Min. and max. temperature for floor, used in and mode.
: Reference Room. Set to ON, if you want this thermostat to be the reference thermostat for switching between cooling and heating.
: Cooling ON/OFF. Use to turn off the ability to cool, in e.g. bathrooms.
