BH13000 Trolly Jack
Instruction Manual
BH13000 BH12000 BH11500
Rev. 02/11/15
SNA Europe SAS
BP 20104 Eragny
F-95613 Cergy Pontoise- France
Original Instructions

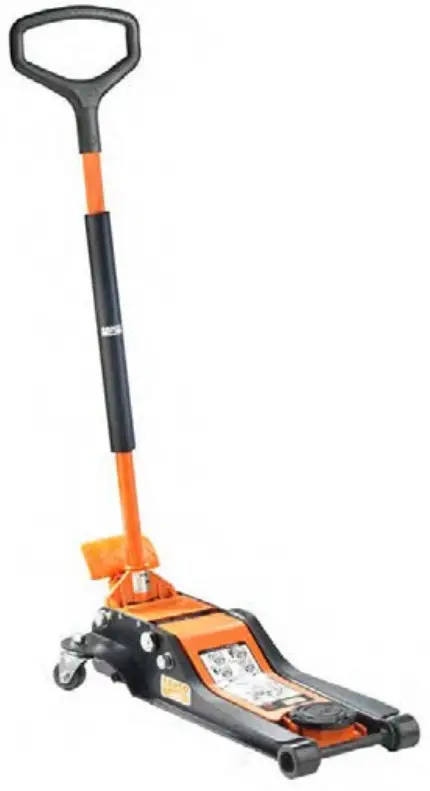

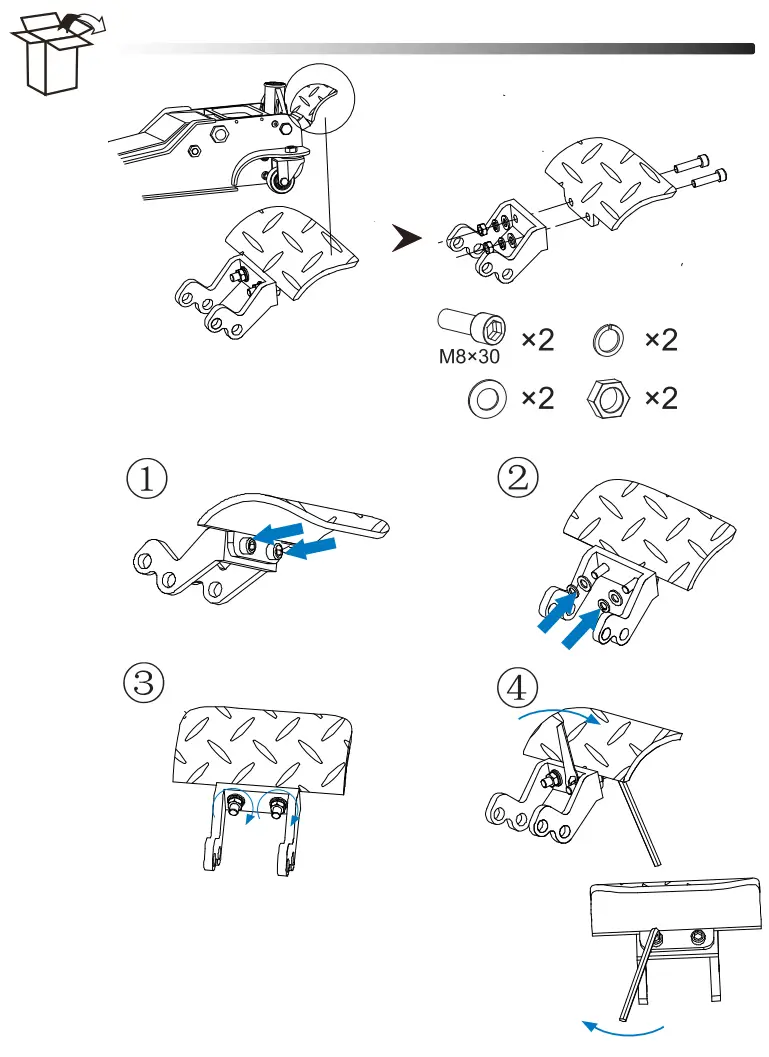

BH13000 Trolly Jack
| P/N | OIL VOLUME（ml） |
| BH13000 | 225 |
| BH12000 | 190 |
| BH11500 | 190 |

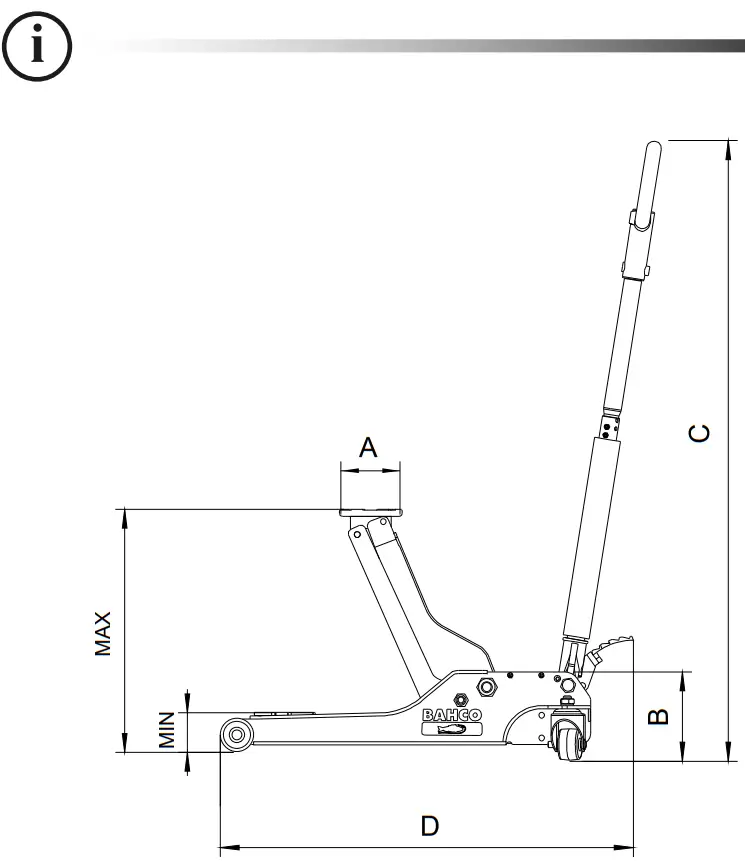

| Ref | KG Max | Max(mm) | Min(mm) | A | B | C | D |
| BH13000 | 3000 | 550 | 90 | 120 | 175 | 1280 | 825 |
| BH12000 | 2000 | 490 | 70 | 120 | 155 | 1270 | 780 |
| BH11500 | 1500 | 610 | 70 | 120 | 155 | 1270 | 945 |

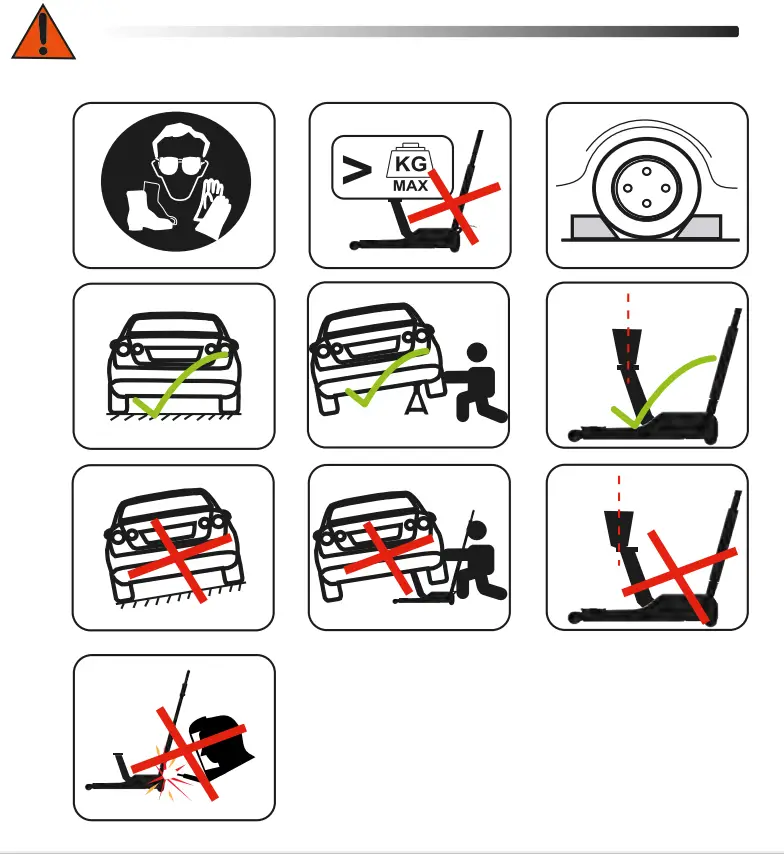

Warnings:
- Study, understand, and follow all instructions before operating this jack.
- Do not exceed rated capacity.
- Use only on hard-level surfaces.
- Do not move or transport the vehicle while on the jack.
- Lifting device only. Immediately after lifting, support the vehicle with support stands.
- Lift only on areas of the vehicle as specified by the vehicle manufacturer, and only centrally on the lifting saddle.
- No person shall remain in, on, or get bodily under a load that is being jacked or is supported only by a jack.
- Only original accessories and spare parts shall be used.
- No alterations shall be made to this jack.
- Failure to follow these warnings may result in personal injury and/or property damage.
- Maintenance and repair must always be carried out by qualified personnel.
a. Daily: Inspect jack for damages.

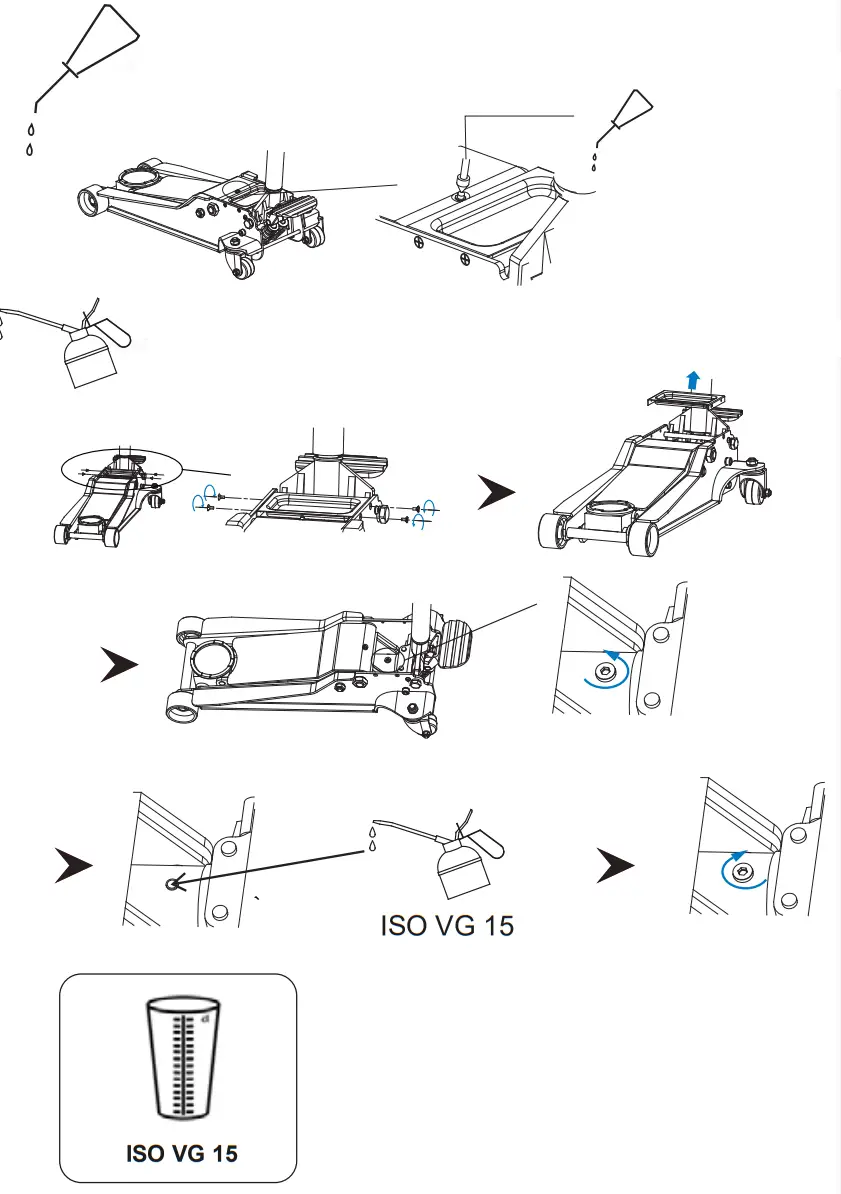

b. Monthly: Lubricate all mechanical parts with a few drops of oil. - Trouble shootings:
a. The jack does not lift to maximum position: refill with oil ISO VG15.
b. The load is dropping due to leaking pump valves or worn seals: Contact your distributor. - According to national legislation – a minimum of once a year through – the jack must be inspected by a professional: damages, wear and tear, adjustment of the safety valve, and hydraulic unit for leakages. Possible faults and how to overcome them.
- Disposal: Oil must be drained off and legally disposed of.
