325 ZERO SIDE MOUNT,
BOOTH INSTALLATION GUIDE
325 Zero Side Mount Booth
 |  |

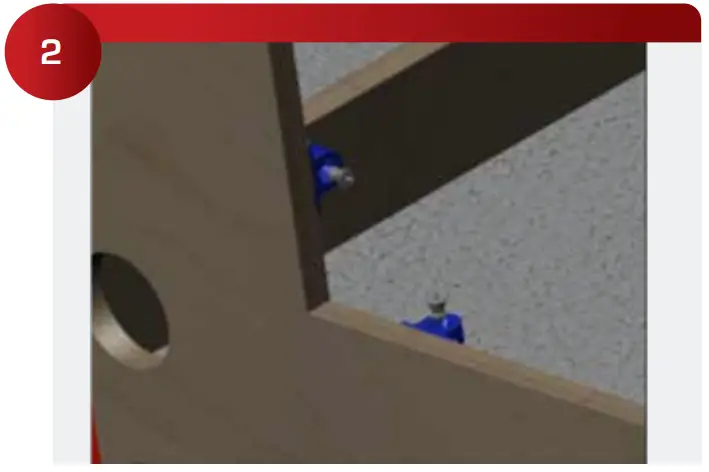

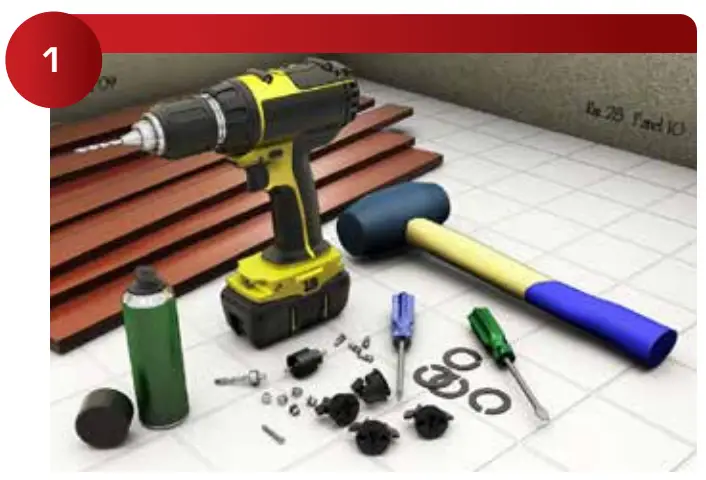

| Required Tools; 325 Zero Side Mount, 330 Alignment Pins, 913 Pilot Drill 5MM Center Point Drill & Stop | The 325 Zero Side Mounts can be used to install the removable booth seating. Install the Zero Side Mounts flush with the intersecting panel edge. |
 |  |

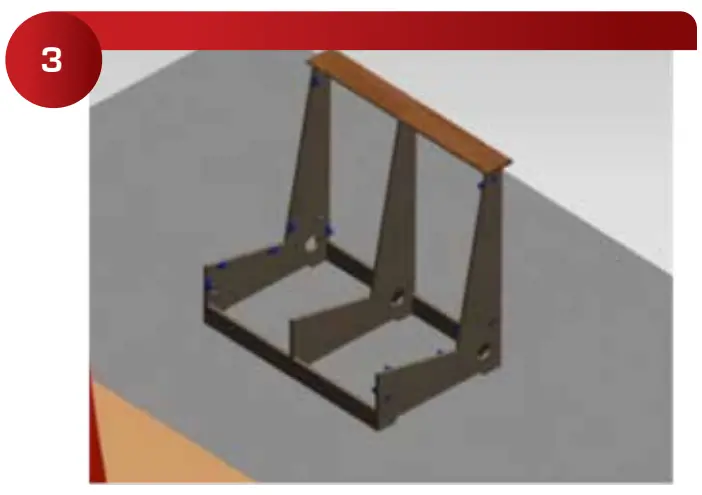

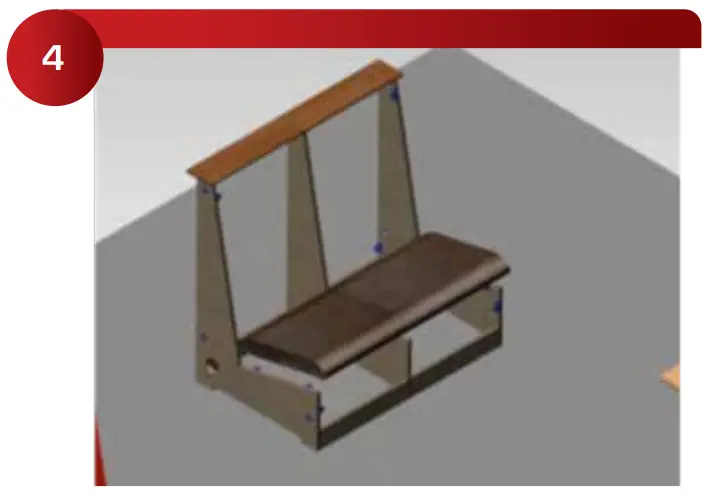

| Install the 330 Zero Alignment Pins for marking the 334 Mounting Screw locations. | Firmly push the panels into place to mark the 334 Mounting Screw locations. Install the mounting screws using a 913 Brad Point Drill Bit, 5mm. |
 |  |

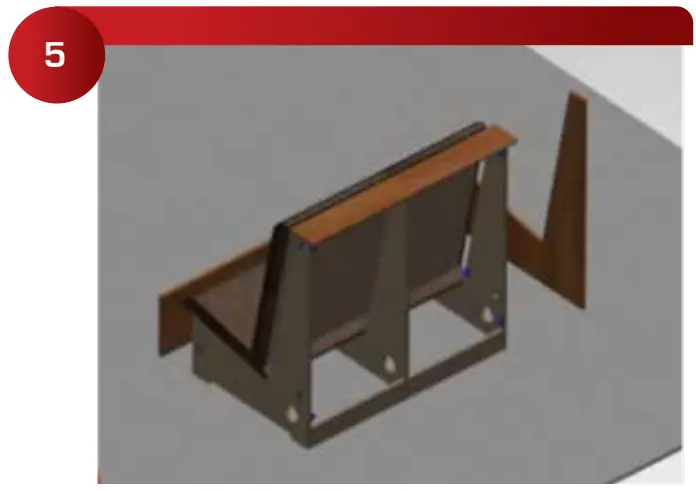

| Other components can also be installed using the 325 Zero Side Mount. | The upholstery snaps into place and is removable with about 25 pounds of force, a small pry bar helps. |
“Hidden Fastener Specialists”
www.starhanger.com
