349 UPHOLSTERY MOUNT & 224
GALAXY INSTALLATION GUIDE
349 Upholstery Mount and 224 Galaxy Seat Cushion
Find a beautiful yacht that needs new Upholstered seat cushion, (this is the hardest part).

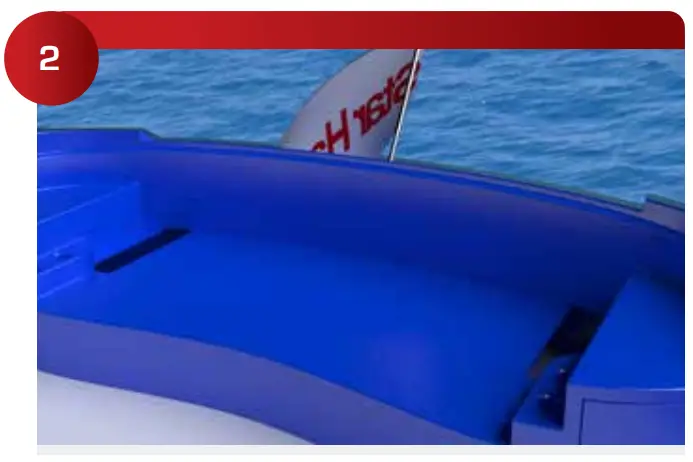

Carefully space the locations for each cushion.

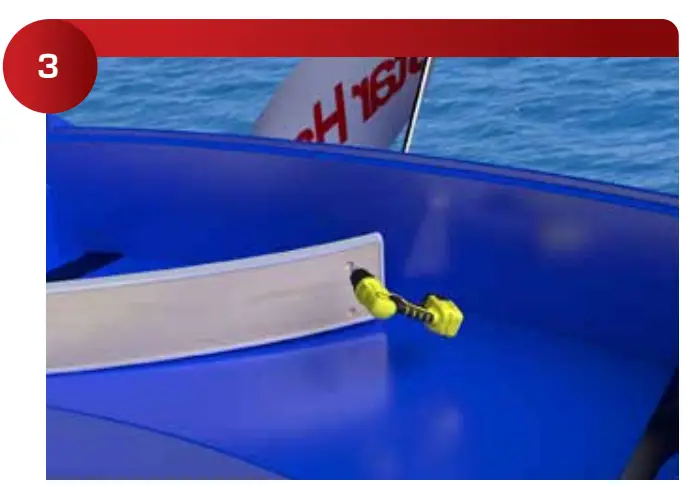

Drill a 1-1/4” hole x 3/8” deep for each Galaxy.

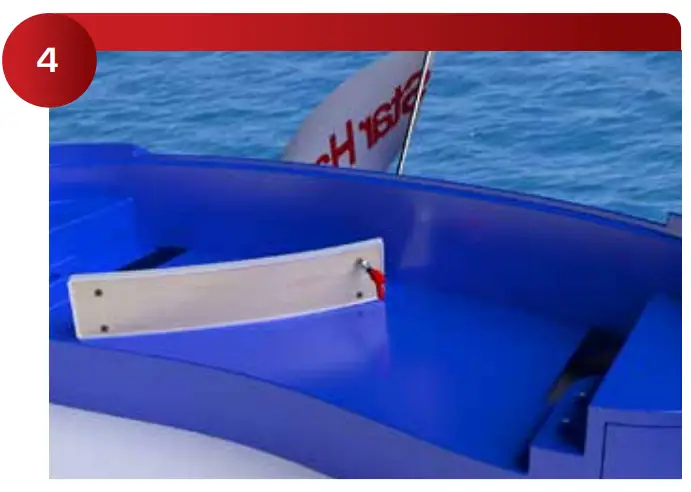

Insert the Galaxies into place, this can be done with a soft blow hammer or specialized tools form Star Hanger.

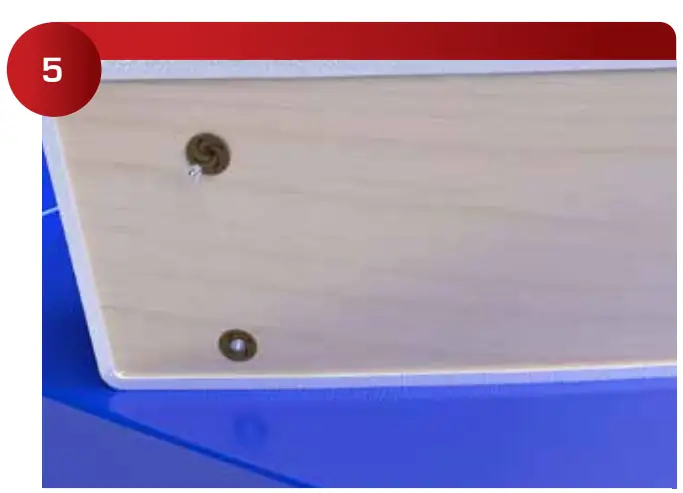

Install the Galaxy Alinement Pins into place, they can be removed with pliers or a pry bar.
Carefully align the cushion into place and push it firmly tomark the screw positions.

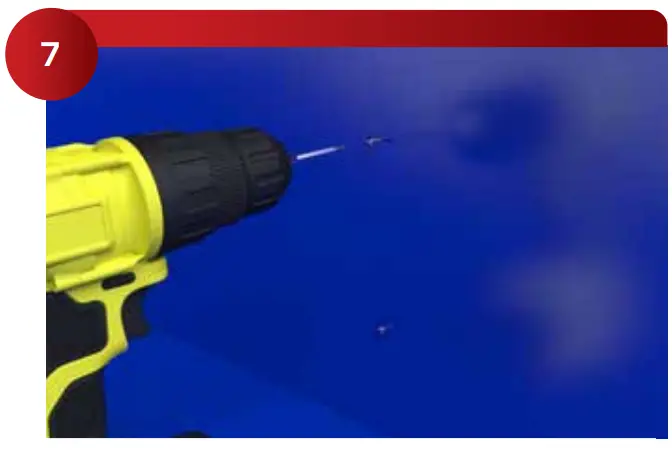

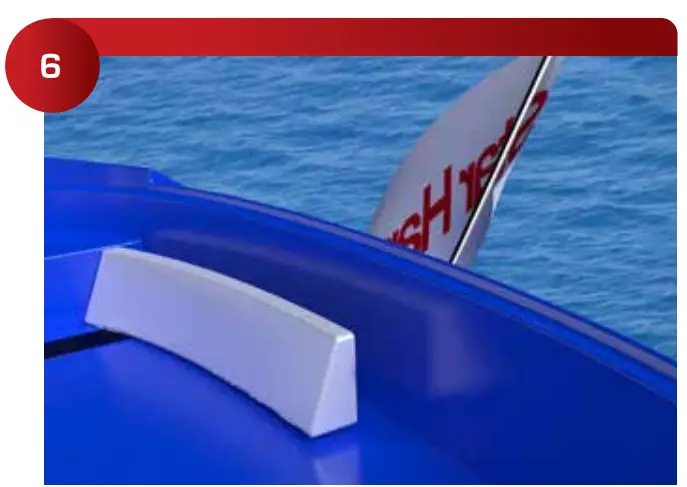

Predrill with a 1/8” Hole. Install stainless steel screws into the fiberglass.

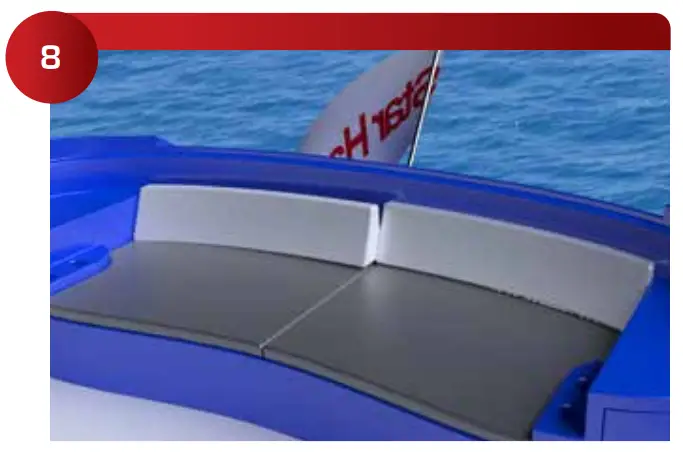

Install cushion, you should hear each Galaxy snap into place.

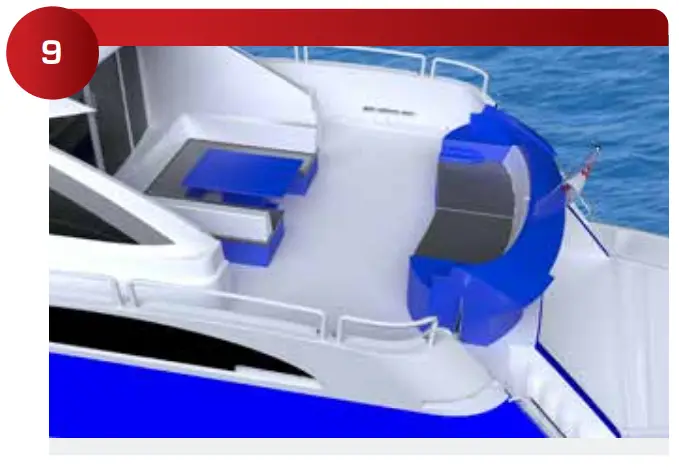

Completed cushion can be stored flat with no hardware projecting.
