Operating Instructions – Dishwasher Neff SL15J1F

saco SL15J1F Dishwasher Neff

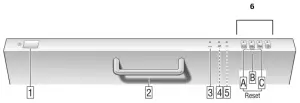

Control Panel

1 – Main Switch
2 – Door Handle
3 – Programme END indicator
4 – Low salt indicator
5 – Low rinse aid indicator
6 – Programme buttons

saco SL15J1F Dishwasher Neff - fig

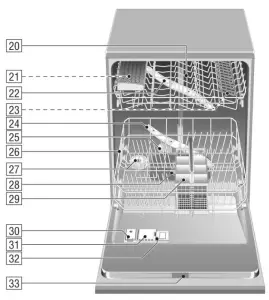

Appliance Interior

20 – Top basket
21 – Additional cutlery basket
22 – Top spray arm
23 – Additional cup rack
24 – Bottom spray arm
25 – Float
26 – Bottom basket
27 – Dispenser for salt with refill indicator
28 – Filters
29 – Cutlery basket
30 – Dispenser for rinse aid with refill indicator
31 – Detergent dispenser
  • Your dishwasher will be prepared with a rinse aid and dishwasher salt

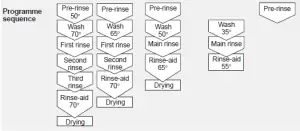

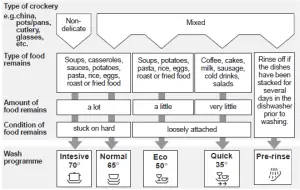

Programme overview

saco SL15J1F Dishwasher Neff - fig 1saco SL15J1F Dishwasher Neff - fig 2

Switching on the appliance

  • Switch on the main switchsaco SL15J1F Dishwasher Neff - fig 3. The selection of the most recently selected programme will light up. This programme will be performed unless another programme button saco SL15J1F Dishwasher Neff - fig 4is pressed
  • Close the door & the programme will start automatically

End of programme

  • The programme has come to an end when the PROGRAMME END indicatorsaco SL15J1F Dishwasher Neff - fig 5 and the indicator for the selected programme are both lit up.
  • The end of the programme is also indicated by a buzzer

Switching the dishwasher off

Several minutes after the programme has ended:

  • Open the door when the programme has ended
  •  Set the main switch to saco SL15J1F Dishwasher Neff - fig 3OFF
  • Remove dishes etc when they have cooled down

Programme interruption

  • Carefully open the door, and only open completely when the spray arm is no longer turning. If the programme is already in ‘drying’ mode, a noise will signal to remind you to close the appliance door or to abort the programme
  • Switch OFF the main switchsaco SL15J1F Dishwasher Neff - fig 3
  • The indicator light will go out and the programme will remain stored
  • In order to continue with the programme, switch the main switch ON again and close the door

Cancel Programme (Reset)

  • Only when the master is ON. Press thesaco SL15J1F Dishwasher Neff - fig 6 andsaco SL15J1F Dishwasher Neff - fig 7 programme buttons at the same time and hold them down for approximately 3 seconds
  • The programme continues for approximately 1 minute. The PROGRAMME END indicator for the programme that has just been terminated lights up
  • Set the main switch tosaco SL15J1F Dishwasher Neff - fig 3 OFF

Changing the programme

  • It is possible to change the programme selection after you have switched the dishwasher on, provided that you have not yet closed the door. If it is necessary to change the programme after this, the programme cycle that has already begun will still carry on to the end.
