DIF 04B1 Merlin House Dishwasher
Instruction Manual
DIF 04B1 Merlin House Dishwasher
Operating Instructions – Dishwasher Indesit DIF 04B1

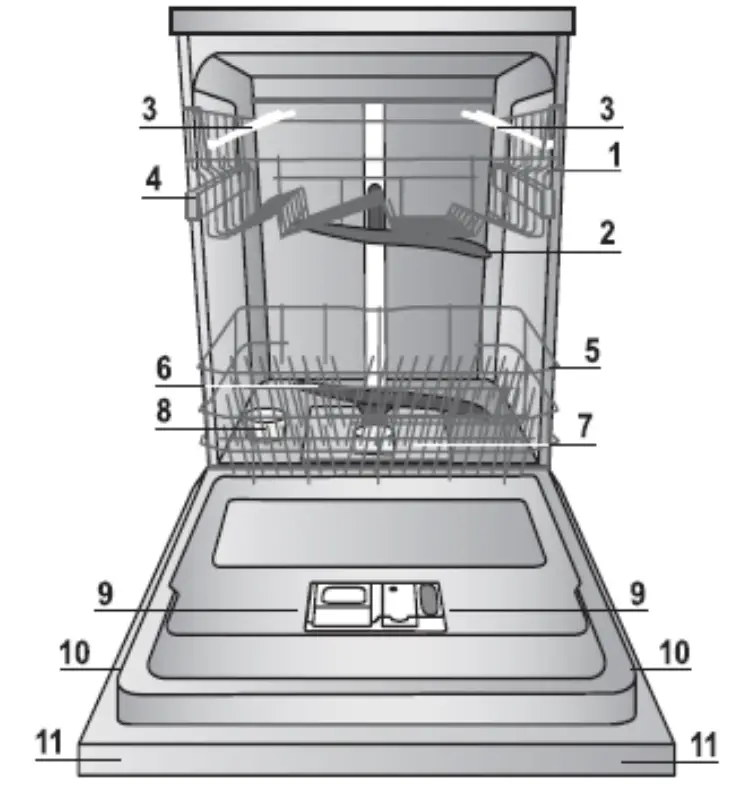

Overall view
- Upper rack
- Upper sprayer arm
- Tip-up dispensers
- Rack height adjuster
- Lower rack
- Lower sprayer arm
- Washing filter
- Salt dispenser
- Detergent dispenser, rinse-aid dispenser and Active Oxygen device*
- Data plate
- Control panel***

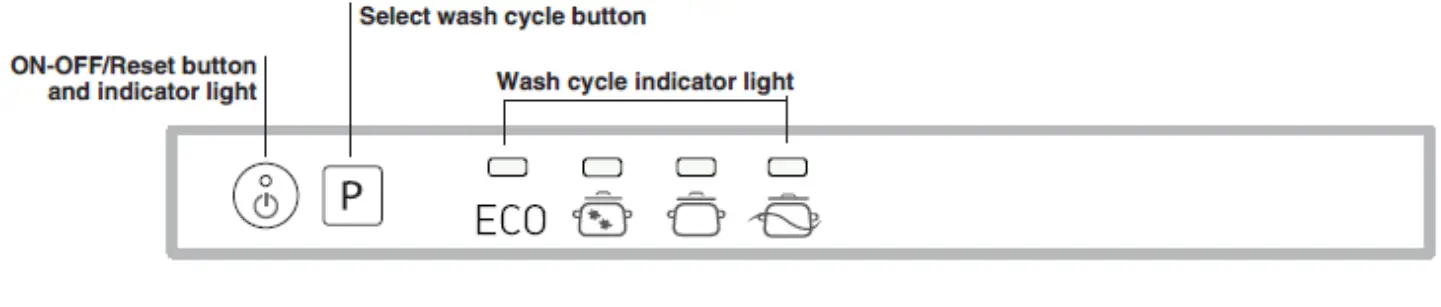

Control Panel
Wash cycles
| Wash Cycle | Drying | Options | Wash Cycle Duration | Water Consumption (II cycle) | Energy Consumption (kWh/cycle) |
| Ece | ye: | No | 03:10′ | 11,0 | |
Intensive | Yes | No | 02:30′ | 16,5 | 1,65 |
Normal | Yes | No | 02:00′ | 16,0 | 1,35 |
Prewash | No | No | 00:10′ | 4,0 | 0,01 |
