Operating Instructions – Dishwasher Zanussi ZDT11001

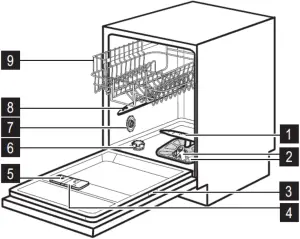

Description of the appliance
- Lower spray arm
- Filters
- Rating plate
- Rinse aid dispenser
- Detergent dispenser
- Salt container
- Water hardness dial
- Upper spray arm
- Upper basket
The control panel
- On/off button
- Programme lights
- Indicators
- Programme button.
| Indicators | Description |
 | End indicator. |
 | Salt indicator. This indicator is off while the programme operates. |
Programmes
| Programme1) | Degree of soil Type of load | Programme phases | Duration (min) | Energy (kWh) | Water (I) |
 70° | Heavy soil Crockery, cutlery, pots and pans | Prewash Wash 70 °C Rinses Dry | 85-95 | 1,8-2,0 | 22-25 |
 65° | Normal soil Crockery and cutlery | Prewash Wash 65 °C Rinses Dry | 100-110 | 1,4-1-6 | 19-21 |
 65°A30′2) | Fresh soil Crockery and cutlery | Wash 65 °C Rinse | 30 | 0,9 | 9 |
 50°3) | Normal soil Crockery and cutlery | Prewash Wash 50 °C Rinses Dry | 130-140 | 1,0-1,2 | 14-16 |
 4) | All | Prewash | 12 | 0.1 | 5 |
Operating sequence
- Load the dishes removing any scraps of food. Pull the lower basket out and arrange the saucepans, plates and cutlery in it. Pull the upper basket out and arrange the plates, saucers, glasses and cups in it. Slide the baskets back into the machine.
- Ensure that the spray arms can rotate freely.
- Measure out detergent – add the required amount of detergent into the dispenser, close the dispenser lid.
- Close the dishwasher door
- Press the on/off button to activate the appliance.
- Press continuously the programme button until the indicator of the programme you want to set comes on.
- Close the appliance door. The programme starts.
- At the end of the washing programme an intermittent acoustic signal operates.
- Switch off the dishwasher – By pressing the On/Off push button and opening the door. Wait a few minutes before removing the dishes; in this way they will be cooler and the drying will be improved. Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.
Care must be taken if the door is opened during the hot phase or immediately after a programme has finished, as steam may escape.
- If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption.
