Kruger Matz Km0628 Wireless Headphones Owner's Manual (+ PDF)

Kruger Matz KM0628 Wireless Headphones
Owner's Manual

SAFETY INSTRUCTIONS

Read this instruction manual before first use and keep it for future reference.

Minimize the volume on your audio device before connecting the headphones in order to avoid hearing damage from sudden exposure to excessive volume. Keep the volume at a reasonable level throughout entire time of using the headphones.
Never use the headphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle, as it may cause potential risk to your safety.
Do not use the headphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling).
Do not disassemble, modify or attempt to repair the headphones. In case of damage, contact an authorized service point for check-up/repair.
Do not subject the headphones to strong impact.
DO NOT turn the volume to such a high level that you can’t hear anything around you.
Stop using the headphones if you feel a tinnitus, hearing discomfort, irritation or have other adverse reactions.
Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
Never use this device if it is damaged.
Use only authorized accessories.
Turn off the headphones before cleaning.
Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.

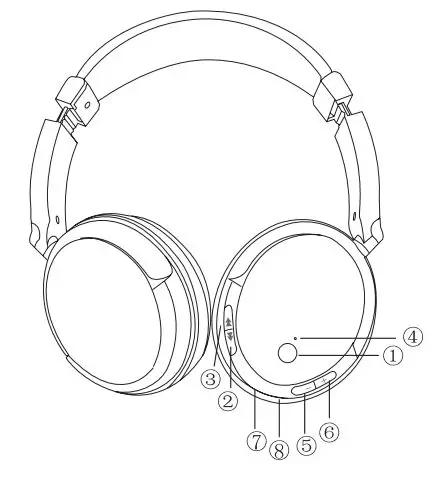

PRODUCT DESCRIPTION

Multifunctional button MFB
Prev track
Next track
LED indicator
VOl –
VOL +
microUSB port
AUX input (3,5 mm)

PAIRING

Press and hold MFB. The headphones will turn on and automatically enter Bluetooth pairing mode. Blue LED flashes.
Activate your phone (or device) Bluetooth function and search for external devices. You’ll see a list of available devices; find and connect with the headphones (KM Flow 2).
Enter “0000” PIN if necessary.
After successful pairing, the headphones will issue a voice prompt.
Notes:
• If pairing is not completed within 5 minutes, the headphones will turn off. In that case, repeat paring process to pair the headphones with external device.
• Every time the headphones are switched on, they will connect to last connected device automatically. Please note, your device must be on with Bluetooth function turned on.

OPERATION

Power on:
Press and hold the MFB; blue LED is on.

Power off:
Press and hold the MFB; blue LED is off.

Answering/Ending/Rejecting/Redialing:
Press MFB to answer/end an incoming call. Press and hold MFB to reject an incoming call. Press MFB twice to redial.

Play music:

Press MFB button to play/pause music playback.
Press Prev / VOL + button to go to the previous track. Press and hold this button to increase volume.
Press Next / VOL – to go to the next track. Press and hold this button to decrease volume.

AUX INPUT

Use 3,5 mm AUX cable and connect one end of the cable into the headphones’ 3,5 mm input.
The headphones will automatically enter AUX mode.
Connect the other end into the 3,5 mm input of the device you wish to play music from.
Start playing music from your device.

Note: In AUX mode, control panel of the headphones is not active.

CHARGING

Before charging, make sure the headphones has been switched off.
Plug microUSB cable into the charging port of the headphones; plug the other side of USB cable into the USB charger, AC/DC adapter or car charger.
Red indicator light is ON when battery is charging.
When charging is finished, red LED goes off.
Note: Please be sure the battery has been charged fully before first use.

SPECIFICATIONS

Speaker size: 40 mm
Frequency response: 20 Hz ~ 20 kHz
Impedance: 32 Ω
Sensitivity: 105 dB ± 3 dB
Distortion: ≤0,5% (at 1 kHz)
Maximum input power: 20 mW
Bluetooth: 5.0
Bluetooth profiles: HSP, HFP, A2DP, AVRCP
Bluetooth range: up to 10 m
Ports: AUX-in (3,5 mm), microUSB (charging)
Playback time: up to 7 h
Talk time: up to 9 h
Standby time: up to 180 h
Battery capacity: 250 mAh
Charging voltage: 5 V / 500 mA
Built-in microphone
Microphone sensitivity: -55 ± 3 dB
Voice call management

LEARN MORE

For more information on this product, go to www.krugermatz.com.
Visit www.krugermatz.com website for more products and accessories.
In case of any doubts or questions reach out to our Frequently Asked Questions section.

“The Lechpol company declares that product KM0628 is consistent with the essential requirements and other relevant provisions of directive 2014/53/UE. The proper declaration for download from www.lechpol.eu”

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska1, 08-400 Miętne.
