Nedis On-ear Headphones With Bluetooth Connection User Guide (+ PDF)

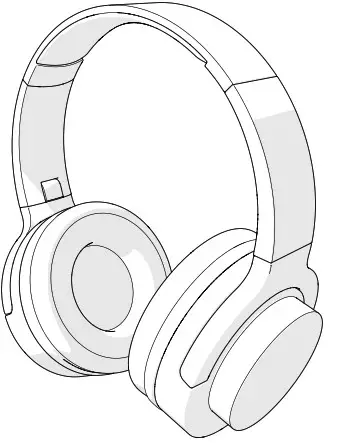

On-Ear Headphones
with Bluetooth® connection
HPBT2102BK

ned.is/hpbt2102bk

Quick start guide

HPBT2102BK
On-Ear headphones

For more information see the extended manual online: ned.is/hpbt2102bk

Intended use
The Nedis HPBT2102BK are Bluetooth headphones with which you can enjoy music at any time and anywhere.
The product can be paired with any Bluetooth-enabled audio/video device.
The ear cups can be folded for easy storage.
Any modification of the product may have consequences for safety, warranty, and proper functioning.

Contents hide

1 Specifications

2 Safety instructions

3 Documents / Resources

3.1 References

4 Related Posts

Specifications

Product	On-Ear headphones
Article number	HPBT2102BK
Power input	5 VDC ; 0.5 A
Bluetooth® version	5.0
Bluetooth frequency range	2402 – 2480 MHz
Frequency response	20 – 20,000 Hz
Max. radio transmit power	4 dBm
Impedance	32 Ω
Driver size	40 mm
Battery type	Lithium-polymer, 3.7 V /150 mAh
Charging time	Up to 2 hours
Play time	Up to 10 hours
Standby time	200 hours
Built-in microphone	Yes
Voice control	Siri, Google Assistant

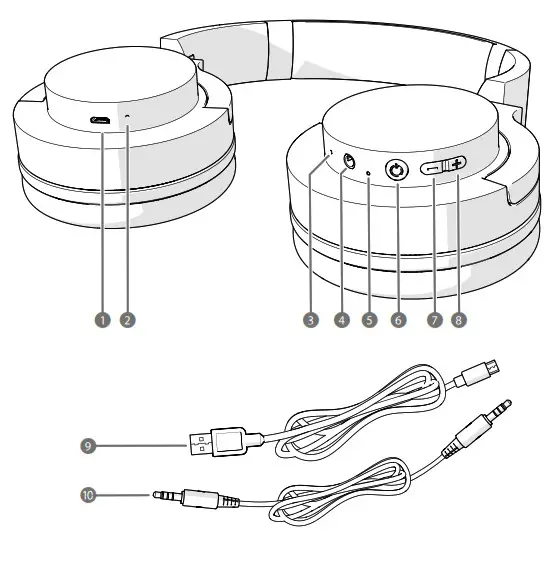

Main parts (image A)

Micro USB charging port
Charging indicator LED
Built-in microphone
3.5 mm input
Status indicator LED
On/off / play / pause button
Previous song / Volume down button
Next song / Volume up button
USB power cable
3.5 mm audio jack

Safety instructions

-WARNING

To prevent possible hearing damage, do not listen at high volume levels for long periods.
Using headphones with both ears covered while participating in traffic is discouraged and may be illegal in some areas.
Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
Only use the product as described in this document.
Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
Do not drop the product and avoid bumping.
This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
Disconnect the product from the power source and other equipment if problems occur.
Do not expose the product to water or moisture.
Do not use any charger other than that specifcally provided for use with the product.

Using the product
Due to the wide variety of products with a Bluetooth connection, we cannot guaranty that all devices will be recognized or all operating options can function.

Charging the product

Plug the USB power cable A9 into the micro USB charging port A1.
Plug the other end of A9 into a computer or power adapter.

Switching on the product
• Press and hold the on/off / play/pause button A6 for 3 seconds.

Pairing the headphones to a Bluetooth audio source

Switch on the product.
i The status indicator LED A5 blinks red and blue to indicate pairing mode is active.
i If the headphones are not paired within 5 minutes, they switch off.
Enable Bluetooth on the device you want to pair the headphones with.
Select “HPBT2102BK” from the list of available Bluetooth devices on your device.
i When paired, A5 lights up blue.
i If the headphones have been paired with another device before, make sure that device is switched off.
i If the headphones lose connection to the Bluetooth source, they will automatically reconnect when back in range and switched on.

Controlling the music

Press A6 to play or pause the music.
Press the next song/volume up button A8 to skip to the next song.
Press the previous song/volume down button A7 to go back to the start of the song. Press again to go to the previous song.

Controlling the volume

Press and hold A8 to increase the volume.
Press and hold A7 to decrease the volume.
i When the volume reaches to maximum, there is a warning tone.

Making phone calls

To answer an incoming call, press A6.
To reject an incoming call, press and hold A6 for 2 seconds.
To end a call, press A6.

Using voice assistant

Double press A6 to activate the voice assistant on your mobile phone (Siri or Google assistant).

Switching off the headphones

Press and hold A6 for 3 seconds to switch off the headphones.

Declaration of Conformity
We, Nedis B.V. declare as manufacturer that the product HPBT2102BK from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via webshop.nedis.com/ HPBT2102BK#support

For additional information regarding the compliance, contact the customer service:
Web: www.nedis.com
E-mail: [email protected]
Phone: +31 (0)73-5991055 (during office hours)
Nedis B.V., de Tweeling 28
5215 MC ’s-Hertogenbosch, the Netherlands

Nedis BV
De Tweeling 28, 5215 MC ’s-Hertogenbosch
The Netherlands
