S661 OPEN MOVE Open-Ear Bluetooth Sport Headphones
User Guide

Contents hide

Charge
Charge the headphones with the included USB-C charging cable. The LED indicator will change from red to blue when charging is complete.
Pair
Begin with your headphones powered off. Enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
Connect
Open your device’s Bluetooth® menu and select “OpenMove by AfterShokz.” Audrey will say “connected” and the LED indicator will flash blue one time.

Let us take care of you! Protect your headphones against defects. Make sure to register your OpenMove at Aftershokz.com

Function	Action	Prompt / “Audrey Says
Skip to the next song	Double-click while music is playing	One beep
Skip to the previous song	Triple-click while music is playing	One beep
Switch language	Double-click while pairing	“English”
Answer call	Click once	Two beeps
End call	Click once	One beep
Answer call waiting and hang up on current caller	Press and hold for 2 seconds	One beep
Reject a call	Press and hold for 2 seconds	Two beeps
Activate the device’s voice assistant	Press and hold for 2 seconds	Device beep
Redial last number	Double-click (when idle)	“Redial last number’

Function	Action	Prompt / “Audrey Says™”
Power on	Press and hold volume+ for 2 seconds	“Welcome to AfterShokz”
Power off	Press and hold volume+ for 3 seconds	“Power off”
Mute	Press and hold both buttons for 2 seconds while on a call	“Mute on” or “Mute off”
Switch EQ	Press and hold both buttons for 3 seconds while music is playing	“Standard mode / Vocal booster mode / Earplug mode”
Check battery status	Click the volume+ or volumebutton while the music is paused	“Battery high/Battery medium/ Battery low/Charge me”
Adjust volume	Click the volume+ or volume- button to adjust the volume while music is playing	One beep

Model number	AS660	Frequency response	20Hz – 20kHz
Speaker type	Bone conduction transducer	Speaker sensitivity	96 ± 3dB
Bluetooth® version	Bluetooth® v5.0	Microphone sensitivity	-40 ± 2dB
Wireless range	10 m	Frequency band	2402 – 2480MHz
Battery	Rechargeable Li-Polymer battery	Battery capacity	135 mAh
Continuous play	Up to 6 hours	Standby time	Up to 10 days
Charge time	2 hours	Charge voltage	5.25V ± 5%
Charge type	USB-C	Speaker impedance	8.0 ± 0.5ohm
Water resistance	IP55	Maximum RF output power	4dBm
Weight	29 g	Warranty	2 years
Compatible proﬁles	HSP, HFP, A2DP AND AVRCP

Multipoint pairing allows OpenMove to be connected to two devices at once, allowing users to seamlessly transition between the two.

Begin with your headphones powered off.
Press and hold volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
Press and hold the multifunction button and volume+ button for 3 seconds. Audrey says “multipoint enabled”.
Open your first device’s Bluetooth ® menu and select “OpenMove by AfterShokz.” Audrey says “connected”.
Turn your headphones off.
Re-enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
Open your second device’s Bluetooth ® menu and select “OpenMove by AfterShokz.” Audrey says “connected”.
Turn your headphones off.
Turn your headphones on. Your headphones are now connected to both devices. Audrey says “connected” and “device 2 connected”.
To turn off multipoint pairing: Press and hold the multifunction and volume – buttons for 3 seconds when pairing. Audrey says”multipoint disabled”.

Begin with your headphones powered off.
Enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
Press and hold the multifunction button, volume+ button, and volume- button (all three buttons) simultaneously for 3-5 seconds, until you hear two beeps or feel vibrations.
Turn your headphones off. OpenMove is now reset and can be re-paired to your device.

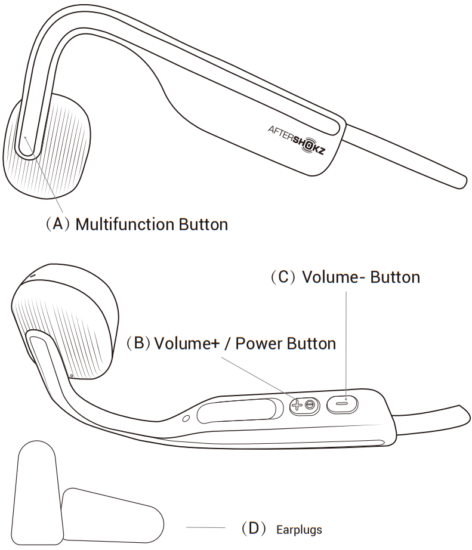

Earplugs (D)
Use earplugs with headphones in environments where it is safe to block out ambient noise, such as on a train or airplane.

Roll earplugs firmly between fingers and place in the ears.
To adjust EQ settings for earplugs, press and hold volume+ and volume- buttons simultaneously while music is playing. Continue through options until “earplug mode.”
Switch EQ to other settings when you take out the earplugs.
