OPENMOVE S661
User Guide

How It Works

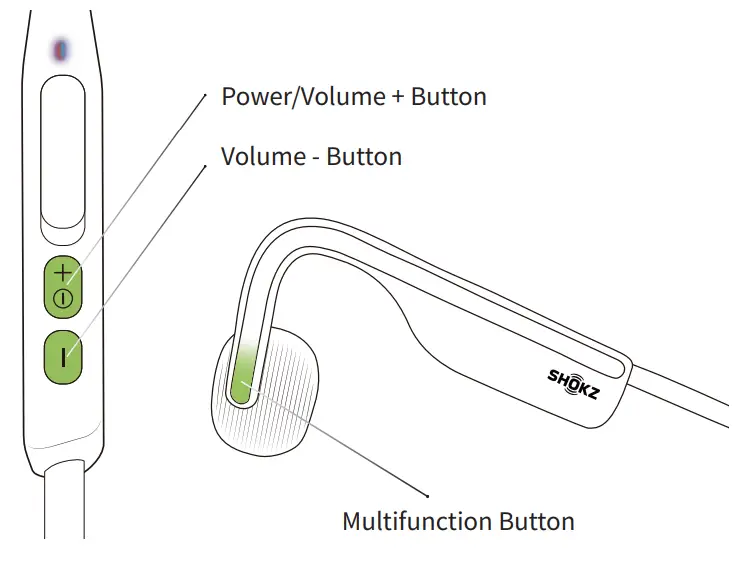

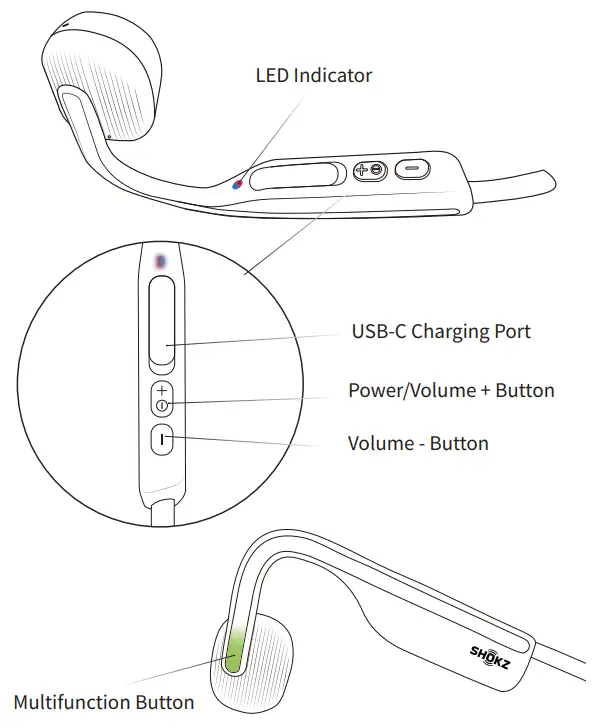

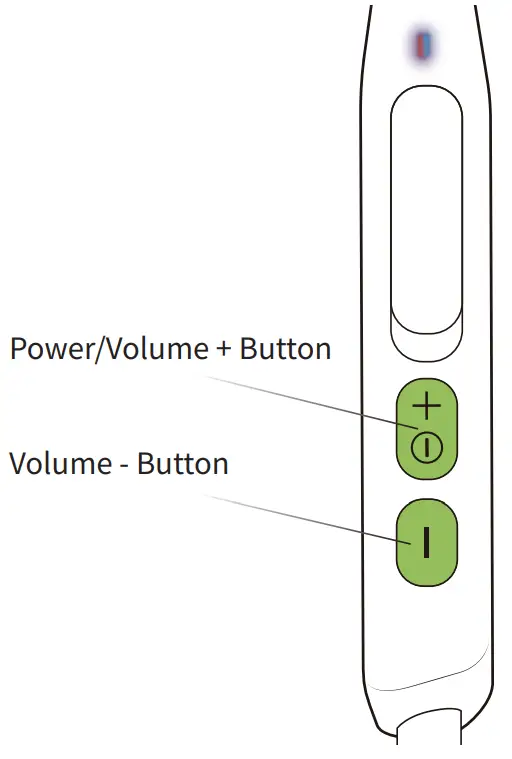

Headphone Controls

ON/OFF

Turn on the headphones：
Press and hold the Power/Volume + Button until the LED Indicator ﬂashes blue.
*Audrey will say： “Welcome to Shokz”

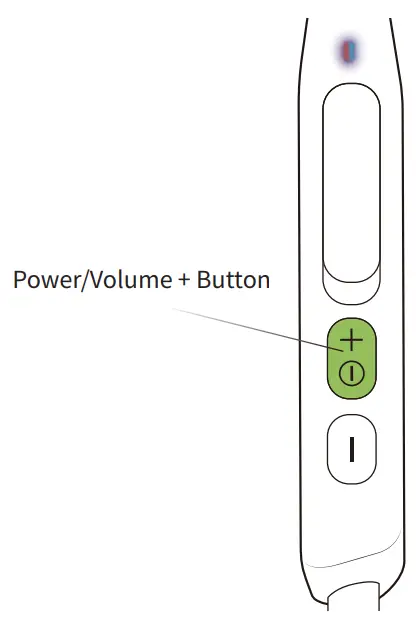

Turn oﬀ the headphones：
Press and hold the Power/Volume + Button until the LED Indicator ﬂashes red.
*Audrey will say： “Power oﬀ”

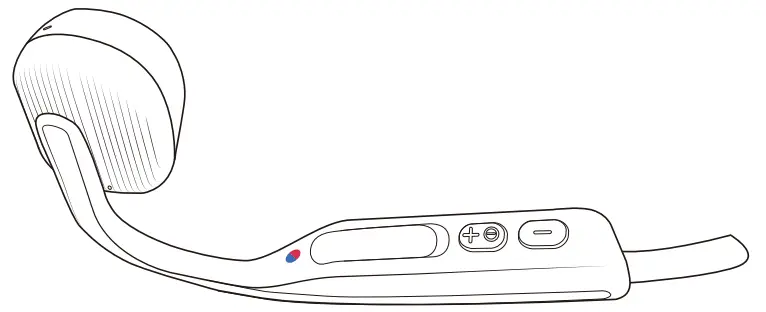

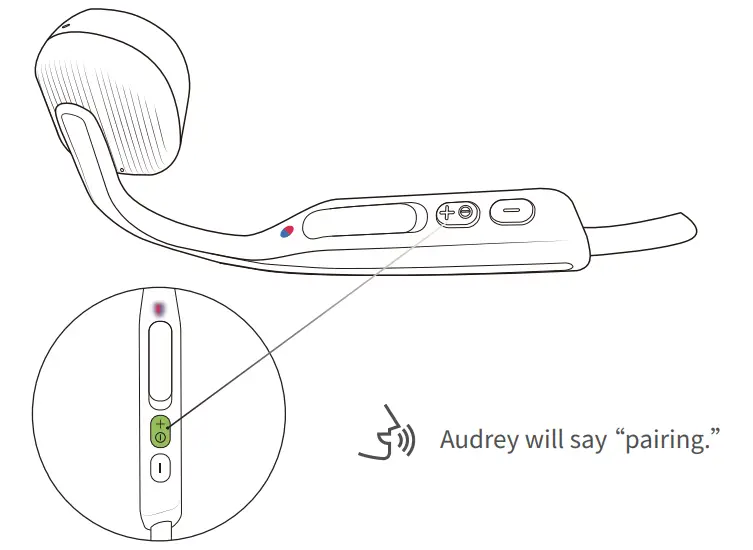

Pairing

Start with OpenMove turned oﬀ.
Press and hold the Volume + Button until the LED Indicator ﬂashes red and blue alternately.

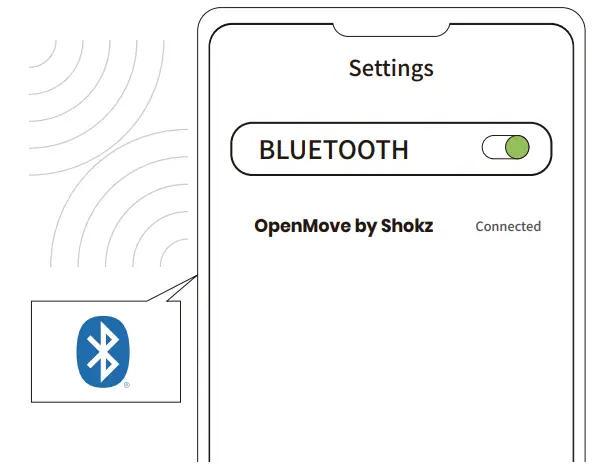

Open your device’s Bluetooth settings and select ” OpenMove by Shokz.” Audrey will say “connected.”

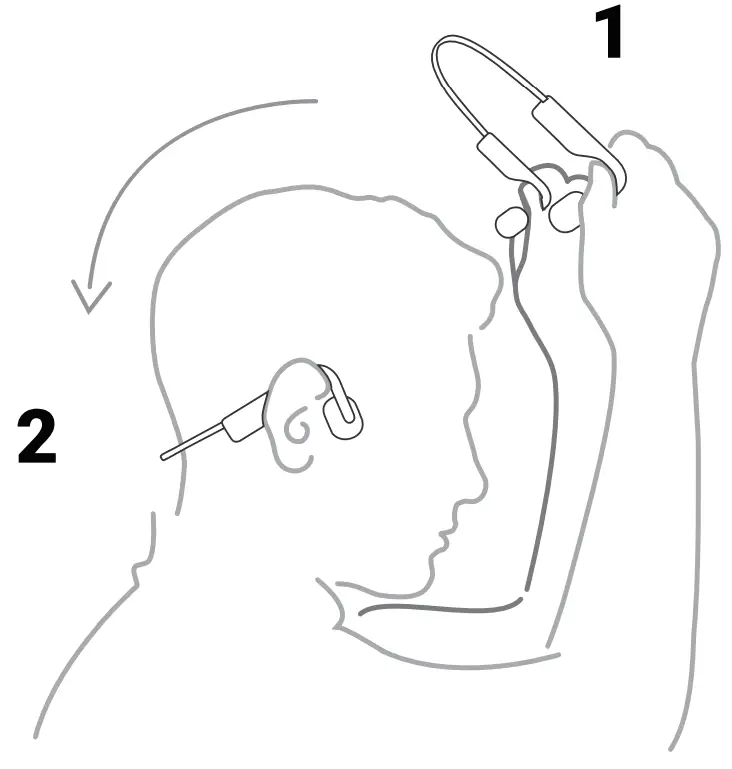

How to Wear

Pick up the headphones, bring them behind the back of the base of your neck, position the ear hooks on your ears, then enjoy your music!
*Wearing your headphones the wrong way could cause discomfort. The transducers should rest in front of your ears.

Volume

Operate volume controls while audio is playing.

How to change volume:
While your audio is playing, adjust headphone volume by pushing either the Volume + or Volume ‒ buttons.
*Listening with headphones at a high volume may aﬀect your hearing and the audio will be distorted.
*A “beep” will sound when the volume is at its max.

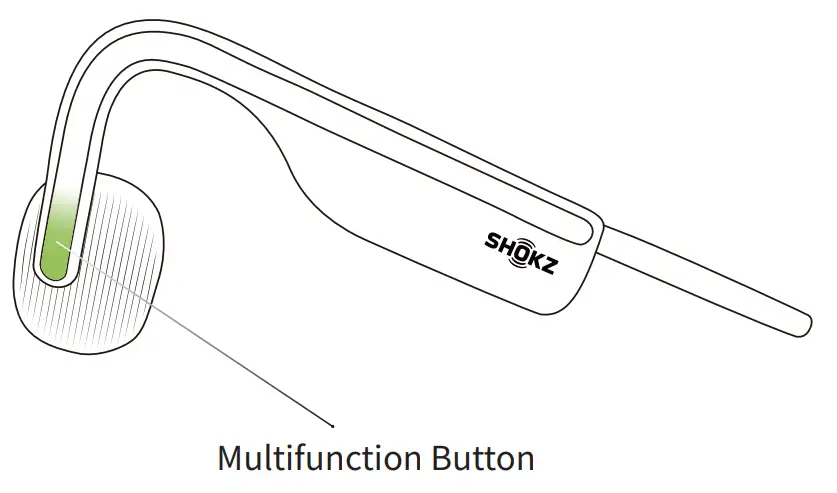

Multifunction Button

	Play/pause music Click once
	Answer call Click once
	Next song Double-click while music is playing
	End call Click once
	Previous song Triple-click while music is playing

Multifunction Button

Play music	Click once
Pause music	Click once
Next song	Double-click while music is playing
Previous song	Triple-click while music is playing
Switch language	Double-click while pairing
Answer call	Click once
End call	Click once during a call
Answer call waiting and end the current call	Press and hold for 2 seconds when receiving a second call
Ignore a call	Press and hold for 2 seconds during an incoming call
Activate voice assistant	Press and hold for 2 seconds when the device is on standby
Redial last number	Double-click on standby

*Only applicable for phone calls, not online calls

Check Battery Status

Operate controls while audio is not playing

How to check battery status：
Click the Volume + or Volume – button while music is paused, Audrey will tell you the battery status:
* “Battery high/Battery medium/Battery low/Charge me”

Extra Features

EQ Modes

Standard Mode：
Balanced frequency for listening to music

Vocal Booster Mode：
Enhanced intermediate frequencies for audiobooks, podcasts, etc.

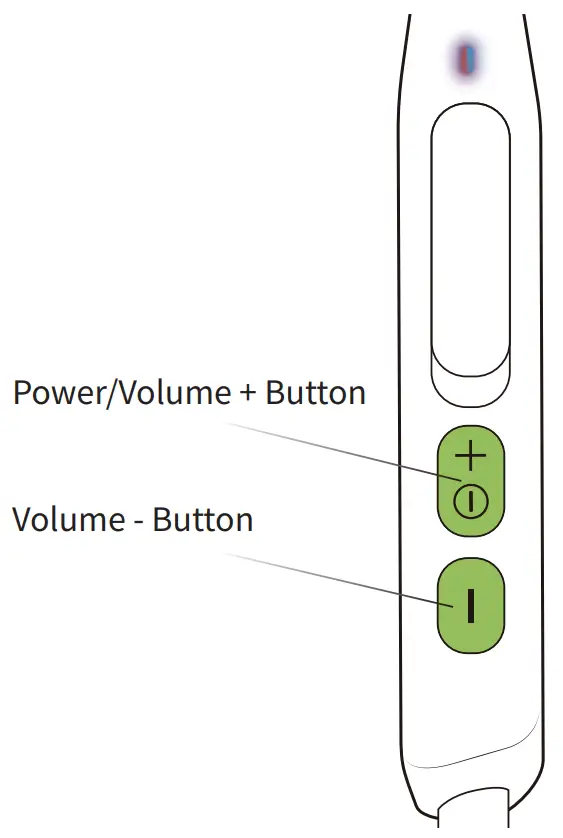

Switching EQ Modes

Operate controls while music is playing

How to switch EQ mode：
Press and hold both buttons （Power/Volume + Button and Volume – Button）while music is playing until you hear a beep.
*Audrey will say： “Standard Mode/Vocal Booster Mode.”

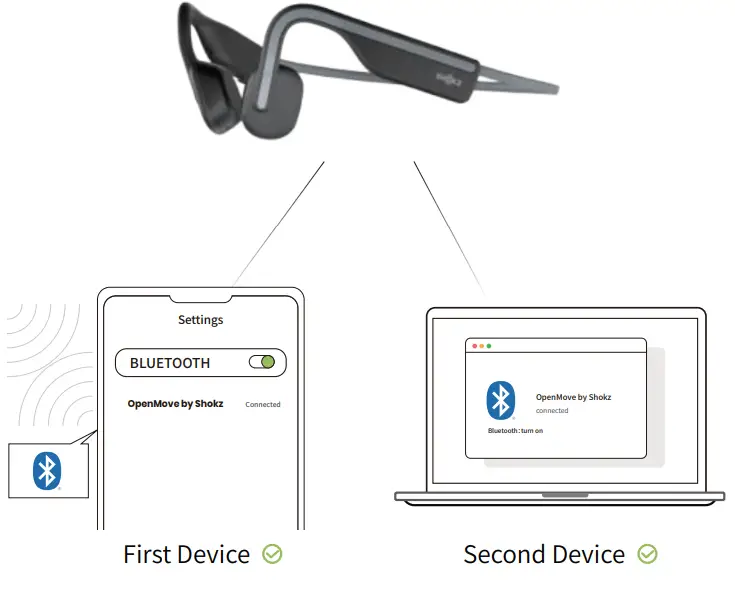

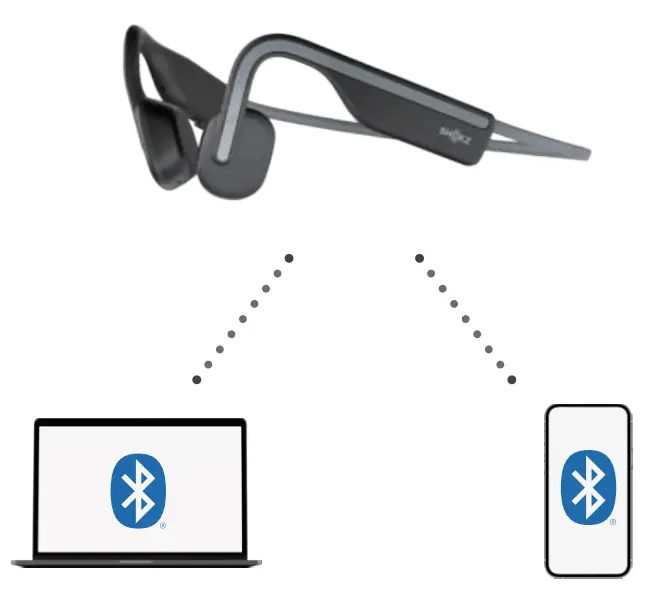

Multipoint Pairing

Switch between two devices
seamlessly with multipoint pairing Pair Two Devices

Multipoint Pairing

Operate controls with headphones powered oﬀ

Start with your headphones powered oﬀ.

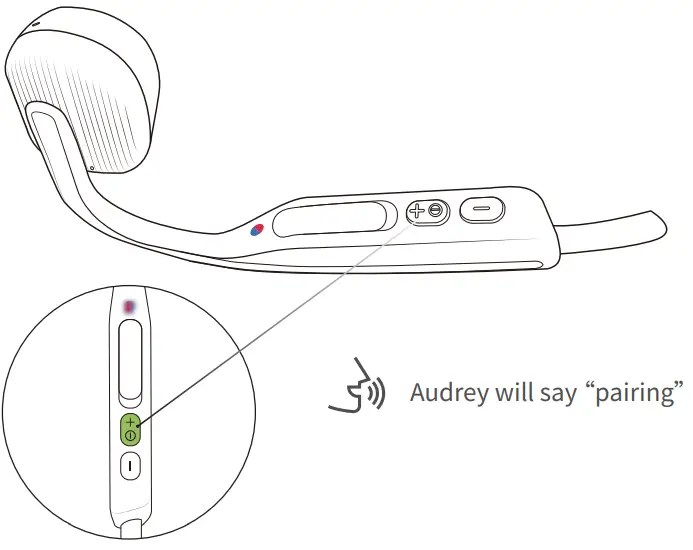

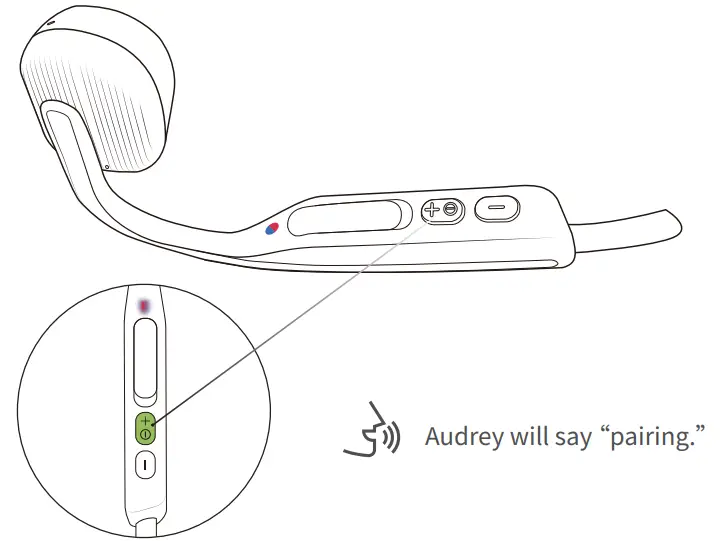

Press and hold Volume + until Audrey will say “pairing” and the LED indicator ﬂashes red and blue alternately. Audrey will say “multipoint enabled.”

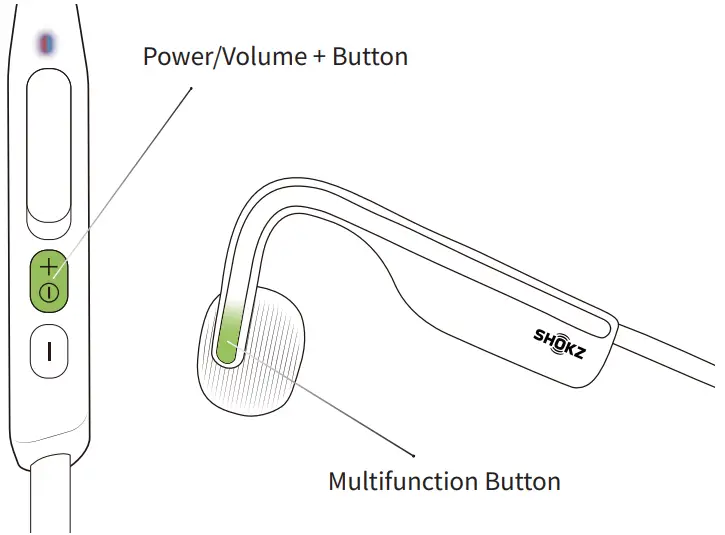

Press and hold the multifunction button and Volume + button until Audrey says “multipoint enabled.” Audrey will say “connected”.

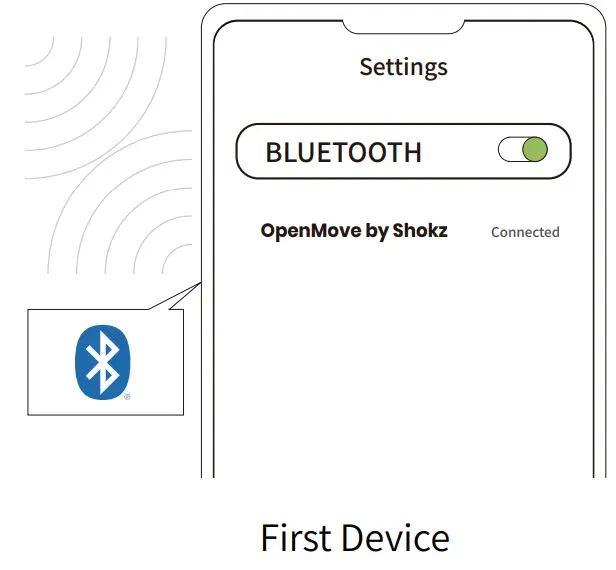

Open ﬁrst device’s Bluetooth® menu and select “OpenMove by Shokz.”Audrey will say “connected”.
Turn your headphones oﬀ. Audrey will say “connected”.
Re-enter pairing mode by pressing and holding Volume + until Audrey says “pairing” and the LED indicator ﬂashes red and blue alternately.

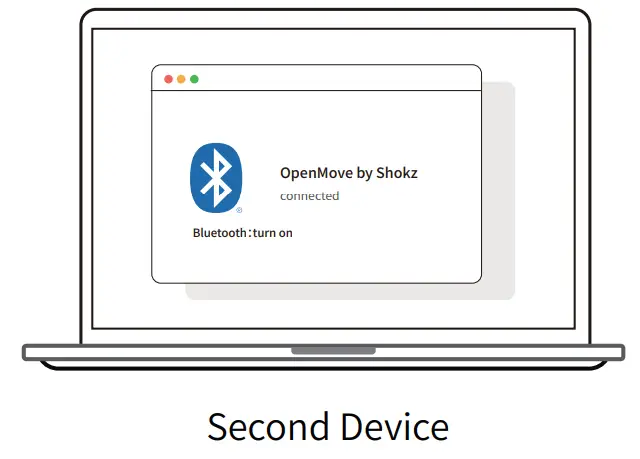

Open the second device’s Bluetooth® menu and select “OpenMove by Shokz.”Audrey will say “connected.”
Turn your headphones oﬀ. You will hear a beep, then Audrey will say “Welcome to Shokz, connected. The second device connected.”
Turn your headphones on. Your headphones are now connected to both devices.

Turn Multipoint Pairing Oﬀ

Operate controls with headphones powered oﬀ.

Start with your headphones powered oﬀ.

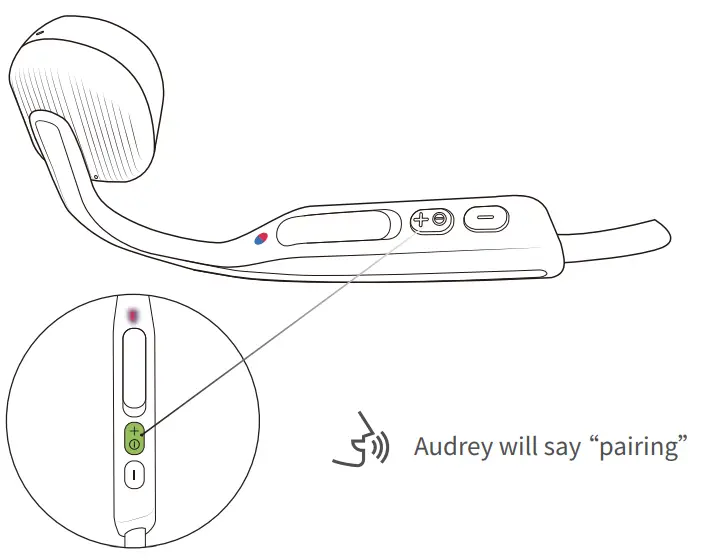

Press and hold Volume + until Audrey will say “pairing” and the LED indicator ﬂashes red and blue alternately.

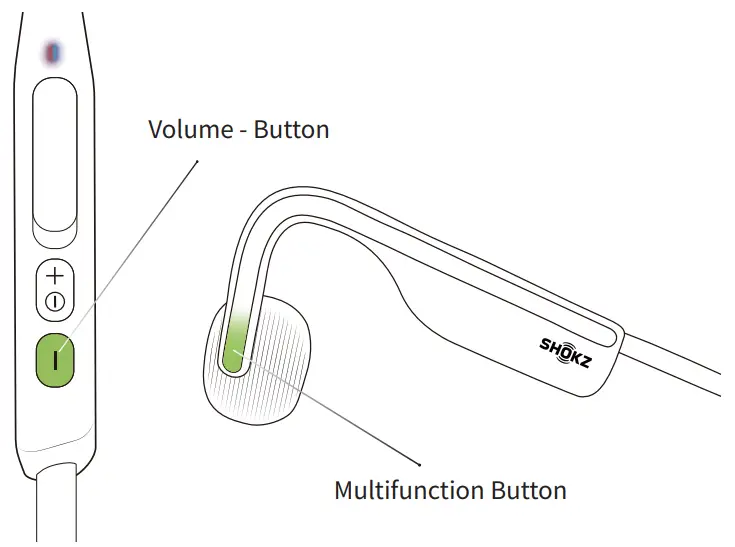

Press and hold the multifunction button and Volume – button until Audrey will say “multipoint disabled.”

Restore Factory Settings

Operate controls with headphones powered oﬀ.

Start with your headphones powered oﬀ.
Press and hold Volume + until Audrey will say “pairing.” and the LED indicator ﬂashes red and blue alternately.
Press and hold the multifunction button, Volume ‒ button, and Volume + button until hearing two beeps and feel the vibration.
Turn your headphones oﬀ. OpenMove is now reset and can be re-paired to your device.

Changing Languages

Your headphones have four built-in languages:
Chinese, English, Japanese and Korean.
Follow the instruction when headphones are powered oﬀ

Start with your headphones powered oﬀ.
Press and hold Volume + until Audrey will say “pairing” and the LED indicator ﬂashes red and blue alternately.

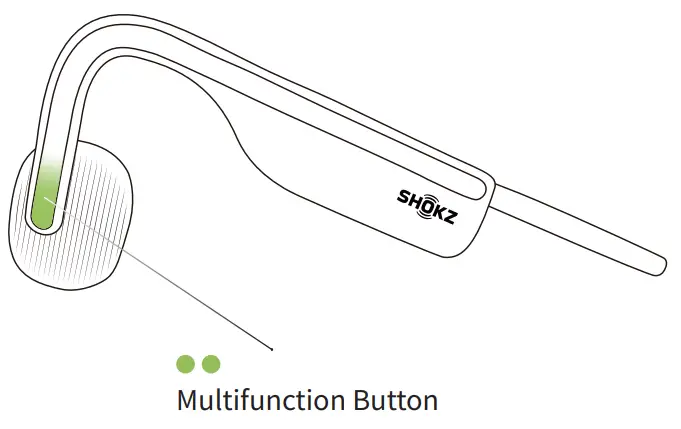

Double-press the multifunction button. Languages have been switched when you hear the corresponding language.

Care and Maintenance

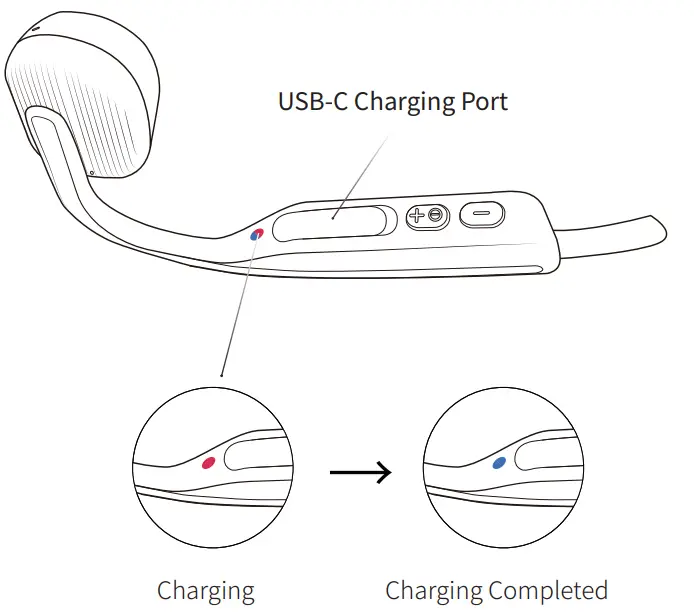

Charging Tips

The headset will automatically shut down when charging

When the headphones are at low battery, there will be a “charge me” prompt and the red light will ﬂash intermittently. Use the corresponding USB-C cable for charging.
The LED indicator will turn red during the charging process and the headphones will automatically turn oﬀ. The LED indicator will turn from red to blue when charging is complete.

Storage and Maintenance

Store the headphones in a cool, dry place. The working temperature should be 0~45°C(32~113°F). Working in a cold/hot temperature, highly humid area, or low air pressure environment may reduce the battery life.
Keep the product away from heat sources, direct sunlight, combustible gas, or other liquids.
Keeping the charging port dry before connecting to the charger will reduce the risk of damage.
These headphones are water-resistant but are not waterproof.
Please do not submerse the headphones in water.
Clean the headphones with a soft dry cloth.
Do not charge right after exercising, in case there’s sweat inside the charging port, which could lead to circuit burning while charging.
After storage for a long period, please charge the headphones before using them again.

Note
Design and speciﬁcation are subject to change without notice. For the most up-to-date product information, please visit https://shokz.com.
Warning
To avoid the risk of explosion, ﬁre, or leakage from toxic chemicals, please do not disassemble the product or replace, deform, or mutilate the battery.

Warranty

Your headphones are covered by a warranty.
Visit our website at https://shokz.com/pages/warranty-landing for details of the limited warranty.
*Failure to register will not aﬀect your limited warranty rights.

Troubleshooting

If you have any trouble or problems, please visit https://shokz.com/pages/faq for more support!

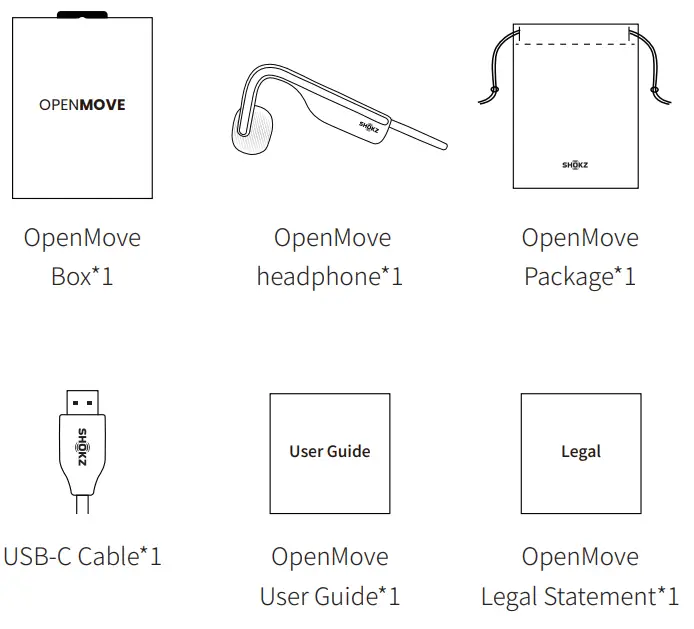

What’s in the Box

If any part of your product is damaged or missing, do not use it.
Contact authorized Shokz dealer or Shokz customer service.
*Please note that the packaging envelope may vary depending on the sales region.

Regulatory and Legal Information

FCC Caution
Any changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment oﬀ and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of speciﬁc absorption rate (SAR).

Responsible party (contact for FCC matters only): AfterShokz LLC.
3200 Gracie Kiltz Lane, Suite 400 Austin, TX 78758 USA https://shokz.com

Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
CE Declaration of Conformity
Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU Directive requirements. The complete declaration of conformity can be found at:
https://shokz.com/pages/policies. Shokz’s EU representative is AfterShokz Euro B.V., Schipholweg 103, 2316XC Leiden, Netherlands.

Frequency Range	Max. Transmit Power
2400-2483.5MHz	1dBm(EIRP)

UK Declaration of Conformity
Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and all other applicable United Kingdom regulations. The complete declaration of conformity can be found at: https://shokz.com/pages/policies.
Shokz’s authorized representative in the UK is Pinpoint Consumer Electronics Ltd., Unit 35, Meridian House, Road One, Winsford Industrial Estate, Winsford, Cheshire CW7 3QG.
WEEE Declaration of Conformity
This WEEE logo means that this product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling help protect natural resources, human health, and the environment. For more information on the disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.
