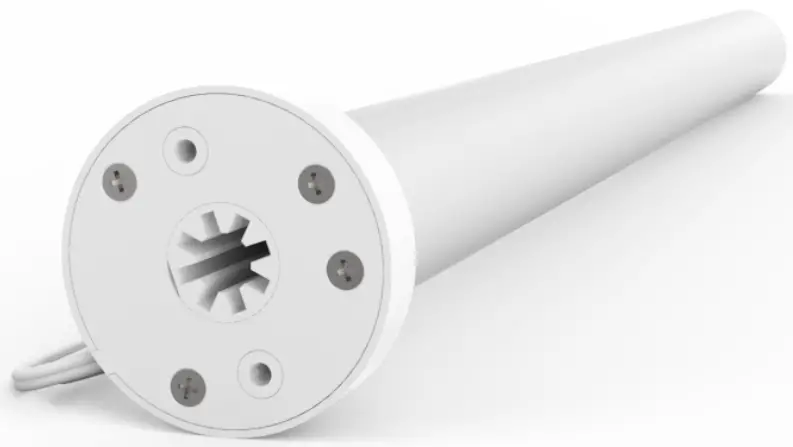

MTDCRFQ28-2 DCRF Q2 12VDC Roller Shade Motor
User Guide
DCRF Q2.0
Simplified wiring. Efficient installation. Maintenance free. This low voltage motor is perfect for small to large Roller shade applications.
BIDIRECTIONAL COMMUNICATION
Automate Radio Communication utilizes two-way communication to provide up-to-date feedback on battery levels and shade positioning via the Automate Pulse 2 app.
SIMPLIFIED SETUP
Whether using a remote control or app for shade setup, Automate programming instructions are streamlined to have your shades moving as quickly as possible.
PRECISE LIMIT ADJUSTMENT
Incremental steps during limit setting allow for precise positioning of the shade.
ADJUSTABLE SPEED CONTROL
Three shade speed settings to suit your needs faster for larger shades, slower for smaller ones. Features quiet operation when set to the lowest speed setting.
FAVORITE POSITIONING
Add a programmable shade position in addition to the upper and lower limits that can be defined as your “favorite”.
Automate Radio Communication
MTDCRFQ28-2_DCRFQ2.0
Motor_31032022
PRODUCT SPECIFICATIONS
Part #: MTDCRFQ28-2
Automate DCRF Q2.0
| Voltage | 12V DC | Limit Switch Type | Electronic |
| Torque | 2Nm | Current | • 16A |
| Max Run Time | 10 Min | Battery Size/Type | External Battery Pack |
| Speed | 28 RPM (Adjustable to 24 or 20) | Temp Working Range | 32°F to 140°F (0°C to 60°C) |
| Radio Frequency | 433.92 MHz | Insulation Class | III |
| RF Modulation | FSK | Sound Level | ˜ 44 dB |
| IP Rating | IP44 | Power | “3W |

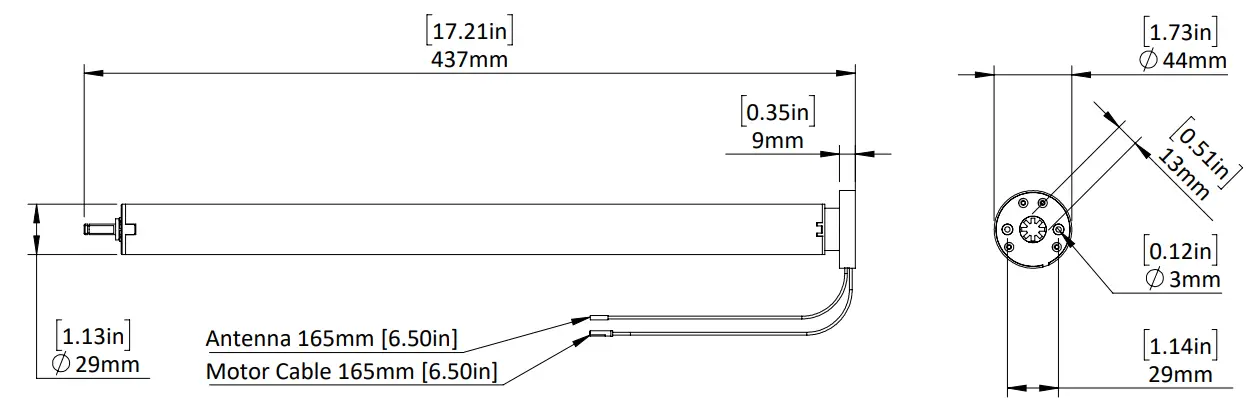

DIMENSIONS
COMPATIBLE PARTS

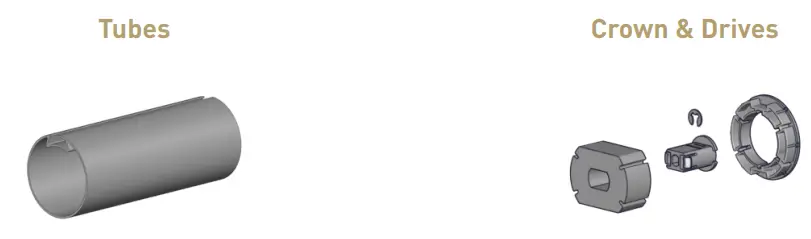

COMPATIBLE PARTS
| S45 – Light | MTCRDR-28-S45 |
| S45 – Std | |
| S45 – HD | |
| 1.5′ Tube | MTCRDR-28-1.5 |
| 2′ Tube | MTCRDR-28-2 |
| Octagonal 40 Tube (SS40 only) | VB40-0306-050408 + VB40-0134-050404 |

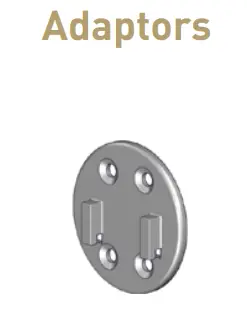

- MTAD-252835-SL
- MTAD-25-28-SLV2W
- MTAD-252835-RS
- RB40-1402-069400
COMPATIBLE SYSTEMS
- S45 Roller Shades
- Skyline Roller Shades
- R Series Roller Shades
- SS40 & SS48 Roman Shades (AU Only)
COMPATIBLE ACCESSORIES (refer to catalog for full item listings)

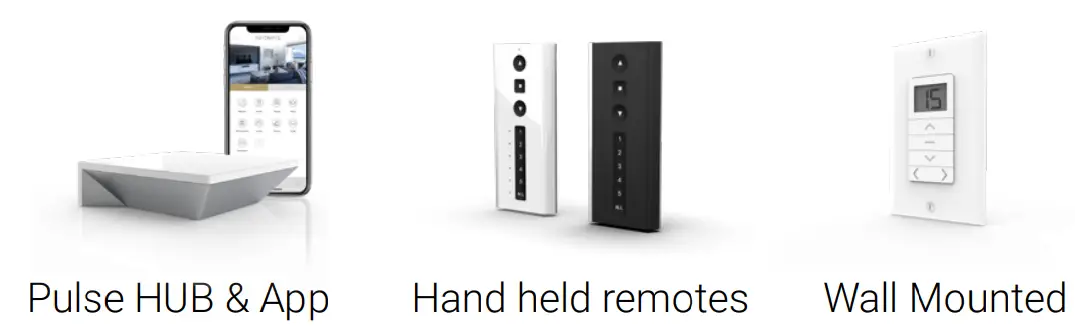

Controllers

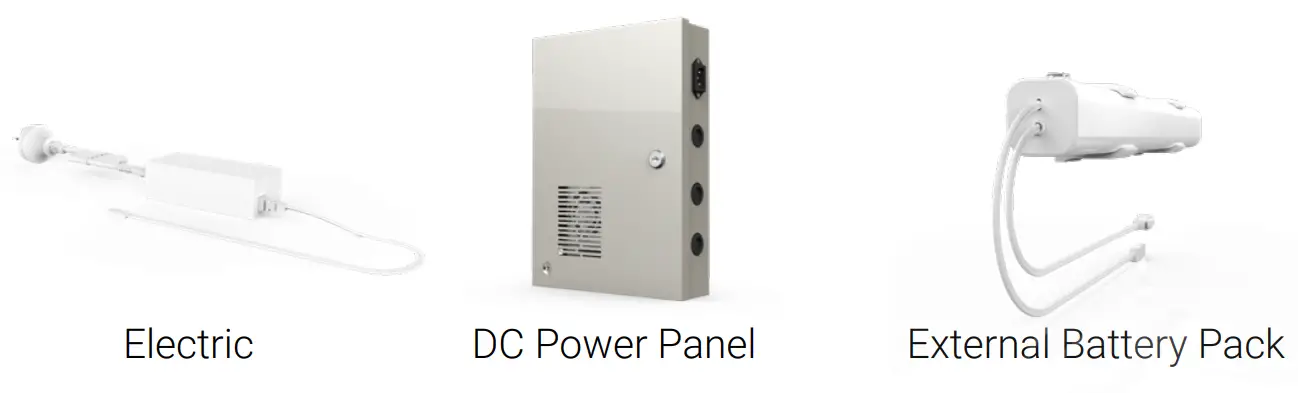

Charging Options
