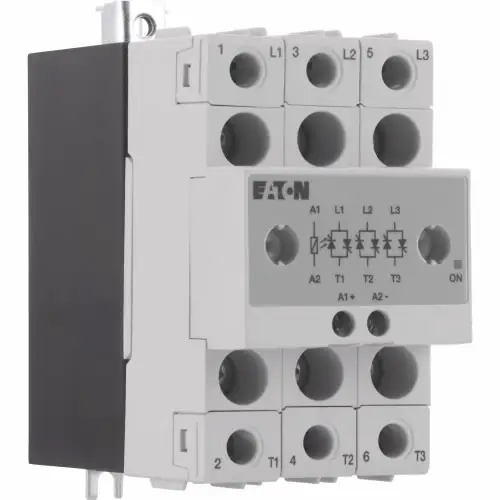

EATON HLR20-3 Moeller Series HLR Solid State Relay

Instruction Leaflet

Electric current! Danger to life!
Only skilled or instructed persons may carry out the following operations

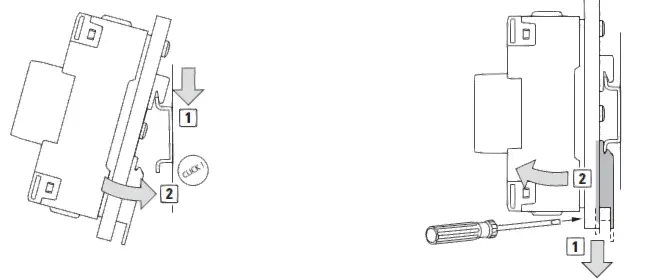

Mounting on DIN rail

Terminations

1/L1,3/L2,5/L3,2/T1,4/T2,6/T3

HLR20/3…		HLR20/3…		HLR30/3…
a = 12 mm (0.47″)		a = 12 mm (0.47″)		UL: a = 11 mm (0.43″)
				IEC: a = 12 mm (0.47″)
2 x 2.5 – 6.0 mm2		1 x 2.5 – 6.0 mm2		1 x 2.5 – 25 mm2
(2 x 14 – 10 AWG)		(1 x 14 – 10 AWG)		(1 x 14 – 3 AWG)
2 x 1.0 – 2.5 mm2		1 x 1.0 – 4.0 mm2		1 x 2.5 – 16 mm2
(2 x 18 – 14 AWG) 2 x 2.5 – 4.0 mm2		(1 x 18 – 12 AWG)		(1 x 14 – 6 AWG)
(2 x 14 – 12 AWG)
2 x 1.0 – 2.5 mm2	1 x 1.0 – 6.0 mm2		1 x 4.0 – 25 mm2
(2 x 18 – 14 AWG) 2 x 2.5 – 6.0 mm2	(1 x 18 – 10 AWG)		(1 x 12 – 3 AWG)
(2 x 14 – 10 AWG)
M4, Posidriv 2	M4, Posidriv 2		M5, Posidriv 2
UL: 2.0 Nm (17.7 lb-in)	UL: 2.0 Nm (17.7 lb-in)		UL: 2.5 Nm (22 lb-in)

￫Use 75 °C copper (Cu) conductors

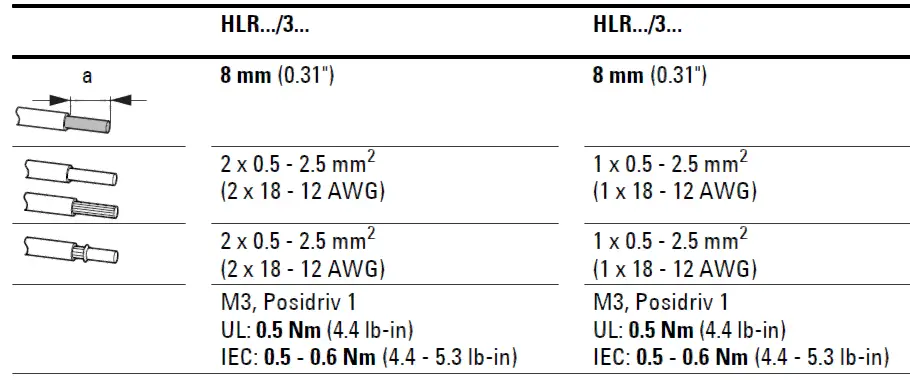

A1(+), A2( – )

￫Use 60/75 °C copper (Cu) conductors
