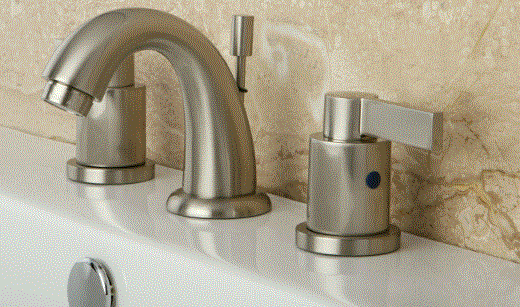

BTC28054NS 4 Inch Centerset Double Handle High Arc Bathroom Sink Faucet
Product Information: This product is a spout assembly with
handles that is designed to be installed on a sink. It comes with a
gasket, bracket, nut, washers, threaded rings, quick connects, and
hoses. The spout assembly is made to fit through a sink opening and
secure in place using the provided bracket and nut. The handles are
attached to the spout assembly using washers and threaded rings.
The quick connects are used to connect the spout assembly to the
water supplies. This product is suitable for both hot and cold
water supplies. Product Usage Instructions: 1. Fit the
gasket onto the underside of the spout. 2. Insert the spout through
the sink opening. 3. Slide the bracket and washer onto the stud. 4.
Thread the nut onto the stud and tighten. 5. If the sink is uneven,
use silicone under the gasket for a secure fit. 6. Loosely attach
each handle to the spout assembly using a washer and a threaded
ring. Ensure that the handles are in the OFF position. 7. Align the
handles as shown in the diagram. 8. Align tabs (1) and tabs (2) on
the quick connects. 9. Push the quick connects firmly upward and
snap them onto the receiving tube tab (1). Pull down moderately to
ensure each connection has been made. 10. Connect the product to
the water supplies using the provided hoses. 11. Turn on the water
supplies. 12. Check all connections for leaks. Please note that
these instructions are a summary of the user manual. For detailed
installation steps and safety precautions, refer to the complete
user manual that came with the product.
Installation Guide
1 Fit the gasket onto the underside of the spout. Insert the spout through the sink opening. Slide the bracket and washer onto the stud Thread the nut onto the stud and tighten.
1/2″ FIP Hose
Rags
or
1 Place spout with gasket through mounting hole in sink. Secure spout with bracket and nut. Note: If sink is uneven, use silicone under the gasket.
2 Loosely attach each handle with a washer and a threaded ring. Ensure the handles are in the OFF position Align the handles as shown.
3 Align tabs (1) and tabs (2) on quick connects (3). Push
quick connects firmly upward and snap onto receiving tube tab (1). Pull down moderately to ensure each connection has been made.
4 Connect To Water Supplies.
1
1 3 1
3 3
2
Hot Caliente Eau Chaude
Cold Fría Eau Froides
5 Turn on the water supplies.Check all connections for leaks.
