Hanwha Techwin Sbp-301hm5 Series Hanging Mount Adaptor User Guide

SBP-301HM5 Series Hanging Mount Adaptor
User Guide
SBP-301HM2/SBP-301HMW2
SBP-301HM3/SBP-301HMW3
SBP-301HM5

Package

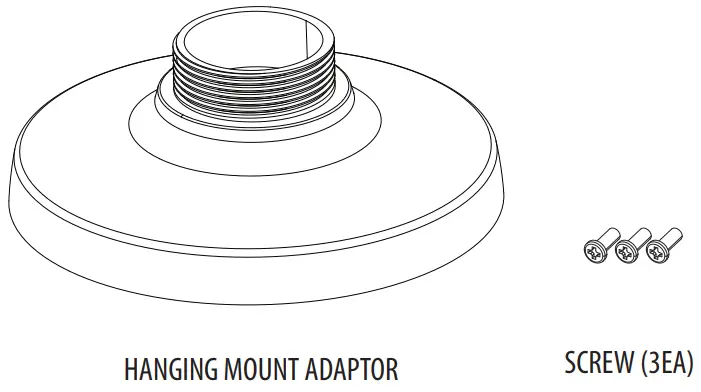

SBP-301HM2/SBP-301HMW2/SBP-301HM5

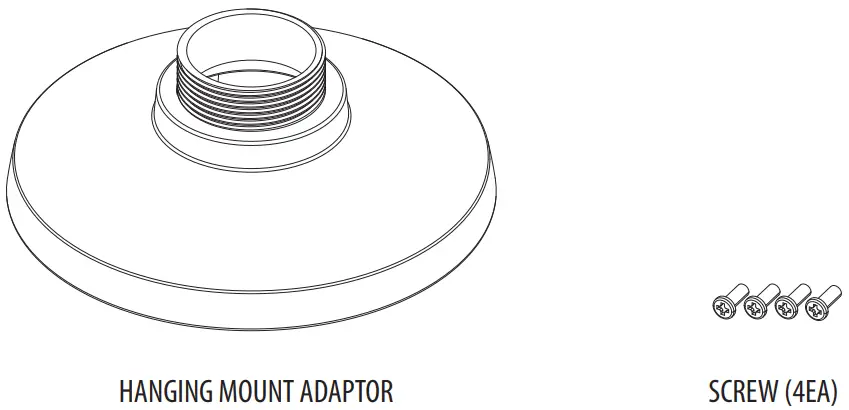

SBP-301HM3/SBP-301HMW3

Product Overview

This product is used to install the Anti Vandal Camera or Plastic Camera into the Wall Mount Adaptor (SBP-300WM or SBP-300WM1), Ceiling Mount Adaptor (SBP-300CM) or Parapet Mount Adaptor (SBP-300LM).

Installation Precautions

• Make sure that the installation place can endure at least 4 times of the total weight of the Hanging Mount Adaptor, Camera, and Wall/Ceiling/Parapet Mount Adaptor.
• The Hanging Mount Adaptor can be also connected to 1 1/2″ PF screw-thread pipe as well as to the Wall/Ceiling/Parapet Mount Adaptor.

Installation(SBP-301HM2/SBP-301HMW2/SBP-301HM5)

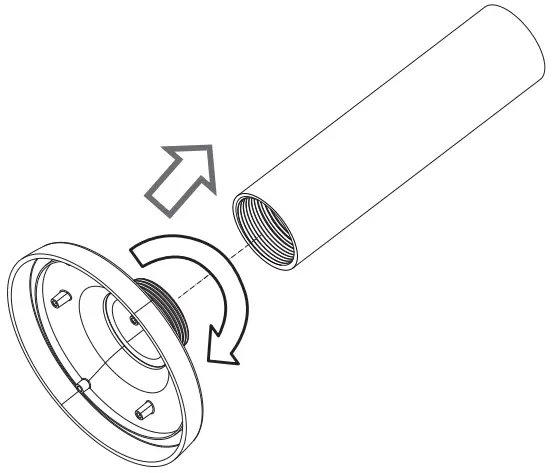

1. Insert the Hanging Mount Adaptor to 1 1/2″ PF screw-thread (female) pipe or to the Wall/Ceiling/Parapet Mount Adaptor (SBP-300WM or 300WM1/300CM/300LM) and turn it clockwise to secure to the Pipe or Adaptor.
   • Make sure you fix the Pipe or Adaptor so that it reaches to the end of the 1 1/2” PF screw thread on the Hanging Mount Adaptor. If not secured tightly, the Hanging Mount Adaptor may loosen from the Pipe or Adaptor, causing physical damage or malfunction.
   (Make sure you check the connection between two components before proceeding with the next step.)

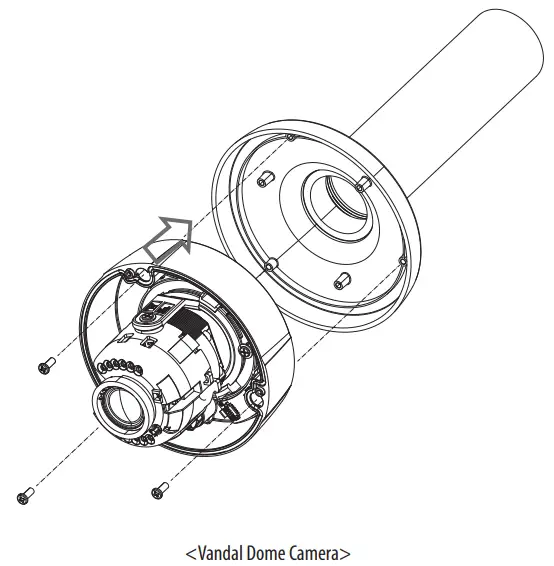

2. Install the Hanging Mount Adaptor onto the camera.
   • Make sure you insert the Adaptor in the right direction.

Installation(SBP-301HM3/SBP-301HMW3)

1. Insert the Hanging Mount Adaptor to 1 1/2″ PF screw-thread (female) pipe or to the Wall/Ceiling/Parapet Mount Adaptor (SBP-300WM or 300WM1/300CM/300LM) and turn it clockwise to secure to the Pipe or Adaptor.
   • Make sure you fix the Pipe or Adaptor so that it reaches to the end of the 1 1/2” PF screw thread on the Hanging Mount Adaptor. If not secured tightly, the Hanging Mount Adaptor may loosen from the Pipe or Adaptor, causing physical damage or malfunction.

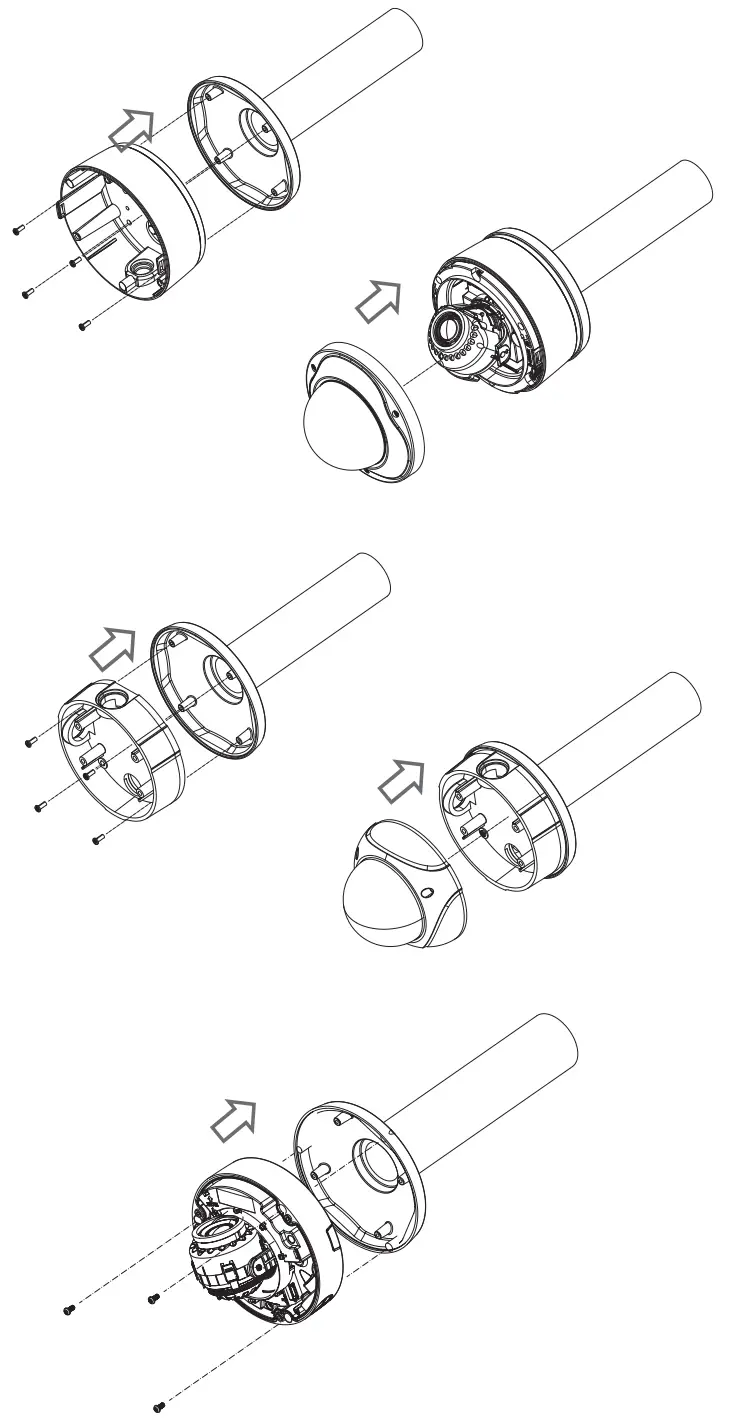

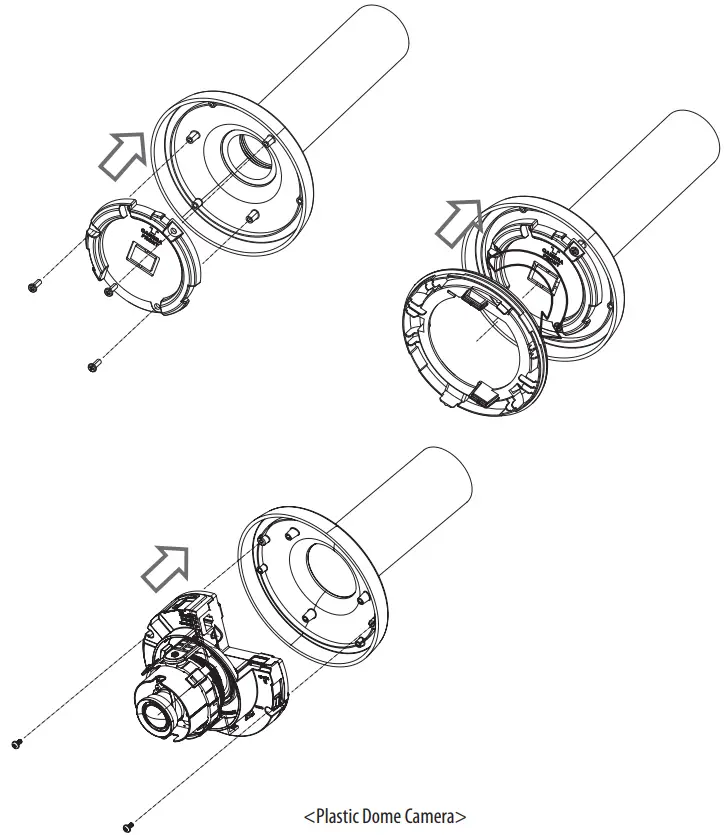

   (Make sure you check the connection between two components before proceeding with the next step.)2 Install the Hanging Mount Adaptor onto the camera.
   • Make sure you insert the Adaptor in the right direction.

PT01-001879H
