Hanwha Techwin SBP-317HMWP Hanging Mount Cup Adapter

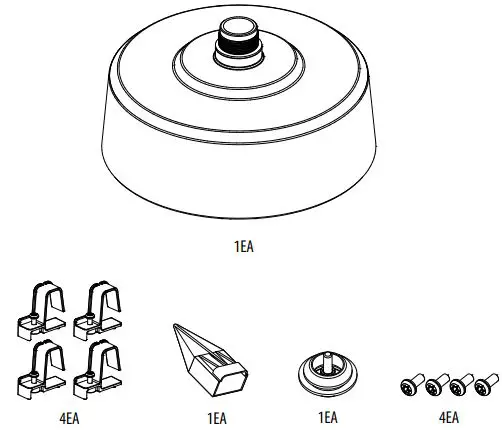

Package

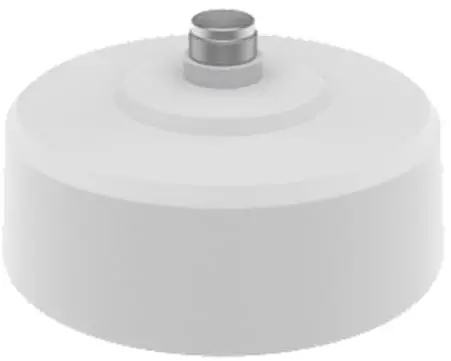

Product Overview
The SBP-317HMWP is a hanging mount that is used for mounting compatible cameras on wall mounts (SBP-390WMW2). (For compatible models, please visit our website.)
Installation Precautions
- Make sure that the installation place can endure at least 4 times of the total weight of the Hanging Mount Adaptor, Camera, and Wall/Ceiling/ Parapet Mount Adaptor.
- The Hanging Mount Adaptor can be also connected to 1 ½” PF screwthread pipe as well as to the Wall/Ceiling/Parapet Mount Adaptor.

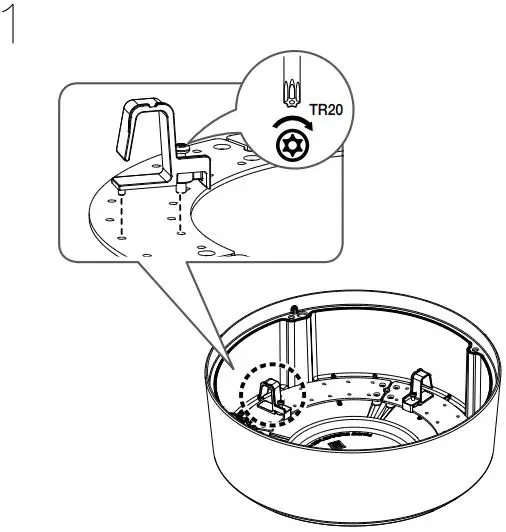

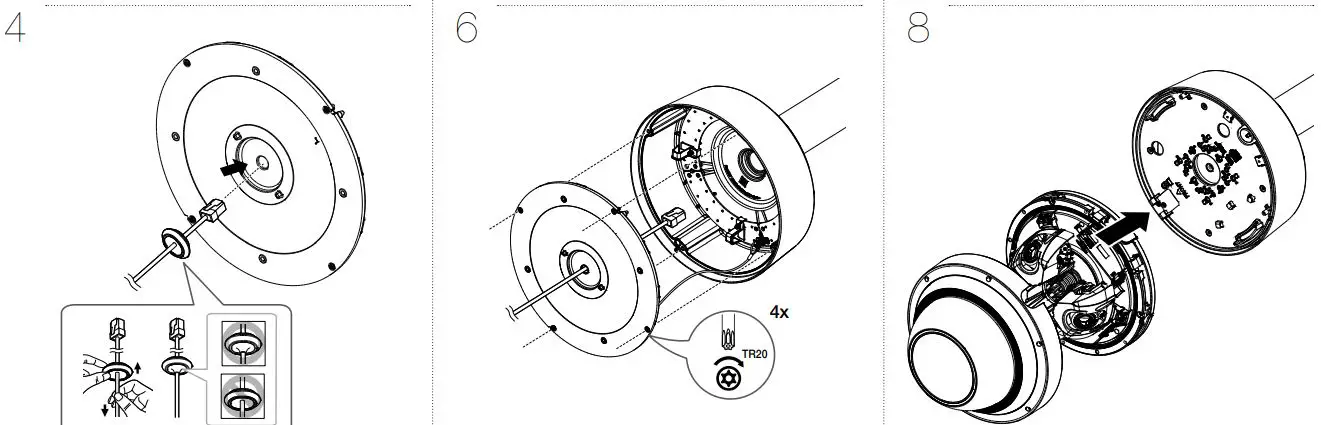

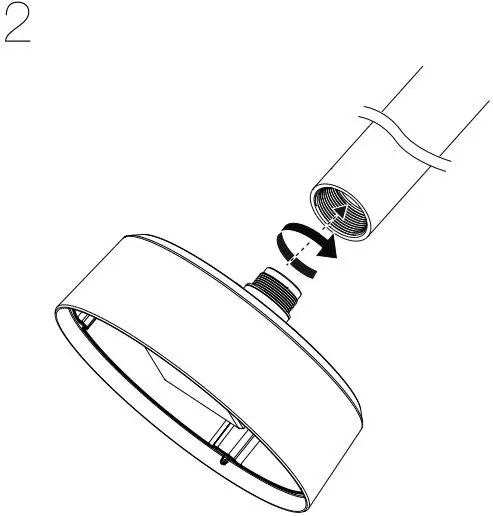

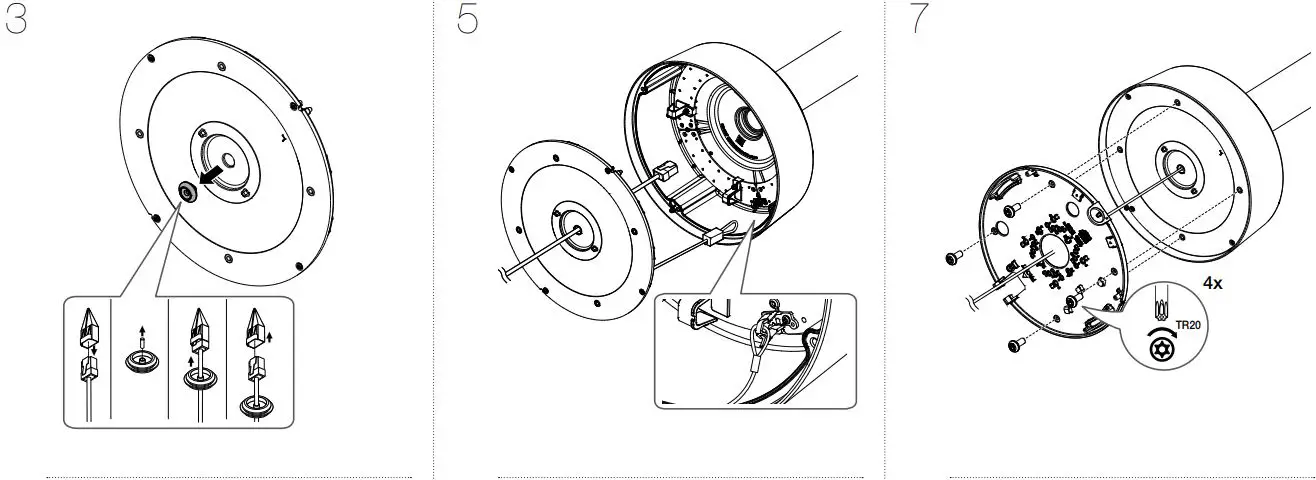

Installation
