T-7356V
NEEDLE SCALER
VACUUM READY
T-7356V Needle Scaler
OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH A FEW DROPS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR 1 SECOND TO COAT ALL INTERNAL PARTS.
RECOMMENDED:
MINI TUNE UP KIT PARTS 2,3,4,5,6,38,39,46,47,48
MAXI KIT ADD TO THE ABOVE- 7,9,28(2PCS),29, 30(2PCS),31,32,33,45
*USING PRESSURE GREATER THAN 90 PSI MAY CAUSE HEAVY WEAR AND WILL VOID THE WARRANTY
USE 90 PSI MAXIMUM

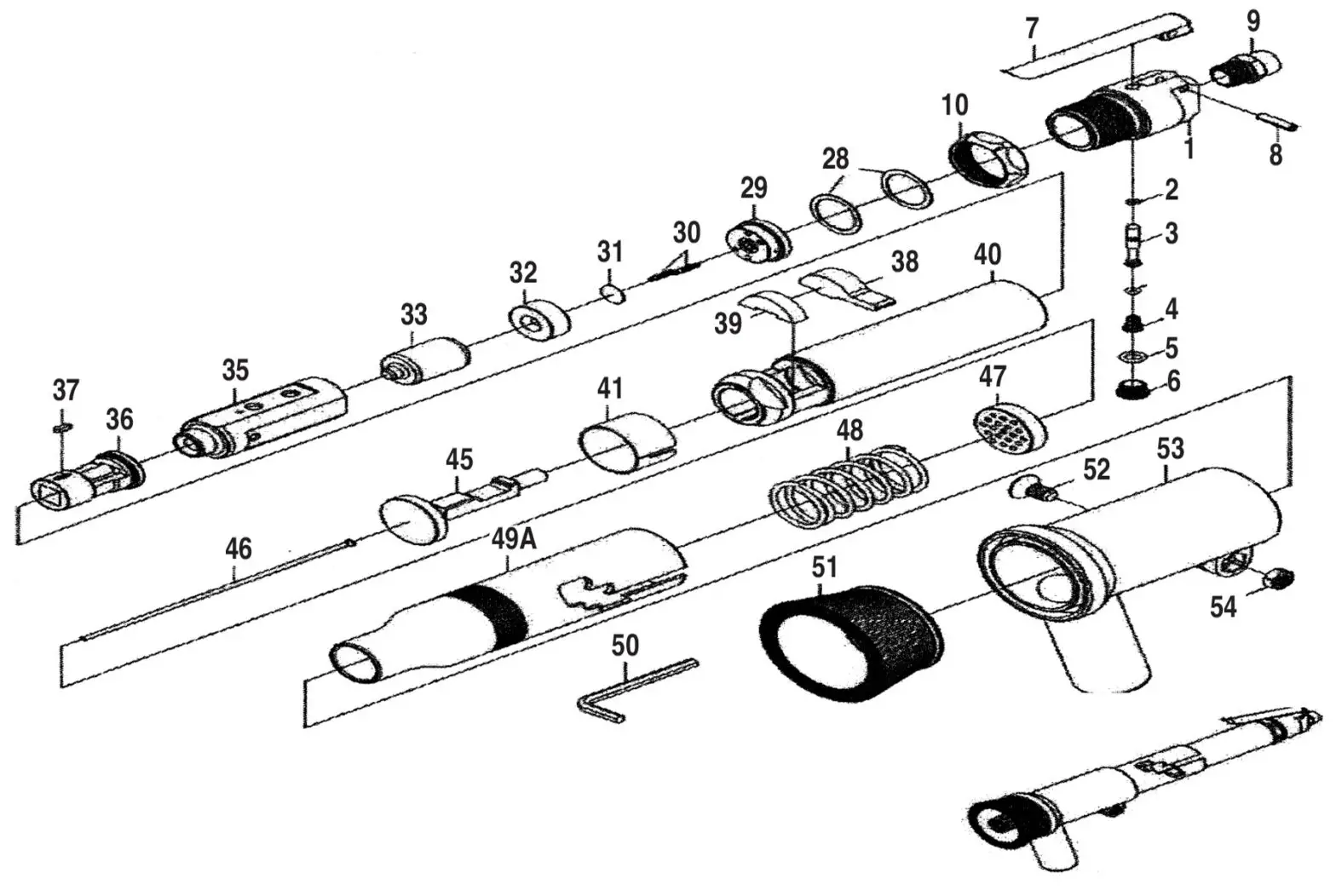

| REF # | PART # | DESCRIPTION | QTY |
| 1 | 735601 | BACKHEAD | 1 |
| 2 | 735602 | O-RING | 1 |
| 3 | 735603 | THROTTLE VALVE | 1 |
| 4 | 735604 | SPRING | 1 |
| 5 | 735605 | GASKET | 1 |
| 6 | 735606 | VALVE CAP | 1 |
| 7 | 735607 | LEVER | 1 |
| 8 | 735608 | PIN | 1 |
| 9 | 735609 | HOSE ADAPTER | 1 |
| 10 | 735610 | LOCKING RING | 1 |
| 28 | 735628 | ALIGNMENT SHIM | 2 |
| 29 | 735629 | REAR VALVE BLOCK | 1 |
| 30 | 735630 | PIN | 2 |
| 31 | 735631 | VALVE | 1 |
| 32 | 735632 | FRONT VALVE BLOCK | 1 |
| 33 | 735633 | PISTON | 1 |
| 35 | 735635 | BARREL SLEEVE | 1 |
| 36 | 735636 | NOSE | 1 |
| 37 | 735637 | KEY | 1 |
| 38 | 735638 | DRIVER RETAINER | 1 |
| 39 | 735639 | Retainer Buffer | 1 |
| 40 | 735640 | Barrel | 1 |
| 41 | 735641 | Clip | 1 |
| 45 | 735645 | Driver | 1 |
| 46 | T-735646 | Needle Set (19) | 1set |
| 47 | 735647 | Needle Holder | 1 |
| 48 | 735648 | Spring | 1 |
| 49A | 7356V49A | Needle Tube ( W/ Knurl ) | 1 |
| 50 | 7356V50 | Allen Wrench | 1 |
| 51 | 7356V51 | Brush | 1 |
| 52 | 7356V52 | Screw | 1 |
| 53 | 7356V53 | Shroud | 1 |
| 54 | 7356V54 | Nut | 1 |
OPTIONAL ACCESSORIES
| T-7356SK | MINI TUNE UP KIT |
| T-7356LK | MAXI TUNE UP KIT |
