Taylor Pneumatic Tool Company T-7356 Needle Scaler User Manual (+ PDF)

T-7356 NEEDLE SCALER
T-7356A WELD FLUX SCALER
T-7356SL NEEDLE SCALER
W/ SAFETY LEVER
User Manual

Contents hide

T-7356 Needle Scaler

OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH A FEW DROPS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR 1 SECOND TO COAT ALL INTERNAL PARTS.
RECOMMENDED:
MINI TUNE UP KIT PARTS 2,3,4,5,6,38,39,46,47,48 MAXI KIT ADD TO THE ABOVE- 7,9,28(2PCS),29, 30(2PCS),31,32,33,45

*USING PRESSURE GREATER THAN 90 PSI MAY CAUSE HEAVY WEAR AND WILL VOID THE WARRANTY
USE 90 PSI MAXIMUM

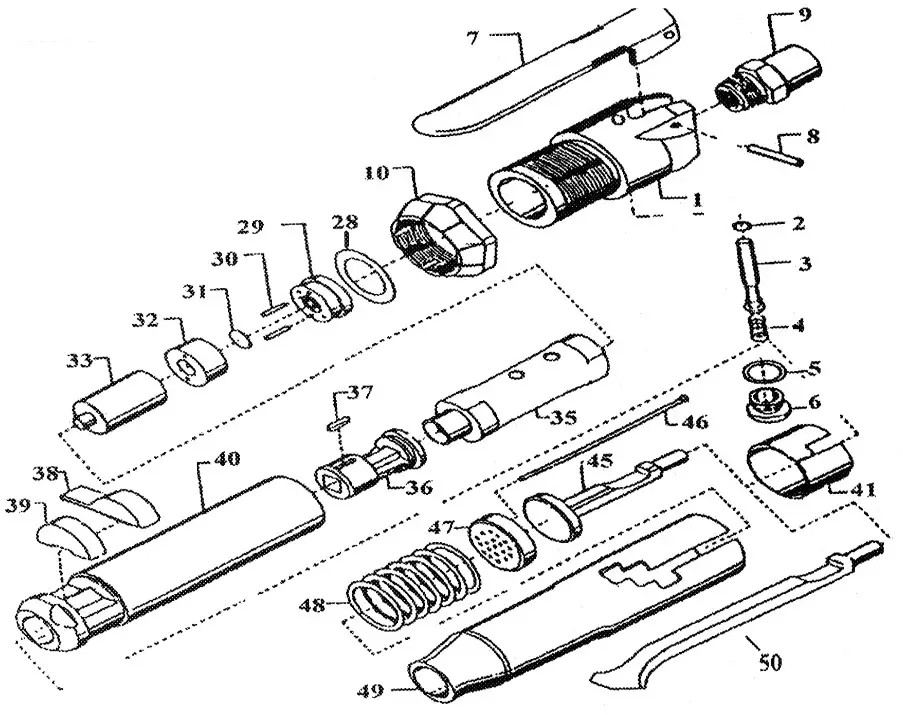

REF #	PART #	DESCRIPTION	QTY
1	735601	BACKHEAD	1
2	735602	O-RING	1
3	735603	THROTTLE VALVE	1
4	735604	SPRING	1
5	735605	O-RING	1
6	735606	VALVE CAP	1
7	735607	LEVER	1
7	735607SL	SAFETY LEVER	1
8	735608	PIN	1
9	735609	HOSE ADAPTER	1
10	735610	LOCKING RING	1
28	735628	ALIGNMENT SHIM	2
29	735629	REAR VALVE BLOCK	1
30	735630	PIN	2
31	735631	VALVE	1
32	735632	FRONT VALVE BLOCK	1
33	735633	PISTON	1
35	735635	BARREL SLEEVE	1
36	735636	NOSE	1
37	735637	KEY	1
38	735638	DRIVER RETAINER	1
39	735639	RETAINER BUFFER	1
40	735640	BARREL	1
41	735641	RETAINER CLIP	1
45	735645	NEEDLE DRIVER	1
46	735646	NEEDLE (19 PER SET)	1set
47	735647	NEEDLE HOLDER	1
48	735648	SPRING	1
49	735649	NEEDLE TUB	1
50	T-7356A8	1-1/4” WIDE CHISEL (COMES WITH T-7356A)	1

OPTIONAL ACCESSORIES

T-7356A1	DIAMOND POINT
T-7356A2	PANEL CUTTER
T-7356A3	BLANK CHISEL
T-7356A7	2” SCRAPER CHISEL
T-7356A9	3” SCRAPER CHISEL
T-7356A18	1-3/8” ANGLE CHISEL (18”)
T-7356AT	COMPLETE ATTACHMENT (#’S 45,46,47,48,49)
T-7356SK	MINI TUNE UP KIT
T-7356LK	MAXI TUNE UP KIT
