5MHP4-12-241FP Electric Heat Packaged Unit
Product Information

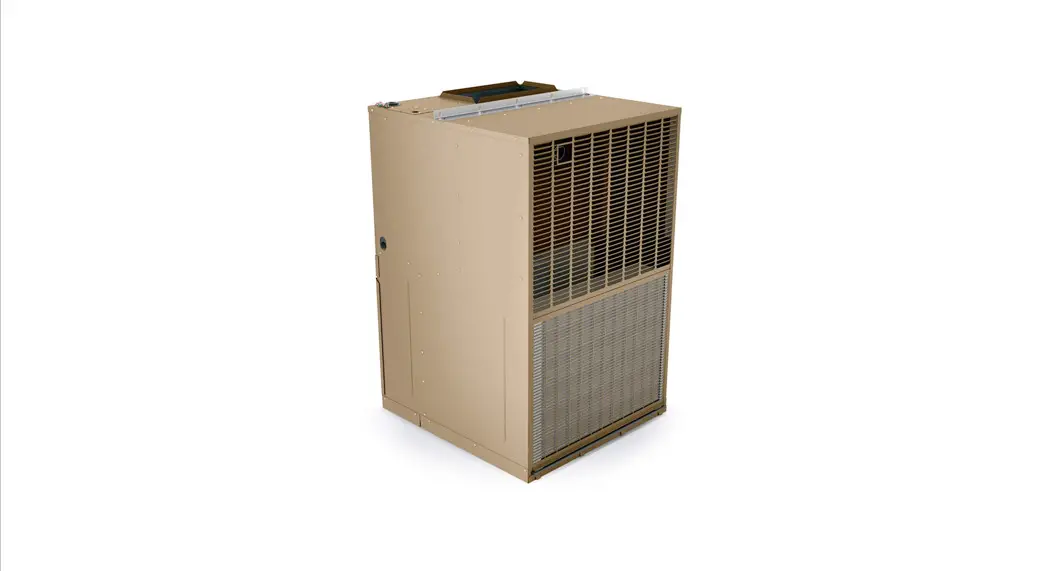

The M-SERIESTM MHP4-12/14 is a heat pump / electric heat
packaged unit designed for cooling and heating applications. It
operates with R-410A refrigerant and has a SEER rating of either 12
or 14. The unit is available in various nominal cooling capacities
ranging from 9,000 BTU/hr to 36,000 BTU/hr. It is equipped with
factory-installed electric heat, with options for 3 KW, 5 KW, 7 KW,
or 10 KW heat output. The unit operates on 208/230 V – 1 PH – 60HZ
power supply.
Standard Features
- Coil corrosion protection & ventilation air
- Ventilation air
- In. weather-resistant polystyrene insulation
- Antibacterial agent for odor-causing mold and bacteria
control - Redundant overflow protection for rainwater drainage
Options & Accessories
The M-SERIESTM MHP4-12/14 offers various options and accessories
for customization:
- Sleeve for installation up to a maximum depth of 16 inches
- Standard paint colors and custom colors with paint
matching - Filter slot for internal filter installation (paper frame not
recommended)
Unit Electrical and Physical Data
The unit’s electrical and physical specifications for the
208/230 Volt – 1 Phase – 60HZ model are as follows:
| Default SCCR (kA) | Rated Load Amps (RLA) | Locked Rotor Amps (LRA) | Dia. (in) | Nominal RPM | Rated HP | Wheel D x W (in.) | R-410A Refrigerant Charge (oz) | Approx. Shipping Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|
| Compressor | 23.0 (208V), 25.5 (230V) | — | — | 25 | 30 | — | — | 5 | 192 |
| Outdoor Fan | 28.4 (208V), 31.8 (230V) | — | — | 30 | 35 | — | — | — | — |
| Indoor Blower | 24.2 (208V), 26.7 (230V) | — | — | 25 | 30 | — | — | 5 | 202 |
| … | … | … | … | … | … | … | … | … | … |
Product Usage Instructions
Prior to installation, ensure that the equipment complies with
all applicable building codes, laws, and regulations for its
intended use.
To operate the M-SERIESTM MHP4-12/14:
- Ensure the unit is connected to a suitable power supply
(208/230 V – 1 PH – 60HZ). - If using the electric heat option, select the desired heat
output level (3 KW, 5 KW, 7 KW, or 10 KW). - Set the thermostat or control system to the desired temperature
for cooling or heating. - The unit will automatically adjust its operation to maintain
the set temperature. - Regularly check and clean the air filter in the filter slot to
ensure proper airflow and system efficiency. Avoid using paper
frame filters.
Note: For any additional options and accessories, refer to the
relevant sections in the user manual for installation and usage
instructions.
HEAT PUMP / ELECTRIC HEAT PACKAGED UNIT
M-SERIESTM
MHP4-12/14
FORM NO. MHP4-100 (09/2022)
MODEL NUMBER GUIDE 3 M HP 4 – 12 – 18 1 F P – 1
FACTORY INSTALLED ELECTRIC HEAT 3= 3 KW 5 = 5 KW 7 = 7 KW 10 = 10 KW
M = MAGICPAK
HP = HEAT PUMP / ELECTRIC HEAT
4 = R-410A REFRIGERANT
12 = 12 SEER 14 = 14 SEER
REVISION CODE
P = 208/230 V – 1 PH – 60HZ
C = COIL CORROSION PROTECTION & VENTILATION AIR
F = VENTILATION AIR
SERIES
NOMINAL COOLING CAPACITY 09 = 9,000 BTU/HR 12 = 12,000 BTU/HR 18 = 18,000 BTU/HR 24 = 24,000 BTU/HR 30 = 30,000 BTU/HR 36 = 36,000 BTU/HR
* Check that equipment complies with all applicable building codes, laws, and regulations for its intended use prior to installation.
Page 1
MHP4-12/14
M-SERIESTM
CONTENTS
APPLICATIONS ……………………………………………………………………………………………………………………………………………..3 UNIT APPROVALS …………………………………………………………………………………………………………………………………………3 WARRANTY …………………………………………………………………………………………………………………………………………………..3 STANDARD FEATURES …………………………………………………………………………………………………………………………………3 OPTIONS & ACCESSORIES ……………………………………………………………………………………………………………………………4
FACTORY-INSTALLED OPTIONS………………………………………………………………………………………………………………………………..4 FIELD-INSTALLED ACCESSORIES……………………………………………………………………………………………………………………………… 5 UNIT ELECTRICAL AND PHYSICAL DATA ……………………………………………………………………………………………………6 UNIT DIMENSIONS (IN.) ………………………………………………………………………………………………………………………………..7 MINIMUM CLEARANCES………………………………………………………………………………………………………………………………..8 OUTDOOR SOUND RATING & CABINET AIR LEAKAGE ……………………………………………………………………………….9 FACTORY FILTER SIZE (IN.) AND PRESSURE DROP (IN. W.C.)…………………………………………………………………..9 VENTILATION AIR CAPABILITY ………………………………………………………………………………………………………………….10 WALL SLEEVES & LOUVERS……………………………………………………………………………………………………………………….. 11 SCCR ACCESSORY ……………………………………………………………………………………………………………………………………… 12 CRANKCASE HEATER…………………………………………………………………………………………………………………………………. 12 RATED COOLING & HEATING PERFORMANCE………………………………………………………………………………………….. 13 EXTENDED HEATING PERFORMANCE DATA…………………………………………………………………………………………….. 13 COMBINED EXTENDED HEATING PERFORMANCE DATA…………………………………………………………………………. 14 EXTENDED COOLING PERFORMANCE DATA……………………………………………………………………………………………. 16 BLOWER PERFORMANCE ………………………………………………………………………………………………………………………….. 17
– Page 2 –
MHP4-12/14
APPLICATIONS
· MagicPak units are designed for use in all multifamily applications, such as: apartments, condominiums, student housing and senior living
· Installation in conditioned and non-conditioned mechanical spaces
UNIT APPROVALS
ETL (INTERTEK) · Design certified by ETL (Intertek) to latest edition
of UL 1995 · Certified for the U.S. and Canada · Certified for less than 1.4% cabinet air leakage
using ASHRAE Standard 193 · Factory-installed electric heaters are ETL listed
for the U.S. and Canada · Rated with a 5kA Short Circuit Current Rating
(SCCR) in accordance with RMS Symmetrical per UL 508A · Refer to Unit Electrical and Physical Data table for additional details
AHRI/DOE · Certified to AHRI Standard 210/240-2008; refer
to the AHRI Directory for AHRI certificates · Rated and tested in accordance with DOE test
procedures and Federal Trade Commission (FTC) labeling regulations
CORROSION PROTECTION · Epoxy coating is specifically designed for use on
HVAC type coils and demonstrates 6800+ hours of Sea Water Acetic Acid Testing (SWAAT) per ASTM G85:A3
SOUND RATING · Outdoor sound level measurements tested per
ANSI/AHRI Standard 270 · Refer to Outdoor Sound Rating & Cabinet Air
Leakage table for additional details
ALUMINUM LOUVER – PAINT SPECS · Standard and impact-resistant louvers meet
AAMA 2605 specifications
WARRANTY
COMPRESSOR · Five (5) years limited parts warranty
ALL OTHER COVERED COMPONENTS · Refer to Equipment Limited Warranty for
additional details
M-SERIESTM
STANDARD FEATURES
AIRFLOW CHOICE · Factory shipped ready for top supply and return
duct connections · Return air may be brought in through the optional
front return opening NOTE: If ductwork is attached to the optional front return opening, provisions to service unit filter must be provided NOTE: Filter may need to be relocated to a suitable location outside the cabinet for ease of service · Ducted or free/non ducted return configuration, which may utilize the top or front as return points · Front access panel doubles as cover for top return (except 3.0 ton)
ELECTRICAL CONNECTIONS & GAUGE PORTS · Line voltage knockouts (two concentric) to
accommodate field required wire size · Thermostat connections are located at the top
of the cabinet · Two gauge ports are located within the lower
compartment of the unit · Refer to Unit Dimension figure for additional
details
CABINET · Embossed galvanized steel cabinet · Indoor section of the cabinet insulated with 0.5
in. dual density fiberglass insulation · Outdoor section of the cabinet insulated with 0.5
in. weather-resistant polystyrene insulation
INTERNAL FILTER · Tool-less filter access · Factory-installed 1 in. filter rack with washable
filter · Field-supplied filters up to MERV 6 can typically
be installed in the filter slot internal to unit in lieu of washable filter, when proper duct design is applied · If a higher resistance filter is field installed in the unit, the added resistance must be included in the external static pressure and must not exceed 0.5 in. w.c. including ductwork · Refer to Factory Filter Size and Pressure Drop and Blower Performance tables for additional details
VENTILATION AIR · Units are outfitted with ventilation air openings
and are shipped with the openings sealed · Refer to Ventilation Air Capability table and
Optional Field-Installed Accessories section for additional details · Check that equipment complies with all applicable building codes, laws, and regulations for its intended use prior to installation
– Page 3 –
MHP4-12/14
REFRIGERATION SYSTEM · Factory charged with R-410A refrigerant · Factory sealed and tested · Refer to Unit Electrical and Physical Data table
for additional details
Indoor and Outdoor Coils · Copper tube with aluminum fin coils
High Pressure Switch · Shuts off unit if abnormal operating conditions
cause the refrigerant discharge pressure to rise above acceptable levels
Low Pressure Switch · Provides loss of charge protection by shutting
off unit if refrigerant liquid pressure falls below acceptable levels
Reversing Valve · Reverses the direction of refrigerant flow within
the unit’s refrigeration circuit, to change between cooling and heating operation · Reverses refrigerant flow direction during heat pump defrost cycles to clear outdoor coil of frost buildup
Defrost Control · Factory mounted sensor determines when
defrost cycle starts and ends · Anti-short cycle, timed-off control (field-
adjustable to 30-90 minutes) is incorporated in the control board · The time between defrost cycles is preset at 90-minute intervals at the factory, but can be field adjusted to 30 or 60 minutes
M-SERIESTM
Electronic Blower Control · Dedicated blower speed taps for continuous fan,
cooling, and heating operation are programmed for optimal airflow and controlled by 24V thermostat signals · Blower speed adjustment is easily accomplished by speed tap selection · Fixed blower delays have been selected to enhance comfort · Refer to Blower Performance tables for additional details
OUTDOOR FAN · Heavy duty, fully enclosed and weatherproof · Aluminum fan blades
CONDENSATE MANAGEMENT Primary Drain Pan · Antimicrobial protection: drain pan is injected
with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce
Overflow Protection · Indoor drain pan overflow switch monitors the
condensate level in primary drain pan · Prevents unit from running if water is sensed
Secondary Drain Pan · Polypropylene wall sleeve base is specifically
designed to direct rain water out of the building and in the event of any restriction in the primary drain will act as a redundant overflow protection
Low Ambient Operation · Units are not equipped with low ambient
compressor cutoffs and can be safely operated to -5°F outdoor ambient temperatures · Refer to Extended Heating Performance Data tables for performance data starting at 0°F outdoor ambient temperature
TRANSFORMER · Rated for 40VA · Factory wired for 230/240V power supply, and
includes field selectable terminal for 208V · Converts line voltage to 24V for the thermostat
and control circuits within the unit
SUPPLY AIR BLOWER Constant Torque ECM Blower Motor · Motor provides specified air volume at 0.1 in. – 0.5
in. w.c. external static pressure · Blower assembly is easily removed for servicing · Refer to Blower Performance tables for additional
details
OPTIONS & ACCESSORIES
FACTORY-INSTALLED OPTIONS
ELECTRIC HEAT · Mounted internal to unit cabinet · Multiple kW sizes available; must specify the
electric heating element size (3kW to 10kW) · Optional two stage electric heat wiring on 7 &
10kW. In order to utilize this option, it will require a thermostat with single stage cooling and two stage heating · Compatible with 208V, 230V and 240V · Helix wound nichrome heating elements exposed directly into the air stream resulting in instant heat transfer and low element temperatures · Cutoff limit control provides positive protection in case of excessive temperatures · Refer to Rated Cooling & Heating Performance table for additional details
CORROSION PROTECTION · Epoxy coated indoor and outdoor coils
– Page 4 –
MHP4-12/14
FIELD-INSTALLED ACCESSORIES
WALL SLEEVES & LOUVERS · Units must be installed with approved wall sleeve
and louver accessories for safe operation and are required for all installations · Larger height wall sleeves may be used on smaller tonnage equipment to maintain a uniform wall opening on the building façade · Refer to Wall Sleeves and Louvers table for additional details
WALL SLEEVES (ASLEEVE) · Penetrates the building envelope and creates a
path for condenser air intake and exhaust · Provides a sealed connection to the unit and a
secure attachment foundation for the louvers · Available in 6 in. to 12 in. depths
WALL SLEEVE EXTENSION (ASLEEVEXT4) · Provides an additional 4 in. of depth to the wall
sleeve, for a maximum depth of 16 in.
LOUVERS Polypropylene Louvers (ALVRP) · Constructed from durable, corrosion-resistant
plastic · Available in four standard colors
Aluminum Louvers (ALVRAL) · Constructed with 6063-T6 grade aluminum · Available in anodized clear coat, primer (to be
painted in the field), standard paint colors and custom colors with paint matching*
Impact-Resistant Aluminum Louvers (ALVRALC) · Impact and wind load certified up to 186 MPH,
risk categories III and IV, and wind exposures C and D · ALVRALC-1 & ALVRALC-2: FBC Notice of
Acceptance (NOA) 18-0522.03 · ALVRALC-3 & ALVRALC-4: FBC Notice of
Acceptance (NOA) 20-0612.02 · Constructed with 6063-T6 grade aluminum · Available in anodized clear coat, primer (to be
painted in the field), standard paint colors and custom colors with paint matching*
CRANKCASE HEATER (ACASE841) · Warms compressor crankcase to limit migration
of liquid refrigerant back to compressor during off cycle · Available for models with scroll compressors · Refer to Crankcase Heater table for additional details
M-SERIESTM
SHORT CIRCUIT CURRENT RATING KIT (ASCCR) · Provides 200kA of SCCR protection · Refer to SCCR Accessory table for additional
details
FILTERS · Field-supplied filters up to MERV 6 can typically
be installed in the filter slot internal to unit NOTE: Use of paper frame not recommended
VENTILATION DAMPERS · Check that the equipment complies with all
applicable building codes, laws, and regulations for its intended use prior to installation
Motorized Damper w/ Controller (AVADAMP1) · Utilizes a ventilation air control module that
is field programmable to assist with meeting ASHRAE 62.2 requirements · Once programmed with values for ventilation air amounts, the control module opens the damper in response to thermostat inputs and monitors the run time · Upon meeting the ventilation air needs, the control module will close the damper until the start of the next cycle · If, during an observation period it is determined that thermostat operation alone may not provide the desired ventilation air, the control module can independently operate the unit’s indoor blower, in continuous fan mode, and open the damper to aid in providing ventilation air needs
Motorized Damper w/ Field-Supplied Relay (AVADAMP2) · Opens ventilation air damper during indoor
blower operation and closes during blower off periods · Requires field-supplied and installed current sensing relay to detect indoor blower operation
THERMOSTAT · Required for all installations (field-supplied) · Units are individually controlled with conventional
24V thermostat · Thermostat must be capable of:
· Single stage cooling, single stage heat pump operation (compressor heating), and single stage electric heat (3 and 5 kW)
· Single stage cooling, single stage heat pump operation (compressor heating), and two stage electric heat (7 and 10 kW)
· Refer to Unit Electrical and Physical Data table for additional details
* Certain exclusions apply. Refer to louver manufacturer’s literature and warranty documentation.
– Page 5 –
MHP4-12/14
M-SERIESTM
UNIT ELECTRICAL AND PHYSICAL DATA (208/230 Volt – 1 Phase – 60HZ)1
Default SCCR (kA)4 Rated Load Amps (RLA) Locked Rotor Amps (LRA) Dia. (in) Nominal RPM Rated Load Amps (RLA) Rated HP Wheel D x W (in.) Rated Load Amps (RLA) Rated HP R-410A Refrigerant Charge (oz) Approx. Shipping Weight (lbs)
Model
MCA2
MOCP3.
Circuit 15 Circuit 25 Circuit 15 Circuit 25
208V 230V 208V 230V 208V 230V 208V 230V
Compressor
Outdoor Fan
Indoor Blower
3MHP4-12-091*P 23.0 25.5 — — 25 30 — –5 4.4 21 16 1100 0.9 1/8 9 x 6 0.4 1/3 44 192
5MHP4-12-091*P 28.4 31.8 — — 30 35 — —
3MHP4-12-121*P 24.2 26.7 — — 25 30 — –5 5.1 27 16 1125 0.9 1/8 9 x 6 0.6 1/3 44 202
5MHP4-12-121*P 29.6 32.9 — — 30 35 — —
3MHP4-12-181*P 26.6 29.1 — — 30 30 — —
5MHP4-12-181*P 32.0 35.3 — — 35 40 — –5 6.7 37.5 16 1125 0.9 1/8 9 x 6
7MHP4-12-181*P 42.8 47.8 — — 45 50 — —
1 1/3 70 219
10MHP4-12-181*P 10.3 10.3 43.3 50.0 15 15 45 50
5MHP4-12-241*P 37.4 40.8 — — 40 45 — —
7MHP4-12-241*P 48.3 53.3 — — 50 60 — — 5 10 52 18 1100 1.6 1/4 9 x 6 1.6 1/3 83 268
10MHP4-12-241*P 15.8 15.8 43.3 50.0 25 25 45 50
5MHP4-12-301*P 41.9 45.2 — — 50 50 — —
7MHP4-12-301*P 20.2 20.2 32.5 37.5 30 30 35 40 5 13.4 72.5 18 1100 1.6 1/4 10 x 8 1.8 1/2 78 271
10MHP4-12-301*P 20.2 20.2 43.3 50.0 30 30 45 50
5MHP4-14-361*P 45.6 48.9 — — 50 50 — —
7MHP4-14-361*P 23.9 23.9 32.5 37.5 35 35 35 40 5 14.7 75 18 1100 2.8 1/3 10 x 8 2.8 1/2 90 299
10MHP4-14-361*P 23.9 23.9 43.3 50.0 35 35 45 50
1 Acceptable voltage range 197 – 253V 2 MCA = Minimum Circuit Ampacity 3 MOCP = Maximum Over Current Protection 4 SCCR = Short Circuit Current Rating; refer to SCCR Accessory table, up to 200kA 5 Circuits 1 and 2 are independent sets of power wires being run to the unit, each backed by an independent circuit breaker. Units with dual circuits use Circuit 2 exclusively to
power electric heaters. Refer to wiring diagram for additional details. NOTE: Units are rated at 208/230V, but MOCP & MCA values are calculated at 240V NOTE: The 7.2 and 10 kW heats strips offer a W1 and W2 thermostat connection. Taking advantage of the two heat strip circuits requires a 3-stage thermostat (Y for heat pump,
W1 for electric heat stage 1, and W2 for electric heat stage 2). If a 2-stage thermostat is used, “pigtail” W1 and W2 wires together when connecting the thermostat wires at the unit.
– Page 6 –
MHP4-12/14
M-SERIESTM
UNIT DIMENSIONS (IN.)
Model
A
B*
C
D
E
F
G
H
*MHP4-12-091*P *MHP4-12-121*P
43-7/8
16-7/8
25-1/4
21-1/2
18-5/8
19-1/4
6
8
*MHP4-12-181*P 47-7/8 18-7/8 27-1/4 21-1/2 20-5/8 21-1/4 6
8
J
K
L
M
N
16
17-1/16 3/4 2-1/4 24-5/8
16
17-1/16 3/4 2-1/4 26-5/8
*MHP4-12-241*P 55-7/8 22-7/8 31-1/4 24-3/8 24-5/8 25-1/4 6
8
16 22-7/16 3/4
1
30-5/8
*MHP4-12-301*P 55-7/8 22-7/8 31-1/4 24-3/8 24-5/8 25-1/4 6 11-3/8 10-7/16 22-7/16 3-3/4
1
30-5/8
*MHP4-14-361*P 67-7/8 26-7/8 35-1/4 24-3/8 28-5/8 29-1/4 10 11-3/8 10-7/16 22-7/16 3-3/4
* Dimension B represents the height of the optional front return air duct opening
1
38-5/8
Supply Air M Opening
Thermostat Wiring
Connections
Line Voltage Knockouts
(7/8 and 1-1/8 Dia.)
K H
J
Return Air Opening
6-1/16″
28″
Return Air Opening
Supply Air Opening
J
1″
2-1/4″
3/4″
5″
Top View
L 6-1/8″ H
Supply Air Opening
Return Air Opening
Tool-less Filter Access
B Optional
Front Return Air
Opening
7-3/4″
Indoor Blower / Controls Access
1″ C
10-5/8″ Primary Condensate Drain Pan 3/4″ NPT*
Compressor / Gauge Ports / Outdoor Fan Access
Secondary Condensate Drain Pan 3/4″ NPT*
5/8″
F
Ventilation
Air Chase
A G Outdoor Fan Discharge
N
E
Outdoor
Coil
2″ 28″
Front View
D Side View
Rear View
* Provisions must be made to properly drain condensate from the primary and secondary drain pans.
– Page 7 –
MHP4-12/14
M-SERIESTM
MINIMUM CLEARANCES
Accessibility Clearances
The front of the unit must be accessible for service. A minimum clearance of 30″ in front of unit is required for service.
If the unit is enclosed, a door or access panel aligned with the front of the unit is the preferred method of providing access. The door or access panel opening must be a minimum of 30″ wide (centered on the unit) and be as tall as the unit.
Top View
Closet Wall
IMPORTANT
The unit must be installed with approved wall sleeve and louver accessories for safe operation. Improper installations could result in property damage, personal injury, or death.
Exterior Wall
Supply Duct Opening
1″ Min. Side Clearance
Clearance to Front of Unit
Closet Door / Access Panel Opening Minimum 30″ wide
Supply Duct Clearances
Minimum Clearances to Combustible Materials1
Front
Sides
Top
0″
0″
0″
1 Accessibility clearances take precedence
Top Return Opening
1″ Min. Side Clearance
Side View
Optional Front Return Opening May be used with or without ductwork attached
Closet Wall
Unit Clearances
Minimum Clearances1
Return Duct Configuration
Unit Height
Front
Sides3
Ducted Top Opening
All
See Note 2
1″
Ducted Front Opening5
All
See Note 2 & 4
1″
Supply Duct
Exterior Wall
Non-Ducted/
43″
4″
1″
Free Return
48″ – 68″
5″
1″
1 Accessibility clearances take precedence
2 Clearance must accommodate field-installed condensate drain line / drain trap
3 Additional clearance required if field-installed condensate drain line/drain trap is routed alongside unit
4 Consult local codes for other clearance requirements
5 If ductwork is attached to the optional front return opening, provisions to service unit filter must be provided
Wall Sleeve Side Panel (one each side)
Sill Plate
4″ Min.
Return Duct
Interior Wall
Front of Unit
Minimum Clearance Primary Condensate Drain Trap (field supplied)
Mounting Strap (one each side; supplied with unit)
3/4″ Plywood Riser (supplied with wall sleeve) Secondary Condensate Drain Trap (field supplied) Floor
Platform (field supplied) – Unit must be supported by platform, which must be level with sill plate of opening in exterior wall.
– Page 8 –
MHP4-12/14
OUTDOOR SOUND RATING & CABINET AIR LEAKAGE
Model
Outdoor Sound Rating Cabinet Air Leakage
(dBa)1
(%)2
*MHP4-12-091*P
73
1.4
*MHP4-12-121*P
73
1.4
*MHP4-12-181*P
73
1.4
*MHP4-12-241*P
79
1.4
*MHP4-12-301*P
79
1.4
*MHP4-14-361*P
79
1.4
1 Per ANSI / AHRI Standard 270 2 Per ASHRAE Standard 193
M-SERIESTM
FACTORY FILTER SIZE (IN.) AND PRESSURE DROP (IN. W.C.)
Model
Filter Size
200
300
400
500
Supply Airflow (CFM) 600 700 800 900
1000
1100
1200
1300
*MHP4-12-091*P *MHP4-12-121*P
18 x 20 x 1 0.01 0.01 0.01 0.02 0.03 0.04 —
—
—
—
—
—
*MHP4-12-181*P 20 x 20 x 1 — 0.01 0.01 0.02 0.02 0.03 0.04 —
—
—
—
—
*MHP4-12-241*P *MHP4-12-301*P
24 x 22 x 1
—
—
— 0.01 0.01 0.02 0.03 0.03 0.04 0.05 —
—
*MHP4-14-361*P 28 x 22 x 1
—
—
—
— 0.01 0.01 0.02 0.02 0.03 0.03 0.04 0.04
Performance based on factory-provided washable filter installed in the unit. If a higher resistance filter is field installed in the unit, the added resistance must be included in the external static pressure and must not exceed 0.5 in. w.c. including ductwork.
– Page 9 –
MHP4-12/14
M-SERIESTM
VENTILATION AIR CAPABILITY
Chart and figure below show the amount of ventilation air as a function of unit tonnage and total External Static Pressure (supply and return).
0.75, 1.0, 1.5 TON
Cumulative Knockouts Removed
# 1 Only #1 thru #2 #1 thru #3 #1 thru #4 #1 thru #5 #1 thru #6 #1 thru #7 #1 thru #8 #1 thru #9
Ventilation Air (CFM) *
Total External Static Pressure (supply + return) **
0.1
0.2
0.3
0.4
0.5
7
9
12
15
18
10
15
20
24
28
12
18
25
32
38
18
28
36
45
54
23
35
46
57
69
27
41
54
67
80
32
48
63
78
93
37
55
73
90
107
41
61
80
100
118
# 1 Only
21
20
19
17
16
#1 thru #2
28
27
25
24
22
2.0, 2.5, 3.0 TON
#1 thru #3
35
33
32
30
28
#1 thru #4
45
42
40
38
35
#1 thru #5
55
52
49
46
43
#1 thru #6
66
62
59
55
52
#1 thru #7
79
75
71
66
62
#1 thru #8
91
86
81
76
71
#1 thru #9
105
99
94
88
82
* Assumes proper speed tap adjustments to maintain nominal supply air CFM ** Assumes equal supply and return static pressures
Ventilation Air (CFM)
120 110 100
90 80 70 60 50 40 30 20 10
0 1
0.75, 1, 1.5 Ton .225” Supply & .225” Return, .45” Total Duct Static
2, 2.5, 3 Ton .225” Supply & .225” Return, .45” Total Duct Static
2
3
4
5
6
7
8
9
Cumulative Knockouts Removed
– Page 10 –
MHP4-12/14 WALL SLEEVES & LOUVERS
Wall Sleeves
Louvers
Wall Sleeve
Wall Sleeve Extension
Polypropylene Louvers
Aluminum Louvers
Impact Louvers
Model
M-SERIESTM
Dimensions (in.)
Wall Sleeve
Wall Opening
Depth (C)
Height Height
(A)
(B)
*MHP4-12-091*P *MHP4-12-121*P *MHP4-12-181*P *MHP4-12-241*P *MHP4-12-301*P *MHP4-14-361*P Sleeve Only Sleeve Plus Extension
ASLEEVE6-1 ASLEEVE8-1 ASLEEVE10-1 ASLEEVE12-1 ASLEEVE6-2 ASLEEVE8-2 ASLEEVE10-2 ASLEEVE12-2
—-ASLEEVEXT4-1 ASLEEVEXT4-1 —-ASLEEVEXT4-2 ASLEEVEXT4-2
ALVRP***-1 ALVRP***-1 ALVRP***-1 ALVRP***-1 ALVRP***-2 ALVRP***-2 ALVRP***-2 ALVRP***-2
· · · ALVRAL-1^ ALVRALC-1^
· · · ALVRAL-1^ ALVRALC-1^
· · · ALVRAL-1^ ALVRALC-1^
· · · ALVRAL-1^ ALVRALC-1^
ALVRAL-2^ ALVRALC-2^
··
ALVRAL-2^ ALVRALC-2^
··
ALVRAL-2^ ALVRALC-2^
··
ALVRAL-2^ ALVRALC-2^
··
29
29-1/8 6
—
29
29-1/8 8
—
29
29-1/8 10 14
29
29-1/8 12 16
32-3/4 32-7/8 6 —
32-3/4 32-7/8 8 —
32-3/4 32-7/8 10 14
32-3/4 32-7/8 12 16
ASLEEVE6-2
—
ALVRP***-2 ALVRAL-7^
32-3/4 32-7/8 6 —
ASLEEVE8-2
—
ALVRP***-2 ALVRAL-7^
32-3/4 32-7/8 8 —
ASLEEVE10-2 ASLEEVEXT4-2 ALVRP***-2 ALVRAL-7^
32-3/4 32-7/8 10 14
ASLEEVE12-2 ASLEEVEXT4-2 ALVRP***-2 ALVRAL-7^
32-3/4 32-7/8 12 16
ASLEEVE6-5
—
ALVRP***-3
—
ASLEEVE8-5
—
ALVRP***-3
—
—
·
45 45-1/8 6 —
—
·
45 45-1/8 8 —
ASLEEVE10-5 ASLEEVEXT4-3 ALVRP***-3
—
—
·
45 45-1/8 10 14
ASLEEVE12-5 ASLEEVEXT4-3 ALVRP***-3
—
—
·
45 45-1/8 12 16
ASLEEVE6-5
—
—
ALVRAL-3^ ALVRALC-3^
45 45-1/8 6 —
ASLEEVE8-5
—
—
ALVRAL-3^ ALVRALC-3^
45 45-1/8 8 —
ASLEEVE10-5 ASLEEVEXT4-3
—
ALVRAL-3^ ALVRALC-3^
45 45-1/8 10 14
ASLEEVE12-5 ASLEEVEXT4-3
—
ALVRAL-3^ ALVRALC-3^
ASLEEVE6-5
—
—
ALVRAL-4^ ALVRALC-4^
·
ASLEEVE8-5
—
—
ALVRAL-4^ ALVRALC-4^
·
ASLEEVE10-5 ASLEEVEXT4-3
—
ALVRAL-4^ ALVRALC-4^
·
ASLEEVE12-5 ASLEEVEXT4-3
—
ALVRAL-4^ ALVRALC-4^
·
Note: Wall Sleeve and Louver size must be coordinated *** Louver colors: WHT = white, SAN = sandstone, BGE = beige, TPST = taupestone
^ -P: Option to paint standard, aluminum, and impact-resistant louver
· Wall sleeve and louver sizes equal to the required wall opening dimensions for the unit size Optional: Wall sleeves and louvers can be oversized to maintain a uniform appearance
45 45-1/8 12 16 45 45-1/8 6 –45 45-1/8 8 –45 45-1/8 10 14 45 45-1/8 12 16
WALL SLEEVE & WALL OPENING DIMENSIONS (IN.)
16 A
Required Wall Opening B
C
Maximum Wall Thickness
29
16-5/8
Wall Sleeve
– Page 11 –
29-1/8 Exterior Wall
MHP4-12/14
SCCR ACCESSORY
Model 3MHP4-12-091 5MHP4-12-091 3MHP4-12-121 5MHP4-12-121 3MHP4-12-181 5MHP4-12-181 7MHP4-12-181 10MHP4-12-181 5MHP4-12-241 7MHP4-12-241 10MHP4-12-241 5MHP4-12-301 7MHP4-12-301 10MHP4-12-301 5MHP4-14-361 7MHP4-14-361 10MHP4-14-361
1 Per UL 508A, 200kA RMS Symmetrical
Kit1 ASCCR2 ASCCR3 ASCCR2 ASCCR3 ASCCR2 ASCCR3 ASCCR4 ASCCR6 ASCCR4 ASCCR5 ASCCR7 ASCCR4 ASCCR8 ASCCR7 ASCCR4 ASCCR9 ASCCR10
M-SERIESTM
CRANKCASE HEATER
Model *MHP4-12-091*P *MHP4-12-121*P *MHP4-12-181*P *MHP4-12-241*P *MHP4-12-301*P *MHP4-14-361*P
Kit N/A ACASE841
– Page 12 –
MHP4-12/14
M-SERIESTM
RATED COOLING & HEATING PERFORMANCE
Model
Supply Airflow (SCFM)
Net Capacity (Btu/hr)
Cooling
Efficiency Efficiency
(SEER)
(EER)
Heating
S/T^
47°F
Net Capacity (Btu/hr)
Efficiency (HSPF)
240V
Electric Heat 230V
208V
kW BTU/hr kW BTU/hr kW BTU/hr
3MHP4-12-091*P
350
8,600
12.0
5MHP4-12-091*P
11.0
0.79 8,600
3.60 12,284 3.31 11,281 2.70 9,226 7.4
4.80 16,378 4.41 15,042 3.61 12,302
3MHP4-12-121*P
475
12,000
12.5
5MHP4-12-121*P
11.0
0.79 11,400
3.60 12,284 3.31 11,281 2.70 9,226 7.4
4.80 16,378 4.41 15,042 3.61 12,302
3MHP4-12-181*P
3.60 12,284 3.31 11,281 2.70 9,226
5MHP4-12-181*P
600
16,500
12.0
7MHP4-12-181*P
11.0
0.77 16,200
4.80 16,378 4.41 15,042 3.61 12,302 7.4
7.20 24,567 6.61 22,563 5.41 18,453
10MHP4-12-181*P
9.60 32,757 8.82 30,084 7.21 24,604
5MHP4-12-241*P
4.80 16,378 4.41 15,042 3.61 12,302
7MHP4-12-241*P
800
22,800
13.0
11.0
0.76 22,800
7.4
7.20 24,567 6.61 22,563 5.41 18,453
10MHP4-12-241*P
9.60 32,757 8.82 30,084 7.21 24,604
5MHP4-12-301*P
4.80 16,378 4.41 15,042 3.61 12,302
7MHP4-12-301*P 1,025 27,600
12.5
11.0
0.75 26,200
7.4
7.20 24,567 6.61 22,563 5.41 18,453
10MHP4-12-301*P
9.60 32,757 8.82 30,084 7.21 24,604
5MHP4-14-361*P
4.80 16,378 4.41 15,042 3.61 12,302
7MHP4-14-361*P 1,200 34,600
14.0
11.0
0.75 32,400
8.0
7.20 24,567 6.61 22,563 5.41 18,453
10MHP4-14-361*P
^ Not a rated value Two-stage heat available for 7kW and 10kW units S/T = ratio of sensible to total cooling load SCFM = standard cubic feet per minute
9.60 32,757 8.82 30,084 7.21 24,604
EXTENDED HEATING PERFORMANCE DATA (HEAT PUMP ONLY)
Model
*MHP4-12-091*P *MHP4-12-121*P *MHP4-12-181*P *MHP4-12-241*P *MHP4-12-301*P *MHP4-14-361*P
0 / 0
Net Capacity (Btu/hr)
System Power Input (kW)
3,600
0.68
6,200
0.98
7,100
1.19
9,800
1.91
11,700
2.02
16,700
2.40
Outdoor Temperature – DB / WB (°F)
17 / 15
Net Capacity (Btu/hr)
System Power Input (kW)
5,200
0.71
35 / 33
Net Capacity (Btu/hr)
System Power Input (kW)
7,200
0.74
47 / 43
Net Capacity (Btu/hr)
System Power Input (kW)
8,600
0.76
6,800
0.93
9,500
0.98
11,400
1.01
9,200
1.28
13,500
1.38
16,200
1.44
14,000
1.95
19,300
2.00
22,800
2.02
16,400
2.18
22,100
2.27
26,200
2.33
20,400
2.69
27,600
2.80
32,400
2.88
62 / 56
Net Capacity (Btu/hr)
System Power Input (kW)
10,300
0.79
13,800
1.05
19,600
1.52
27,100
2.06
31,300
2.40
38,400
2.97
– Page 13 –
MHP4-12/14
COMBINED EXTENDED HEATING PERFORMANCE DATA (HEAT PUMP + ELECTRIC HEAT) 1
M-SERIESTM
Outdoor Temperature – DB / WB (°F)
17 / 15
35 / 33
Tonnage
Model
208V
230V
208V
230V
Combined Heating Capacity (Btu/hr)
Combined System
Power Input (kW)
Combined Heating Capacity (Btu/hr)
Combined System
Power Input (kW)
Combined Heating Capacity (Btu/hr)
Combined System
Power Input (kW)
Combined Heating Capacity (Btu/hr)
Combined System
Power Input (kW)
0.75
3MHP4-12-091*P 14,300
3.41
16,400
4.02
16,300
3.44
18,400
4.05
5MHP4-12-091*P 17,400
4.32
20,200
5.12
19,400
4.35
22,200
5.15
3MHP4-12-121*P 15,900
3.63
18,000
4.24
18,600
3.68
20,700
4.29
1.0
5MHP4-12-121*P 19,000
4.54
21,800
5.34
21,700
4.59
24,500
5.39
3MHP4-12-181*P 18,300
3.98
20,400
4.59
22,500
4.08
24,700
4.69
5MHP4-12-181*P 21,400
4.89
24,200
5.69
25,600
4.99
28,500
5.79
1.5
7MHP4-12-181*P 27,500
6.69
31,700
7.89
31,800
6.79
36,000
7.99
10MHP4-12-181*P 33,700
8.49
39,200
10.10
37,900
8.59
43,500
10.20
5MHP4-12-241*P 26,100
5.56
29,000
6.36
31,400
5.61
34,300
6.41
2.0
7MHP4-12-241*P 32,300
7.36
36,500
8.56
37,500
7.41
41,800
8.61
10MHP4-12-241*P 38,400
9.16
44,000
10.77
43,700
9.21
49,300
10.82
5MHP4-12-301*P 28,500
5.79
31,400
6.59
34,100
5.88
37,100
6.68
2.5
7MHP4-12-301*P 34,600
7.59
38,900
8.79
40,300
7.68
44,600
8.88
10MHP4-12-301*P 40,800
9.39
46,400
11.00
46,400
9.48
52,100
11.09
5MHP4-14-361*P 32,400
6.30
35,400
7.10
39,600
6.41
42,600
7.21
3.0
7MHP4-14-361*P 38,600
8.10
42,900
9.30
45,700
8.21
50,100
9.41
10MHP4-14-361*P 44,700
9.90
50,400
11.51
51,900
10.01
1 Combined performance of Heat Pump operation (compressor) plus Electric Heat (including second-stage electric heat on 7.5 & 10kW).
57,600
11.62
– Page 14 –
MHP4-12/14
COMBINED EXTENDED HEATING PERFORMANCE DATA (HEAT PUMP + ELECTRIC HEAT) 1
M-SERIESTM
Outdoor Temperature – DB / WB (°F)
47 / 43
62 / 56
Tonnage
Model
208V
230V
208V
230V
Combined Heating Capacity (Btu/hr)
Combined System
Power Input (kW)
Combined Heating Capacity (Btu/hr)
Combined System
Power Input (kW)
Combined Heating Capacity (Btu/hr)
Combined System
Power Input (kW)
Combined Heating Capacity (Btu/hr)
Combined System
Power Input (kW)
0.75
3MHP4-12-091*P 17,700
3.46
19,800
4.07
19,400
3.49
21,500
4.10
5MHP4-12-091*P 20,800
4.37
23,600
5.17
22,400
4.40
25,300
5.20
3MHP4-12-121*P 20,500
3.71
22,600
4.32
22,800
3.75
25,000
4.36
1.0
5MHP4-12-121*P 23,500
4.62
26,400
5.42
25,900
4.66
28,800
5.46
3MHP4-12-181*P 25,200
4.14
27,400
4.75
28,600
4.22
30,800
4.83
5MHP4-12-181*P 28,300
5.05
31,200
5.85
31,700
5.13
34,600
5.93
1.5
7MHP4-12-181*P 34,400
6.85
38,700
8.05
37,800
6.93
42,100
8.13
10MHP4-12-181*P 40,600
8.65
46,200
10.26
44,000
8.73
49,600
10.34
5MHP4-12-241*P 34,800
5.63
37,800
6.43
39,100
5.67
42,100
6.47
2.0
7MHP4-12-241*P 41,000
7.43
45,300
8.63
45,200
7.47
49,600
8.67
10MHP4-12-241*P 47,100
9.23
52,800
10.84
51,400
9.27
57,100
10.88
5MHP4-12-301*P 38,200
5.94
41,200
6.74
43,200
6.01
46,300
6.81
2.5
7MHP4-12-301*P 44,300
7.74
48,700
8.94
49,400
7.81
53,800
9.01
10MHP4-12-301*P 50,500
9.54
56,200
11.15
55,500
9.61
61,300
11.22
5MHP4-14-361*P 44,300
6.49
47,400
7.29
50,300
6.58
53,400
7.38
3.0
7MHP4-14-361*P 50,500
8.29
54,900
9.49
56,400
8.38
60,900
9.58
10MHP4-14-361*P 56,600
10.09
62,400
11.70
62,600
10.18
1 Combined performance of Heat Pump operation (compressor) plus Electric Heat (including second-stage electric heat on 7.5 & 10kW).
68,400
11.79
– Page 15 –
MHP4-12/14
M-SERIESTM
EXTENDED COOLING PERFORMANCE DATA
Tonnage Model
Outdoor Temperature – DB (°F)
Indoor
65
85
95
105
115
Temp
DB/WB
(°F)
Net
Capacity
(Btu/hr)
S/T
System Power Input (kW)
Net Capacity (Btu/hr)
S/T
System Power Input (kW)
Net Capacity (Btu/hr)
S/T
System Power Input (kW)
Net Capacity (Btu/hr)
S/T
System Power Input (kW)
Net Capacity (Btu/hr)
S/T
System Power Input (kW)
85/72 10,800 0.64 0.62 9,900 0.68 0.72 9,400 0.70 0.77 8,700 0.74 0.85 8,000 0.77 0.94
0.75 *MHP4-12-091*P
80/67 10,200 0.70 0.61
9,100 0.76 0.72 8,600 0.79 0.77 7,900 0.82 0.84 7,200 0.85 0.91
75/63 9,500 0.74 0.61
8,400 0.79 0.72
7,900 0.82 0.77
7,100 0.86 0.83 6,400 0.90 0.89
75/57 8,800 1.00 0.61
7,700 1.00 0.71
7,200 1.00 0.76 6,700 1.00 0.83
6,100 1.00 0.89
85/72 15,100 0.64 0.82 13,700 0.67 1.01
13,000 0.69 1.10
12,000 0.73 1.21
11,000 0.76 1.32
1.0 *MHP4-12-121*P
80/67 14,100 0.72 0.82 12,700 0.77 1.00 12,000 0.79 1.09 11,000 0.83 1.19
9,900 0.86 1.29
75/63 13,300 0.74 0.82 11,800 0.79 0.99 11,000 0.81 1.07
9,900 0.86 1.17
8,800 0.90 1.27
75/57 12,100 1.00 0.81 10,800 1.00 0.98 10,200 1.00 1.06
9,300 1.00 1.16
8,500 1.00 1.26
85/72 21,200 0.60 1.14 19,300 0.65 1.38 18,400 0.67 1.50 16,900 0.72 1.64 15,400 0.77 1.78
1.5 *MHP4-12-181*P
80/67 19,900 0.67 1.13 18,000 0.74 1.38 17,000 0.77 1.50 15,300 0.82 1.63 13,600 0.86 1.77
75/63 18,800 0.72 1.13 16,800 0.77 1.36 15,800 0.80 1.48 14,000 0.85 1.61 12,200 0.90 1.74
75/57 17,100 1.00 1.13 15,300 1.00 1.36 14,400 1.00 1.47 13,300 1.00 1.60 12,100 1.00 1.74
85/72 27,900 0.60 1.54 25,800 0.65 1.89 24,700 0.67 2.06 23,000 0.70 2.28 21,400 0.73 2.50
2.0 *MHP4-12-241*P
80/67 26,200 0.67 1.55 23,900 0.73 1.90 22,800 0.76 2.07 20,900 0.80 2.29 19,000 0.84 2.50
75/63 24,800 0.71 1.55 22,400 0.76 1.88 21,200 0.79 2.05 19,100 0.84 2.26 17,100 0.88 2.48
75/57 22,700 1.00 1.55 20,300 1.00 1.88 19,200 1.00 2.04 17,700 1.00 2.26 16,200 1.00 2.49
85/72 33,000 0.64 1.92 31,700 0.66 2.37 31,100 0.67 2.59 29,200 0.69 2.90 27,300 0.71 3.20
2.5 *MHP4-12-301*P
80/67 32,000 0.70 1.91 29,500 0.73 2.35 28,200 0.75 2.56 26,600 0.78 2.85 25,100 0.80 3.13
75/63 31,100 0.72 1.90 28,800 0.76 2.33 27,700 0.78 2.54 25,400 0.81 2.83 23,200 0.84 3.11
75/57 27,900 1.00 1.87 26,600 1.00 2.30 25,900 1.00 2.51 24,000 1.00 2.80 22,100 1.00 3.10
85/72 41,300 0.63 2.27 38,400 0.66 2.80 36,900 0.67 3.06 34,500 0.70 3.37 32,200 0.72 3.68
3.0 *MHP4-14-361*P
80/67 39,200 0.69 2.25 36,100 0.73 2.77 34,600 0.75 3.04 32,000 0.78 3.34 29,500 0.81 3.64
75/63 37,300 0.72 2.25 33,800 0.76 2.75 32,100 0.78 2.99 29,500 0.81 3.29 27,000 0.84 3.59
75/57 33,900 1.00 2.25 31,100 1.00 2.73 29,700 1.00 2.97 27,600 1.00 3.27 25,500 1.00 3.58
– Page 16 –
MHP4-12/14
M-SERIESTM
BLOWER PERFORMANCE
· Performance based on factory-provided washable filter installed in the unit. · If a higher resistance filter is field installed in the unit, the added resistance must be included in the external static pressure and
must not exceed 0.5 in. w.c. including ductwork · Refer to Factory Filter Size and Pressure Drop table for additional details
SUPPLY AIRFLOW PERFORMANCE AS A FUNCTION OF EXTERNAL STATIC PRESSURE
Tonnage Model
Indoor Blower Speed
0.1″ w.c.
0.2″ w.c.
0.3″ w.c.
0.4 “w.c.
0.5″ w.c.
SCFM Watts HP SCFM Watts HP SCFM Watts HP SCFM Watts HP SCFM Watts HP
TAP 1 (FAN)
365
28 0.04 330
31 0.04 275
35 0.05 225 38 0.05 180
TAP 2 (COOL / HP) 375
28 0.04 325
32 0.04 275
35 0.05 N/A N/A N/A N/A
0.75 *MHP4-12-091*P 5 kW 3 kW
TAP 3 (COOL / HP) N/A N/A N/A N/A N/A N/A 395 54 0.07 370 58 0.08 330
TAP 4 (HEAT)* 515
55 0.07 485 58 0.08 450 62 0.08 N/A N/A N/A N/A
TAP 5 (HEAT) 600 73 0.10 570 78 0.10 545 84 0.11 515 88 0.12 475
TAP 4 (HEAT)* 570
69 0.09 545
73 0.10 515
77 0.10 N/A N/A N/A N/A
TAP 5 (HEAT) 660 92 0.12 635 98 0.13 605 104 0.14 580 109 0.15 550
TAP 1 (FAN)
365
28 0.04 330
31 0.04 275
35 0.05 225 38 0.05 180
TAP 2 (COOL / HP) 490 50 0.07 460 55 0.07 420 59 0.08 N/A N/A N/A N/A
1.0 *MHP4-12-121*P 5 kW 3 kW
TAP 3 (COOL / HP) N/A N/A N/A 555 77 0.10 525 82 0.11 495 86 0.12 460
TAP 4 (HEAT)* 515
55 0.07 485 58 0.08 450 62 0.08 N/A N/A N/A N/A
TAP 5 (HEAT) 600 73 0.10 570 78 0.10 545 84 0.11 515 88 0.12 475
TAP 4 (HEAT)* 570
69 0.09 545
73 0.10 515
77 0.10 N/A N/A N/A N/A
TAP 5 (HEAT) 660 92 0.12 635 98 0.13 605 104 0.14 580 109 0.15 550
TAP 1 (FAN)
365 32 0.04 335 35 0.05 280 39 0.05 235 42 0.06 175
TAP 2 (COOL / HP) 615 103 0.14 590 108 0.14 555 112 0.15 530 117 0.16 500
TAP 3 (COOL / HP) 700 135 0.18 670 141 0.19 640 146 0.20 615 151 0.20 590
1.5 *MHP4-12-181*P 7 kW 5 kW 3 kW
TAP 4 (HEAT)* 615
93 0.12 590 97 0.13 555 101 0.14 N/A N/A N/A N/A
TAP 5 (HEAT) 715 127 0.17 685 134 0.18 655 140 0.19 630 146 0.20 600
TAP 4 (HEAT)* 665 110 0.15 635 114 0.15 605 118 0.16 N/A N/A N/A N/A
TAP 5 (HEAT) 750 148 0.20 725 154 0.21 700 160 0.21 675 166 0.22 650
TAP 4 (HEAT)* 725 137 0.18 705 144 0.19 675 150 0.20 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A 800 200 0.27 780 205 0.27 755 209 0.28 725
10 kW
TAP 4 (HEAT)* 750 148 0.20 725 154 0.21 700 161 0.22 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A N/A N/A N/A 805 224 0.30 780 228 0.31 750
TAP 1 (FAN)
460
43 0.06 420
47 0.06 380
51 0.07 350 54 0.07 290
TAP 2 (COOL / HP) 815 150 0.20 785 161 0.22 760 165 0.22 740 172 0.23 715
TAP 3 (COOL / HP) 885 201 0.27 860 208 0.28 835 213 0.29 805 217 0.29 785
2.0 *MHP4-12-241*P 7 kW 5 kW
TAP 4 (HEAT)* 800 146 0.20 775 152 0.20 750 157 0.21 N/A N/A N/A N/A
TAP 5 (HEAT) 905 201 0.27 880 207 0.28 855 212 0.28 825 216 0.29 800
TAP 4 (HEAT)* 855 174 0.23 830 179 0.24 800 183 0.25 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A 930 231 0.31 900 235 0.32 875 239 0.32 850
10 kW
TAP 4 (HEAT)* 855 174 0.23 830 179 0.24 800 183 0.25 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A 930 231 0.31 900 235 0.32 875 239 0.32
N/A: Do not operate unit using this blower speed at this external static pressure. As shipped speed for Cooling and Heat Pump operation. Blower speed must be field adjusted to Speed Tap 3 for higher duct static applications. * As shipped speed for Heating operation. Blower speed must be field adjusted to Speed Tap 5 for higher duct static applications.
850
– Page 17 –
41 0.05 N/A N/A 62 0.08 N/A N/A 92 0.12 N/A N/A 114 0.15 41 0.05 N/A N/A 91 0.12 N/A N/A 92 0.12 N/A N/A 114 0.15 46 0.06 121 0.16 157 0.21 N/A N/A 151 0.20 N/A N/A 171 0.23 N/A N/A 213 0.29 N/A N/A 232 0.31 59 0.08 178 0.24 220 0.30 N/A N/A 219 0.29 N/A N/A 243 0.33 N/A N/A 243 0.33
MHP4-12/14
M-SERIESTM
BLOWER PERFORMANCE CONTINUED
· Performance based on factory-provided washable filter installed in the unit. · If a higher resistance filter is field installed in the unit, the added resistance must be included in the external static pressure and
must not exceed 0.5 in. w.c. including ductwork · Refer to Factory Filter Size and Pressure Drop table for additional details
SUPPLY AIRFLOW PERFORMANCE AS A FUNCTION OF EXTERNAL STATIC PRESSURE
Tonnage Model
Indoor Blower Speed
0.1″ w.c.
0.2″ w.c.
0.3” w.c.
0.4 “w.c.
0.5” w.c.
SCFM Watts HP SCFM Watts HP SCFM Watts HP SCFM Watts HP SCFM Watts HP
TAP 1 (FAN)
590 43 0.06 535 48 0.06 430 55 0.07 380 60 0.08 315
TAP 2 (COOL / HP) 1040 161 0.22 1005 169 0.23 970 177 0.24 935 185 0.25 900
TAP 3 (COOL / HP) N/A N/A N/A 1105 211 0.28 1070 220 0.30 1040 229 0.31 1010
2.5 *MHP4-12-301*P 10 kW 7 kW 5 kW
TAP 4 (HEAT)* 1075 151 0.20 1040 159 0.21 1005 168 0.23 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A N/A N/A N/A 1100 205 0.27 1065 216 0.29 1025
TAP 4 (HEAT)* 1075 151 0.20 1040 159 0.21 1005 168 0.23 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A N/A N/A N/A 1100 205 0.27 1065 216 0.29 1025
TAP 4 (HEAT)* 1075 151 0.20 1040 159 0.21 1005 168 0.23 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A N/A N/A N/A 1100 205 0.27 1065 216 0.29 1025
TAP 1 (FAN)
680
61 0.08 630 68 0.09 575
74 0.10 525 79 0.11 460
TAP 2 (COOL / HP) 1235 260 0.35 1200 272 0.36 1165 284 0.38 1135 295 0.40 1100
TAP 3 (COOL / HP) N/A N/A N/A N/A N/A N/A 1250 330 0.44 1215 342 0.46 1180
3.0 *MHP4-14-361*P 10 kW 7 kW 5 kW
TAP 4 (HEAT)* 1240 232 0.31 1205 248 0.33 1170 262 0.35 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A N/A N/A N/A 1260 315 0.42 1230 328 0.44 1200
TAP 4 (HEAT)* 1240 232 0.31 1205 248 0.33 1170 262 0.35 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A N/A N/A N/A 1260 315 0.42 1230 328 0.44 1200
TAP 4 (HEAT)* 1240 232 0.31 1205 248 0.33 1170 262 0.35 N/A N/A N/A N/A
TAP 5 (HEAT) N/A N/A N/A N/A N/A N/A 1260 315 0.42 1230 328 0.44
N/A: Do not operate unit using this blower speed at this external static pressure. As shipped speed for Cooling and Heat Pump operation. Blower speed must be field adjusted to Speed Tap 3 for higher duct static applications. * As shipped speed for Heating operation. Blower speed must be field adjusted to Speed Tap 5 for higher duct static applications.
1200
65 193 237 N/A 225 N/A 225 N/A 225 86 305 354 N/A 338 N/A 338 N/A 338
0.09 0.26 0.32 N/A 0.30 N/A 0.30 N/A 0.30 0.12 0.41 0.47 N/A 0.45 N/A 0.45 N/A 0.45
All specifications and illustrations subject to change without notice and without incurring obligations.
FORM NO. MHP4-100 (09/2022)
215 Metropolitan Drive | West Columbia, SC 29170 800-448-5872
Product Support 866-282-7257 www.magic-pak.com
©2022 Allied Air Enterprises LLC, a Lennox International Inc. Company – Page 18 –
Printed in the U.S.A.
