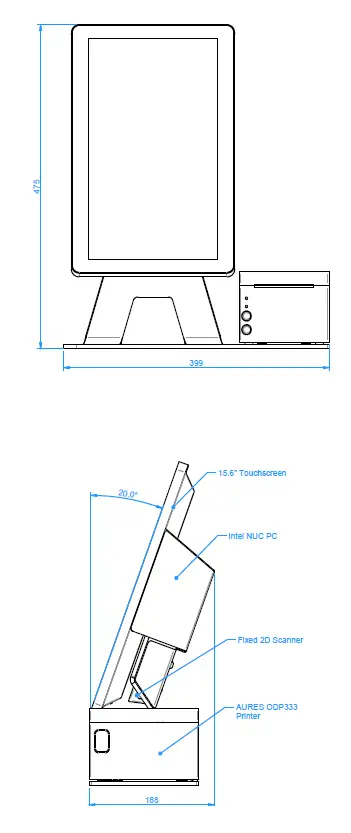

INTOUCH KIO-LITE-156P-AUR 15.6 Inch Portrait Kiosk Compact Countertop Unit
KIO-LITE-156P-AUR SPECIFICATIONS
Touch Screen INDT156
- 15.6” active viewable area
- 10-point PCAP multi-touch
- 1920 x 1080 Native Resolution
- Built-in stereo speakers
Media Player Intel NUC
- Intel Core i3 Processor (Optional i5)
- Iris Plus Graphics 655
- Integrated Wi-Fi, Ethernet & Bluetooth
- DDR4-2400 RAM
- Windows 10
Printer THERMAL RECEIPT PRITNER
- Direct thermal printing
- Max. print width 72mm
- 160mm/sec Print Speed
- automatic paper loading
Scanner Datalogic Gryphon GFS4400 Fixed
- Reads 1D & 2D barcodes
- Wide angle field-of-view
- Reads QR Codes
- Programmable for “Always On” or “Object Snese” mode

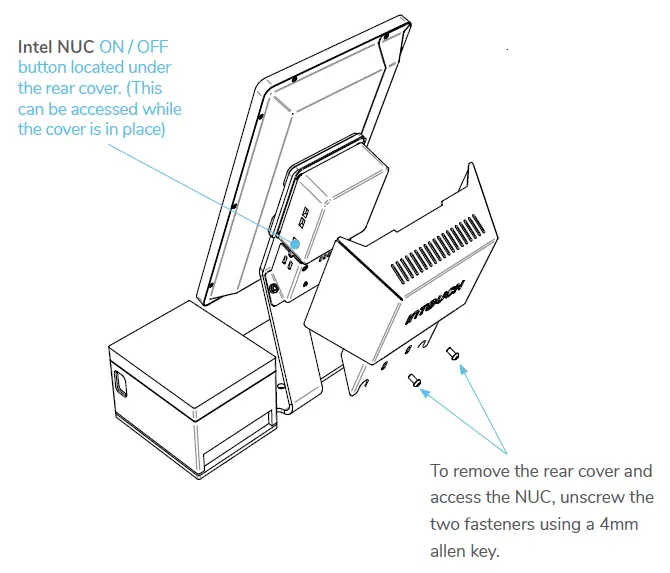

KIO-LITE-156P-AUR BACK VIEW*
CABLING INFORMATION*
*Cabling and external power supplies not illustrated
- Requirements:
You will need three power outlets to connect the screen, Intel NUC PC and printer - Network:
You have the option to connect the media player to your network via WiFi or Ethernet. - Setup:
Simply plug in all three power cables, turn power on, turn printer on (if required) and you are ready to go!
SECURING YOUR KIOSK (OPTIONAL)
For further information on securing your kiosk, do not hesitate to contact us on [email protected]
CLEANING INSTRUCTIONS
Applicable to touch screens and kiosks:
InTouch suggests using an isopropyl alcohol spray and clean microfibre cloth.
Caution: DO NOT use abrasive cleaners, solvents or cloths.
For more information please visit www.intouchscreens.com.au/cleaning
WARRANTY
For more information please visit www.intouchscreens.com.au/warranty
FOR MORE INFORMATION
Telephone 02 9939 6251
[email protected]
[email protected]
www.intouchscreens.com.au
Touch Screen Monitor & Kiosk Solutions in Australia
