Greencreative 6 Inch Multifit Cloud Round Downlight Instructions

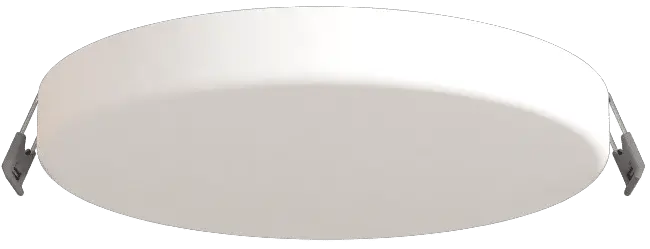

GREENCREATIVE 6 Inch MULTIFIT Cloud Round Downlight

SPECIFICATION FEATURES

• Mechanical – Compact fixture body made from die cast aluminum for maximizing passive cooling ensuring long life lasting LED, non yellowing frosted polycarbonate lens for optimal light diffusion. Proprietary IC-rated potted driver for optimal heat protection, with hot-dip galvanized steel box and easy tool-less opening attached clipping lid. Rugged spring clips allow for both easy direct installation from 3/8” to 1-1/2″ ceiling thickness and field accessibility below the ceiling for service or replacement. Additional mounting plates also available if required. Plenum rated cable and connector to connect from downlight to remote driver box.
• Electrical -The driver features DualDim technology, for maximum adaptability in any spaces whether it’s commercial, residential or mixed. Rated for 120V to 277V, 50/60 Hz the driver is both 0-10V dimmable to 5% with low-end cut off and Forward and Reverve phase dimmable at 120V down to 10%. Please consult dimmer compatibility for additional information. Drivers also feature easy accessible outside switch for selecting the right color temperature. Coming with four 7/8″ knockout, and suitable for pulling wires to accommodate up to (6) 12 gauge 90°C insulated conductors, making the MULTIFIT downlights fast and easy to wire in daisy-chain applications and contractor friendly. Sound rating <22db.
• Optical – Featuring SelectKelvin technology with field selectable CCTs 2700/3000/3500/4000/5000K. LED binning within 4 SDCM maximum. Offered in minimum 90 CRI. 110° optical beam angle. Back-lite technology with individual LED chip lenses for maximum uniformity.
• Thermal – Die cast heat sink maximizes passive thermal management and achieves a L70 rated lifetime of 50,000+ hours. Ambient temperature rated from -5°F to 113°F (-15°C to 45°C).
• Compliance and Warranty – ETL Classified and Listed for wet location. Certified air-tight per ASTM 283-04. Complies with FCC 47CFR Part 15B consumer limits for EMI/RFI emissions. Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements. Certified IC for direct contact with insulation. 5 Year Warranty for complete fixture. Optional 10 Year Extended Warranty available, subject to same terms, conditions and installation requirements as standard 5 Year Warranty

BENEFITS

• MULTIFIT provides the easiest retrofiting or new installation dimming compatibility with DualDim technology
• SelectKelvin technology to choose from five color temperatures ranging from 2700K to 5000K
• Install virtually anywhere with Wet Location, IC and Air-tight ratings
• Quick and easy installation with spring action clip even in the shallower plenums
• External driver with quick connector for easy wiring and daisy chain application

APPLICATIONS

• Retail
• Hospitality
• Residential
• Education
• Healthcare

MULTIFIT CLOUD ROUND

ORDERING INFORMATION

MULTIFIT CLOUD

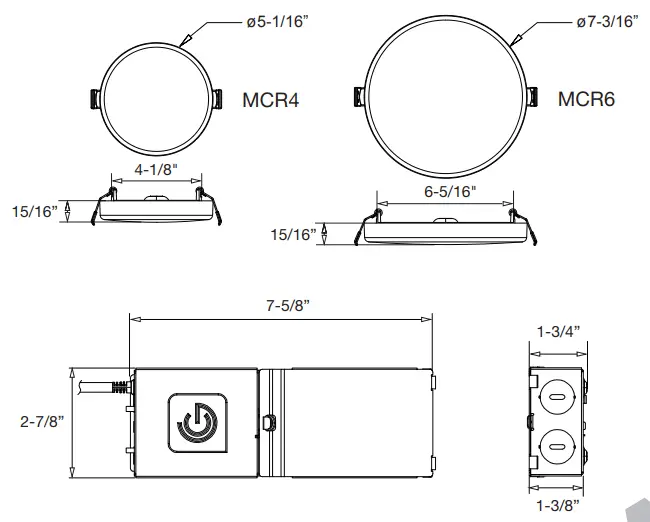

LINE DRAWINGS

TECHNICAL INFORMATION

NOMINAL PERFORMANCE

MULTIFIT CLOUD ROUND

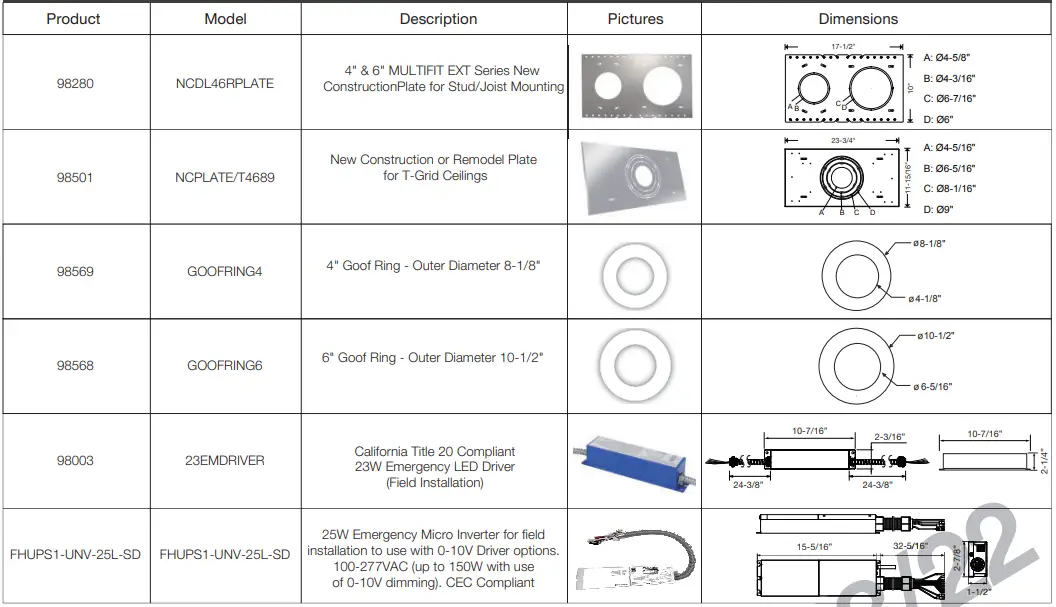

ACCESSORY ORDERING INFORMATION

ORDERING GUIDE

Note: All rights reserved. All sizes and specifications are subject to change at any time without notice.
