Honeywell W03-3042-000 Bw Rigrat Cage Kit Instruction Manual

Honeywell W03-3042-000 BW RigRat Cage Kit

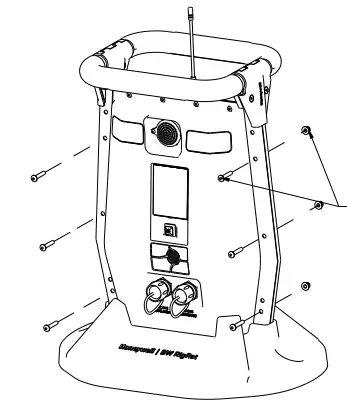

• STEP 1
  Remove fixed strip (2pcs) ,nut(4 pcs), screw(4pcs) and gasket(8PCS). No use for these parts to removed from the product.
• STEP 2
  Remove the screw and locknut(6PCS). no use for these parts to removed from the product.

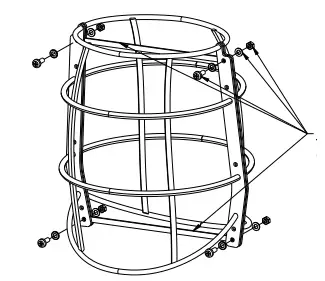

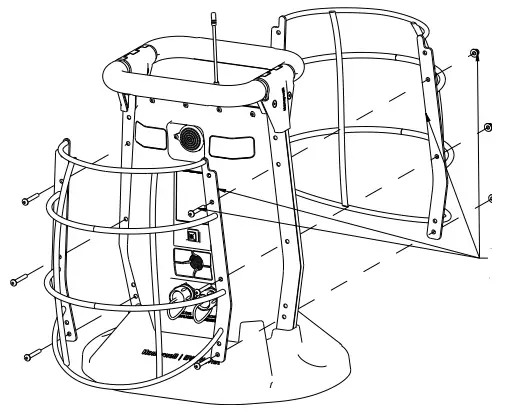

• STEP 3
  Install W03-2100-000 Cage(2PCS) 430-4041-000 Screw M5*35(6PCS) 430-8038-300Locknut M5(6PCS)
  NOTE: must use the right parts when installing.

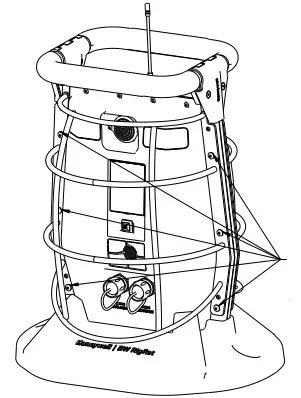

• STEP 4
  Fasten all screws and locknuts. Torque is 12kgf.cm.
