Security Brands Adv-1000 Advantage Dk Keypad User Guide

QUICK START GUIDE
ADVANTAGE DK
Model ADV-1000

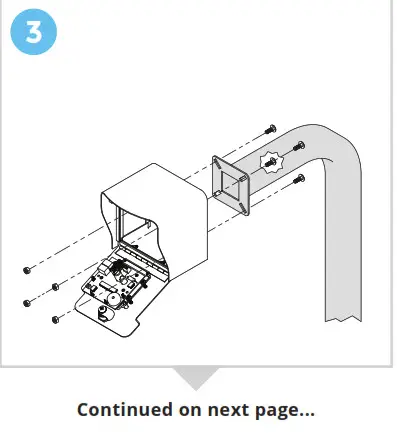

Unlock and open the front panel of the keypad unit; then using carriage bolts and hex nuts, attach the unit to the pedestal as shown.

What’s what?

Important components labeled

The unit is shown with the front panel fully open.

WARNING!
AUTOMATIC GATES CAN CAUSE SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH IS CLEAR BEFORE OPERATING!
REVERSING or other SAFETY DEVICES SHOULD ALWAYS BE USED!

4a Make the connections

Wiring for Gate Operator or Door Opener

4b Make the connections

Wiring for Electric Door Strike and Exit Device

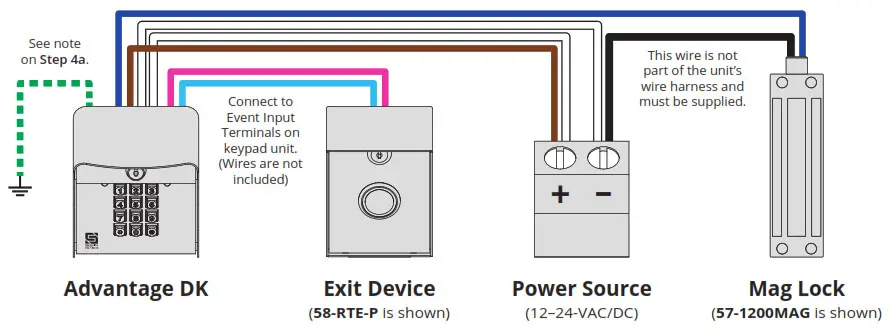

4c Make the connections

Wiring for Mag Lock and Exit Device

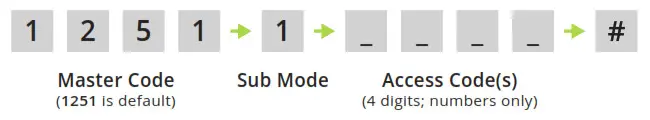

5. Add Access Code(s) to Relay A.
(To add multiple codes, enter each of them before pressing the pound key)

NOTE: The Master Code is for programming only and will not trigger the relay. The green arrow indicates a “good” tone on the keypad. An incorrect entry will sound a “bad” tone.

6. Make sure the gate path is clear; then enter the access code on the keypad and the confirm gate opens.

INSTALLATION COMPLETE!
Your system is ready to use.

A1 Additional Programming

NOTE: Green arrow indicates a “good” tone on the keypad. Always wait for a good tone before moving on.

Things to Know

Status LEDs
The yellow LED comes on when the unit is in Programming Mode. The red LED comes on when a relay is active.
The Star Key (*)
The star key deletes your current entry.
If you happen to make a mistake keying in a code, simply press the star key to delete the entire entry and start over.
The Pound Key (#)
The pound key is good for one thing and one thing only: exiting Programming Mode.
Whenever you’re in Programming Mode, simply press the pound key to get out.
Reset Procedures
If for some reason the Master Code is forgotten or the unit needs to be reset to factory defaults, two reset procedures are available: Master Reset and Unit Reset.
These procedures can be found on page 5 of this guide.

Programming Sub Modes

A2 Additional Programming (continued)

Set Latch Code

Set Relay Output Time

Add Access Code(s) to Relay B
(To add multiple codes, enter each of them before pressing the pound key)

NOTE: Green arrow indicates a “good” tone on the keypad. Always wait for a good tone before moving on.

Configure “Three Strikes, You’re Out”
(This feature is designed to deter unauthorized users who enter an incorrect code three times in a row. When this happens, the unit will sound an alarm and flash the status LEDs for 30 seconds, and it will go into a period of lockdown for a full 90 seconds.)

A3 Additional Programming (continued)

Configure Event Input
(Allows an external device to affect keypad operation or trigger a relay)
Modes
Mode 1 – Remote Inactive Mode
Disables all Relay A codes when input is received from an external device
Mode 2 – Arming Circuit Mode
Turns on keypad unit when input is received from an external device
Mode 3 – Remote Open Mode
Triggers either Relay A or Relay B when input is received from an external device
Mode 0 – Event Input Disabled

Set Mode 1, Mode 2, Disable or Check Current Mode

NOTE: Green arrow indicates a “good” tone on the keypad. Always wait for a good tone before moving on.

B Reset Procedures

NOTE: If an error is made during these procedures, an “error” tone will sound and you must start again from the beginning.
Master Reset
(Used if the Master Code is unknown, if the Latch Code is unknown and the unit is in Latch Mode, or if the Sleep Code is unknown and the unit is in Sleep Mode. All other codes will be retained after completing this procedure.)
Step 1 – Open the front panel on the unit.
Step 2 – Disconnect power.
Gently unhook the Wire Harness connector from the circuit board. Note the orientation of the connector.
Step 3 – Press and hold Reset Button; reconnect power; then release Reset Button.
Gently reattach the Wire Harness connector to the circuit board. The unit will sound one (1) tone.
Release Reset Button after you hear the tone.
Step 4 – Press the Star key (*) on the keypad three (3) times.
Step 5 – Close the front panel on the unit.
The Master Code is now reset to default (1251).

Unit Reset
(Used to reset the unit to factory default settings. All codes are erased in this procedure.)
CAUTION: FOLLOWING THIS PROCEDURE WILL DELETE ALL CODES!
Step 1 – Open the front panel on the unit.
Step 2 – Disconnect power.
Gently unhook Wire Harness connector from the circuit board. Note the orientation of the connector.
Step 3 – Press and hold Reset Button; reconnect power; then release Reset Button.
Gently reattach the Wire Harness connector to the circuit board. The unit will sound one (1) tone.
Release Reset Button after you hear a tone.
Step 4 – Enter Pound (#) Star (*) Pound (#) on the keypad. (Unit will sound “good” tone.)
Step 5 – Enter 1251 (Master Code) on the keypad. (Unit will flash status LEDs and beep.)
Step 6 – While the unit is beeping, disconnect and reconnect power.
Do this the same way as before. The unit will then go through a power-up procedure.
The unit is now reset to factory default settings.

Notes…………………..

Advantage DK
ADV-1000

NEED HELP

Call (972) 474-6390
Email [email protected]
We are available Mon–Fri / 8 am–5 pm Central

QSG-ADV1000-EN Rev. D (9/2021)
