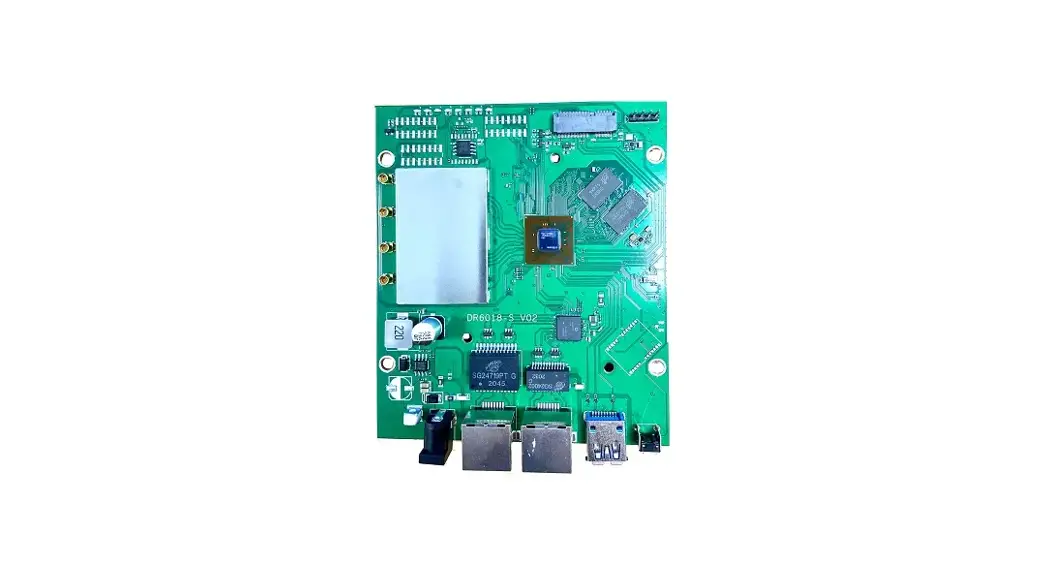

DR8072 V01 Dual Concurrent Embedded board
Product Information
| Product Name | DR8072 V01 |
|---|---|
| Features |
|
| Applications |
|
| Product Description | DR8072 V01 based on IPQ8072A chipset is an enterprise wireless module integrated with 2×2(4×4) 5G high power Radio module and 4×4 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment. |
| Absolute Maximum Rating |
|
Product Usage Instructions
To use the DR8072 V01 product, please follow these
instructions:
- Ensure that the product is placed within the specified
operating temperature range of -20°C to +70°C. - Connect the product to a power source using the provided DC
Jack Input Interface. - Make sure the LED indicators are powered on.
- Connect your device(s) to the product using the available
Ethernet ports (4 x 1 Gbps Ethernet Port, 1 x 10Gbps Ethernet Port)
or the USB 3.0 Port. - If required, connect external devices to the MiniPCIe Slot or
the 10Gbps SFP. - If necessary, perform a wireless reset using the designated
Reset Button. - Monitor the product’s performance using the Serial Port 4 Pin
Connector or the JTAG 20 Pin Connector.
For further information and support, please visit http://www.wallystech.com/.
DR8072 V01
2x(4×4) 2.4GHz &5GHz 11AX MU-MIMO DUAL CONCURRENT EMBEDDED BOARD
Features
Qualcomm Atheros IPQ8072A AR Quad Core CPU On-board 5GHz radio, up to 2475Mbps physical data rate 8 MB NOR Flash, 256MB NAND Flash On-board 2.4GHz radio, up to 1147Mbps physical data rate Support 11ax TX Beamforming Support 11ac/ax MU-MIMO DL and UL Support OFDMA DL and UL support with 4×4/5GHz + 4×4/2.4GHz
Supports Dynamic Frequency Selection (DFS)
Applications
Dual Band MU-MIMO 802.11g/n/ac/ax
Access Point Wireless application
4x4MU-MIMO 802.11ax Access Point
Product Description
DR8072 V01 based on IPQ8072A chipset is an enterprise wireless module integrated with 2×2(4×4) 5G high power Radio module and 4×4 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.
DR8072 V01
2x(4×4) 2.4GHz &5GHz 11AX MU-MIMO
DUAL CONCURRENT EMBEDDED BOARD
Absolute Maximum Rating
Parameter
Operating Temperature Range Storage Temperature Range Operating Humidity Range Storage Humidity Range
Rating
-20 to +70 -40 to +90 5 to +95 (non-condensing) 0 to +90 (non-condensing)
http: / / www. wallystech. com/
Unit
ºC ºC % %
Hardware Specifications
Symbol
CPU
CPU Frequency
Parameter
Qualcomm Atheros Quad Core ARM Cortex 6 4 – bit A5 3 Processor IPQ8072A 2.2GHz CPU
Derived from Qualcomm Atheros AP . HK0 1
System Memory Frequency Range MiniPCIe Slot
1x 512MB, DDR4 2400MHz 16-bit interface(RAM can be up to 2GB as optional) 2.412~2 .472GHz, 5. 150~5 .825GHz 1x MiniPCIe Slot with PCIe 3.0
Modulation Techniques OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Environmental Temperature
Flash
Operating: -20 º C to 70 ºC, Storage: -40ºC to 90 ºC
NOR Flash: 8 MB NAND Flash: 256MB
Wireless Reset Buttons DC Jack Input Interface
LED Power Consumption
On- board 4×4 2 .4GHz MU-MIMO OFDMA 802 . 11b/g/n/ax , max 1 7 dBm per chain On-board 4×4 5GHz MU-MIMO OFDMA 802 . 1 1a/n/ac/ax, max 1 7 dBm per chain
8 x U . FL Connectors
1 x S/ W Reset Button 1x DC Jack Connector: 12V
4 x 1 Gbps Ethernet Port,
1x 10Gbps Ethernet Port
1x 10Gbps SFP
2x USB 3.0 Port
1x JTAG 20 Pin Connector
1x Serial Port 4 Pin Connector 2x RGB LED Indicators TBD
http://www.wallystech.com/
