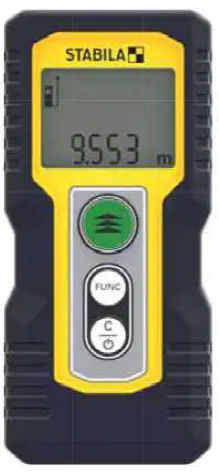

STABILA LD 220 Laser Distance Measurer

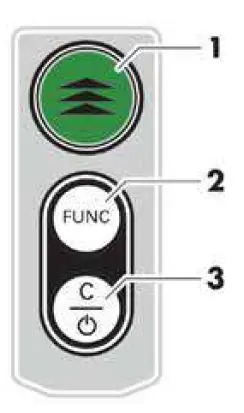

Product overview

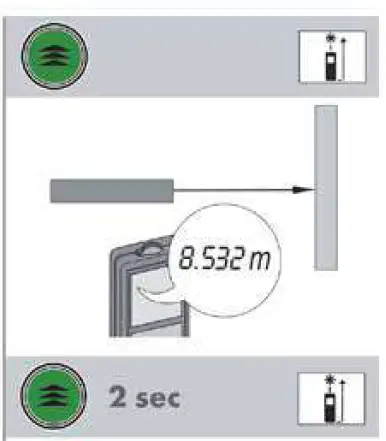

- On/Measure

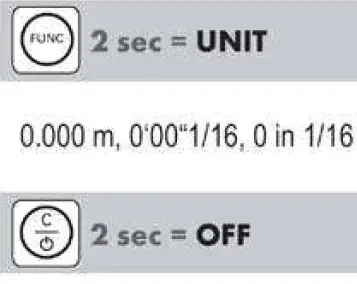

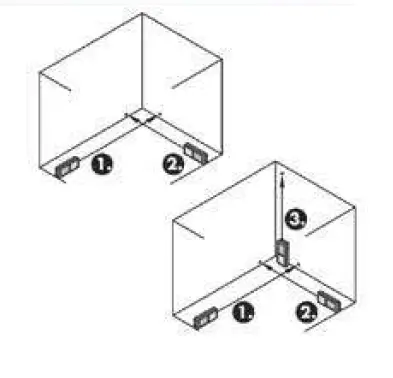

- Area I Volume I Unit
- Clear I Off
Introduction
The person responsibility for the product must ensure that all users understand these directions and adhere to them

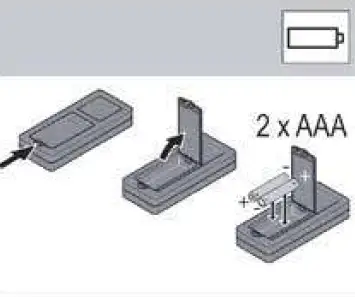

Battery and Instrument Set up
Battery units required
Fixation
Technical data
| Accuracy with favorable conditions | + 3.0 mm I + 0.12 in |
| Accuracy with unfavorable conditions | + 4.0 mm I + 0.16 in |
| Range with favorable conditions | 0.2-30 m I O.6-98 ft |
| Range with unfavorable conditions | O.2-20 m I O.6-66 ft |
| Smallest unit displayed | 1 mm I 0.04 in |
| Laser class | 2 |
| Laser type | 635 nm, < 1 m W |
| 0 laser point at distances | 6 / 18 mm 10 / 30 m |
| Protection class | IP54 |
| Autom. laser switch off | after 90 s |
| Autom power switch off | after 180 s |
| Battery durability 2 x AAA | up to 5000 measurements |
| Dimension H x D x W | 115 x 53 x 25 mm 4.5 x 2.1 x 1 in |
| Weight with batteries | 95 g / 3.4 oz |
| Temperature range Storage Operation | -25 to 70 °C -13 to 158 °F O to 40 °C 32 to 104 °F |
Favourable conditions are
White and diffuse reflecting target white painted wall, low background illumination and moderate temperatures.
Un Favourable conditions are
Targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range. Tolerances apply from 0.2 m to 5 mwith a confidence level of 95%. With favourable conditions the tolerance may deteriorate by 0.1 mm/m for distances above 5 m. With un favourable conditions the tolerance may deteriorate by 0.15 mm/m for distances above 5 m.
Message Codes
If the message Error does not disappear after switching on the device repeatedly, contact the dealer. If the message Info appears with a number, press the Clear button and observe the following instructions
| No. | Cause | Correction |
| 204 | Calculation error | Perform measurement again. |
| 252 | Temperature too high | Let device cool down. |
| 253 | Temperature too low | Warm device up. |
| 254 | Battery voltage too low for measurements | Change batteries. |
| 255 | Received signal too weak, measuring time too long | Change target surface e.g. white paper |
| 256 | Received signal too high | Change target surface e.g. white paper |
| 257 | Too much background light | Shadow target area. |
| 258 | Measurement outside of measuring range | Correct range. |
| 260 | Laser beam interrupted | Repeat measurement. |

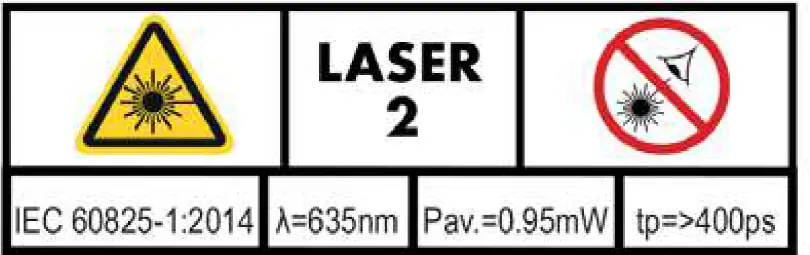

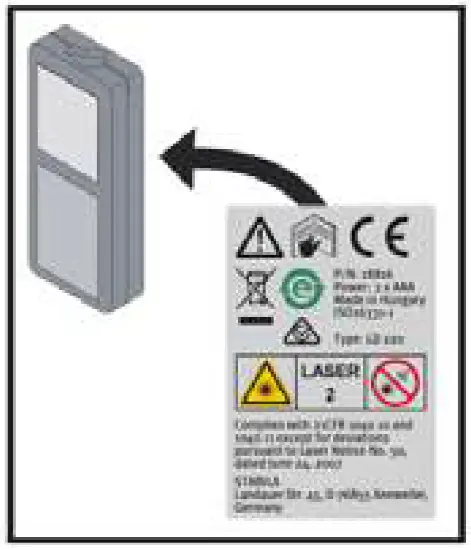

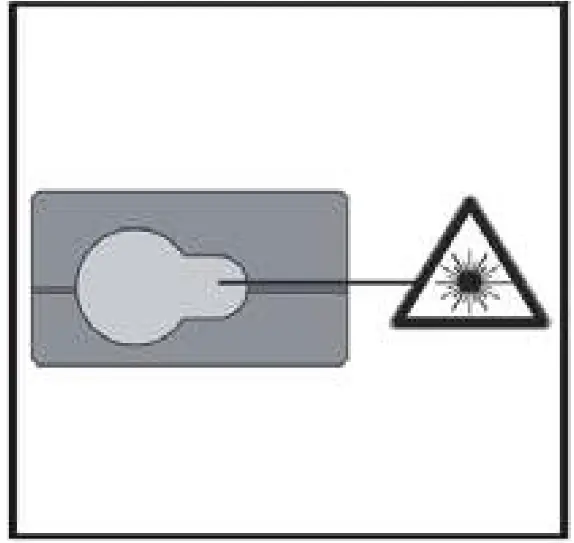

Laser classification
| Wavelength | 635 nm |
| Maximum radiant output power used for classification | 0.95 mW |
| Pulse repetition frequency | 320 MHz |
| Pulse duration | >400ps |
Warranty
Stabila provides a two-year warranty for the product. Futher information can be found on the Internet at: www.stabila.de
