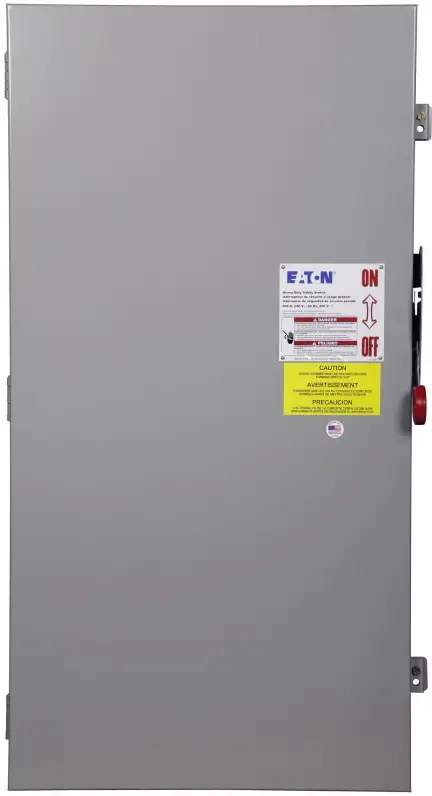

EATON DH325NGKLP Enhanced Visible Blade Single-Throw Fused Safety Switch Instructions
Eaton Quick Connect Safety Switch, Heavy Duty, Single-Throw, 400A, 240V,3P, Fusible with solid neutral, Series K, NEMA 1, Posi-Lok
General specifications
| Product Name | Eaton quick connect heavy duty safety switch |
| Catalog Number | DH325NGKLP |
| Product Length/Depth | 12.39 in |
| Product Height | 44.31 in |
| Product Width | 22.66 in |
| Product Weight | 110 lb |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Certifications |
Physical Attributes
| Enclosure | Enclosure |
| Fuse configuration | Fusible with solid neutral |
| Number Of Poles | Three-pole |
| Type | Heavy Duty, Single-Throw |
Performance Ratings
| Amperage Rating | 400A |
| Voltage rating | 240V |
Miscellaneous
| Series | Series K |
| Special features | Posi-Lok |
Resources
| Catalogs | https://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&Rendition=Primary&dDocName=CA08100003E |
| Multimedia | https://www.eaton.com/us/en-us/skuPage.DH325NGKLP.pdf https://www.youtube.com/watch?v=U4DudPZw18A |
| Specifications and datasheets | https://www.eaton.com/us/en-us/skuPage.DH325NGKLP.pdf |
| Warranty guides | https://www.eaton.com/content/dam/eaton/company/partnering-with-eaton/selling-policies/sp03000001e.pdf |
