Installation Guide
Panel Accessory Plastic Box

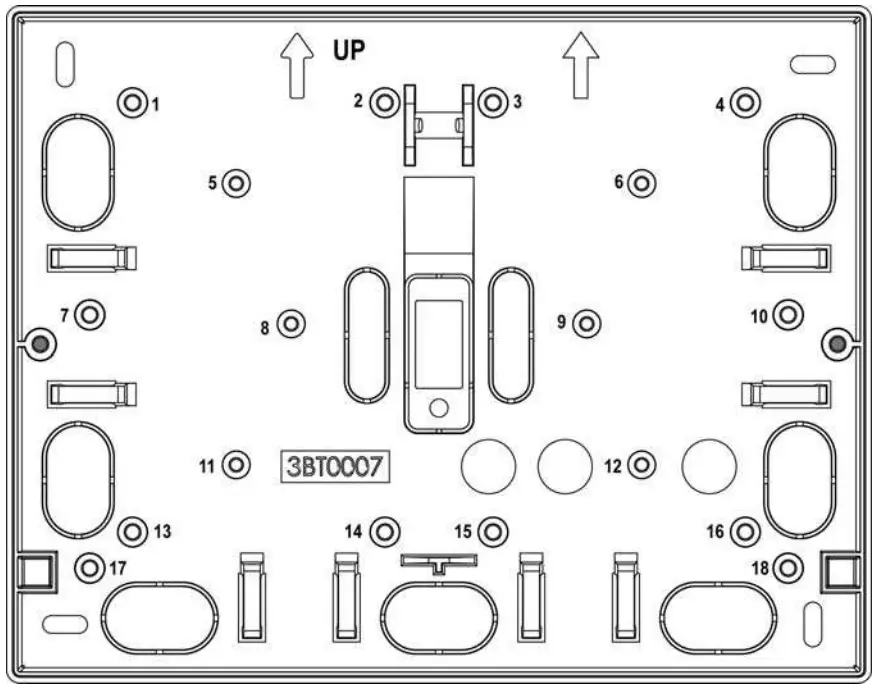

Installation Holes Map
Note: This box is only suitable for devices powered by voltages below 60VDC or 42.4VAC.
Installation of Accessories (Maximum of 2)
ProSYS 8 Zone Expansion Module
ProSYS 4 Relay Output Module
ProSYS 8 O.C. Output Module
ProSYS Event Log Expansion Module (512, 999)
ProSYS X-10 Expansion Module
Connection holes: 1, 2, 13, 14 and/or 3, 4, 15, 16

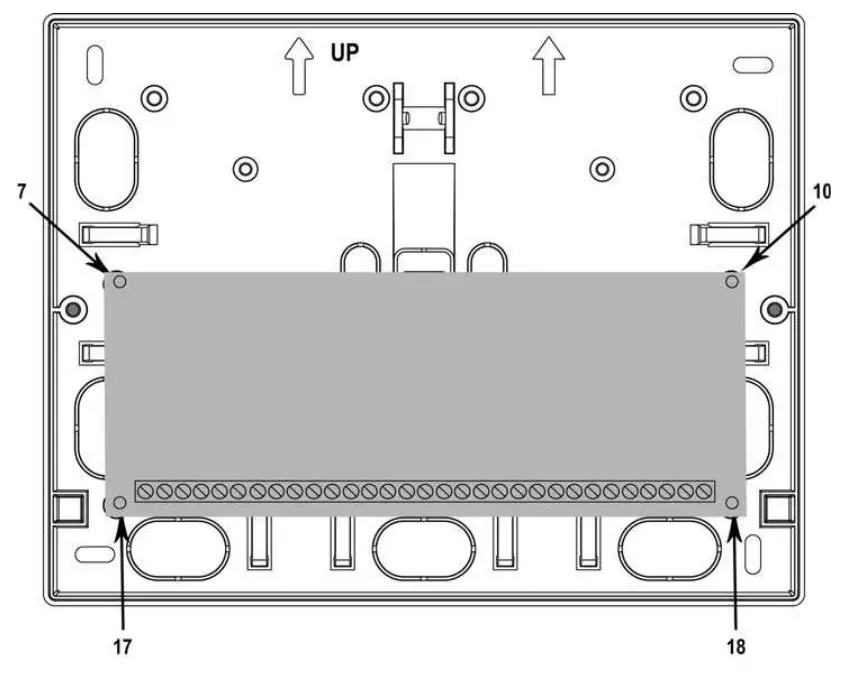

Installation of a single 16 Zone Expander
Connection holes: 7, 10, 17, 18

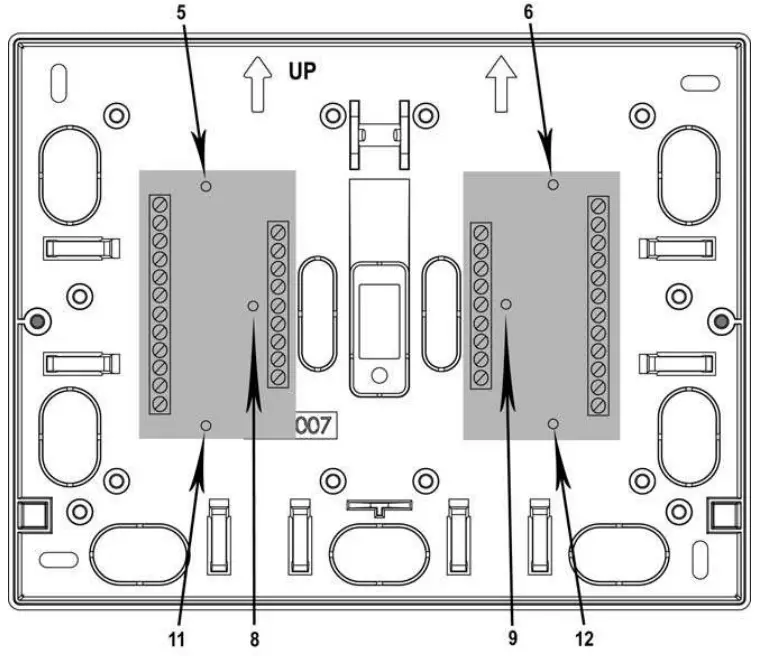

Installation of GT Accessories (Maximum of 2)
Zone Expander (Code 02083)
Relay Output Expander (Code 02085)
ID Expander (Code 02087)
Connection holes: 5,8,11 and/or 6,9,12
Technical Specifications:
Dimensions: 192 mm x 150 mm x 57 mm
Certification:
EN50131-3 Grade 3 Environmental class II
Ordering Information:
| Model | Description |
| ProSYS B5 | Plastic accessory box with tamper |
RTTE Compliance Statement:
Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com.
© RISCO Group 08/2016
5IN1151 D
