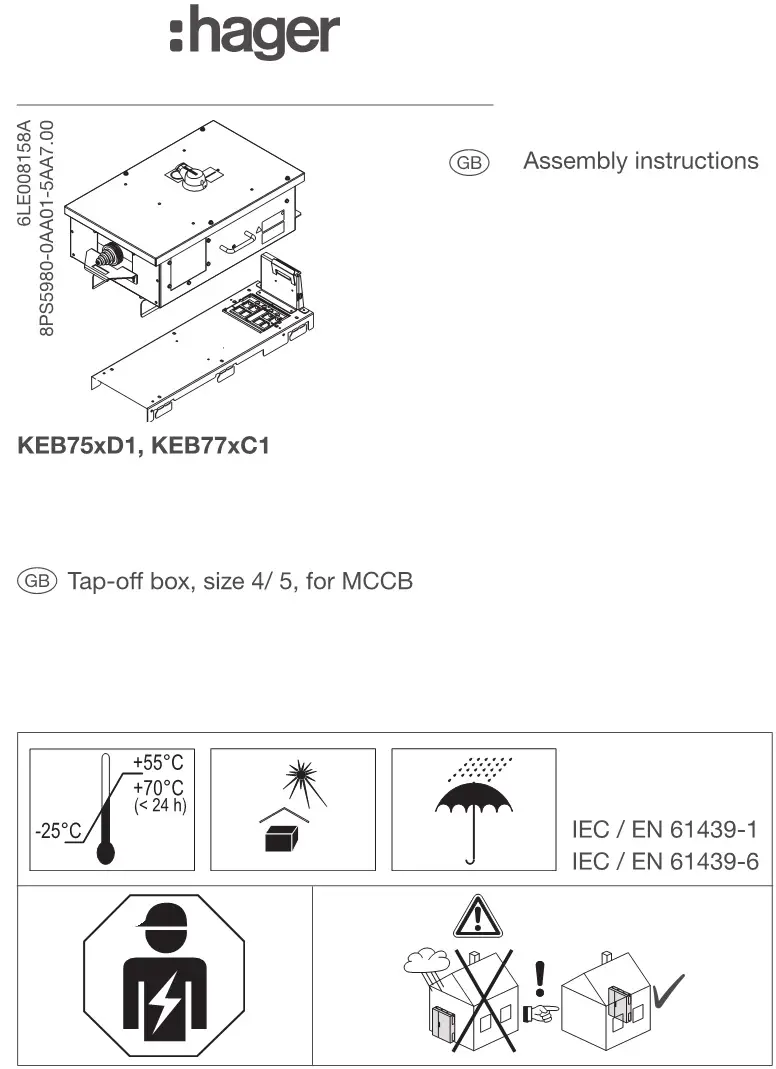

Hager DE BG5 Tap-Off Box Size 4/ 5 For MCCB Instruction Manual
Safety Information!
Electrical devices may only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, guidelines, regulations, directives, safety and accident prevention regulations of the country.
Always comply with the warning information on the device!
Observe the mounting instructions of the installed devices. In particular, carry out appropriate maintenance measures.
Secondary cables may not be routed in the areas of the blow-out spaces of the circuit breakers.
The outlet box may not be used to supply energy into the busbar system (IEC 61439-6).
These instructions are an integral component of the product and must be retained by the end user.
⚠ DANGER!
Electric shock when live parts are touched!
An electric shock can lead to death!
- Isolate all connection cables before working on the device and cover any live parts in the area!

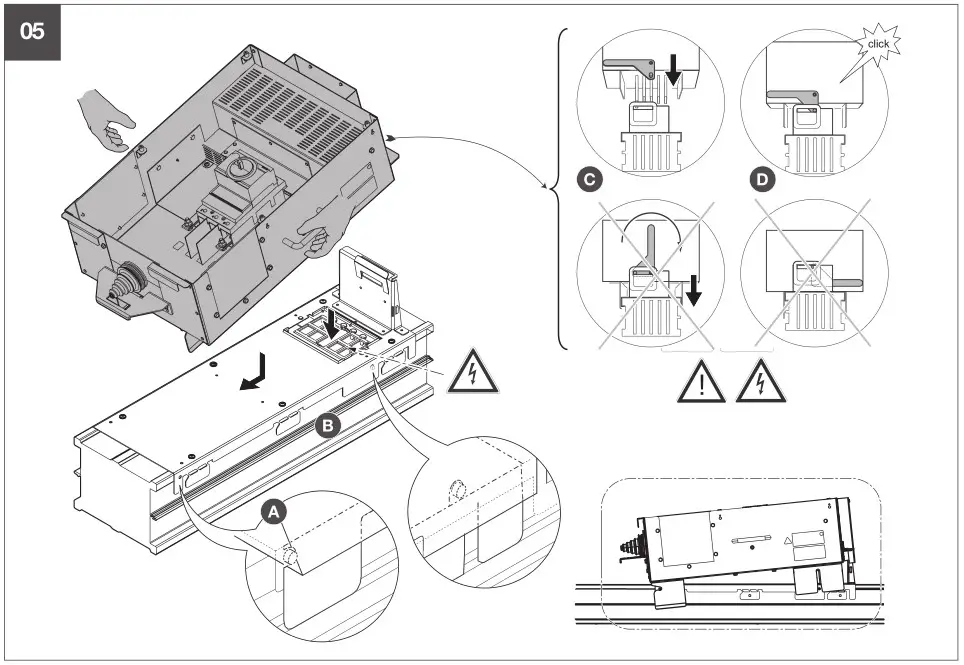

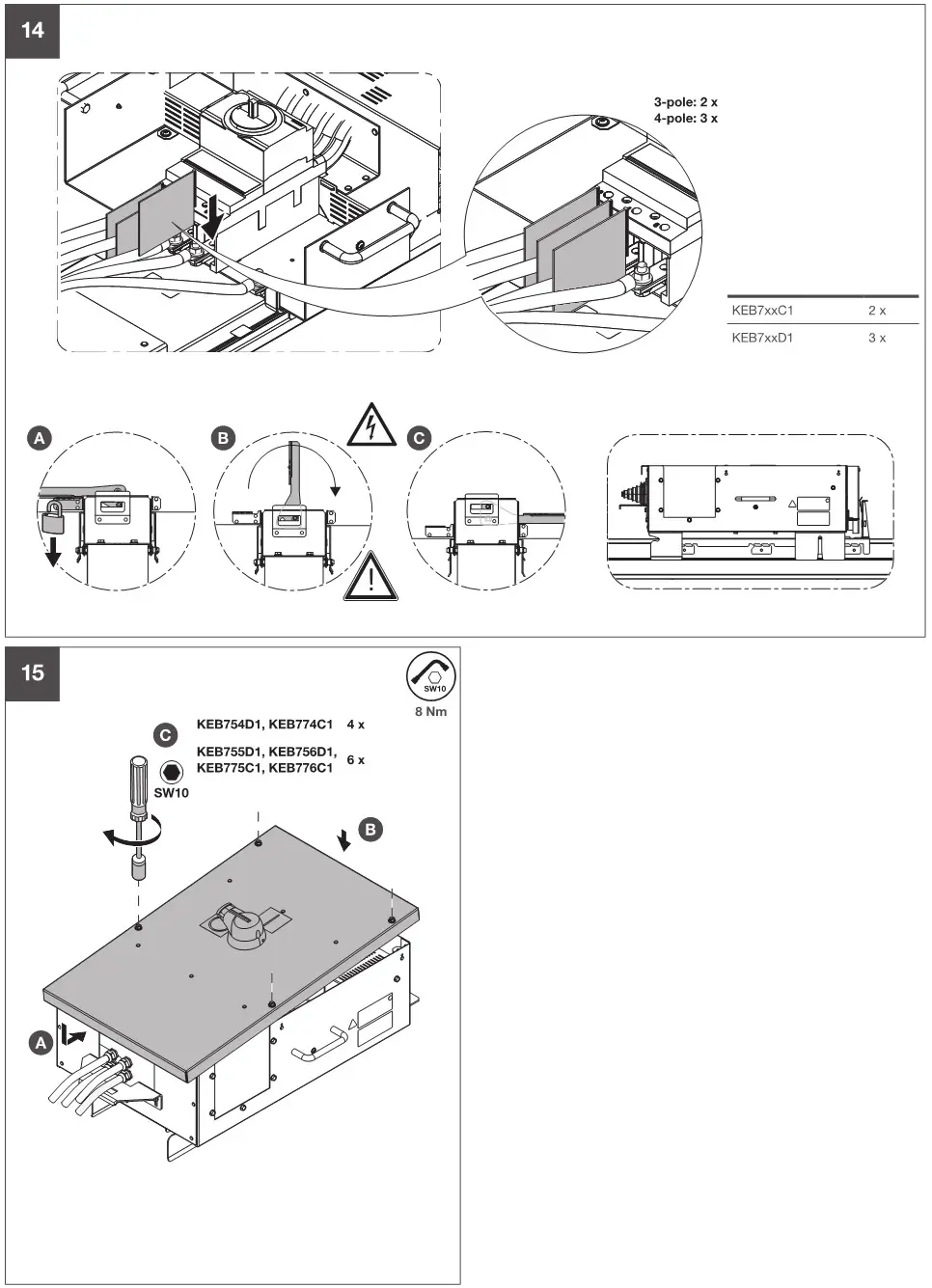

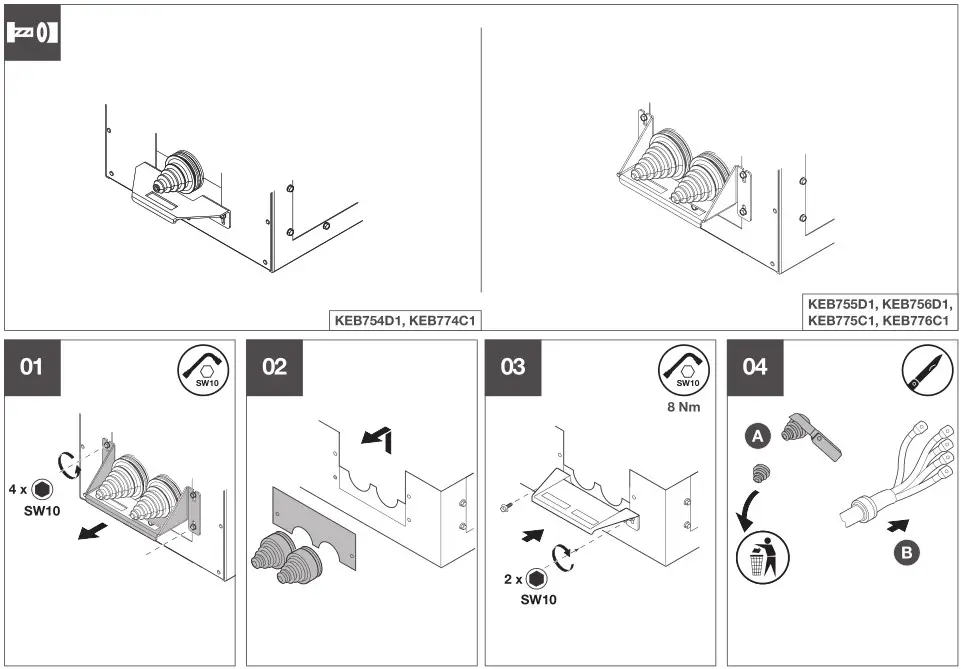

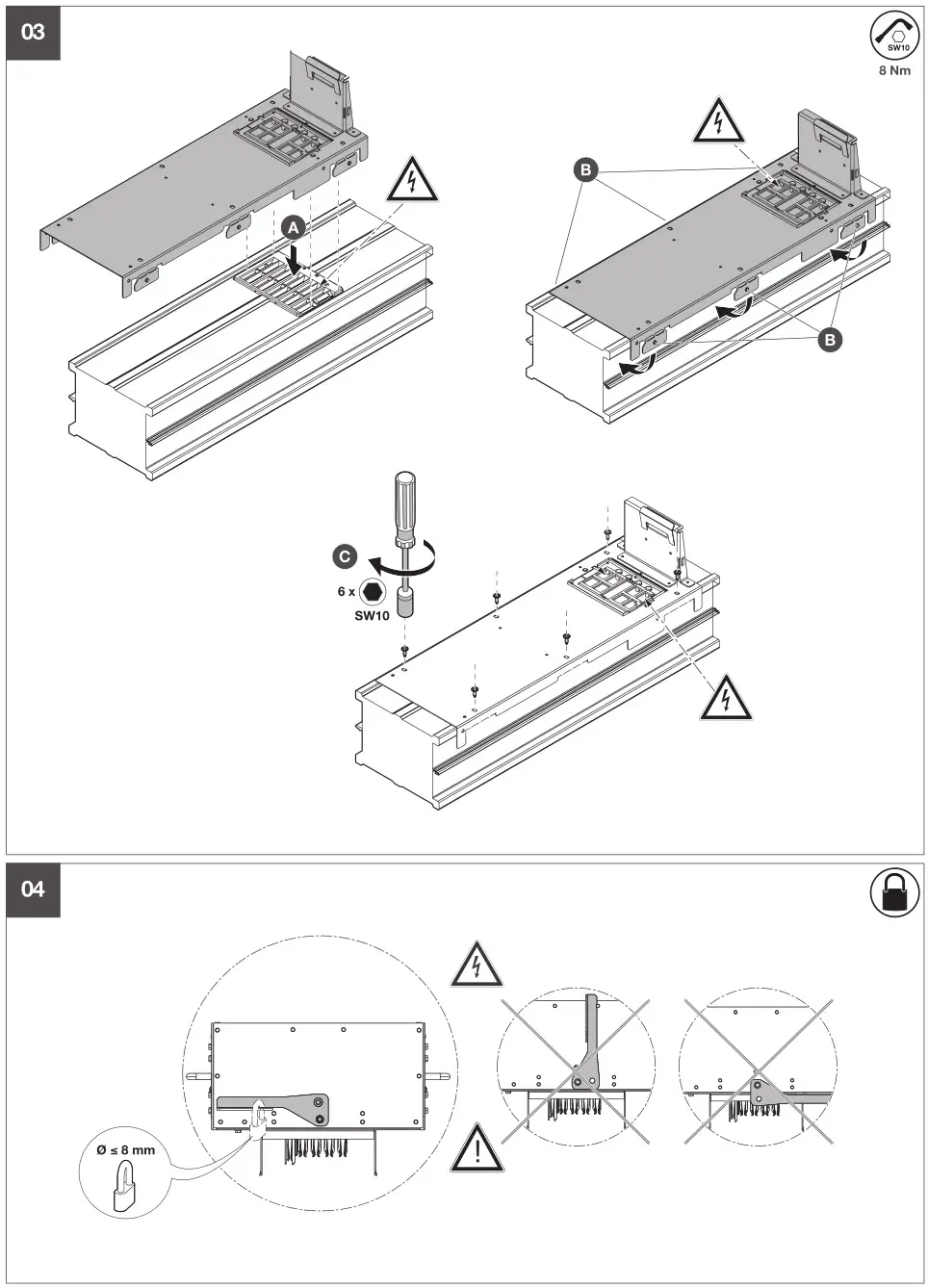

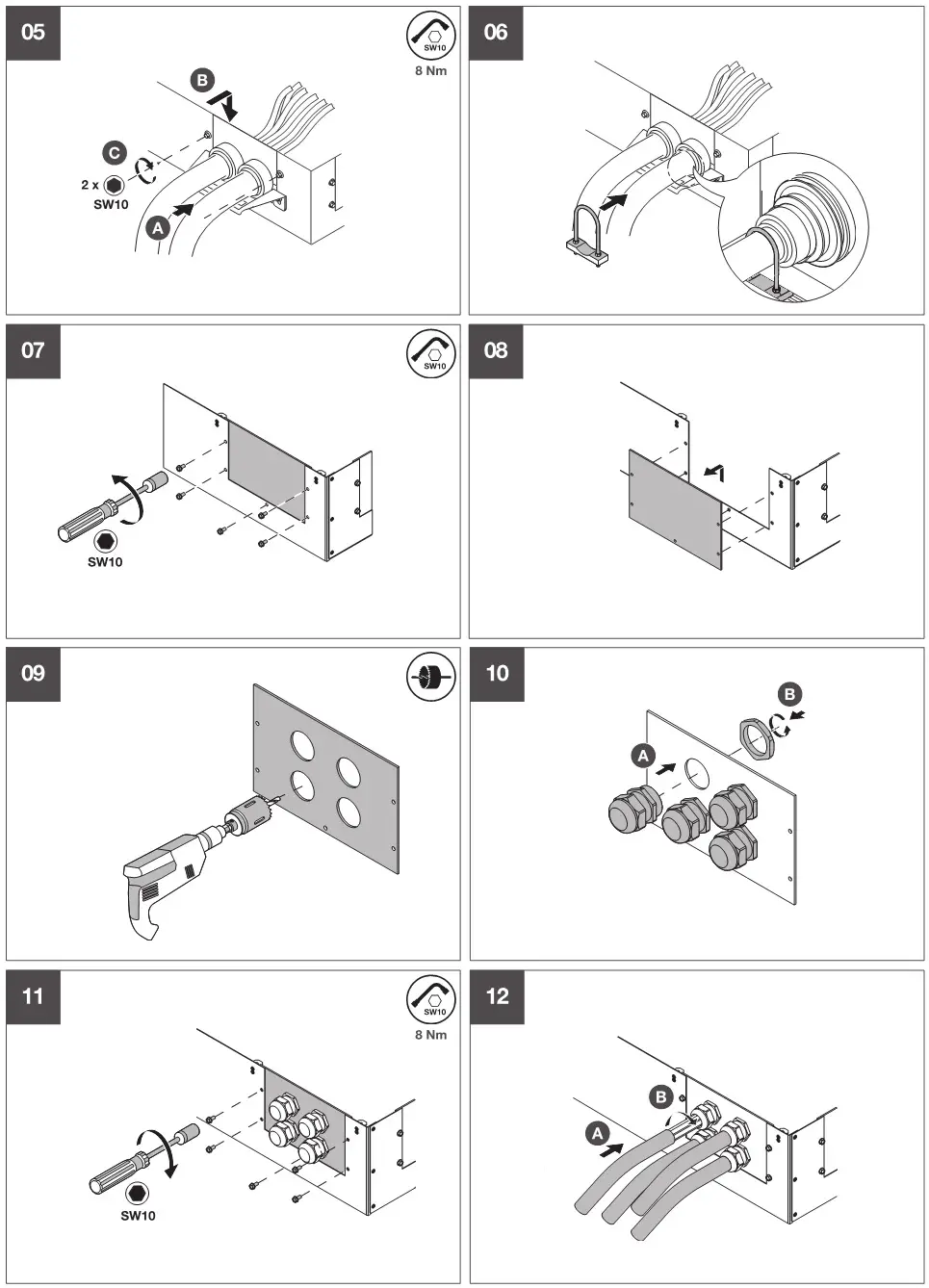

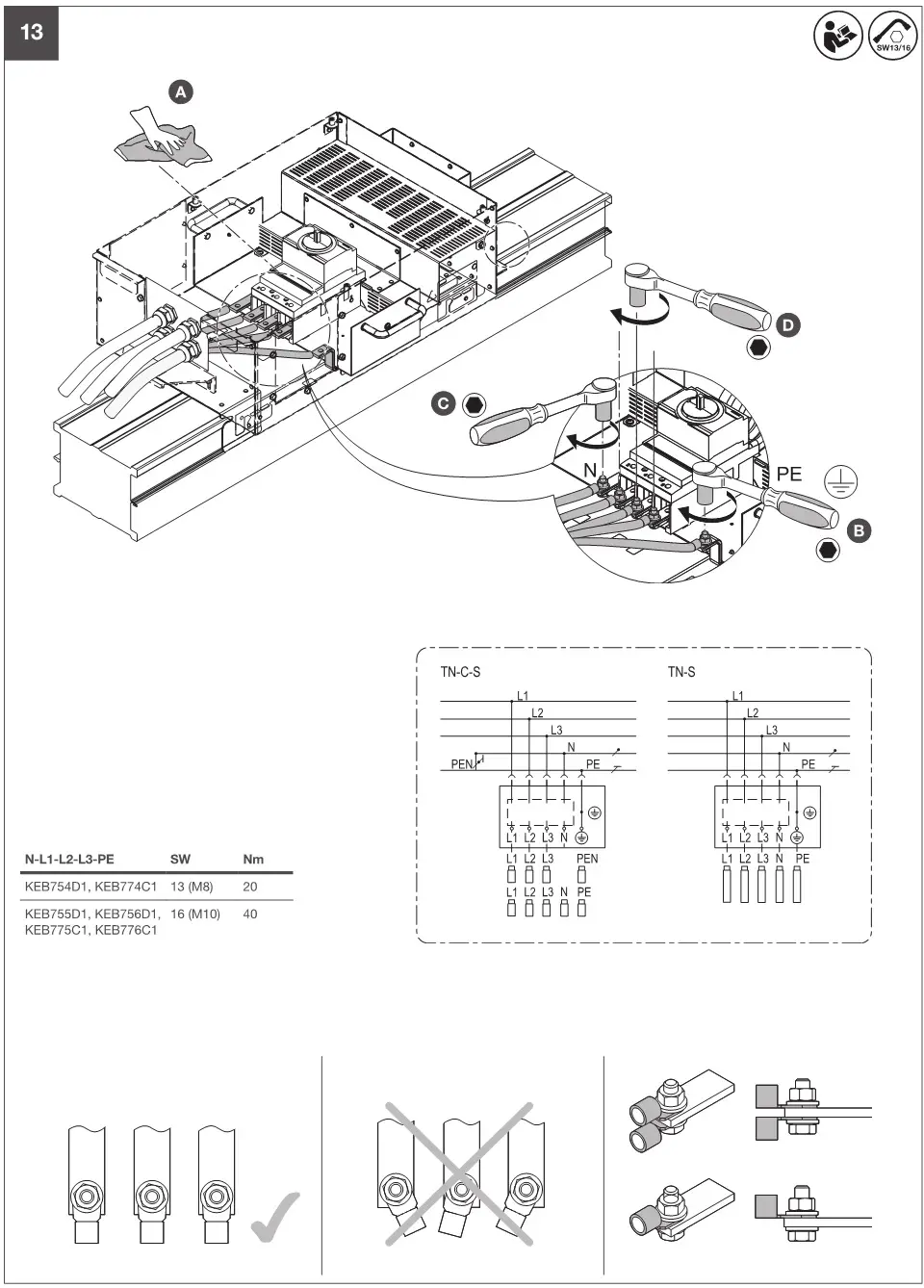

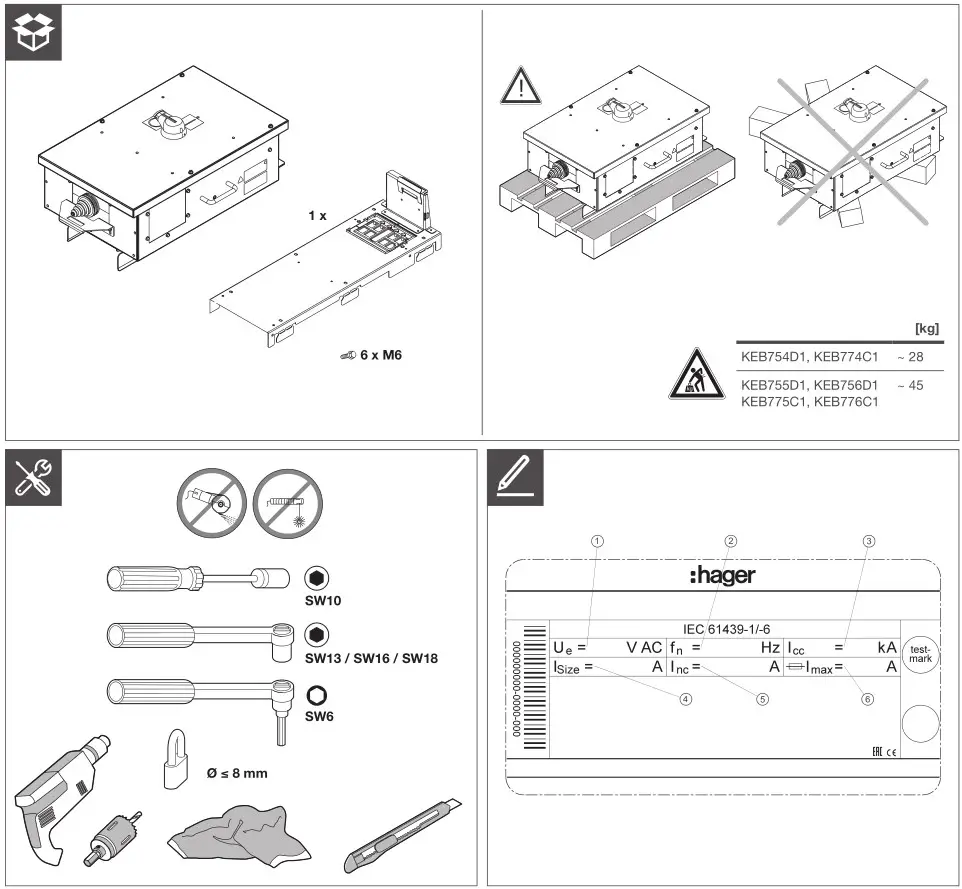

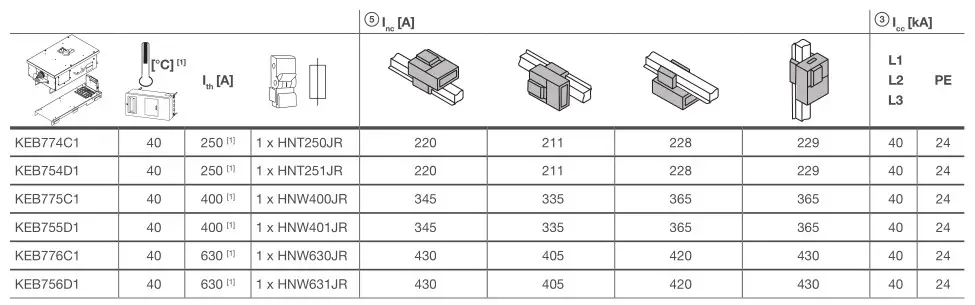

Details on the type label Main circuit:
- Ue – Rated operating voltage
- fn – Rated frequency range
- Icc – Conditional rated short-circuit current
- ISize – Size, tap-off box 5 Inc Rated current (for MCCB: Value of the overload trigger)
- Imax – Max. rated current of the fuse-link
[2] Ambient temperature during test according to 61439 – 6 Para. 10.10.2.
