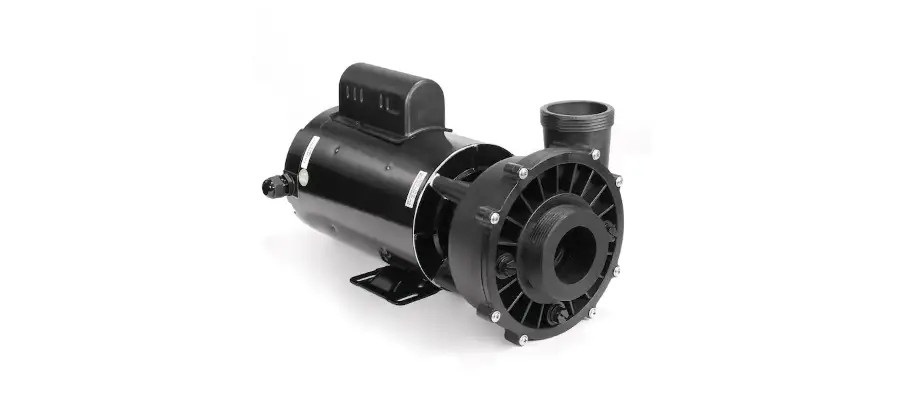

BX4116-S2 High Performance Spa Pump

High Performance Spa Pump – 240V

The BX4116-S2 and BX4117-S2 are high-performance spa pumps that
must be installed by a licensed electrician or qualified spa
technician in accordance with the National Electrical Code and all
applicable local codes & ordinances. Improper installation can
create an electrical hazard and risk of shock, which could result
in injury or death or damage to property, including fire.

It is important to keep the pump out of reach of children to
reduce the risk of injury. Always disconnect power to the pump at
the circuit breaker before servicing the pump or making inspections
to prevent death or serious injury due to electric shock. The pump
must be connected to a grounded circuit, properly bonded, and
protected by a Ground-Fault Circuit Interrupter (GFCI) to avoid the
risk of electrical shock.

Pump Wiring

2-Speed Setup

Turn off power before working on any electrical
connections.
Confirm that the pump circuit voltage matches the pump
(220-240V).
Supply White Wire: connect to Terminal 3.
Supply Red Wire: connect to Terminal 1 (high speed)*
Supply Black Wire: connect to Terminal 4 (low speed)*
Supply Green/Ground Wire: connect with Ground Screw.

*NOTE: Some spas may use Red Wire for Low Speed, and Black Wire
for High Speed. In such cases, simply swap Red and Black wire
terminal positions for correct high & low speed control
operation.

1-Speed Setup

Turn off power before working on any electrical
connections.
Confirm that the pump circuit voltage matches the pump
(220-240V).
Supply White Wire: connect to Terminal 3.
Supply Black Wire: connect to Terminal 1.
Supply Green/Ground Wire: connect with Ground Screw.

Installation Tips

Replace failing gasket seals or broken unions.
Loosen the lowest union slightly after installation to bleed
air and flood/prime new pump, then retighten.
Hand-tighten unions only, without a wrench.
After installation is complete, operate the spa for a few
minutes and observe for leaks or air locks.

Troubleshooting Tips

Symptom	Possible Cause	Check For
Motor not running	No power to pump	Incoming wiring to pump Circuit breaker on GFCI functioning properly
Water not pumping properly	Blockage or air lock	Pump inlet blockage Debris in pump housing Pump priming
High & low speeds function opposite	Reversed red & black wires 1 and 4 terminal positions

View Fullscreen

HIGH PERFORMANCE SPA PUMP – 240V

OWNER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS
READ & SAVE THESE DIRECTIONS
BX4116-S2, BX4117-S2

WARNING: Pump must be installed by a licensed electrician or qualified spa technician in accordance with the National Electrical Code and all applicable local codes & ordinances. Improper installation will create an electrical hazard and risk of shock which could result in injury or death, or damage to property including fire.

WARNING: Risk of electrical shock. Must be connected to a grounded circuit, properly bonded, and protected by a Ground -Fault Circuit Interrupter (GFCI). Keep out of the reach of children to reduce the risk of injury.

WARNING: Always disconnect power to the pump at the circuit breaker before servicing the pump or making inspections. Failure to do so could result in death or serious injury due to electric shock.

PUMP WIRING

2-Speed Setup

1. Turn off power before working on any electrical connections

2. CONFIRM pump circuit voltage matches pump (220-240V)

3. Supply White Wire: connect to Terminal 3

4. Supply Red Wire: connect to Terminal 1 (high speed)*

5. Supply Black Wire: connect to Terminal 4 (low speed)*

6. Supply Green/Ground Wire: connect with Ground Screw

*NOTE: Some spas may use Red Wire for Low Speed, and Black Wire for High Speed. In such cases, simply swap Red and Black wire terminal positions for correct high & low speed control operation.

1-Speed Setup
1. Turn off power before working on any electrical connections
2. CONFIRM pump circuit voltage matches pump (220-240V)
3. Supply White Wire: connect to Terminal 3 4. Supply Black Wire: connect to Terminal 1 5. Supply Green/Ground Wire: connect with Ground Screw

INSTALLATION TIPS
1. Replace failing gasket seals or broken unions 2. Loosen lowest union slightly after installation to bleed
air and flood/prime new pump, then retighten 3. Hand-tighten unions only, without wrench 4. After installation is complete, operate spa for a few
minutes and observe for leaks or air locks
56WUA300-II, 56WUA400-II

TROUBLESHOOTING TIPS

Symptom
Motor not running
Water not pumping properly High & low speeds function opposite

Possible Cause No power to pump
Blockage or air lock Reversed red & black wires

Check For Incoming wiring to pump Circuit breaker on GFCI functioning properly Pump inlet blockage Debris in pump housing Pump priming
1 and 4 terminal positions
©SpaDepot.com
