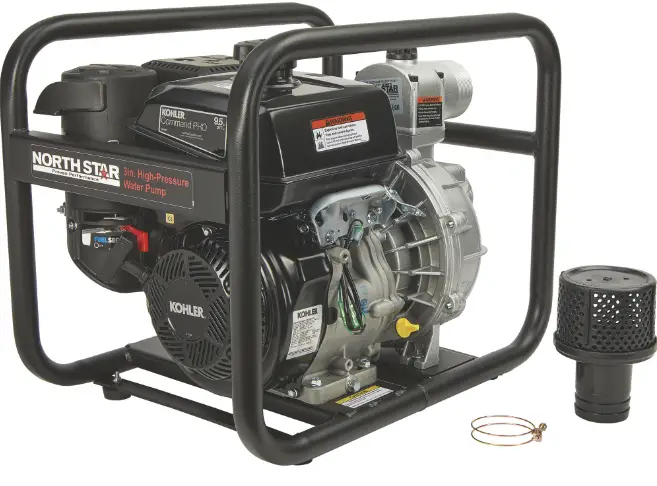

NORTH STAR 1064711 High Pressure Water Pump
Water Pump: Outdoor agricultural product used for general purpose water pumping and field irrigation.
WARNING
- READ and UNDERSTAND the Owner’s Manual completely before using this water pump. Assemble, test, and use only in accordance with the Owner’s Manual instructions.
- WEAR personal protective gear when filling, using, cleaning, and servicing the water pump.
- DO NOT START the water pump until ready to use in order to avoid unintentional spray release.
- Improper use of the water pump could result in serious injury or illness to the operator or nearby persons/animals or could cause damage to the environment.
This water pump is recommended for use in pumping/spraying non-flammable liquids such as water. Solids capacity will depend on the model.
Hazard Signal Word Definitions
WARNING: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
DANGER: (red) indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.
WARNING: (orange) indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION
- (yellow) indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury.
- (yellow) used without the safety alert symbol indicates a potentially hazardous situation that, if not avoided, may result in property damage.
About Your Water Pump
Thank you for purchasing your NorthStar water pump!
About Your Water Pump
This water pump is a machine designed for outdoor, agricultural, general-purpose water pumping, and field irrigation applications of clear water only. The technical specifications for your water pump are provided in the “Specifications” section of this manual. Follow all safety precautions presented throughout this manual. A summary of important safety information can be found at the beginning of the manual.
Contact NorthStar Product Support at: 1-800-270-0810 for any questions about the appropriate use of this water pump and/or optional accessories.
Warranty Registration
- Please fill in the warranty registration information and have it on hand when you call in on a warranty claim.
Attention: All Rental Companies and Private Owners who loan this equipment to others!
All persons to whom you rent/loan this water pump must have access to and read this manual. Always keep this owner’s manual with the water pump and advise all persons who will operate the machine to read it. You must also provide personal instruction on how to safely operate the water pump and be available to answer any questions a renter/borrower might have.
Summary of Important Safety Information
WARNING: Read and understand this owner’s manual completely before using the water pump. Improper use of the water pump could result in serious injury or illness for the operator or nearby persons/animals, or cause damage to the environment.
LISTED BELOW is a summary of safety information of particular importance. See individual sections of this owner’s manual for more details.
BEFORE OPERATION
- Read manual. Do not allow anyone to operate the water pump who has not read the Owner’s Manual or has not been instructed on the safe use of the water pump.
- Review safety rules. Before starting this water pump, review the instructions for safe operation.
- Know how to stop. Be thoroughly familiar with all controls and with the proper use of the equipment. Know how to stop the water pump.
DURING ASSEMBLY
- CHECK and TEST completed assembly as directed in this manual. Serious injury could result from water leaks if the water pump is improperly assembled.
- DO NOT MODIFY water pump design.
DURING FUELING/REFUELING
- Fuel outdoors. Fill fuel tank outdoors – never indoors. Gasoline vapors can ignite if they collect inside an enclosure. An explosion can result.
- Use an approved container. Never pump fuel directly into the engine at gas station. Static charge can build and ignite fuel. Use a UL-approved fuel container to transfer gas to the engine.
- Running / hot engine. A running engine is hot enough to ignite fuel. Never add fuel or remove gas cap if engine is running or still hot. Stop the engine and allow it to cool, at least two minutes before adding fuel.
- Heat / flames / sparks. Stay away from sources of heat, flame, or sparks while adding fuel.
- Don’t overfill. DO NOT overfill the gas tank.
- Replace cap. Replace gas cap securely before starting engine.
- Spills. Clean up fuel spills immediately. Move the water pump away from spilled
fuel on the ground. Wipe fuel off engine and wait 5 minutes for excess fuel to evaporate before starting engine. Gas-soaked rags should be disposed of properly. - On skin/clothes. If gasoline is spilled on your skin or clothes, change clothes and wash skin immediately.
- Gasoline storage. Store gasoline in a cool, dry place in a UL-approved, tightly sealed container.
DURING OPERATION
- INSPECT and PREPARE water pump before each use as directed in this manual.
- DO NOT USE flammable or corrosive chemicals in the water pump.
- DO NOT RUN water pump while unattended.
- FOLLOW INSTRUCTIONS for SAFELY FUELING/REFUELING THE ENGINE. Gasoline is flammable and can explode. Always use caution when handling gasoline.
- DO NOT START water pump until ready to use in order to avoid unintentional release.
- SEE Troubleshooting section of this manual before attempting any repairs. Wear personal protective equipment and follow safety instructions.
- Hot muffler. If you are starting a warm engine, stay clear of muffler. It may still be hot enough to burn you.
- Unattended. Never leave the machine unattended while the engine is running.
- Under the influence. Never operate, or let anyone else operate, the water pump while under the influence of alcohol, drugs, or medication.
- Adjusting/Repairing. Turn off engine and remove spark plug cap before cleaning, inspecting, or servicing the water pump.
- Carbon monoxide. The running engine gives off carbon monoxide, a poisonous gas that can kill you. You CANNOT smell it, see it, or taste it. If you start to feel sick, dizzy, or weak while using the water pump, shut off the engine and get to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
- Other exhaust dangers. Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Avoid inhalation of exhaust
AFTER OPERATION
- Let engine cool before storing. Let engine cool for at least five minutes before storing. A hot engine can be a fire hazard.
- Storage location. Store the water pump in a location away from sources of heat, open flames, sparks or pilot lights – such as water heaters, space heaters, furnaces, clothes dryers, or other gas appliances. Even if the water pump’s gas tank is empty, residual gasoline vapors could ignite.
- Gasoline storage. Store extra gasoline in a cool, dry place in an UL-approved, tightly sealed container. Gasoline vapors can ignite if they collect inside an enclosure.
- Periodic maintenance. Perform periodic maintenance as directed in this manual to keep the water pump in safe working condition.
DURING STORAGE / TROUBLESHOOTING
- PREPARE THE WATER PUMP FOR STORAGE according to the instructions in this manual.
- SELECT a well-ventilated STORAGE AREA away from sources of heat, flame, or sparks. Gasoline vapors can ignite and cause a fire.
- READ and FOLLOW the safety rules for troubleshooting / servicing the water pump.

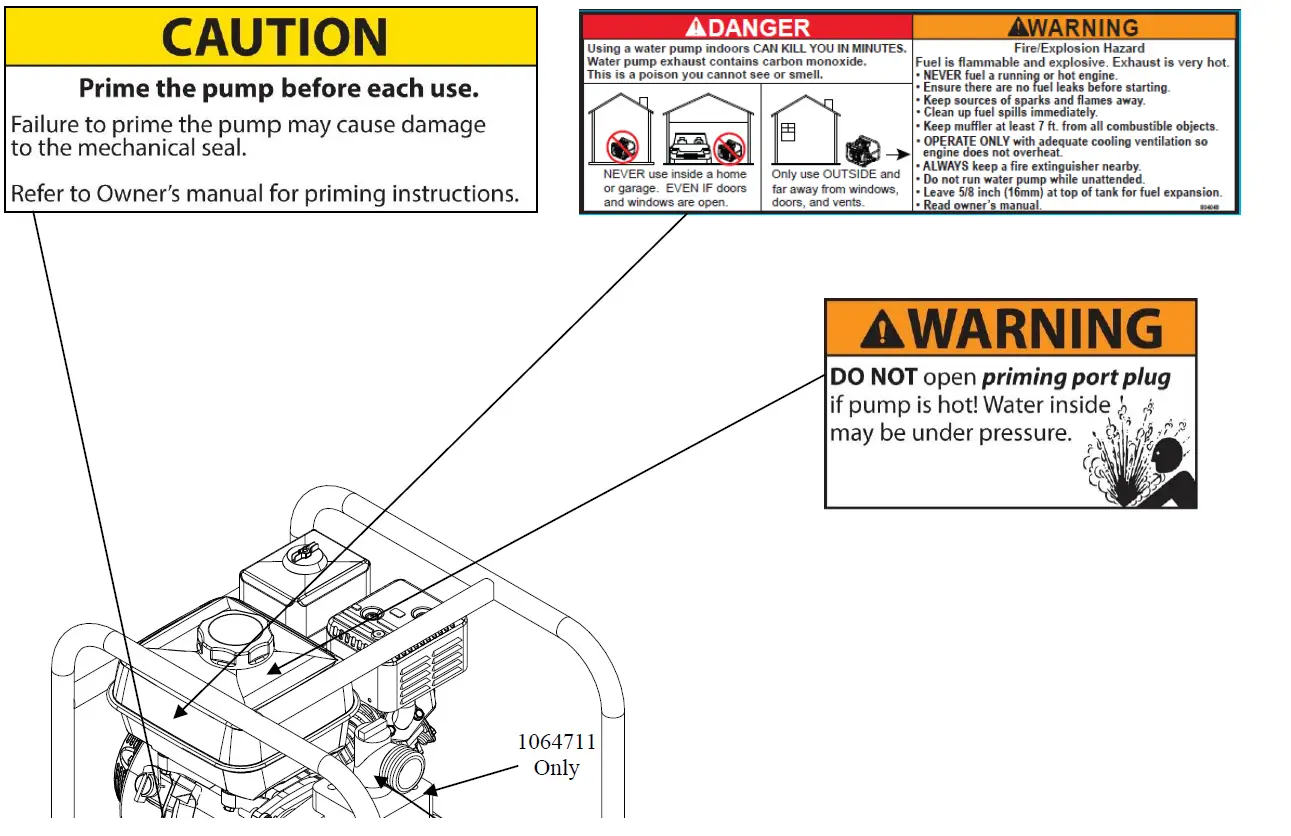

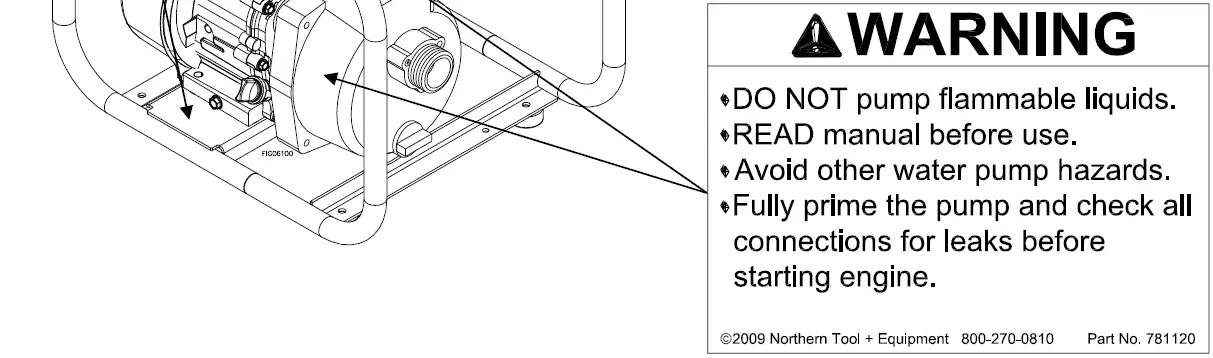

Warning Label Location
Call North Star Product Support at: 1-800-270-0810 to order new labels.
Order Part No
- 804049 – Warning, priming plug
- 791213 – Warning decal
- 781120 – Pump decal
- 795272-Priming decal
Unpacking
Closely inspect all contents in the shipping carton
Note that some parts are shipped inside the manual bag.
- If you have missing or damaged components, please contact NorthStar Product Support at: 1-800-270-0810.

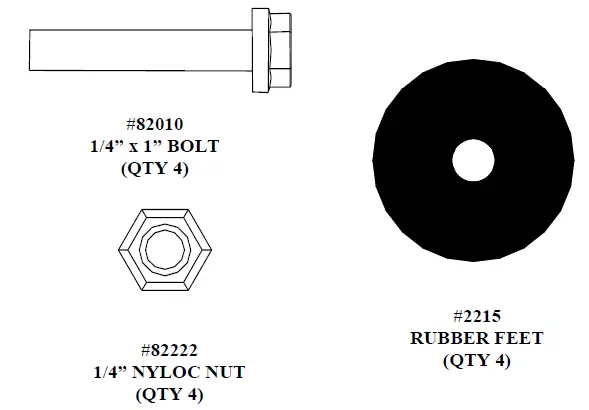

The following items are found in the manual bag
Assembly

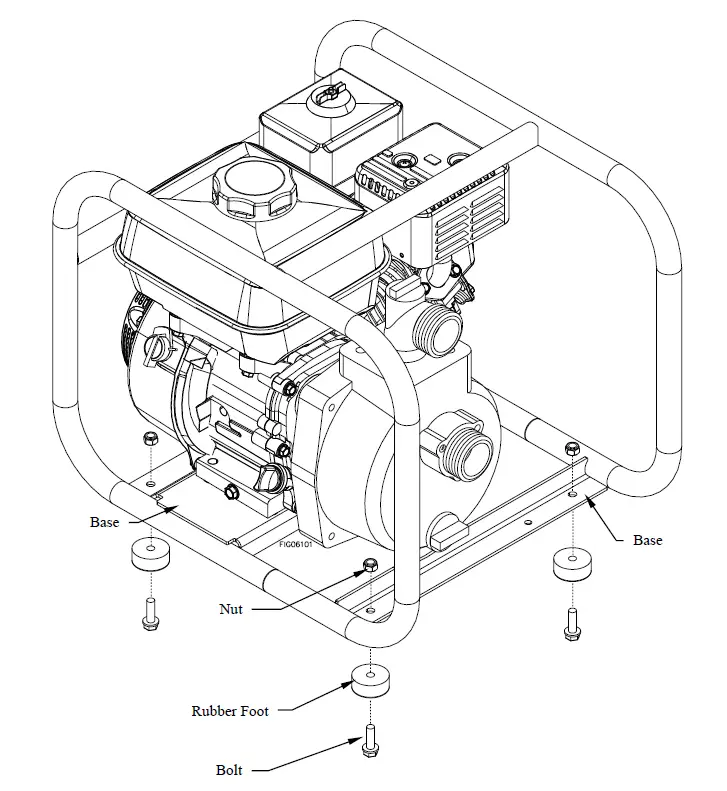

Attach rubber feet to the base
- Using a 3/8” and 7/16” socket, attach the rubber feet to the base with the bolt and nut.

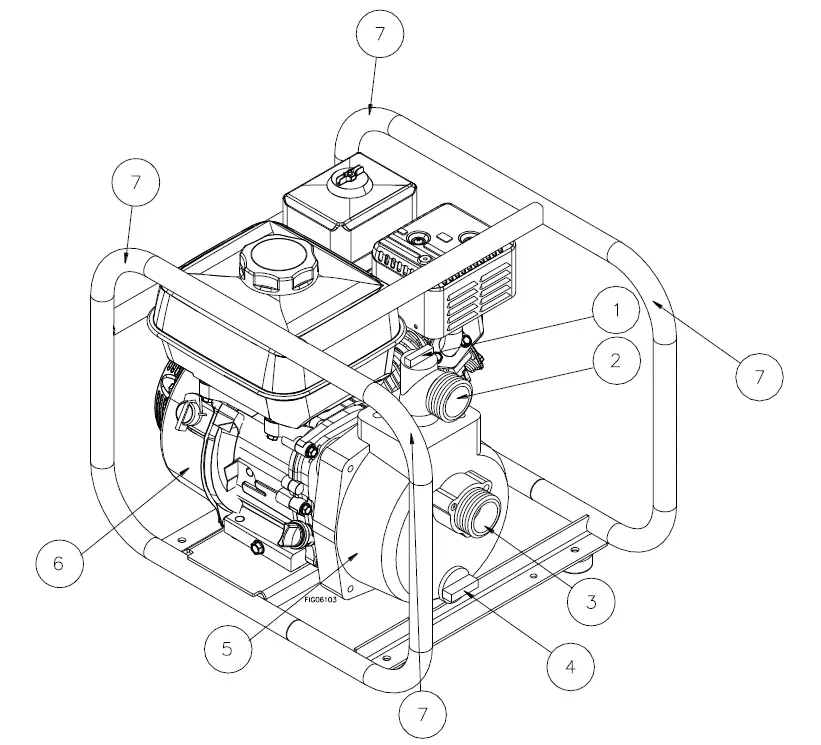

Machine Components
- Prime Port: Fill the priming port to prime the pump.
- Discharge Fitting: Connect the discharge hose to the discharge fitting.
- Suction Fitting: Connect the suction hose to the suction fitting.
- Drain Port: Drain the liquid in the pump through the drain port.
- Pump: The pump moves the liquid.
- Engine: The air-cooled engine powers the pump.
- Lifting Points: Lift the machine from these points when transporting.
Operation Preparing the Water Pump for Each Use
Step One: Inspect/Repair
If the water pump has been used previously, it must be prepared BEFORE EACH SUBSEQUENT USE.
WARNING
- Read the instructions below carefully for inspecting and preparing the water pump.
- Damaged or clogged equipment could result in leaks or uncontrolled spray.
Important safety rules
- Turn off the engine. Turn off the engine and remove the spark plug cap before cleaning, inspecting, or servicing the water pump.
- Keep a fire extinguisher rated “ABC” nearby
- Guards/shields. Make sure all guards and shields are replaced after servicing the water pump.
- Replacement parts. If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement parts that do not meet specifications may result in a safety hazard or poor operation of the water pump.
| 1. Ensure water pump casing is empty | Ensure the water pump has been thoroughly flushed with clean water and drained from prior use. |
| 2. Clean suction strainer | Clean the suction strainer of any material residue. It is important to clean the suction strainer of the debris before each use, to ensure it is not clogged. |
| 3. Inspect & repair | Inspect and test the water pump thoroughly
|
Step Two: Fueling
| WARNING | |
| Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. Use extreme care when handling gasoline. | |
| 1. Engine off / cool | The engine must be off and allowed to cool at least two minutes before adding fuel. WARNING: A running engine is hot enough to ignite fuel. Never add fuel or remove the gas cap if the engine is running or still hot. |
| 2. Outdoor location | Fill fuel tank outdoors – never indoors. WARNING: Gasoline vapors can ignite if they collect inside an enclosure. An explosion can result. |
| 3. Check engine oil level | Check engine oil level as specified in the engine manual. |
| 4. Remove the gas cap | Remove the gas cap. |
| 5. Add gasoline | Add gasoline through the fill opening from a UL-approved container. Important Safety Instructions:
|
| 6. Spills/splashes | Clean up fuel spills /splashes immediately. Move the water pump away from spilled fuel on the ground.
|
| 7. Replace the gas cap | Replace the gas cap securely before starting the engine. |
| 8. Gasoline storage | Store gasoline in a cool, dry place in a UL-approved, tightly sealed container. |
Step Three: Attach a suction strainer
| WARNING | |
| This pump is designed to pump water only. Never use the water pump to pump flammable liquids. | |
| 1. Attach suction strainer | A suction strainer should be attached to the suction hose. A suction strainer has holes or slots small enough to prevent large debris from working through and damaging the pump. |
| 2. Keep the strainer clean | Keep the strainer clean. If possible, suspend the strainer to keep it from working into the sediment. -OR-
|
Step Four: Place the water pump
| 1. Place the water pump near the liquid surface | Place the water pump on a level surface in a location as near to the liquid surface as possible, this will ensure proper pump suction. Refer to Lifting Points on Machine Components diagram when placing or transporting unit. All hoses must be kept as straight as possible, avoid sharp bends. NOTE: 23ft (7m) is the maximum height of the suction head. |
| 2. Environment conditions | Ambient Operating Temperature Range. +5 °F to +104 °F (-15 °C to +40 °C). If operating pump below +32 °F (0 °C) drain pump after use to prevent damage from freezing. Humidity. 95% max. If possible, avoid any area with high humidity. Humidity promotes rust and corrosion. Altitude. If operation of the engine is always at altitudes HIGHER than 6,000 feet (1828.8m) above sea level, have an authorized Honda Engine dealer perform carburetor modifications. At high altitude, the standard carburetor air/fuel mixture will be excessively rich. Performance will decrease while fuel consumption will increase. NOTICE: Operation of the engine at an altitude LOWER than the carburetor is modified for may result in reduced performance, overheating, and serious engine damage caused by an excessively lean air/fuel mixture. |
| 2. Use flexible hose | Use at least 12” (30.5 cm) of flexible hose to make plumbing connections to the pump body. Rigid piping may put stresses on the pump, causing damage. |
| 3. Place unit on secure footing | Always be sure the unit is on a secure footing. Keep the immediate pump area free of all unauthorized personnel. If the water pump is sitting beside a pit, be sure it is well anchored so that it does not fall in. |
| 4. Do not run the pump dry | Do not run the pump dry. Always fill the pump body with water before starting. It is not necessary to drain the pump body after each use, unless there is danger of freezing, settling of solids, or crystallization. |
| 5. Fill the pump with water | Fill the pump with water utilizing the priming port on the top of the pump. (The pump self primes only when it is first filled with priming water.) All hoses and pipe connections must be airtight. |
Operation Using the Water Pump
Operate the water pump
WARNING: Do not run the water pump unattended.
| 1. Review safety information | Review the “Operation – Important Safety Information” provided in this manual. |
| 2. Priming | Using the priming port on the top of the pump, completely fill the pump chamber with water before starting the engine. |
| 3. Engine operation precautions | Heed the following safety rules regarding running the water pump engine:
|
| 4. Start engine | Consult the engine Owner’s Manual for starting the engine. |
| 5. Throttle control | When operating the water pump much higher than the water surface, you may need to speed up the engine, using the throttle. When the pump is near the water surface, a slower engine speed can be used. This will save engine fuel and life.
Consult the engine Owner’s Manual for throttle location. |
| 6. Secure flexible hose | Never allow a vehicle to run over the flexible hose. This sudden shut off pressure can cause “hydraulic shock”.
If your flexible hose must be laid across a high traffic area, it is advised to protect the flexible hose with planking. |
| 7. Keep pump from freezing | Never allow water to freeze in the pump. Freezing water can be extremely dangerous to the pump, always drain the water from the pump if freezing temperatures are a factor. |
| 8. Flush the pump | Flush the pump with clean water after each use is advised. Some liquids being pumped may leave a solid or sticky residue. This may shorten the life of your pump. |
Storage
Prepare the water pump for end-of-season storage by running clean water through the system. This will flush out any contaminants and clean the water pump internals. After the water pump has been flushed with clean water, completely drain the water pump of all water to protect from freezing.
WARNING: Gasoline vapors can ignite and cause a fire. Select a well-ventilated storage area away from sources of heat, flame, or sparks.
CAUTION
- The water pump will be damaged if it freezes.
- Protect the water pump from freezing during storage by following the instructions below.
Preparing for storage
| 1. Flush the pump | Flush the pump with clean water after each use is advised. Some liquids being pumped may leave a solid or sticky residue. This may shorten the life of your pump. |
| 2. Drain the water pump | Using the water pump drain plug, drain the water pump completely of water to prevent freezing. |
| 3. Engine storage | Refer to the engine manual for proper engine storage instructions.
CAUTION: Gasoline will oxidize and deteriorate in storage. Old gasoline in the engine will cause hard starting and leave gum deposits that can clog the fuel system. Deterioration problems may occur within a few months, or even less if gasoline was not fresh when you filled the fuel tank. Short-Term Storage Consider adding a fuel stabilizer to extend fuel storage life. Long Term Storage: (between infrequent uses and at end of season) Drain the fuel tank and carburetor as instructed in the engine owner’s manual. Important Safety Instructions:
|
| 4. Water pump storage location | Store the water pump in a location away from corrosive material, sources of heat, open flames, sparks or pilot lights. WARNING: Never store water pump inside where there is a source of heat or an open flame, spark, or pilot light as on water heaters, space heaters, furnaces, clothes dryers, or other gas appliances EVEN IF the water pump’s gas tank is empty. |
| 5. Gasoline storage | Store gasoline in a cool, dry place in a UL-approved, tightly sealed container. WARNING: Gasoline vapors can ignite if they collect inside an enclosure and an explosion can result. |
Troubleshooting
WARNING: Before troubleshooting or attempting to service, read the following safety rules.
Before attempting to service the water pump
| 1. Review the troubleshooting table | Review the Troubleshooting Table below for the type of problem you are experiencing. However, DO NOT attempt to repair until the steps listed below are followed. |
| 2. Flush the pump | Pump clean water briefly through the pump to remove any debris/solids. |
| 3. Drain the water pump | Drain the water pump completely of water using the water pump drain plug, to prevent freezing. |
| 4. Disconnect the power | Switch off the engine and unplug the spark plug wire. |
| 5. Perform repairs | Follow the directions provided in the troubleshooting table to repair the water pump. |
| PROBLEM | CAUSE | SOLUTION |
| The pump doesn’t revolve |
| See engine owner’s manual |
| Disassemble and clean | |
|
The pump fails to prime |
| Add more water to the priming chamber |
| Check for loose screws or broken hoses | |
| Replace gaskets | |
| Tighten or replace hose clamps | |
| Pour cold water in the chamber or let cool | |
| Increase engine speed | |
| Replace worn or broken component | |
| Replace mechanical seal | |
|
Low capacity |
| Clear obstruction |
| Clear suction strainer | |
| Straighten suction and discharge hoses | |
| Move the pump closer to the water surface | |
| Increase engine speed | |
| Replace mechanical seal | |
| See engine owner’s manual | |
| Remove clog | |
| Replace impeller |
Specifications
| 1064701 – 2” High Pressure | |
| Engine | Kohler CH255 |
| Suction & Discharge Size | 2” NPT |
| Maximum Flow | 8,120 gal/hr (30738 L/hr) |

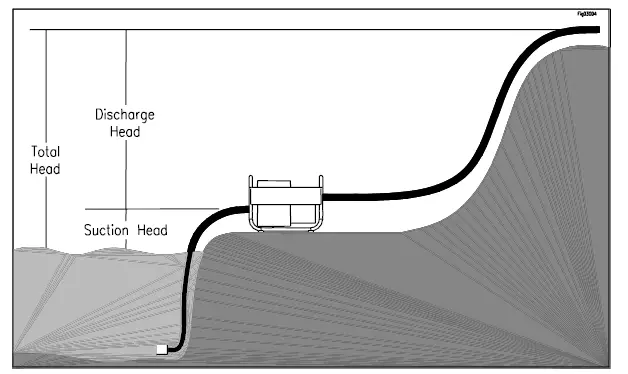

| Maximum Suction Head | 23 ft (7 m) |
| Maximum Total Head | 214 ft (65.2 m) |
| Maximum Pressure | 94 psi (6.48 bar) |
| Passable Solid Size | Clear Water Only |
| Mechanical Seal | Silicon Carbide |
| Overall Dimensions (L x W x H) | 20″ x 16″ x 16″ (50.8 x 40.6 x 40.6 cm) |
| Dry Weight | 60 lbs (27.2 kg) |
| Noise Level (dB) | 100 dB |
| 1064711 – 3” High Pressure | |
| Engine | Kohler CH395 |
| Suction & Discharge Size | 3” NPT |
| Maximum Flow | 10,550 gal/hr (39936 L/hr) |
| Maximum Suction Head | 23 ft (7 m) |
| Maximum Total Head | 263 ft (80.2 m) |
| Maximum Pressure | 116 psi (8 bar) |
| Passable Solid Size | Clear Water Only |
| Mechanical Seal | Silicon Carbide |
| Overall Dimensions (L x W x H) | 25″ x 18″ x 21″ (63.5 x 45.7 x 53.3 cm) |
| Dry Weight | 80 lbs (36.3 kg) |
| Noise Level (dB) | 92 dB |
The manufacturer reserves the right to make improvements in design and/or changes in specifications at any time without incurring any obligation to install them on units previously sold.

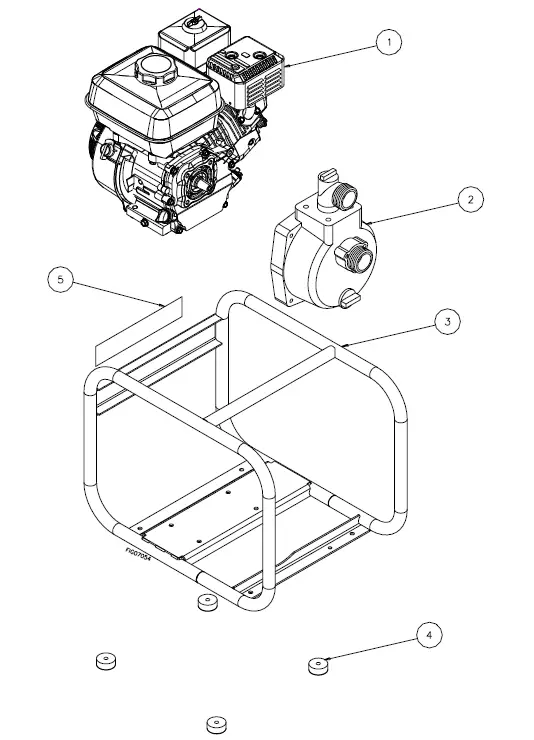

1064701/1064711 Exploded View – Rev. A.2
| Item | Part # | Description | Model | Qty. |
| 1 | 803751 | Kohler CH255 | 1064701 | 1 |
| 803752 | Kohler CH395 | 1064711 | ||
| 2 | 782592 | 2” High-Pressure Pump | 1064701 | 1 |
| 782593 | 3” High-Pressure Pump | 1064711 | ||
| 3 | 804086 | Frame | 1064701 | 1 |
| 804035 | 1064711 | |||
| 4 | 2215 | Bumper (Rubber Foot) | ALL | 4 |
| 5 | 804206 | 2” Branding Decal | 1064701 | 1 |
| 804208 | 3” Branding Decal | 1064711 |
782592 Pump Exploded View
| Item | Description | Part # | Qty. | Item | Description | Part # | Qty. | |
| 1 | Pump Cover | 782970 | 1 | 14 | Inlet Check Valve | 782981 | 1 | |
| 2 | Sealing Washer & M8 x 35 Hex Bolt Kit | 782971 | 4 | 15 | Inlet Flange | 782982 | 1 | |
| 3 | 16 | Outlet Seal | 782983 | 1 | ||||
| 4 | Mechanical Seal | 782972 | 1 | 17 | Outlet Flange | 782984 | 1 | |
| 5 | Large O-ring | 782973 | 1 | 18 | M8 x 25 Hex Bolt | 782985 | 4 | |
| 6 | Impeller | 782974 | 1 | 19 | M8 x 20 Hex Bolt | 782986 | 6 | |
| 7 | Volute | 782975 | 1 | 20 | Strainer | 782987 | 1 | |
| 8 | Small O-ring | 782976 | 1 | 21 | Key | 783018 | 1 | |
| 9 | Pump Body | 782977 | 1 | 22 | Spacer | 783019 | 1 | |
| 10 | M8 x 30 Hex Bolt | 782978 | 6 | 23 | Shaft Bolt | 783020 | 1 | |
| 11 | M8 Hex Nut | 782979 | 6 | 24 | O-ring | 783021 | 1 | |
| 12 | Plug O-ring & Drain/Prime Plug Kit | 782980 | 2 | |||||
| 13 | ||||||||

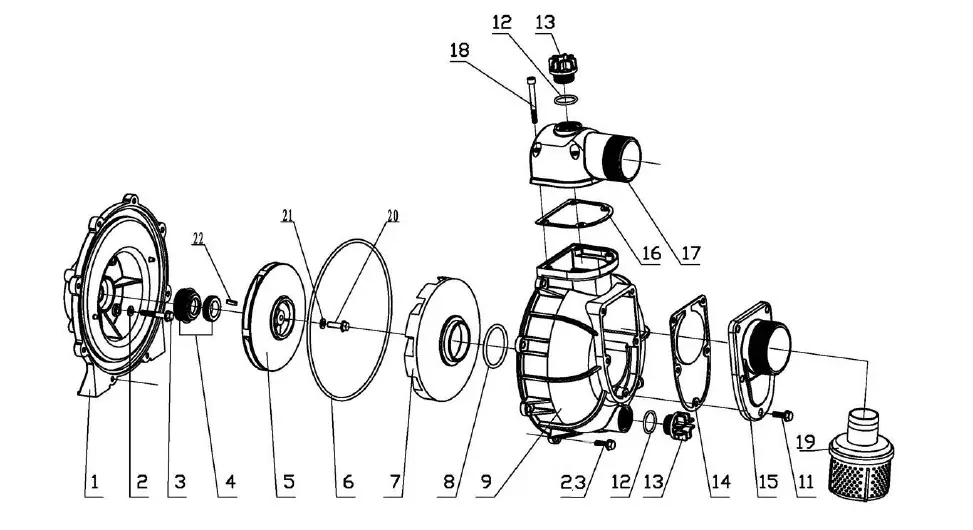

782593 Pump Exploded View
| Item | Description | Part # | Qty. | Item | Description | Part # | Qty. | |
| 1 | Pump Cover | 782988 | 1 | 12 | 31.5 x 3.55 O-ring & Plug Kit | 782999 | 2 | |
| 2 | Nylon Washer | 782989 | 4 | 13 | ||||
| 3 | M8 x 50 Hex Bolt | 782990 | 4 | 14 | Inlet Check Valve | 783000 | 1 | |
| 4 | Mechanical Seal | 782991 | 1 | 15 | Inlet Flange | 783001 | 1 | |
| 5 | Impeller | 782992 | 1 | 16 | Outlet Seal | 783002 | 1 | |
| 6 | Large O-ring | 782993 | 1 | 17 | Outlet Flange | 783003 | 1 | |
| 7 | Volute | 782994 | 1 | 18 | M8 x 70 Hex Bolt | 783004 | 4 | |
| 8 | Small O-ring | 782995 | 1 | 19 | Suction Strainer | 783005 | 1 | |
| 9 | Pump Body | 782996 | 1 | 20 | Shaft Bolt | 783022 | 1 | |
| 10 | N/A | N/A | N/A | 21 | Washer | 783023 | 1 | |
| 11 | M8 x 25 Hex Bolt (set of 5) | 798516 | 1 | 22 | Key | 783024 | 1 | |
| 23 | M8 x 30 Hex Bolt (set of 8) | 798515 | 1 | |||||
Limited Warranty
Dear Valued Customer
The NorthStar Product you just purchased is built with the finest material and craftsmanship. Use this product properly and enjoy the benefits of its high performance. By purchasing a NorthStar product, you show a desire for quality and durability. Like all mechanical equipment, this unit requires a due amount of care. Treat this unit like the high-quality piece of machinery it is. Neglect and improper handling may impair its performance. Please thoroughly read the instructions and understand the operation before using your product. Always contact NorthStar Product Support at 1-800-270-0810 prior to having any service or warranty work performed, as some services performed by parties other than NorthStar-approved service centers may void this warranty. This warranty is in lieu of any other warranty expressed or implied and NorthStar assumes no other responsibility or liability outside that expressed within this warranty.
Limited Warranty
NorthStar shall warranty any piece of equipment manufactured, or parts of equipment manufactured, to be free from defects in material or workmanship for a period of:
| NorthStar Warranty | ||
| Item # | Consumer Warranty Period | Commercial Warranty Period |
| 1064701 1064711 | 2 years from date of purchase by user | 2 years from date of purchase by user |
| Engine Warranty | ||
| Item # | Consumer Warranty Period | Commercial Warranty Period |
| 1064701 1064711 | 3 years from date of purchase by user | 3 years from date of purchase by user |
“Consumer use” means personal residential household use by a consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes or when purchased by a business. This warranty applies to the original purchaser of the equipment (verification of purchase, in the form of a receipt, is the responsibility of the buyer), is non-transferable, and covers parts and labor. Parts will be replaced or repaired at no charge, except when the equipment has failed due to lack of proper maintenance. If a part is no longer available, the part may be replaced with a similar part of the equal function. Any misuse, abuse, alteration or improper installation or operations will void the warranty. Determining whether a part is to be replaced or repaired is the sole decision of NorthStar. NorthStar will not provide for the replacement of complete products due to defective parts. Any costs incurred due to the replacement or repair of items outside of a NorthStar-approved facility is the responsibility of the buyer and not covered under warranty. Transportation costs to and from the service center is the responsibility of the customer.
In addition to the normal warranty, NorthStar shall warrant any normal wear item from defects in material or workmanship for a period of 90 days from the date of purchase by the user. Normal wear items include, but are not limited to, valves, seals, hoses, springs, O-rings, and strainers.
This warranty specifically excludes the following: failure of parts due to damage caused by accident, fire, flood, windstorm, acts of God, applications not approved by NorthStar in writing, corrosion caused by chemicals, use of replacement parts that do not conform to manufacturer’s specifications, damage related to rodent and/or insect infestation and damage caused by vandalism. Additional exclusions: loss of running time, inconvenience, loss of income, or loss of use, including any implied warranty of merchantability of fitness for a specific use. Also, Outdoor Power Equipment needs periodic parts and services to perform well, and this warranty does not cover instances when normal use has exhausted the life of a component or the engine. This warranty does not cover any personal injury or damage to surrounding property caused by failure of any part. Repair or replacement of parts does not extend the warranty period.
The engine warranty is covered under the terms and conditions as outlined by the engine manufactures warranty contained herein and is the sole responsibility of the engine manufacturer. Normal engine maintenance such as spark plugs, air filters, adjustments, fuel system cleaning and obstruction due to build-up is not covered by this NorthStar warranty.
Please fill in the following information and have it on hand when you call in on a warranty claim.
- Customer Number: ______________________________________________________________
- Date of Purchase: _______________________________________________________________
- NorthStar Serial Number: _________________________________________________________
- Item Number: __________________________________________________________________
WARNING: This product can expose you to chemicals including gasoline engine exhaust, which is known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
If any Questions, Comments, Problems, or Parts Orders Call NorthStar Product Support at 1-800-270-0810
Manufactured by
- Northern Tool + Equipment Co., Inc.
- ADDRESS: Burnsville, MN 55306
- NorthernTool.com
P65Warnings.ca.gov
