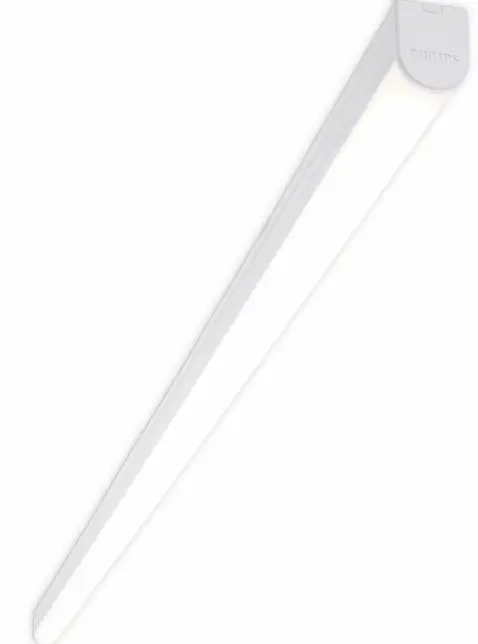

PHILIPS BN016 Essential Smartbright T8 Batten
Essential Smartbright T8 Batten
BN016 battens provide flexibility to the customer to choose from three CCT and two different size and lumen packages, based on their specific needs.
Benefits
- Slim and integrated design
- Polycarbonate housing with one PC extrusion process
- Standalone batten: both surface and suspended mounting options
Features
- 15,000 hrs life, L70/B50
- 1-year warranty

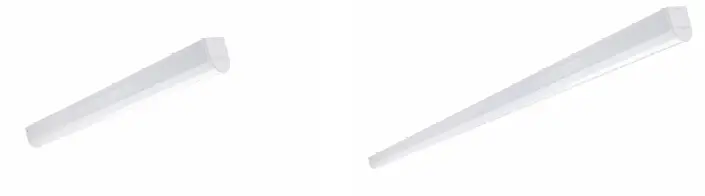

- 2 lengths, 3 colours and an increased number of options for easy application
- CRI 70, SDCM < 7, 100 lm/W
- Mounting accessories included
Application
- Hospitality
- Offices
- Residential
Versions
Application conditions
Ambient temperature range: -20 to +40 °C
| Ingress protection code | IP20 | 911401893181 | BN016C LED8/CW L600 GM G2 | 6500 K | 800 lm | 8 W | |
| 911401893281 | BN016C LED16/WW L1200 GM | 3000 K | 1600 lm | 16 W | |||
| Controls and dimming | G2 | ||||||
| Dimmable | No | 911401893381 | BN016C LED16/NW L1200 GM G2 | 4000 K | 1600 lm | 16 W | |
| 911401893481 BN016C LED16/CW L1200 GM G2 6500 K | 1600 lm | 16 W | |||||
| Operating and electrical | |||||||
| Input Voltage | 220 to 240 V | ||||||
| General information | |||||||
| CE mark | – | ||||||
| Protection class IEC | Safety class II | ||||||
| Optical cover/lens type | Polycarbonate | ||||||
| Initial performance (IEC compliant) | |||||||
| Init. Colour rendering index | >70 | ||||||
| Initial LED luminaire efficacy | 100 lm/W | ||||||
| Luminous flux tolerance | +/-10% | ||||||
| Mechanical and housing | |||||||
| Colour | White | ||||||
