IMB-1713 ATX Motherboard
User GuideI

IMB-1713 ATX Motherboard

The terms HDMI® and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United  States and other countries.

Revision History

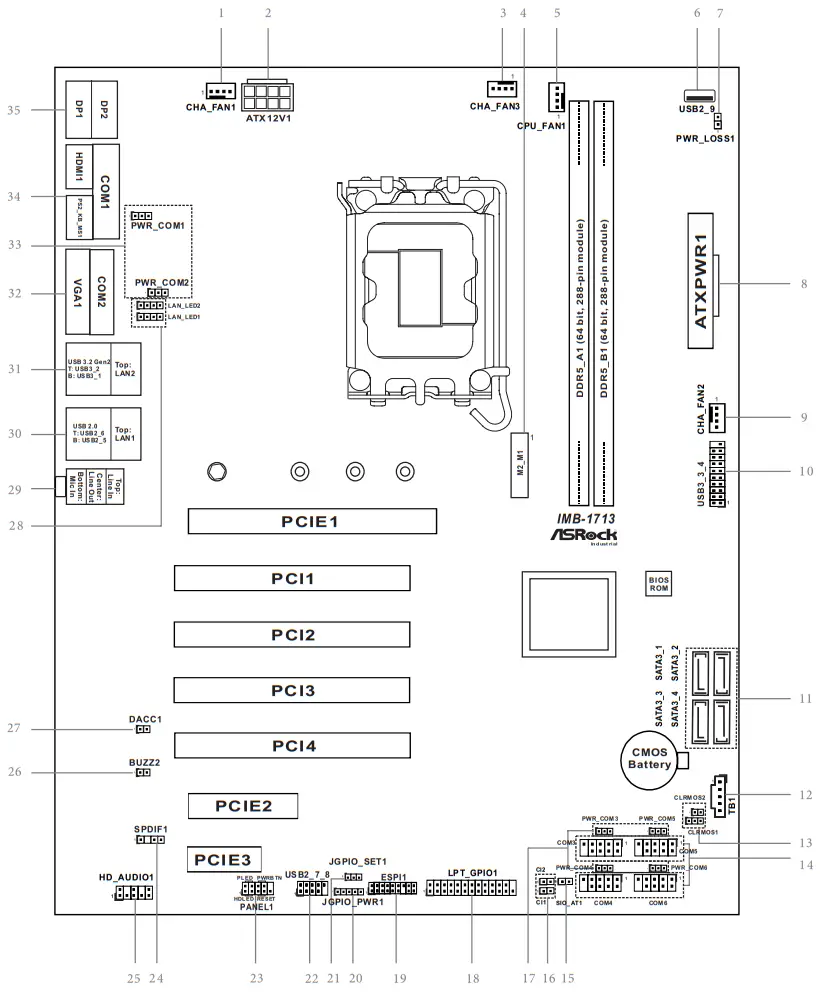

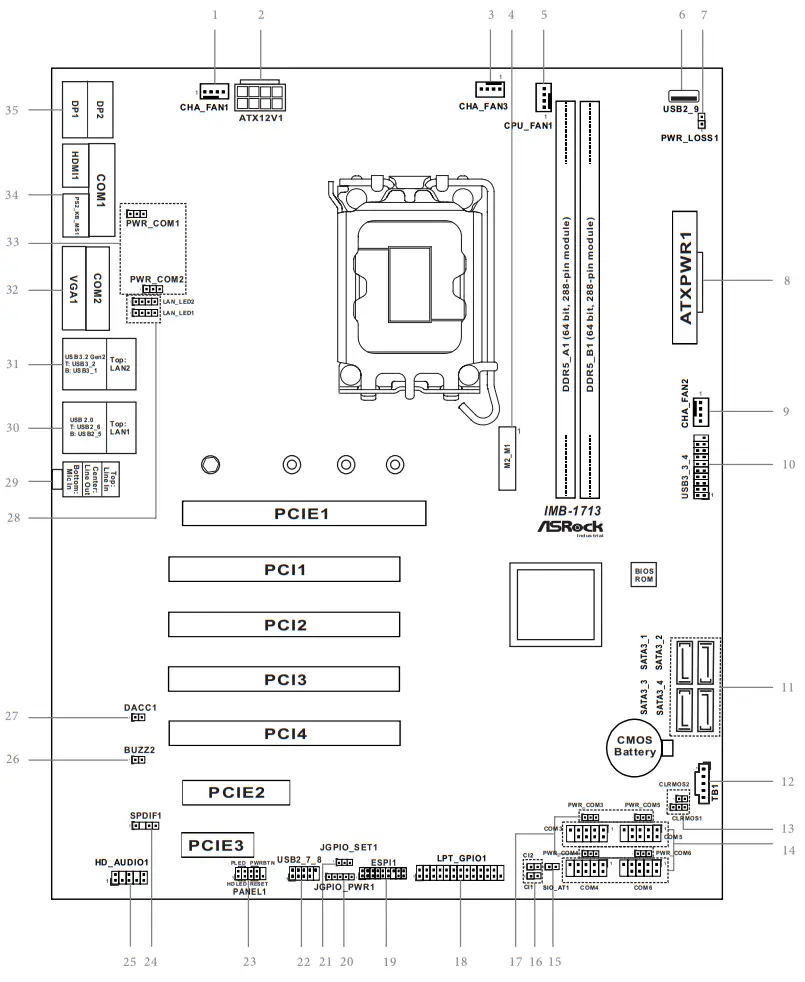

Jumpers and Headers Setting Guide

Chassis FAN Connectors (+12V)

1. CHA_FAN1
2. ATX 12V Power Connector
3. CHA_FAN3

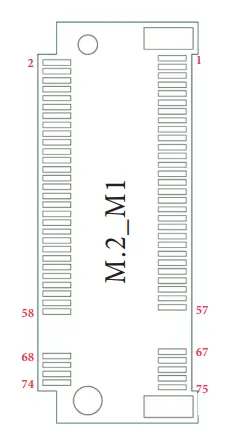

4. M.2 Key-M Socket (M2_M1)


   Pin	Signal Name	Signal Name	Pin
   2	+3.3V	GND	1
   4	+3.3V	GND	3
   6	NA	NA	5
   8	NA	NA	7
   10	LED	GND	9
   12	+3.3V	NA	11
   14	+3.3V	NA	13
   16	+3.3V	GND	15
   18	+3.3V	NA	17
   20	NA	NA	19
   22	NA	GND	21
   24	NA	NA	23
   26	NA	NA	25
   28	NA	GND	27
   30	NA	NA	29
   32	NA	NA	31
   34	NA	GND	33
   36	NA	NA	35
   38	NA	NA	37
   40	SMB_CLK	GND	39
   42	SMB_DATA	PERn0	41
   44	NA	PERp0	43
   46	NA	GND	45
   48	NA	PETn0	47
   50	PERST#	PETP0	49
   52	CLKREQ#	GND	51
   54	NA	PEFCLKn	53
   56	NA	PEFCLKp	55
   58	NA	GND	57
   Mechanical Key
   68	NA	NA	67
   70	+3.3V	PEDET	69
   72	+3.3V	GND	71
   74	+3.3V	GND	73
   		GND	75

5. CPU FAN Connector (+12V)
6. USB 2.0 Connector (USB2_9)
7. PWR LOSS Jumper (PWR_LOSS1)
   Open : No Power Loss
   Short : Power Loss
8. 24-pin ATX Power Input Connector
9. CHA_FAN2
10. USB 3.2 Gen1 Header (USB3_3_4)
11. SATA3 Connectors (SATA3_1 ~ SATA3_4)
12. 5-pin Thunderbolt AIC Connector (TB1)


    PIN	Signal Name
    1	TB_FRC_PWR
    2	TBCIO_PLUG_EVENT_R2
    3	SLP_S3#
    4	TBT_SLP_S5_S4#
    5	GND

13. Clear CMOS Headers
    CLRMOS1 :
    1-2 : Normal
    2-3 : Clear CMOSCLRMOS2 :
    Open : Normal
    Short : Auto Clear CMOS (Power Off)
14. COM Port Headers (COM3~6) (RS232)
15. ATX/AT Mode Jumper (SIO_AT1)
    Open : ATX Mode
    Short : AT Mode
16. Chassis Intrusion Headers (CI1, CI2)
    CI2 :
    Open : Active Case Open
    Short : NormalCI1 :
    Open : Normal
    Short : Active Case Open
17. PWR_COM3 (For COM Port3)
    PWR_COM4 (For COM Port4)
    PWR_COM5 (For COM Port5)
    PWR_COM6 (For COM Port6)
    1-2 : +5V
    2-3 : +12V
18. Printer Port / GPIO Header (LPT_GPIO1)
    Printer Port: GPIO:

    PIN	Signal Name	PIN	Signal Name
    26	NC	25	NA
    24	GND	23	SIO_GP70/GPP_E6
    22	GND	21	SIO_GP71/GPP_E5
    20	GND	19	SIO_GP72/TIME_SYNC1
    18	GND	17	SIO_GP87/TIME_SYNC0
    16	GND	15	SIO_GP86
    14	GND	13	SIO_GP85
    12	JGPIOPWR	11	SIO_GP84
    10	JGPIOPWR	9	SIO_GP83
    8	SIO_GP73	7	SIO_GP82
    6	SIO_GP74	5	SIO_GP81
    4	SIO_GP75	3	SIO_GP80
    2	SIO_GP76	1	SIO_GP77

    * If you want to use the printer port function, please short pin4 and pin5 on Digital Input / Output Power Select (JGPIO_PWR1).

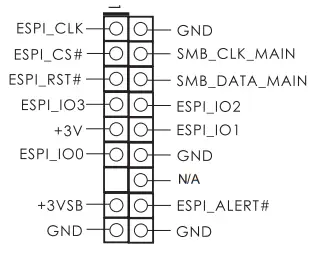

19. ESPI Header
20. Digital Input / Output Power Select
    (JGPIOPWR) (JGPIO_PWR1)
    1-2 : +12V
    2-3 : +5V3-4 : +5V
    4-5 : GND
    * If you want to use the printer port function, please short pin4 and pin5 on Digital Input / Output Power Select (JGPIO_PWR1).
21. Digital Input / Output Default Value
    Setting (JGPIO_SET1)
    1-2 : Pull-High
    2-3 : Pull-Low
22. USB 2.0 Header (USB2_7_8)
23. System Panel Header
24. SPDIF Header
25. Front Panel Audio Header
26. Buzzer (BUZZ2)
    Pin1 : Buzz+
    Pin2 : Buzz-
27. DACC1
    Open : No ACC
    Short : ACC* Auto clear CMOS when system boot improperly.
28. LAN LED Headers
    LAN_LED2 (For LAN2 Port)

    PIN	Signal Name	PIN	Signal Name	PIN	Signal Name	PIN	Signal Name
    1	LED_ ACT+	2	LED_ACT-	3	LED_100- / LED_1000+	4	LED_100+ / LED_1000-

    LAN_LED1 (For LAN1 Port)

    PIN	Signal Name	PIN	Signal Name	PIN	Signal Name	PIN	Signal Name
    1	LED_ ACT+	2	LED_ACT-	3	LED_1000- / LED_2500+	4	LED_1000+/ LED_2500-

29. Audio Jacks
    Blue – Line In
    Green – Line Out
    Pink – Mic In
30.  Top : RJ45 LAN Port (LAN1)
    Bottom : USB 2.0 Ports (USB2_5_6)
31. Top : RJ45 LAN Port (LAN2)
    Bottom : USB 3.2 Gen2 Ports (USB3_1_2)
32. Top : COM Port (COM2) (RS232/422/485)*
    Bottom : D-Sub Port (VGA1)
    COM Port Pin9 PWR Setting Jumpers
33. PWR_COM1 (For COM Port1)
    PWR_COM2 (For COM Port2)
34. Top : COM Port (COM1) (RS232/422/485)*
    Bottom Right : PS/2 Keyboard/Mouse Port
    (PS2_KB_MS1)
    Bottom Left: HDMI Port (HDMI1)
    * This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to table below for the pin definition. In addition, COM1, 2 ports (RS232/422/485) can be  adjusted in BIOS setup utility > Advanced Screen > Super IO Configuration. You may refer to our user manual for details.
    COM1, 2 Port Pin Definition

    PIN	RS232	RS422	RS485
    1	DCD, Data Carrier Detect	TX-	RTX-
    2	RXD, Receive Data	TX+	RTX+
    3	TXD, Transmit Data	RX+	N/A
    4	DTR, Data Terminal Ready	RX-	N/A
    5	GND	GND	GND
    6	DSR, Data Set Ready	N/A	N/A
    7	RTS, Request To Send	N/A	N/A
    8	CTS, Clear To Send	N/A	N/A
    9	No Power/5V/12V	N/A	N/A

35. Top : DisplayPort (DP2)
    Bottom : DisplayPort (DP1)

Installation of ROM Socket

* Do not apply force to the actuator cover after ic inserted.
* Do not apply force to actuator cover when it is opening over 120 degree, Otherwise, the actuator cover may be broken.
* The yellow dot (Pin1) on the ROM must be installed at pin1 position of the socket (white arrow area).
* Make sure the white dot on the ROM is installed outwards of the socket.
* For further details of how to install ROM, please refer to ASRI website.
Warning: If the installation does not follow as the picture, then it may cause severe damage to chipset & MB.
