SUREFIRE 48700 KINGPIN X1 60% Gaming RGB Keyboard User Guide

Contents hide

1 Safety Warnings

2 How it works

3 Specifications

4 Limited Warranty Terms

5 CE Declaration

6 RoHS Compliance

7 Technical Support

8 Documents / Resources

8.1 References

9 Related Posts

Safety Warnings

Read all the instructions carefully before using the keyboard and keep them for future reference.
Retain the manual. If you pass the keyboard onto a third party, make sure to include this manual.
Do not disassemble the keyboard or remove any parts.
Do not immerse the keyboard in water or any liquid.
Do not use the keyboard close to heat sources or expose to high temperatures.
Do not use the keyboard where strong electromagnetic waves are present. Strong electromagnetic waves will cause damage to the keyboard.
Keep the keyboard away from direct sunlight, moisture, dirt, or abrasive chemical products (cleaning products etc).

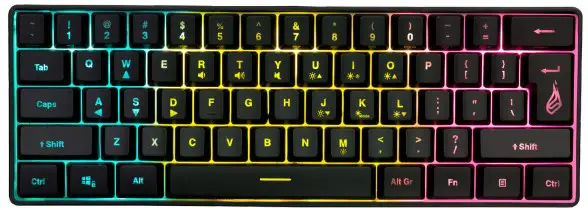

How it works

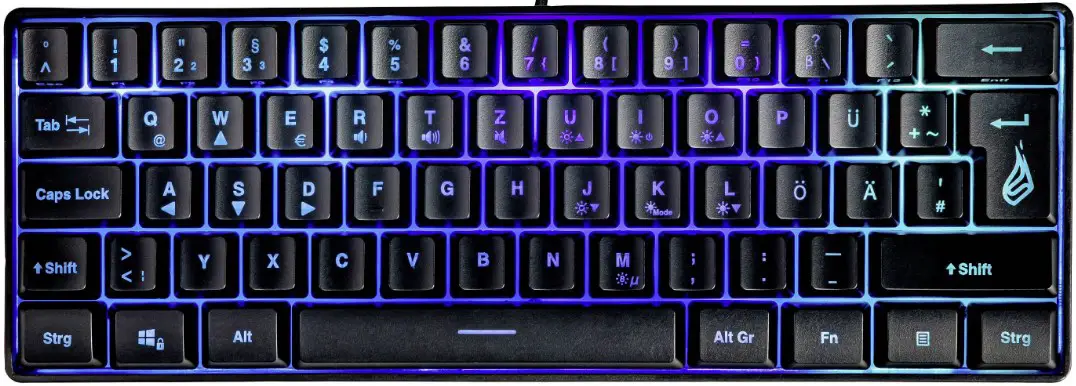

62 Keys (DE/NOR/ES/IT/FR)

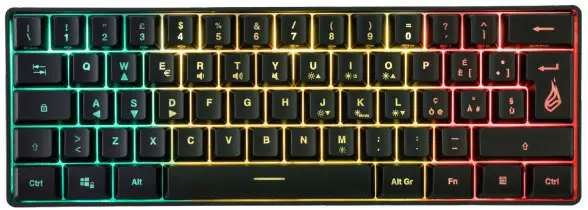

61 Keys (US)

How to connect:
Connect the USB Cable to the USB Port of your device.

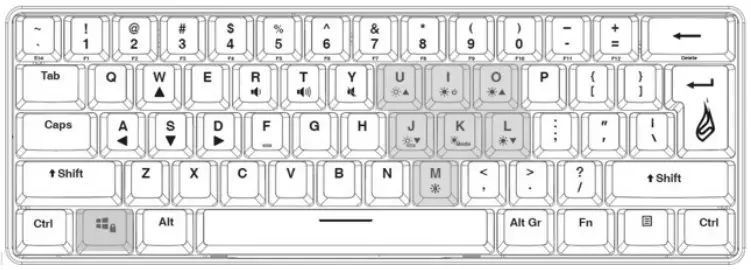

Backlight Effect:
To access these functions, press the Fn Key and the required key together:

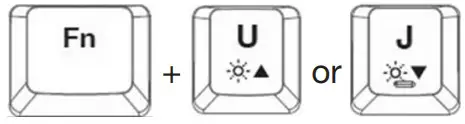

Adjust the backlight flashing level (5 levels)

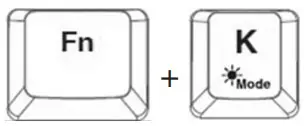

Select different backlight effects (3 modes)

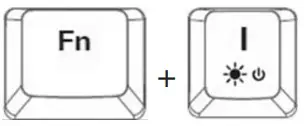

Switch backlight on/off

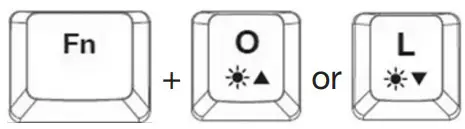

Adjust brightness level (5 levels)

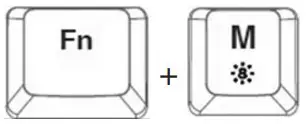

Switch to Single Color Mode (8 colors)

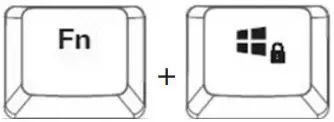

Lock the Win Key, press again to cancel lock

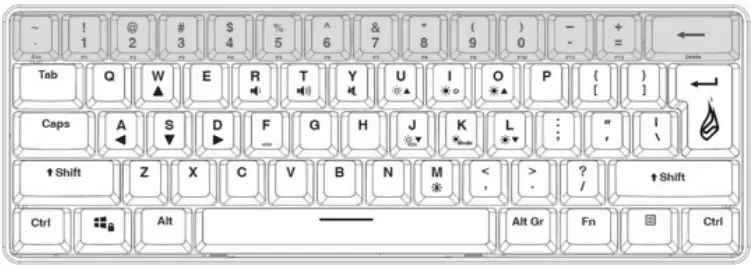

Function Keys:
To access ESC, F1-F12, Delete press the Fn Key and the required key together.

Other Function Keys:

To access multimedia functions, press the Fn Key and the required key together. Decrease the Volume Increase the Volume Mute sound
Enable/Disable Arrow Mode: Fn + W Navigate: W, A, S, D shortcuts (48705: Z, Q, S, D)

Specifications

Type: 60%, membrane, wired	Layout: QWERTZ (German 48700 )
Backlight: RGB LED Backlight (3 modes)	Key-Cap: 62 Keys
Keystroke Life: 10 million hits Key Operating Force: 50±15g	25 keys are anti-ghosting keys
Key Travel: 3.6mm	Layout: QWERTY (US English 48701) Key-Cap : 61 Keys
Multimedia Keys: 3	25 keys are anti-ghosting keys
Anti-Ghosting: 25 Keys	25 keys are anti-ghosting keys
Cable Length: 1.8m
Rating: 5V/260mA (max)	Layout: QWERTY (Nordic 48702), (Spanish 48703), (Italian 48704)
Product Dimensions:	Key-Cap: 62 Keys 25 keys are anti-ghosting keys
292mm×102mm×41mm (height incl. feet)
Product Weight: 395g	Key-Cap: 62 Keys
Material: ABS Plastic	25 keys are anti-ghosting keys

Limited Warranty Terms

Verbatim GmbH warrants this product to be free from defects in material and workmanship for a period of 2 years from date of purchase. This warranty excludes batteries. If this product is found to be defective within the warranty period, it will be
replaced at no cost to you. You may return it with your original cash register receipt to the place of purchase or contact Verbatim.

Product replacement is your sole remedy under this warranty, and this warranty does not apply to normal wear or to damage resulting from abnormal use, misuse, abuse, neglect or accident, or to any incompatibility or poor performance due to the specific computer software or hardware used.

VERBATIM WILL NOT BE LIABLE FOR DATA LOSS OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, HOWEVER CAUSED, FOR BREACH OF WARRANTIES OR OTHERWISE.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country

Note
Verbatim GmbH may at any time revise the content of this user guide without further notice.

Rights
Copyright © 2021 Verbatim GmbH. No part of this document may be reproduced in any form or by any means, for any purpose, without the express written permission of Verbatim GmbH. All rights reserved. All other brands and product names referenced herein are property of their respective owners.

CE Declaration

Complies with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EC) and General Product Safety Directive (2001/95/EC).

This declaration applies to all specimens manufactured identical to the model submitted for testing/evaluation.

EN 55032: 2015 / A11: 2020
EN 55035: 2017 / A11:2020
EN IEC 61000-3-2: 2019
EN 61000-3-3: 2013 /A1: 2019
EN 62368-1: 2014 +A11: 2017

RoHS Compliance

This product is in compliance with Directives 2011/65/EU and 2015/683 of the European Parliament and of the Council of 18th December 2006, on the restriction of the use of hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

Substances of Very High Concern (SVHC) including 223 substances contained in Candidate List of January 17th 2022 are not present in this product range above permitted levels.

WEEE Notice

The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.

The WEEE logo (shown at the left) on the product or on its box indicates that this product must not be disposed of or dumped with your other household waste. For more information about electronic and electrical waste equipment disposal, recovery, and collection points, please contact your local municipal household waste disposal service or shop from where you purchased the equipment.
