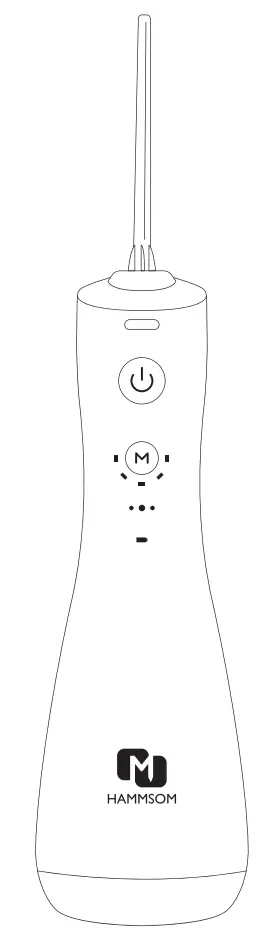

HAMMSOM ML8 Portable Oral Irrigator

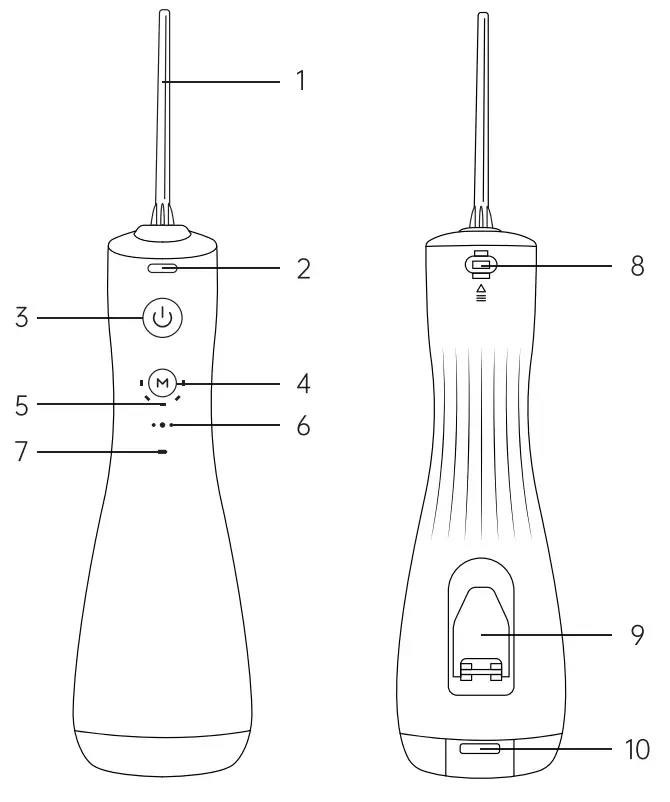

SPECIFICATION
- Nozzle
- Nozzle button
- Power switch
- Mode button
- Mode indicator
- Pulse mode indicator
- Chorging indicator
- Type-C charging port
- Water tank
- Water tonk cover button
Additional equipment:
A standard oral irrigotor “‘1
StandareJet Tip*2
Pericx:lontolJet Tip*l
Orthodontic Tip “‘1
TongueCleoning Tip*l
Type-C charging coble * 1
Instruction manual * 1

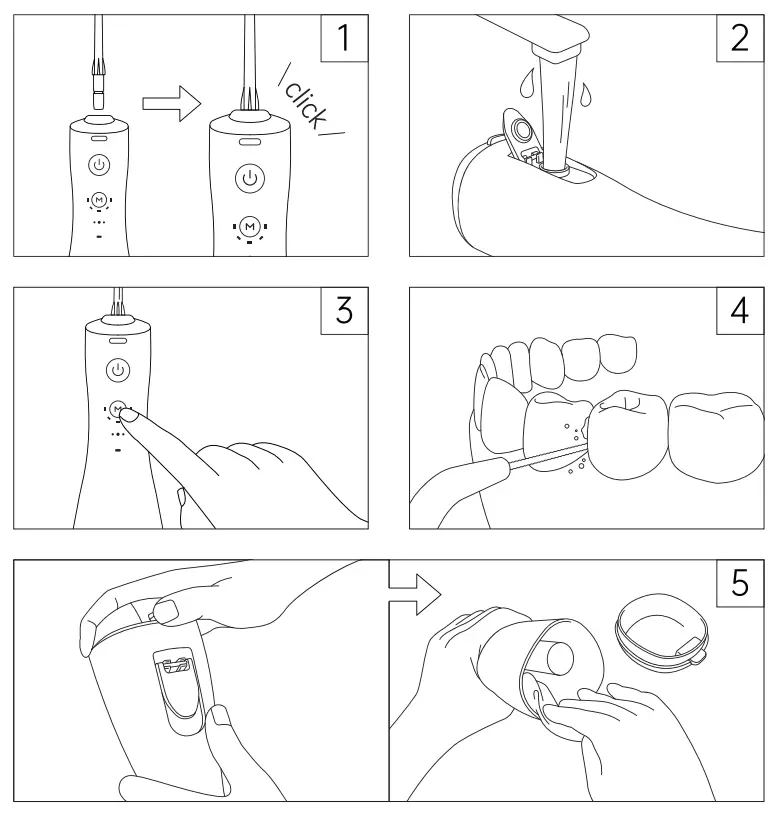

PRODUCT INSTRUCTION
- Install the nozzle and insert it into the device hole with a “click” sound.
- Open the water tank on the back of the device and inject low temperecture water.
- Press the mode button to have your favorite mode.
- Put the nozzle into the mouth and press the power button to start flushing.
- Open the tank cover for regular cleaning and keep the tank clean.(recommend each 20days for cleaning.)
Tips: Watertank cover opening method: 1. press the cover button. 2. push back the water tank cover.

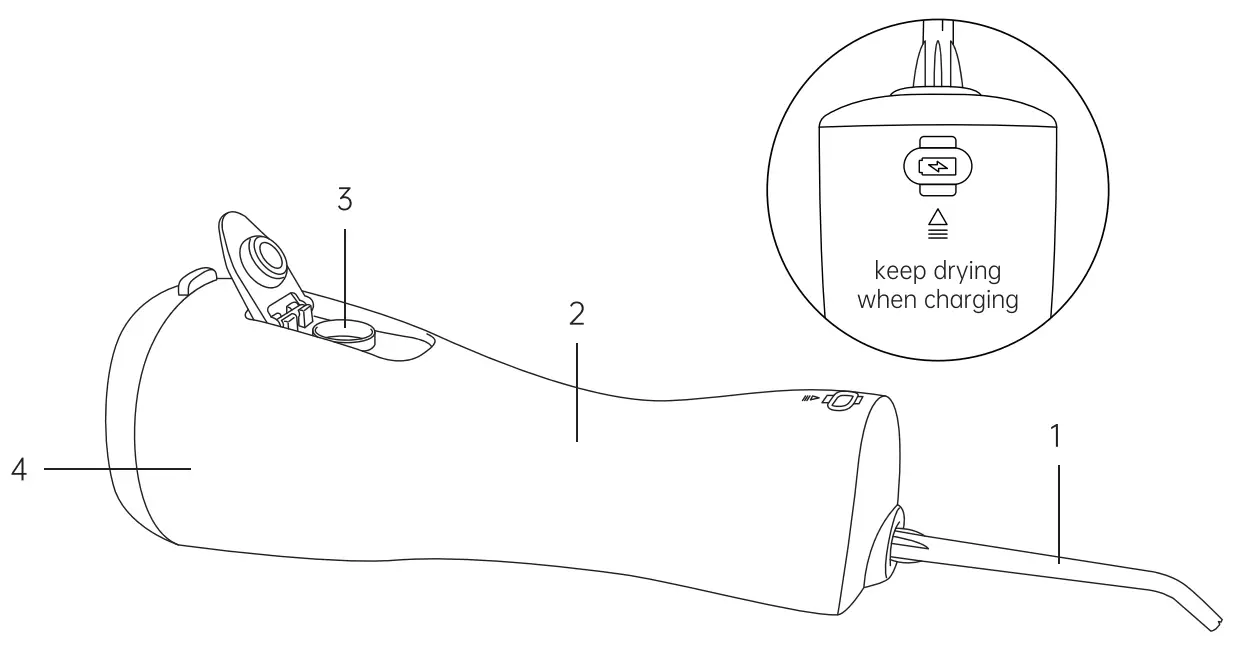

PRODUCT MAINTENANCE
- Nozzle
Press and hold the nozzle plug button, remove the nozzle, wash it with water, and then dry it with a cloth. The dentist recommends replacing the nozzle every six months. If the top of the nozzle has been deformed, replace it with a new nozzle, otherwise it will cause breakdown. - The device body
Remove the dirts by a cloth dampened with a liquid soap, then wipe it clean with a dry cloth. If the device body is very dirty, wash it with water. Do not wipe the device by using thinner, gasoline, alcohol, etc. Do not wipe the device with hot water above 50°C. - Woter inlet port
Wipe off the dirts, otherwise it will cause water leakage. - Woter tonk
Open the water tank cover regularly and wash the interior by brush and wipe it by using dry and clean cloth. Keep the tank dry when long time no using.
FAULT DIAGNOSIS
| Problem | Possible reasons | Solution |
| Not working | Newly purchased or not used for more than three months | Please charge it for more than 4 hours |
| Low water pressure when working | Something inside the nozzle and blocked the nozzle into deformation | Replace the nozzle |
| Battery only can be used for a short time when fully charged. | Insufficient charging times | Please charge it for more than 4 hours before using |
| The charging indicator light does not light up when charging | The power plug is not properly plugged in | Please connect the power correctly. |
SAFETY INSTRUCTION
Find the charging port on the back of the device and using the type-c charging coble insert into the charging port and put another side into SV=lA power adapter, fully charging time is about 4 hours.
WARNING
At the beginning of using this device, there may cause bleeding in the teeth, due to thr teeth are not get used to this kid of stimulation caused by the water pressure (Please use Sensitive mode at the beginning), and the bleeding will stop in about one week. If the bleeding last for more than two weeks, it may be caused by dental problem (periodontal disease, etc.) In such cases, stop using the device immediately and consult your dentist.
DANGER
- Do not use above SO”C hot water into the water tank for cleaning mouth to ovoid scold
- lf the power cable or plug is damaged, please replace it before using.
- Do not put the product into the fire or heating, and do not charge, use or leave it at high temperature.
NOTICE
- Do not use the product without a nozzle.
- This product is not suitable for children and infants.unless they are supervised or guided by their safety responsible supervisor in the use of this product.
- Keep out of reach for children or infants. Do not use it as a toy.
- People who have periodontal disease or hove had oral surgery in the past 2 months, please consult your dentist before using.
- Do not add mouthwash into the water tank which will cause corrosion and the tank will be adhered to the device body can result in tank opening failured.
TECHNICAL PARAMETERS
| Product name | Portable Oral lrrigator | Model no. | ML8 |
| Nozzle Diameter | 0.6mm | Water Pressure | 40-140PSI |
| Water Tank | 250ml | Noise | 60db |
| Input Parameter | 5V·1A | Charging Port | Type·c |
| Waterproof Grade | IPX7 | Mode | 6 Modes |
MODE INDICATION
| Press mode button From left to right | Efficacy and applicable for | Flushing waterpressure |
| Sensitive Mode | Suitable for sensitive teeth or initial user | 40·60PSI |
| Protective Mode | Gentlely massage the gum | 60·80PSI |
| Soft Mode | Gentle cleaning and freshing the breath | 80·100PSI |
| Standard Mode | Daily efficient cleaning is suitable for the most of people | 100-120PSI |
| Strong Mode | Strong water pressure for deep cleanning | 120-140PSI |
| Pulse Mode | Variable frequency pulse water pressure alternatively, deep cleaning and massage the gum | 67·95PSI |
| Battery Indicator |
| Int elligent memory: the mode can be intelligent memorized the latest using mode when power off ond turn on again. |
Adopt the antibacterial patent zirconium phosphate load on silver ion on the injection mold, the whole device selected antibacterial ABS material, adding silver ion antibacterial material, con inhibit the growth of bacteria, after testing, the bacteria inhibition rote of Escherichia coli, Staphylococcus aureus are up to 99%. It can be more safe when you flushing your teeth and don’t worry about bacteria getting into your mouth.
