Oclean W1 Smart Oral Irrigator User Manual

Oclean Smart Sonic Electric
Toothbrush User Manual

Oclean W1 Smart Oral Irrigator
User Manual

Instructions

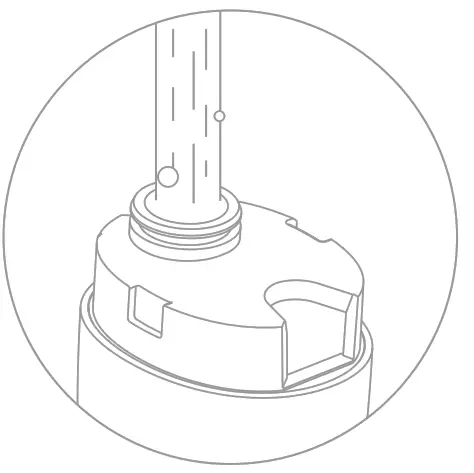

1. Refill the water tank
   Pull down the water tank with a little force to detach it. Fill water or mouthwash into the water tank (The liquid temperature should not be over 40 ℃), then insert the water tank back into the device.

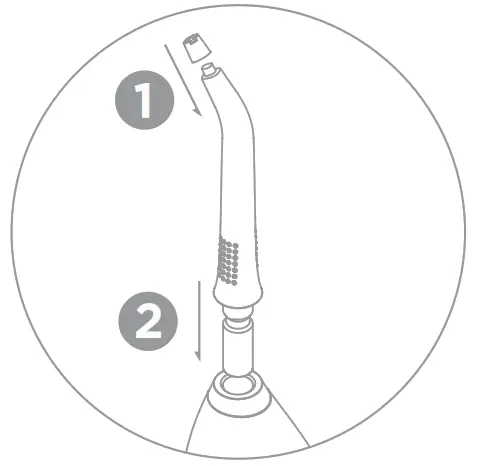

2. Installation of nozzle
   1. Fix the silicone cap to the nozzle.
   2. Insert the nozzle to the device body.

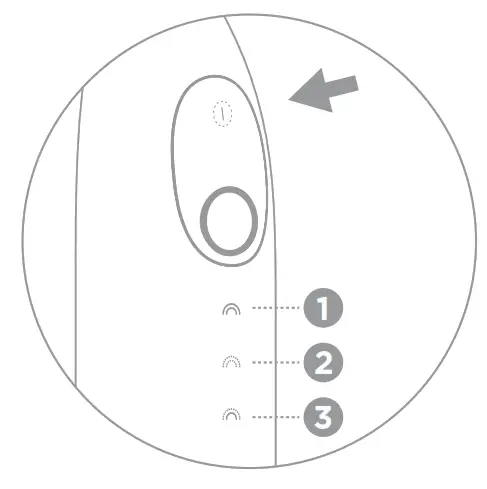

3. Mode switch
   A short press on mode switch, chose the best fit mode, the the device will memorize the latest mode.

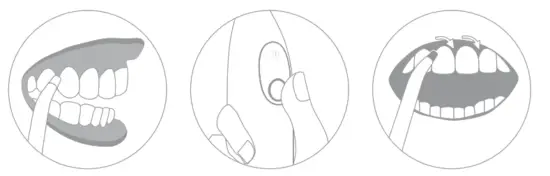

4. Bursting Instructions
   Put the nozzle intermittently close to the slit between teeth. Press and hold the power button to start cleaning.
   Slowly move along the gum line to the next zone, repeat the cleaning for all slit.

Product specifications

Product Name	Oclean W1 Smart Oral Irrigator
Model	Oclean W1
Water tank capacity	30 ml
Waterproof level	IPX5
Input Power	2.5 W
Charging	Oclean magnetic charging
Input	5V    0.5A
Battery life*	30 days
Battery capacity	1200 mAh
Charging time	3 hours
Standard	GB 4706.1-2005 GB 4706.59-2008

* Remark: Battery life is calculated based on default mode, working once/day, 1 tank/time.

Name of parts	Toxic and harmful substance or element						Environment Protection
	Pb	Hg	Cd	Cr6+	PBB	PBDE
PCBA							10 years
Plastic parts
Metal hardware
F PC
Name of parts	Toxic and harmful substance or element						Environment Protection
	Pb	Hg	Cd	Cr6+	PBB	PBDE
Vibrating motor							10 years
Accessories	X
Battery							5 years

Remarks

This indicates that the content of toxic and hazardous substances in all homogeneous materials of this component is less than the limited quantity as specified in GB/T 26572-2011.
X This indicates that the content of toxic and hazardous substances in at least one of the homogeneous materials of this component is more than the limited quantity as specified in GB/T 26572-2011.
Except for very few materials, due to technical development reasons, most of the materials used are environmentally friendly. Please use this product with confidence during the environmental protection period.

Warranty Card

1. These clauses only apply to Oclean products sold in the country or region where the purchase is made, if there is any inconsistency or omission with the national policy, the national policy shall prevail.
2. For performance issues caused by the product itself, one may avail service as per below regulations with valid proof of purchase:
   2.1 A customer can avail warranty service for free within 24 months from the date of purchase if there is a performance failure caused by the product itself.
3. In order to avail replacement and warranty services, one should show the valid proof of purchase.
4. Other product related materials (such as Packaging box, Product Manual etc.) are not covered in warranty.
