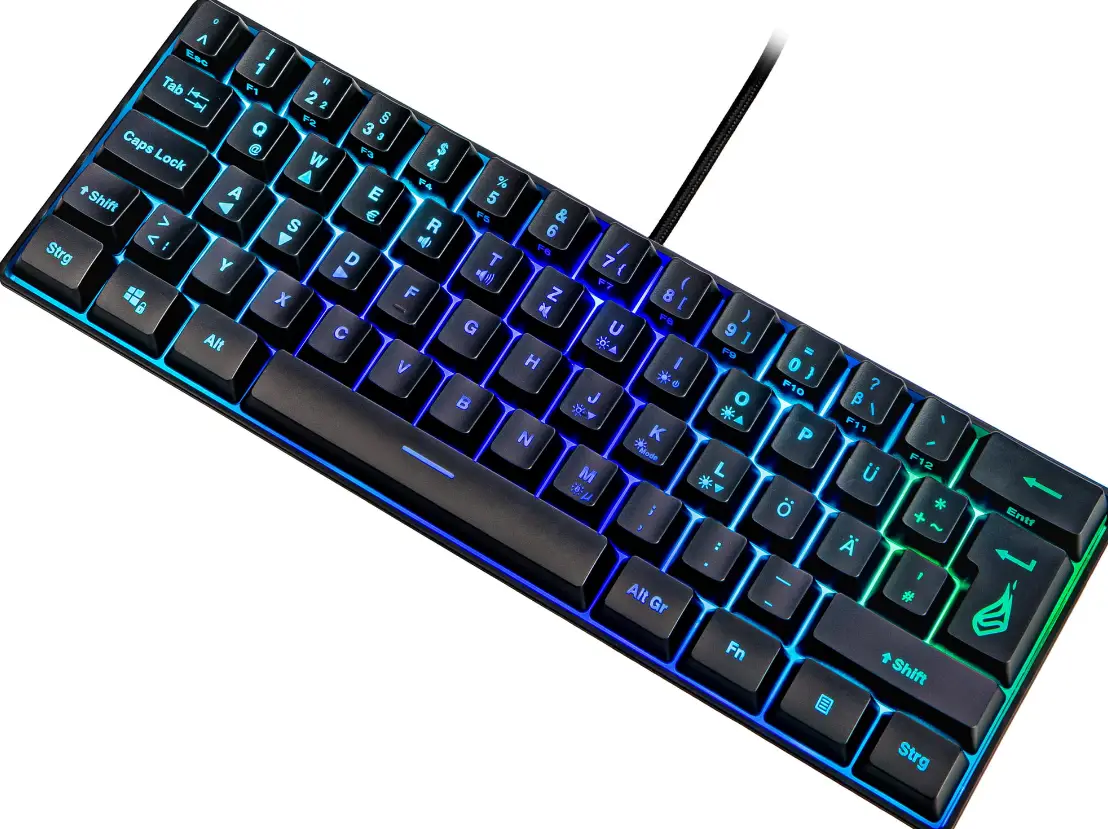

SUREFIRE KINGPIN X1 60% Gaming RGB Keyboard

Safety Warnings

Read all the instructions carefully before using the keyboard and keep them for future reference.
Retain the manual. If you pass the keyboard onto a third party, make sure to include this manual.
Do not disassemble the keyboard or remove any parts.
Do not immerse the keyboard in water or any liquid.
Do not use the keyboard close to heat sources or exposed it to high temperatures.
Do not use the keyboard where strong electromagnetic waves are present. Strong electromagnetic waves will cause damage to the keyboard.
Keep the keyboard away from direct sunlight, moisture, dirt, or abrasive chemical products (cleaning products etc).

How it works

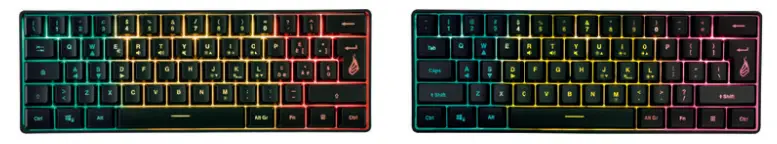

62 Keys (DE/NOR/ES/IT/FR)

How to connect:
Connect the USB cable to the USB Port of your device.

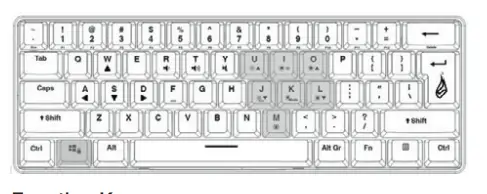

Backlight Effect:

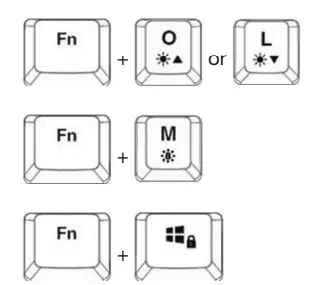

To access these functions, press the Fn Key and the required key together:

Adjust the backlight fl ashing level (5 levels)
Select different backlight effects (3 modes)
Switch backlight on/off
Adjust brightness level (5 levels)
Switch to Single Color Mode (8 colors)
Lock the Win Key, press again to cancel the lock

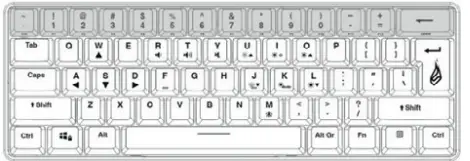

Function Keys:
To access ESC, F1-F12, and Delete press the Fn Key and the required key together.
Other Function Keys:

To access multimedia functions, press the Fn Key and the required key together. Decrease the Volume Increase the Volume Mute sound

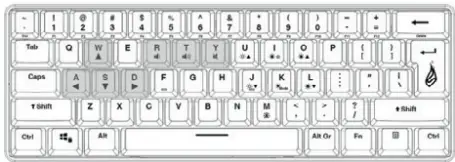

Enable/Disable Arrow Mode: Fn + W

Navigate: W, A, S, D shortcuts (48705: Z, Q, S, D)

Specifications

Type: 60%, membrane, wired
Backlight: RGB LED Backlight (3 modes)
Keystroke Life: 10 million hits
Key Operating Force: 50±15g
Key Travel: 3.6mm
Multimedia Keys: 3
Anti-Ghosting: 25 Keys
Cable Length: 1.8m
Rating: 5V/260mA (max)
Product Dimensions: 292mm×102mm×41mm (height incl. feet)
Product Weight: 395g
Material: ABS Plastic
Layout: QWERTZ (German 48700 )
Key-Cap: 62 Keys 25 keys are anti-ghosting keys
Layout: QWERTY (US English 48701)
Key-Cap: 61 Keys 25 keys are anti-ghosting keys
Layout: QWERTY (Nordic 48702), (Spanish 48703), (Italian 48704)
Key-Cap: 62 Keys 25 keys are anti-ghosting keys
Layout: AZERTY (French 48705)
Key-Cap: 62 Keys 25 keys are anti-ghosting keys

Limited Warranty Terms

Verbatim GmbH warrants this product to be free from defects in material and workmanship for a period of 2 years from date of purchase. This warranty excludes batteries. If this product is found to be defective within the warranty period, it will be replaced at no cost to you. You may return it with your original cash register receipt to the place of purchase or contact Verbatim. Product replacement is your sole remedy under this warranty, and this warranty does not apply to normal wear or to damage resulting from abnormal use, misuse, abuse, neglect or accident, or to any incompatibility or poor performance due to the specific computer software or hardware used. VERBATIM WILL NOT BE LIABLE FOR DATA LOSS OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, HOWEVER CAUSED, FOR BREACH OF WARRANTIES OR OTHERWISE. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country

CE Declaration

Complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EC) and General Product Safety Directive (2001/95/EC). This declaration applies to all specimens manufactured identical to the model submitted for testing/evaluation.

EN 55032: 2015 / A11: 2020
EN 55035: 2017 / A11:2020
EN IEC 61000-3-2: 2019

RoHS Compliance
This product is in compliance with Directives 2011/65/EU and 2015/683 of the European Parliament and of the Council of 18th December 2006, on the restriction of the use of hazardous substances in electrical and electronic equipment (RoHS) and its amendments. Substances of Very High Concern (SVHC) including 219 substances contained in the Candidate List of July 8th, 2021 are not present in this product range above permitted levels.
