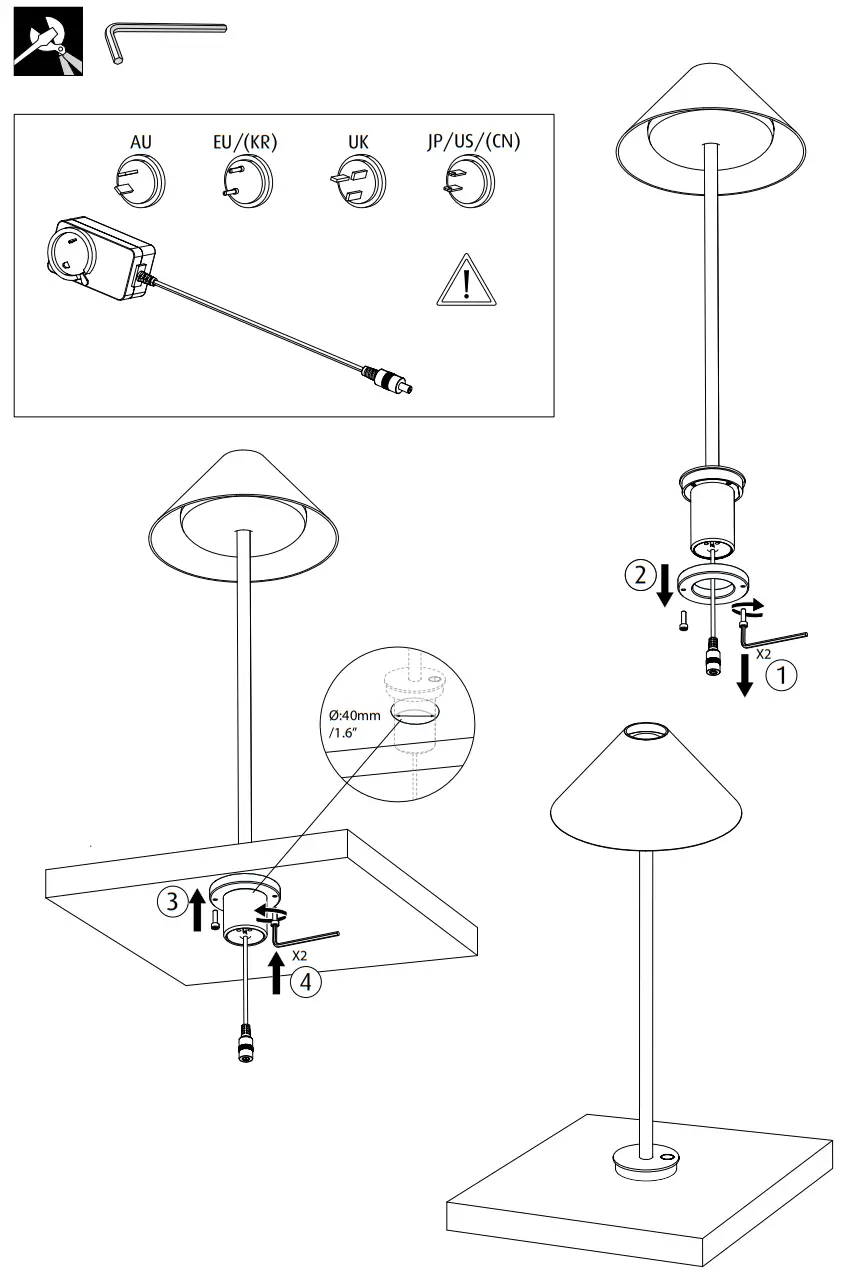

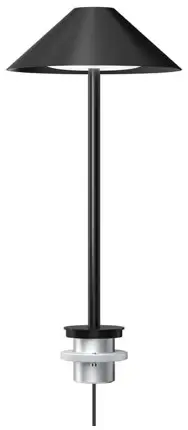

Keglen 175 Table Pin
Mounting Instruction Version 2

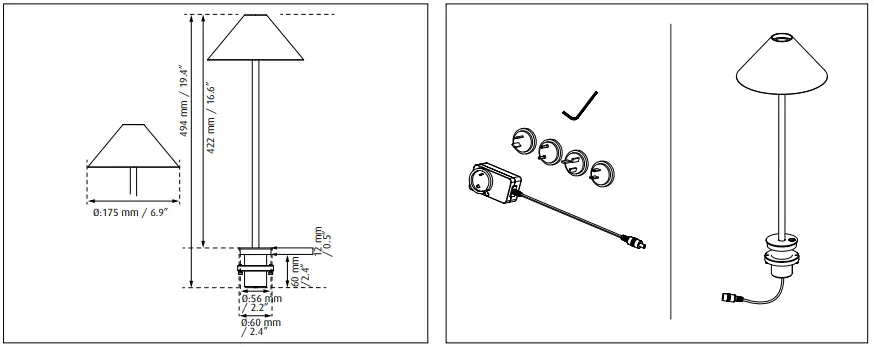

Design BIG
| Light source | Voltage/frequency | Weight | Protection Class | Ingress protection |
LED | AC100-240V, 50/60HZ | 0,6kg / 1.3 Lbs | Cl. II | IP20 |
LED | DC 12V  SELV | 0,6kg / 1.3 Lbs | Cl. III | IP20 |
Wipe off dust with a dry, soft cloth. Remove greasy spots etc. with a soft cloth dampened in lukewarm water (<50° C) with a mild detergent. Never use detergents containing abrasives and solvents.

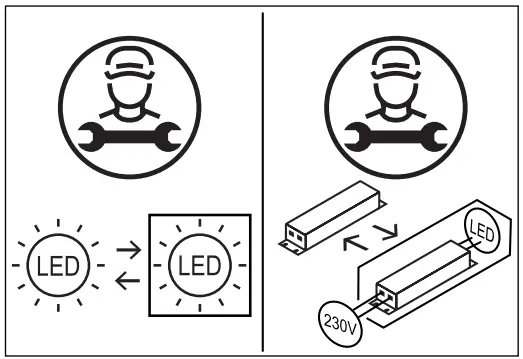

Replaceability & Energy Efficiency Class
This product contains a light source of energy efficiency class F
The light source contained in this luminaire shall only be replaced by the manufacturer or a qualified electrician.
If the external flexible cable or cord of this luminaire is damaged, it must only be replaced by the manufacturer or his service agent or a similar qualified person in order to avoid hazardous situations. Reinforced insulation between LV supply and control.

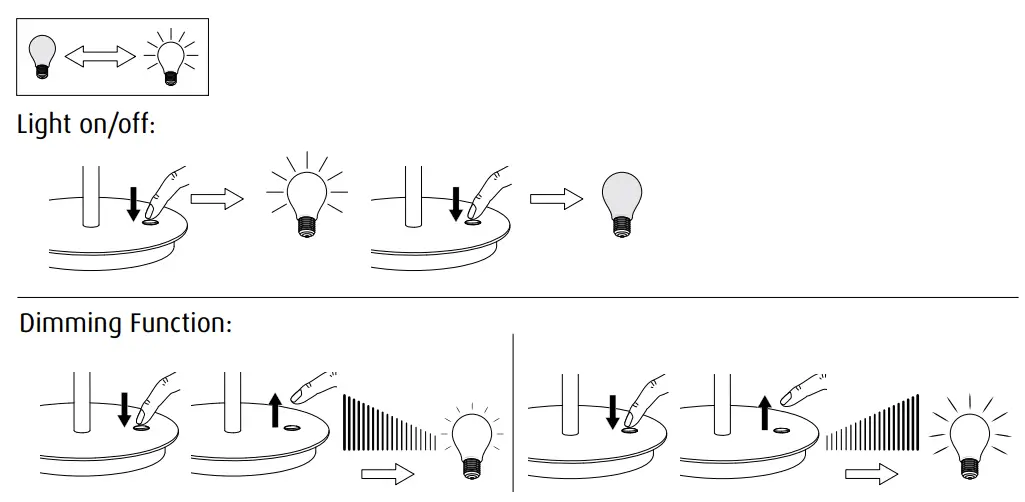

Kellen Table Pin – Electronic Functions
Mounting Instruction Version 2
Additional User Settings
Keglen Table Pin – Electronic Functions
Mounting Instruction Version 2

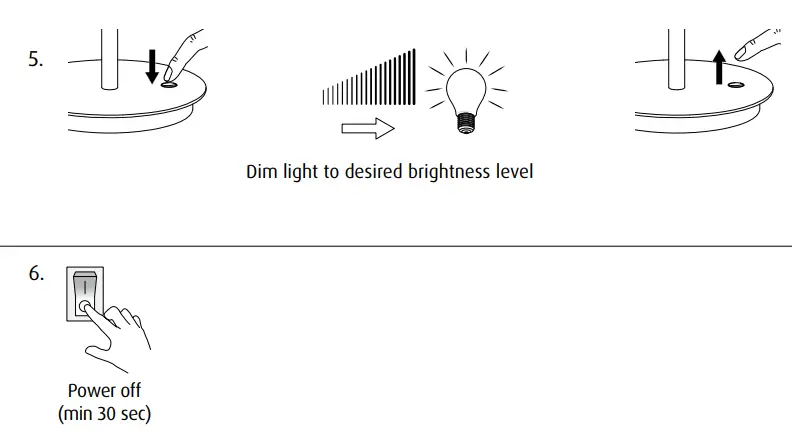

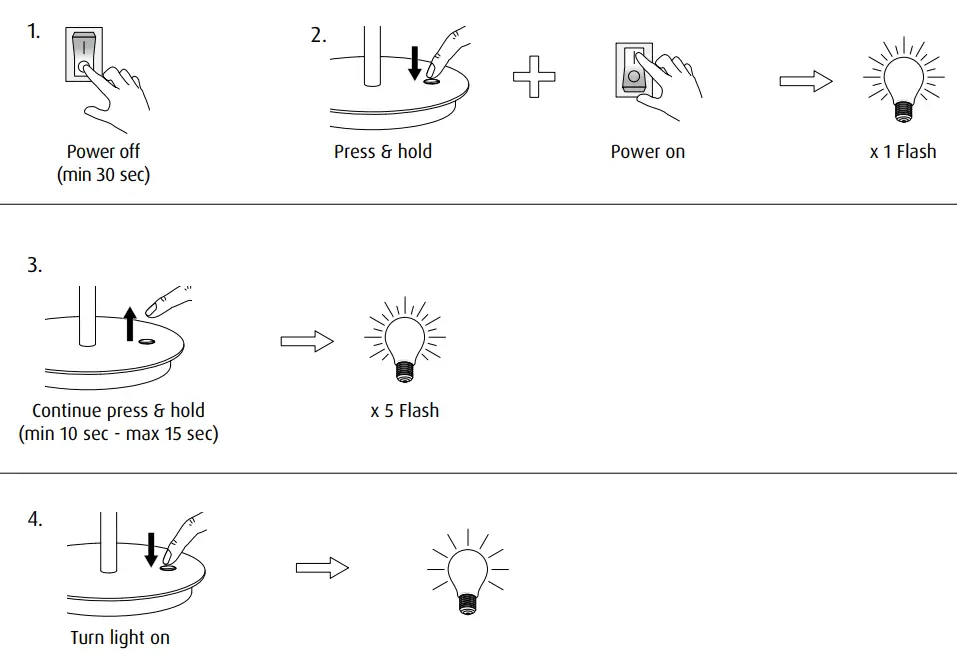

B Set default brightness level (User Function)
Factory reset to deactivate brightness level when set
Keglen Table Pin – Electronic Functions
Mounting Instruction Version 2

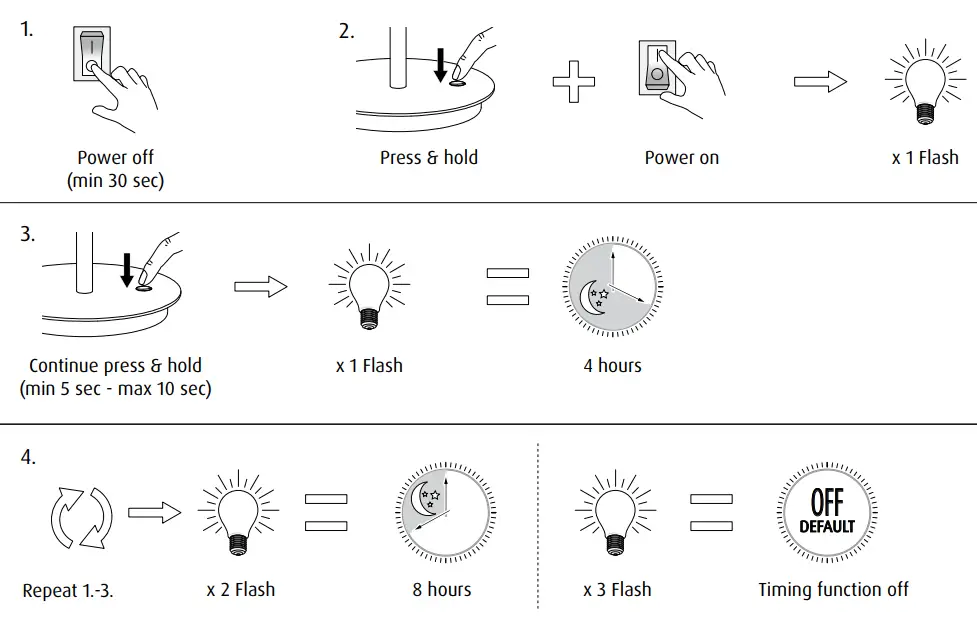

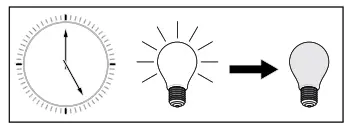

C Timing Function (User Function)
Set timer to automatically turn off after period of time

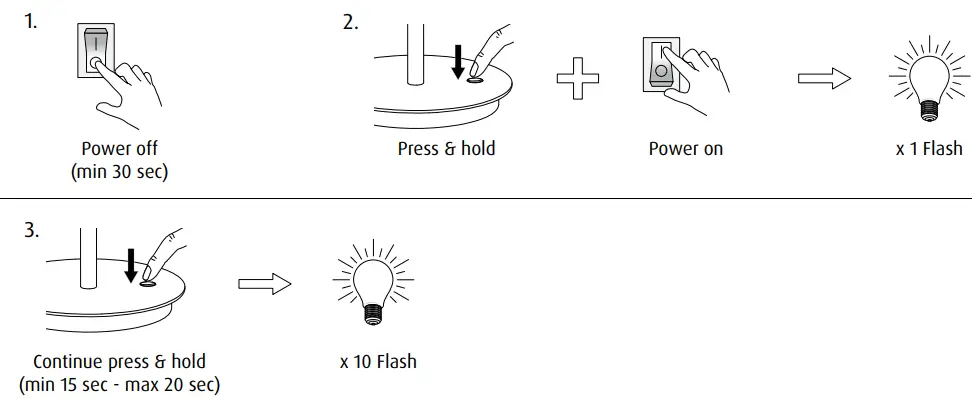

D Dimming Function: Deactivate (User Function)
Factory reset to activate dimming function
Keglen Table Pin – Electronic Functions
Mounting Instruction Version 2

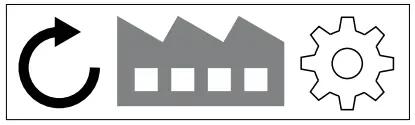

Restore factory default settings:
This is the standard setting for this product.
With this setting the on/off button and dimming function is active.
