QUICK REFERENCE GUIDE > OB24SD11PLX1
Oven, 24″, 11 Function, Self-cleaning
Series 7 | Contemporary
Stainless Steel

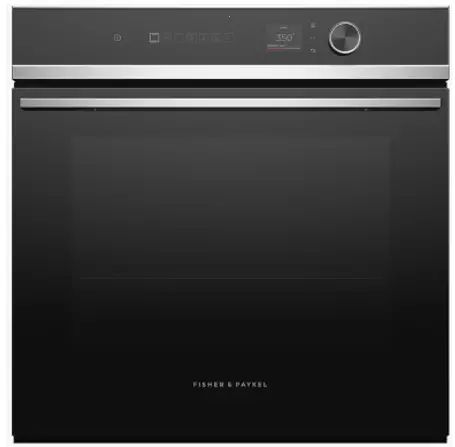

OB24SD11PLX1 Self-Cleaning Oven
With beautiful Contemporary styling and generous capacity, this built-in oven helps to ensures that every dish you create is cooked to perfection.
- 3 cu ft total capacity with 11 oven functions including Pizza Bake, Roast and Air Fry
- Moisture level control with ACTIVE Vent technology
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Guided cooking capability offers helpful tips for different food types

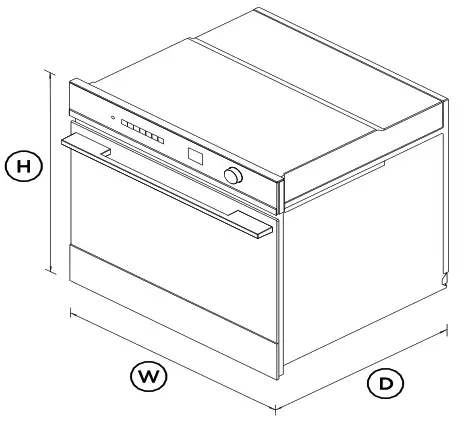

DIMENSIONS
| Height | 23 9/16″ |
| Width | 23 7/16″ |
| Depth | 22 1/4″ |
FEATURES & BENEFITS
MULTI-FUNCTION FLEXIBILITY
Each function has been perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. This built-in oven has 11 functions including Pizza Bake, Roast, Slow Cook and Air Fry, allowing you to use a variety of cooking styles.
GENEROUS CAPACITY
With an exceptional 3 cu ft total capacity, you can create several perfectly cooked dishes at once using multiple shelves.
COOK WITH CONFIDENCE
The intuitive 2.4″ screen provides an intuitive guided cooking experience that helps to deliver perfect results, whether you’ve been cooking all your life or are just starting out. Cook by food type and allow your oven to guide you through steps, or change temperature and heat type automatically, depending on your selection.
EXCEPTIONAL PERFORMANCE
Our unique cooking technologies were developed to deliver perfect results. ActiveVent ensures optimized moisture levels, while AeroTech™ circulates heat evenly for a consistent temperature.
SELF-CLEANING
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
DESIGN FREEDOM
Designed to fit seamlessly into your kitchen, this built-in oven features premium materials and detailing to support a cohesive, considered kitchen design.
SAFE AND SOUND
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
| Accessories | |
| Broil rack | 1 |
| Chromed shelf runners | • |
| Roasting pan | 1 |
| Step down wire shelf | 1 |
| Wire shelf | 1 |
| Capacity | |
| Shelf positions | 6 |
| Total capacity | 3cu ft |
| Usable capacity | 2.5cu ft |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Guided cooking by food type | • |
| Halogen lights | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Wi-Fi connectivity | • |
| Functions | |
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Broil | • |
| Number of functions | 11 |
| Pizza bake | • |
| Roast | • |
| Self-clean | • |
| Slow cook | • |
| True Aero | • |
| Vent bake | • |
| Performance | |
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Fan Element Power | 2500W |
| Temperature range | 120°F – 540°F |
| Product dimensions | |
| Depth | 22 1/4″ |
| Height | 23 9/16″ |
| Width | 23 7/16″ |
| SKU | 82753 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
