QUICK REFERENCE GUIDE > OB60SD9PB1
Oven, 60cm, 9 Function, Selfcleaning
Series 7 | Minimal
Black

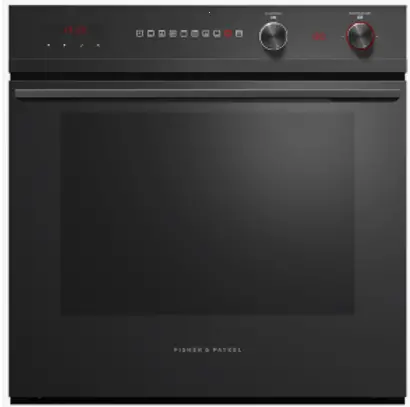

OB60SD9PB1 Self-Cleaning Oven
With generous capacity and beautiful black Minimal styling, this built-in oven will complement your kitchen design perfectly.
- 85L total capacity, with 9 oven functions including Pizza Bake and Roast
- Moisture level control with ACTIVE Vent™ technology
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Non-tip, full-extension shelves for safe removal of hot dishes

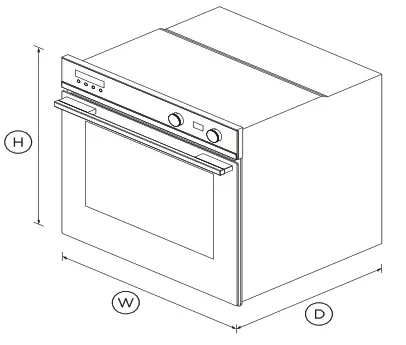

DIMENSIONS
| Height | 598mm |
| Width | 596mm |
| Depth | 565mm |
FEATURES & BENEFITS
MULTI-FUNCTION FLEXIBILITY
Nine functions including Roast, Pizza Bake and Fan Grill mean no matter what you’re cooking, you’ve got the right heat to match.
BEAUTY OF CHOICE
With the choice of stylish stainless steel or elegant black, you can choose the finish that complements your kitchen design best.
GENEROUS CAPACITY
With a generous-sized internal cavity, you can create several dishes at once using multiple shelves.
ACTIVEVENT TECHNOLOGY
With ACTIVE Vent technology for optimised moisture levels and AeroTech™ for even heat distribution, you’ll get perfect results even when using multiple shelves.
SIMPLE CLEANING
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
SAFE AND SOUND
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Chromed shelf runners | • |
| Full extension sliding shelves | 1 set |
| Grill rack | 1 set |
| Optional round handle | Part 81645 |
| Roasting dish | 1 |
Capacity
| Shelf positions | 6 |
Cleaning
| Acid resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Electronic oven control | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft open and close door | • |
| Turned stainless dials with | • |
Functions
| Bake | • |
| Classic bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Pizza bake | • |
| Pyrolytic self-clean | • |
| Roast | • |
Performance
| ActiveVent System | • |
| AeroTech Technology | • |
| Automatic rapid preheat | • |
| Grill power | 3000W |
| Whisper quiet cooking | • |
Power requirements
| Amperage | 12.8 – 13.8A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 565mm |
| Height | 598mm |
| Width | 596mm |
Safety
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Full extension sliding shelves | • |
| Non-tip shelves | • |
| SKU | 82149 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
