OB30SD14PLX1 Self-Cleaning Oven
User Guide
Series 7 | Contemporary
Stainless Steel

Contents hide

1 OB30SD14PLX1 Self-Cleaning Oven

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

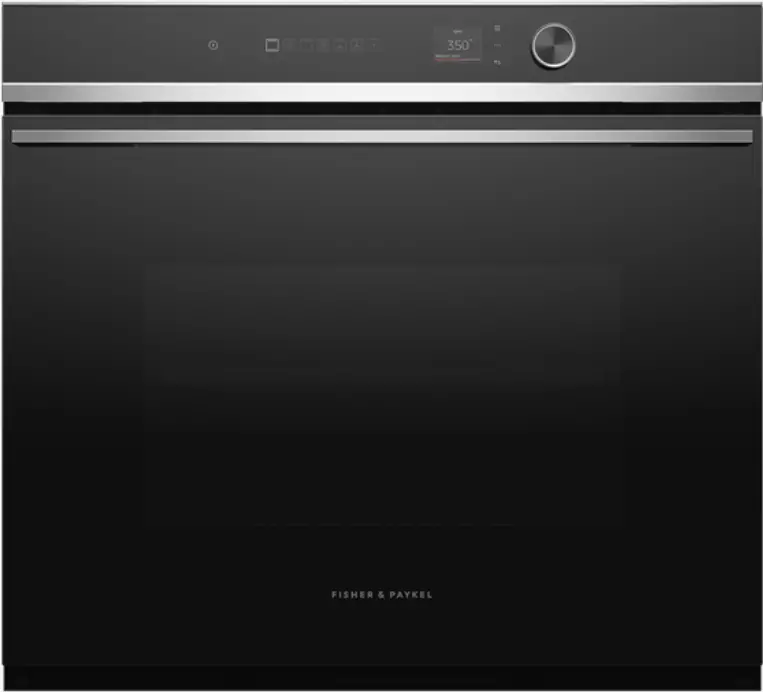

OB30SD14PLX1 Self-Cleaning Oven

With beautiful Contemporary styling and a generous 4.1 cu ft total capacity, this built-in oven helps to ensure that every dish you create is cooked to perfection.

4.1 cu ft total capacity with 14 oven functions including Pastry Bake, Roast and Air Fry
Even heat circulation with AeroTech™, ideal for multi-shelf cooking
Pyrolytic self-cleaning function breaks down food residue for an easy clean
Guided cooking capability offers helpful tips for different food types

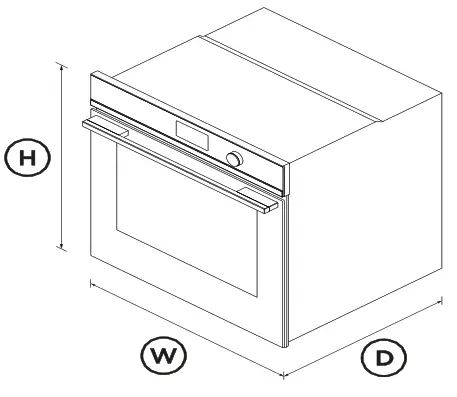

DIMENSIONS

Height	27 3/16″
Width	29 15/16″
Depth	23 15/16″

FEATURES & BENEFITS

MULTI-FUNCTION FLEXIBILITY
Each function has been perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. This built-in oven has 14 functions including Pastry Bake, Pizza Bake, Roast, Slow Cook and Air Fry, allowing you to use a variety of cooking styles.
GENEROUS CAPACITY
With an incredible 4.1 cu ft total capacity in each oven, you can create several perfectly cooked dishes at once using multiple shelves.
COOK WITH CONFIDENCE
The intuitive 2.4″ screen provides an intuitive guided cooking experience that helps to deliver perfect results, whether you’ve been cooking all your life or are just starting out. Cook by food type and allow your oven to guide you through steps, or change temperature and heat type automatically, depending on your selection.
EXCEPTIONAL PERFORMANCE
AeroTech™ circulates heat evenly for a consistent temperature throughout the cavity, helping you ensure perfect results even when cooking on multiple shelves.
MULTI-FUNCTION FLEXIBILITY
Each function has been tailored, tested and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. The Wired Temperature Sensor precisely monitors cooking in real time, giving you complete control.
SELF-CLEANING
Our Pyrolytic self-cleaning technology breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
DESIGN FREEDOM
Designed to fit seamlessly into your kitchen, this built-in oven features premium materials and detailing to support a cohesive, considered kitchen design.

SPECIFICATIONS

Accessories
Pyrolytic proof shelf runners	1 set
Wired food probe	1
Cleaning
Acid resistant graphite enamel	•
Descale cycle	•
Drying cycle	•
Removable oven door	•
Removable oven door inner	•
Removable shelf runners	•
Steam clean (oven)	•
Controls
Dial with illuminated halo	•
Halogen lights	•
Intuitive touchscreen display	•
Multi-language display	UK English, US English,
Sabbath mode	•
Soft open and close door	•
Wi-Fi connectivity	•
Functions
Aero Bake	•
Aero Broil	•
Air fry	•
Bake	•
Broil	•
Classic bake	•
Maxi Broil	•
Number of functions	13
Pastry Bake	•
Pizza bake	•
Roast	•
Self-clean	•
Slow cook	•
Steam clean (oven)	•
True Aero	•
Vent bake	•
Performance
Active Vent™ system	•
Aero Tech™ technology	•
Product dimensions
Depth	23 15/16″
Height	27 3/16″
Width	29 15/16″
SKU	82579

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
