Fisher Paykel Ob24sd16plx1 Self-cleaning Oven User Guide (+ PDF)

OB24SD16PLX1 Self-Cleaning Oven
User Guide
Series 7 | Contemporary
Stainless Steel

Contents hide

1 OB24SD16PLX1 Self-Cleaning Oven

2 DIMENSIONS

3 FEATURES & BENEFITS

4 SPECIFICATIONS

5 Documents / Resources

5.1 References

6 Related Posts

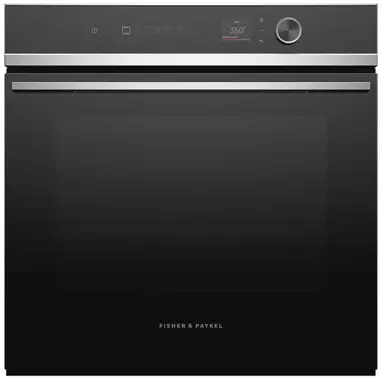

OB24SD16PLX1 Self-Cleaning Oven

With beautiful Contemporary styling and a generous 85L total capacity capacity, this built-in oven helps to ensures that every dish you create is cooked to perfection.

3 cu ft total capacity, with 16 oven functions including Air Fry and Dehydrate
Moisture level control with ACTIVE Vent technology
Pyrolytic self-cleaning function breaks down food residue for an easy clean
Guided cooking capability offers helpful tips for different food types

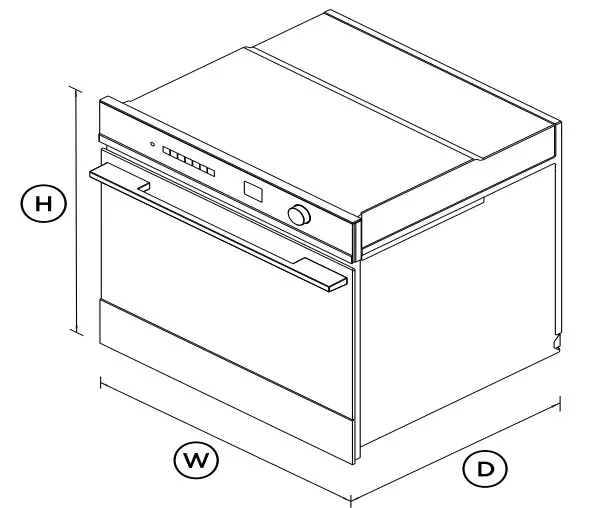

DIMENSIONS

Height	23 9/16″
Width	23 7/16″
Depth	22 1/4″

FEATURES & BENEFITS

MULTI-FUNCTION FLEXIBILITY
Each function has been perfected to ensure that no matter whatyou’re cooking, you’ve got the right heat to match. This built-in oven has 16 functions including Pastry Bake, Roast, Fan Grill, Dehydrate and Rapid Proof, allowing you to use a variety of cooking styles.
GENEROUS CAPACITY
With a generous 3 cu ft total capacity, you can create several perfectly cooked dishes at once using multiple shelves.
COOK WITH CONFIDENCE
The intuitive 2.4″ screen provides an intuitive guided cooking experience that helps to deliver perfect results, whether you’ve been cooking all your life or are just starting out. Cook by food type and allow your oven to guide you through steps, or change temperature and heat type automatically, depending on your selection.
EXCEPTIONAL PERFORMANCE
Our unique cooking technologies were developed to deliver perfect results. ActiveVent ensures optimised moisture levels, while AeroTech™ circulates heat evenly for a consistent temperature.
SELF-CLEANING
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
DESIGN FREEDOM
Designed to fit seamlessly into your kitchen, this built-in oven features premium materials and detailing to support a cohesive, considered kitchen design.
SAFE AND SOUND
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.

SPECIFICATIONS

Accessories
Broil rack	1
Full extension sliding shelves	1 set
Pyrolytic proof shelf runners	1 set
Roasting pan	1
Step down wire shelf	1
Wired food probe	1
Capacity
Shelf positions	6
Total capacity	3cu ft
Usable capacity	2.5cu ft
Cleaning
Acid resistant graphite enamel	•
Pyrolytic self-clean	•
Removable oven door	•
Removable oven door inner	•
Removable shelf runners	•
Controls
Automatic pre-set	•
Celsius/Fahrenheit	•
Dial with illuminated halo	•
Guided cooking by food type	•
Halogen lights	•
Precise electronic temperature	•
Sabbath mode	•
Soft open and close door	•
Wi-Fi connectivity	•
Functions
Aero Bake	•
Aero Broil	•
Air fry	•
Bake	•
Broil	•
Classic bake	•
Dehydrate	•
Number of functions	16
Pastry Bake	•
Pizza bake	•
Rapid proof	•
Roast	•
Self-clean	•
Slow cook	•
True Aero	•
Vent bake	•
Warm	•
Performance
ActiveVent™ system	•
AeroTech™ technology	•
Automatic rapid pre-heat	•
Fan Element Power	2500W

Temperature range	95°F – 540°F
Product dimensions
Depth	22 1/4″
Height	23 9/16″
Width	23 7/16″
SKU	82558

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
