FISHER & PAYKEL OB24SCD9PB1 Self Cleaning Oven User Guide
Oven, 24″, 9 Function, Self-cleaning
Series 7 | Minimal
Black Glass
With a subtle black glass finish, this Minimal style oven has multiple functions to ensure every dish is cooked to perfection.
- Three cubic feet total capacity with nine oven functions including Aero™ Pastry and Roast
- Self-cleaning function breaks down food residue for an easy clean
- Moisture control and even heat distribution thanks to ActiveVent™ and AeroTech technology
- Optional non-tip, full-extension sliding shelves for safe removal of hot dishes

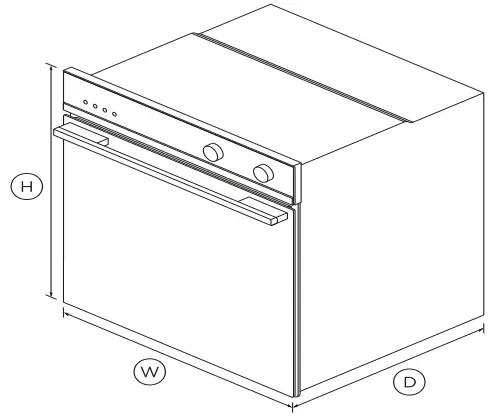

DIMENSIONS
| Height | 23 9/16″ |
| Width | 23 1/2″ |
| Depth | 22 1/4″ |
FEATURES & BENEFITS
Generous capacity
With a generous sized internal cavity, you can create several dishes at once using multiple shelves.
Perfect Results
Our built-in ovens feature ActiveVent technology for optimized moisture levels, and AeroTech™ for even heat distribution. Get perfect results even when you’re using multiple shelves.
Multi-function flexibility
Nine functions including Aero™ Pastry, Roast and Aero™ Bake mean no matter what you’re cooking, you’ve got the right heat to match.
Seamless fit
Designed to fit seamlessly in your kitchen, this built-in oven fits flush with cabinetry to minimize gaps and add to a cohesive aesthetic.
Cleaning is simple
The self-clean function breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
The Beauty of Choice
With the choice of stylish stainless steel or elegant black, you can choose the finish that complements your kitchen design best.
Safe and sound
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
AccessoriesFood probe 1 Full extension telescopic • Grill pan 1 Meat probe 1 Optional round handle Part 81645 Step down wire shelf 1
Capacity
| Shelf positions | 6 |
| Total capacity | 3cu ft |
| Usable capacity | 2.5cu ft |
CleaningAcid resistant graphite enamel • Pyrolytic self-clean • Removable oven door • Removable oven door inner • Removable shelf runners •
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| Electronic clock | • |
| Electronic oven control | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft close doors | • |
| Soft open and close door | • |
| Turned stainless dials with | • |
FunctionsAero Bake • Aero Broil • Aero Pastry • Bake • Broil • Maxi Broil • Number of functions 9 Rapid proof • Roast • Self-clean • True Aero • Vent bake • Warm •
Performance
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 3000W |
| Whisper quiet cooking | • |
Power requirements
| Amperage | 19A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
Product dimensions
| Depth | 22 1/4″ |
| Height | 23 9/16″ |
| Width | 23 1/2″ |
SafetyADA compliant • Advanced cooling system • Balanced oven door • Catalytic venting system • Control panel key lock • Non-tip shelves • SKU 81885
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
