QUICK REFERENCE GUIDE > OB60SD7PX1
Oven, 60cm, 7 Function, Selfcleaning
Series 5 | Contemporary
Stainless Steel
OB60SD7PX1 Self-Cleaning Oven
With generous capacity and beautiful contemporary styling, this built-in oven will complement your kitchen design perfectly.
- 85L total capacity, with 7 oven functions including Pastry Bake
- Moisture level control with ActiveVent™ and AeroTech technology
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Optional non-tip, full-extension shelves for safe removal of hot dishes

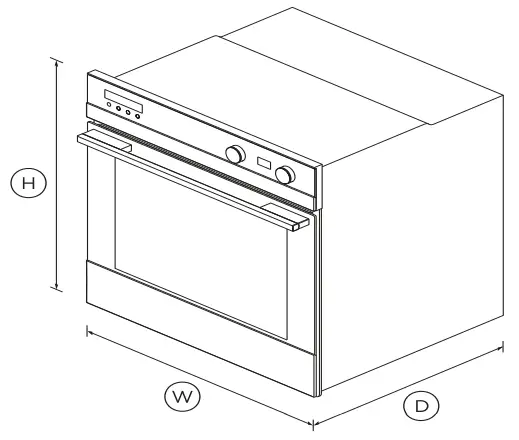

DIMENSIONS
| Height | 598mm |
| Width | 596mm |
| Depth | 565mm |
FEATURES & BENEFITS
MULTI-FUNCTION FLEXIBILITY
Seven functions with pre-set temperatures including Pastry Bake, Fan Bake and Fan Grill mean no matter what you’re cooking, you’ve got the right heat to match.
GENEROUS CAPACITY
With a generous sized internal cavity, you can create several dishes at once using multiple shelves.
ACTIVEVENT™ TECHNOLOGY
With ActiveVent™ technology for optimised moisture levels and AeroTech™ for even heat distribution, you’ll get perfect results even when using multiple shelves.
CLEANING IS SIMPLE
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
REFINED STYLING
With sophisticated handle styling and a brushed stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SAFE AND SOUND
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
| Accessories | |
| Chromed shelf runners | • |
| Contemporary round handle | Part 81645 |
| Full extension sliding shelves | Optional (part 565048) |
| Full extension telescopic | Optional (part 565049) |
| Grill rack | 1 set |
| Optional round handle | Part 81645 |
| Roasting dish | 1 |
| Step down wire shelf | 1 |
| Capacity | |
| Shelf positions | 6 |
| Total capacity | 85L |
| Total gross | 85L |
| Usable capacity | 72L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Consumption | |
| Energy rating | A |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Electronic oven control | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft open and close door | • |
| Turned stainless dials with | • |
| Functions | |
| Bake | • |
| Classic bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 7 |
| Pastry Bake | • |
| Pastry Bake with Pizza mode | • |
| Roast | • |
| Performance | |
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Grill power | 3000W |
| Whisper quiet cooking | • |
| Power requirements | |
| Amperage | 12.8 – 13.8A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 565mm |
| Height | 598mm |
| Width | 596mm |
| Safety | |
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| SKU | 82270 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
