Description

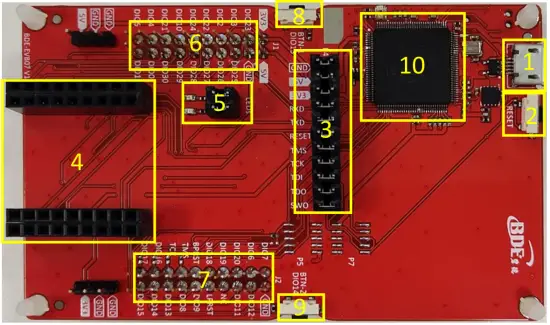

EVB07 is an evaluation board designed for various BDE modules which use TI CC26xx and CC13xx chips. It is basically the same as TI launch pad, except EVB07 provides a socket (item 4 in the following picture) for BDE modules to plug in.

Micro USB connector
Reset button
Jumpers, to connect or disconnect the module from debug port or UART
Connect with module
Two LEDs, connect with GPIO DIO6 and DIO7
2.54 mm pins, module pins out
2.54 mm pins, module pins out
Button 1, connect with GPIO DIO13
Button 2, connect with GPIO DIO14
XDS110 chip, for programming and debug, also providing USB to UART

Modules supported

BDE-BLEM203P/ BDE-BLEM203D (CC2640R2F chip)
BDE-RFM204/BDE-RFM204A/BDE-RFM214/BDE-RFM214A (CC1310 chip)
BDE-BLEM205/BDE-BLEM215 (CC2642R chip)
BDE-RFM206/BDE-RFM216 (CC1312R chip)
BDE-RFM207/BDE-RFM217 (CC2652R chip)
BDE-RFM208 (CC1352R chip) BDE-RFM208P (CC1352P chip)

Steps

(1) IDE, SDK and tools download
Customers can download all the tools and SDK from TI website.

SDK download link:

BDE-BLEM203P/ BDE-BLEM203D (CC2640R2F chip)
https://www.ti.com/tool/SIMPLELINK-CC2640R2-SDK
BDE-RFM204/BDE-RFM204A/BDE-RFM214/BDE-RFM214A (CC1310 chip)
https://www.ti.com/tool/SIMPLELINK-CC13X0-SDK
BDE-BLEM205/BDE-BLEM215 (CC2642R chip)
https://www.ti.com/tool/SIMPLELINK-CC13X2-26X2-SDK
BDE-RFM206/BDE-RFM216 (CC1312R chip)
https://www.ti.com/tool/SIMPLELINK-CC13X2-26X2-SDK
BDE-RFM207/BDE-RFM217 (CC2652R chip)
https://www.ti.com/tool/SIMPLELINK-CC13X2-26X2-SDK
BDE-RFM208 (CC1352R chip)
https://www.ti.com/tool/SIMPLELINK-CC13X2-26X2-SDK
BDE-RFM208P (CC1352P chip)
https://www.ti.com/tool/SIMPLELINK-CC13X2-26X2-SDK
Click “Get Software” to download the SDK.

IDE download link:
http://www.ti.com/tool/CCSTUDIO
Flash Programmer2download link: (For programming the firmware)
http://www.ti.com/tool/FLASHPROGRAMMER?keyMatch=FLASH%20PROGRAMMER&tisearch=Search-ENeverything&usecase=part-number
SmartRF Studio download link: (For measuring RF parameters)
http://www.ti.com/tool/download/SMARTRFTM-STUDIO/
(2) Installation
Install the SDK (use default paths) and tools
(3) Build project, program and execute
Following we demonstrate the steps on CC2642R chip, the example project is “simple_peripheral” .

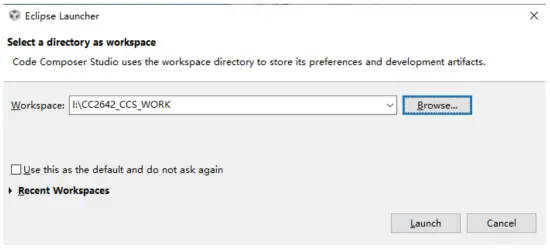

• Open CCS, select workspace path as below:

• Click Project->Import CCS Projects…, select the project path of “simple_peripheral” as below: C:tisimplelink_cc13x2_26x2_sdk_3_20_00_68examplesrtosCC26X2R1_LAUNCHXL ble5stacksimple_peripheraltirtosccs

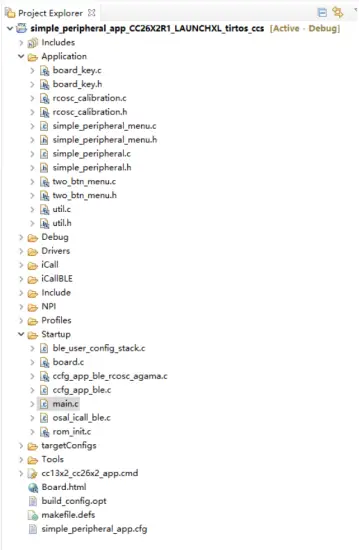

• Click “Finish” and then the project is imported to the CCS as follow:

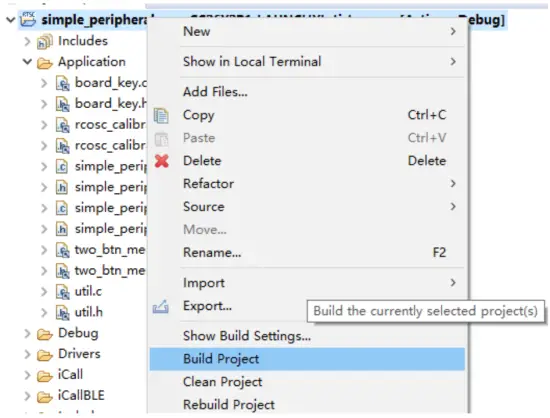

• Right click the project and click “Build Project” as follow:

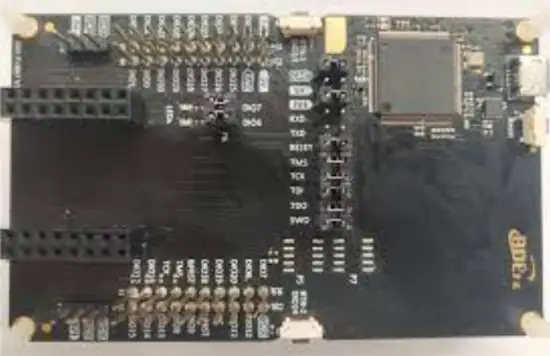

• After build, plug the BLEM205 to the EVB07 and connect the EVB07 to PC through Micro USB, click icon from CCS, the CCS will download the firmware to the module and enter to debug mode.

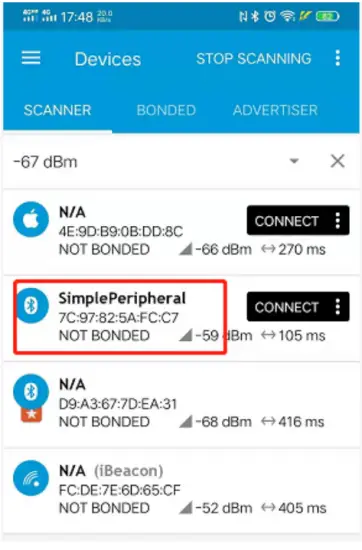

• Click icon from CCS, the program will execute, and BLEM205 will start advertising, you can use any third party APP (NRF Connect) to scan the device as follow:

(4) Program the firmware using Flash Programmer 2
After finishing the firmware, customer can program the firmware to the module using Flash Programmer 2.

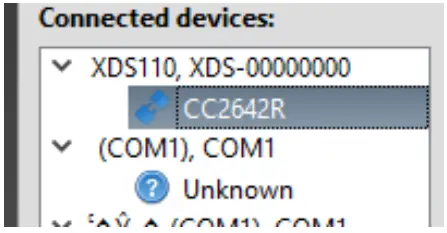

• Open “Flash Programmer 2”, the programmer will auto detect the chip as follow:

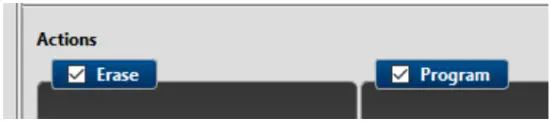

• Browser and select the firmware Step (3) made. The path is as follow in this demonstration. I:CC2642_CCS_WORKsimple_peripheral_app_CC26X2R1_LAUNCHXL_tirtos_ccsDebug simple_peripheral_app_CC26X2R1_LAUNCHXL_tirtos_ccs.hex Check “Erase” and “Prgram”:

Click icon and start programming.
