B-TECH BT5964 CCTV Ceiling Mount

SPECIFICATIONS

• Mounts a screen and a dome camera from the ceiling
• Max load: 25kg (screen) / 5kg (camera)
• Available in two Ø38mm pole lengths:
  BT5964-FD100 pole length 1000mm
  BT5964-FD200 pole length 2000mm
• Recommended for screens up to 47”
• Suitable for screens with VESA® fixings up to 200 x 200mm
• Screen tilt adjustment: +/-40°
• Carousel suitable for cameras with fixings from 51mm up to 127.5mm apart

INSTALLATION SAFETY INSTRUCTIONS

CAUTION:

This mount is intended for use only with the maximum weights indicated. Use with equipment heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts – defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product.
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death, both during installation and at any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
Product location
Please pay careful attention to where this product is located. Check load capacity of the ceiling prior to installation as
some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to
secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware
is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation.
If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built-in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other
body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualified people.

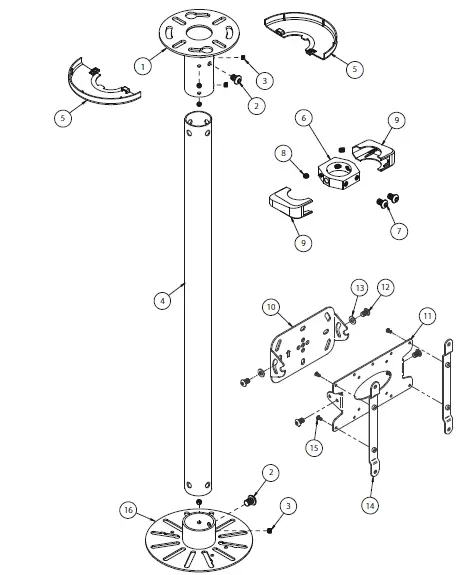

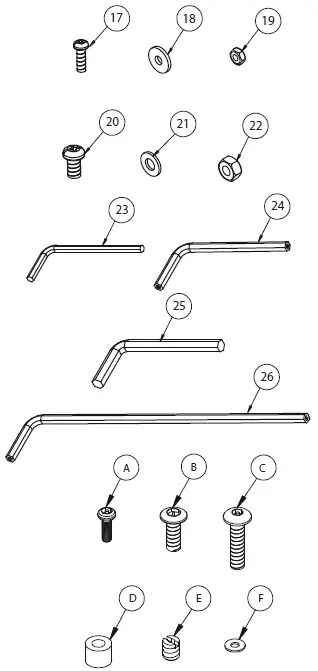

PARTS LIST

PLEASE KEEP THIS FOR FUTURE REFERENCE

Suitable for loads up to 25kg (screen) / 5kg (camera)

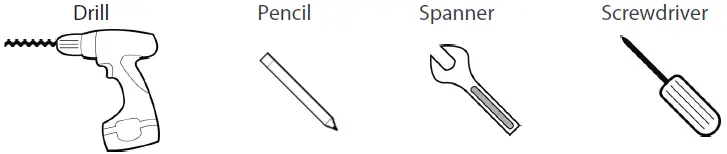

INSTALLATION TOOLS REQUIRED

INSTALLATION INSTRUCTIONS

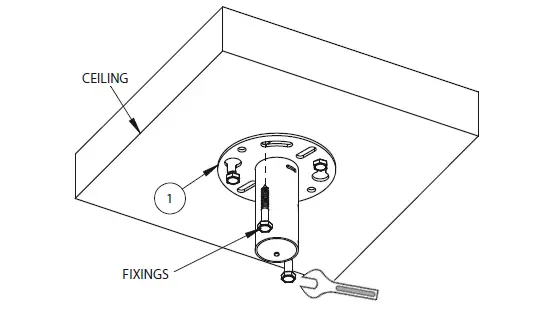

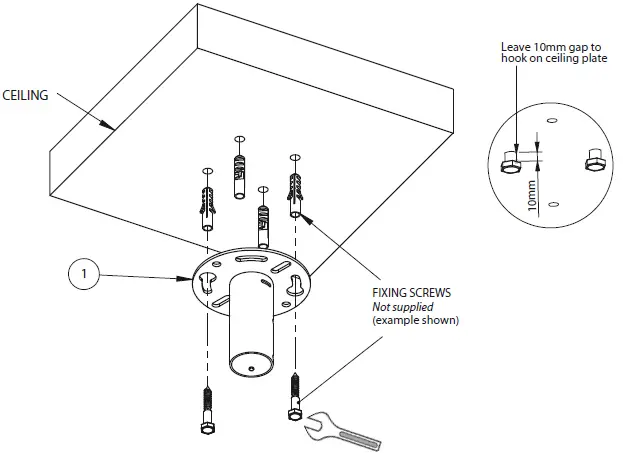

MOUNT CEILING PLATE TO CEILING

1. Pre-drill holes for ceiling fixings (not supplied).
2. Assemble two fixing screws on opposite sides, leaving a 10mm gap between the screw head and ceiling.
3. Hook item 1 onto the fixing screws and twist into position.
4. Add remaining ceiling fixings and tighten all screws.

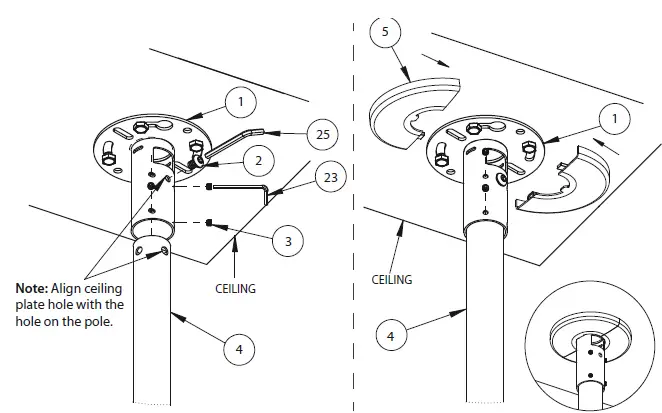

FIX POLE TO CEILING PLATE

1. Insert item 4 into item 1 and secure in place with item 2.
2. Tighten item 3, fixing item 4 to item 1.
3. Fit item 5 to item 1.

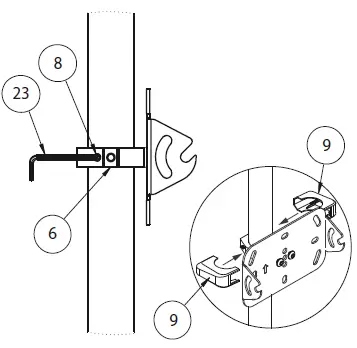

FIX MOUNTING PLATE ONTO POLE

1. Attach item 6 to item 8 using item 7
   Note: Ensure item 8 is positioned on the back of item 6.

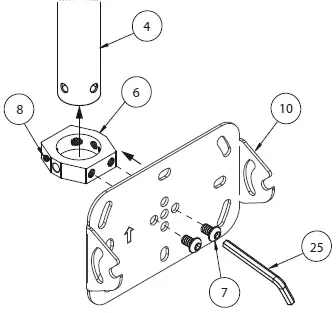

2. Slide item 6 onto item 4 and secure in position by tightening item 8.
3. Fit item 9 on to item 6.

Disassemble item 11 before attaching item 10 to item 6.
Note: Leave item 12 attached to item 11.

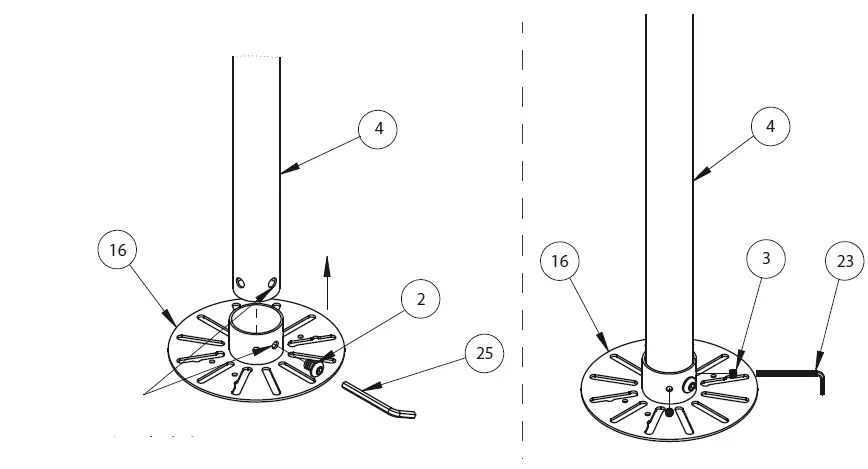

FIX CAROUSEL INTERFACE TO POLE

1. Attach item 16 to the bottom of item 4 using item 2.
2. Tighten item 3, securing item 16 to item 4.

Note: Align the hole on the carousel interface with the hole on the pole.

ATTACH CAMERA TO CAROUSEL INTERFACE

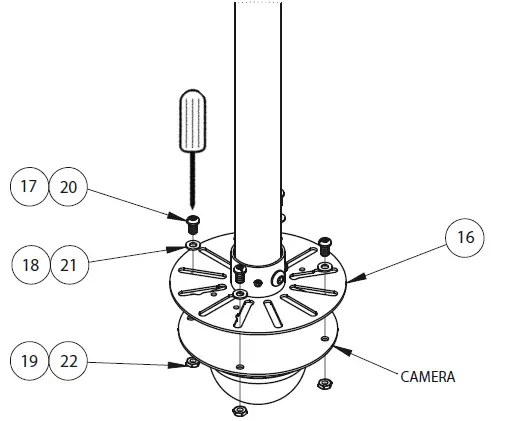

Fix the camera to item 16 using items 17 -22.

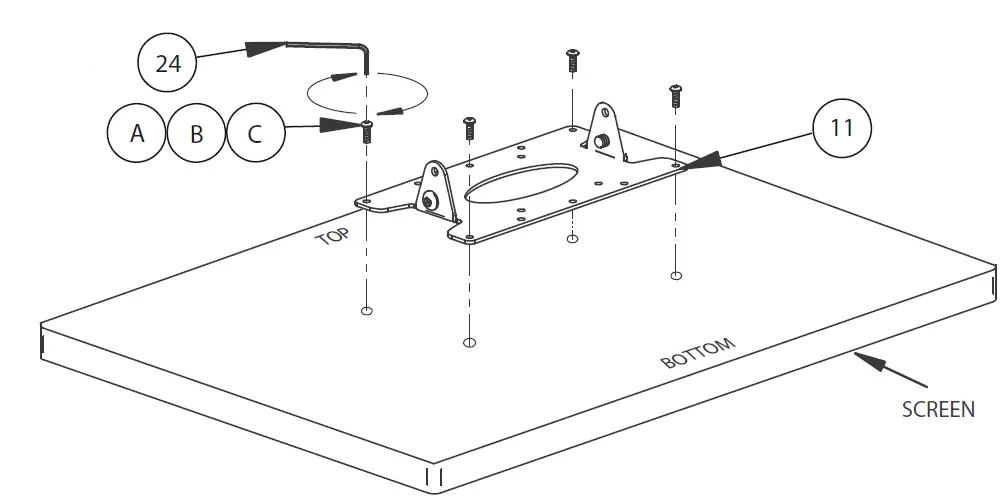

FIX INTERFACE PLATE TO SCREEN

a. For screens with VESA fixings: 75 x 75mm, 100 x 100mm or 200 x 100mm

Attach item 11 to the rear of screen. using the screen fixing kit.

b. For screens with VESA fixings: 200 x 200mm

1. Attach item 14 to item 11 using item 15.

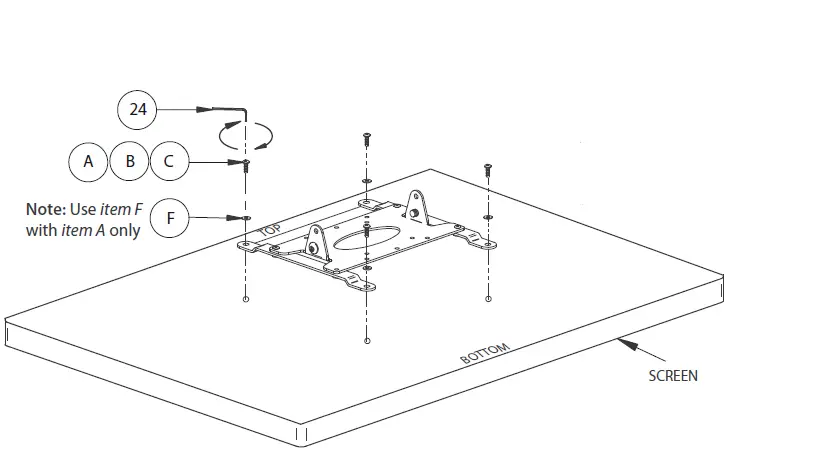

Attach item 14 to the rear of the screen using items A, B or C.
Note: For screens with
HOOK SCREEN ONTO MOUNTING PLATE

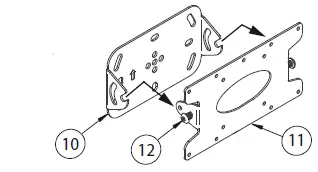

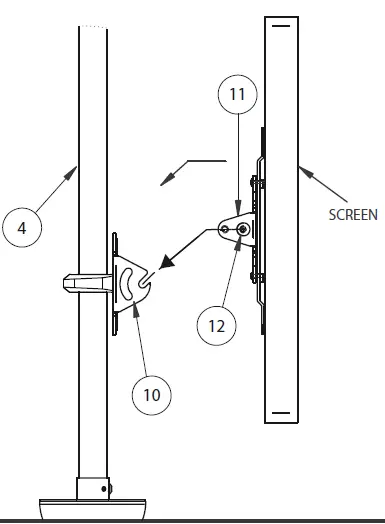

Using item 12, hook item 11 onto item 10.

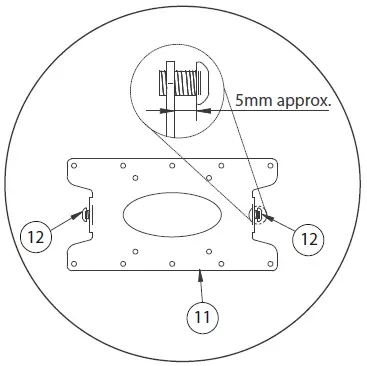

Note: Ensure that items 12 (attached to item 11) have an approx. 5mm gap to allow it to hook onto item 10.

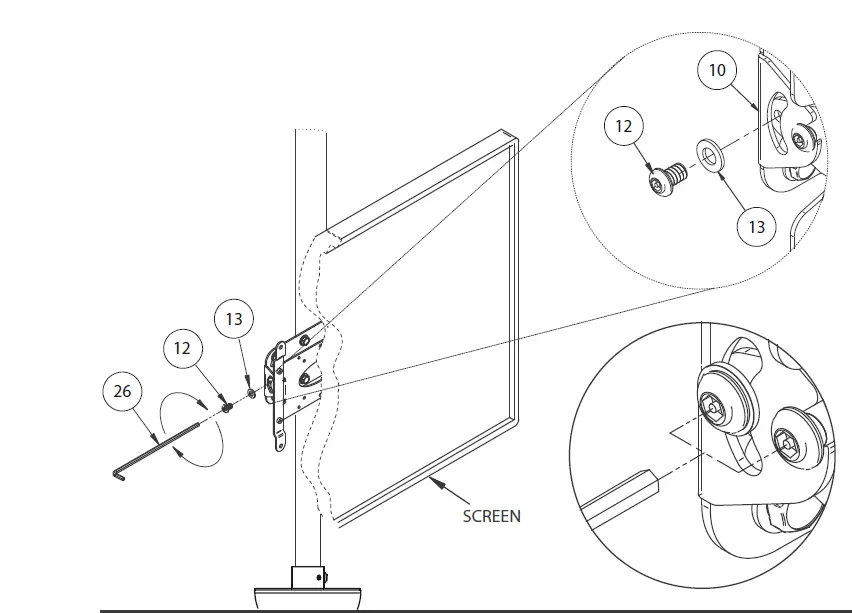

SECURE SCREEN TO MOUNT

Set screen tilt and secure mount by adding a rear set of items 12 & 13 on both sides of item 10.

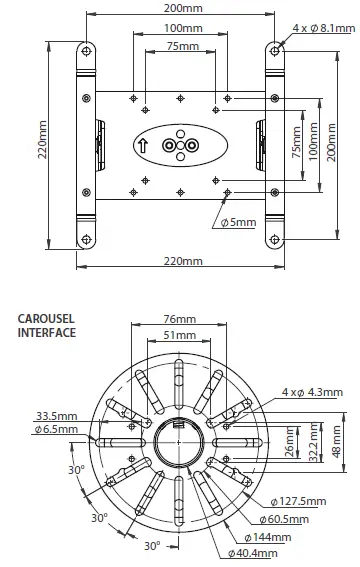

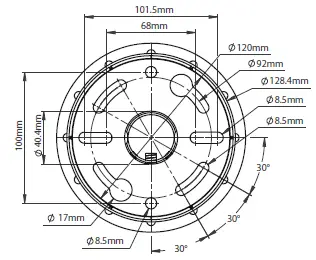

DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

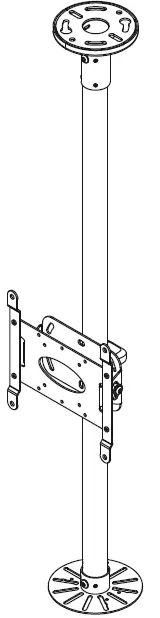

CEILING MOUNT

SCREEN INTERFACE

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

CONTACT:
[email protected]

©2021 B-Tech International Design and Manufacturing Ltd. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks.
All other brands and product names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE.
AMA-BT5964-V1.1-0821-110 MADE IN VIETNAM

For More Information Visit www.btechavmounts.com
