PM360-51001

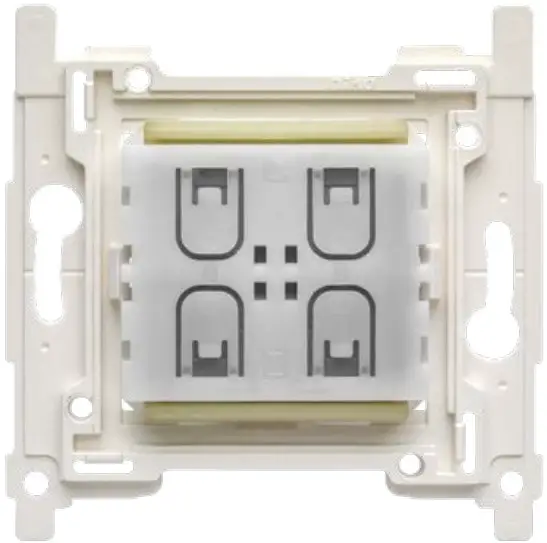

Dimmer Switch for Hue System
User Manual

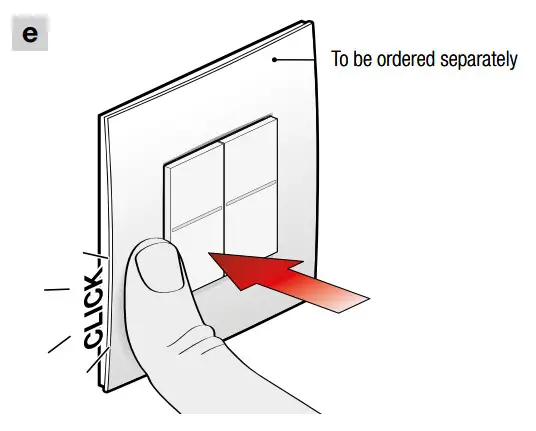

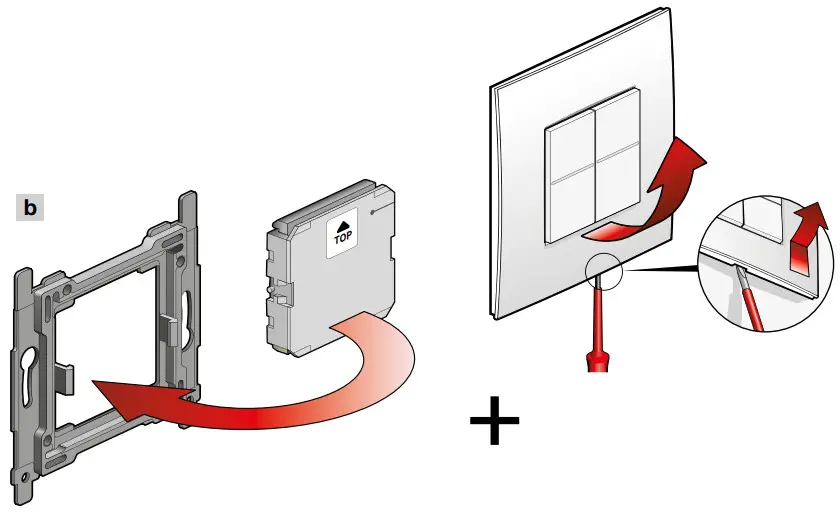

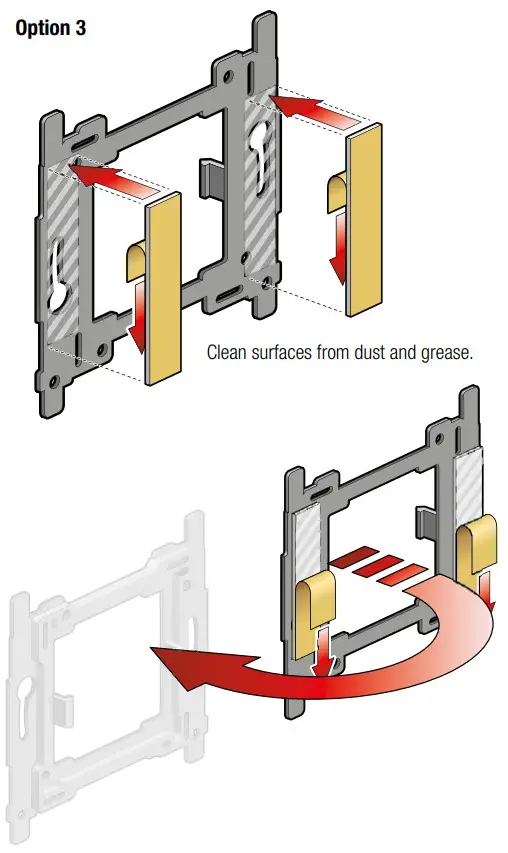

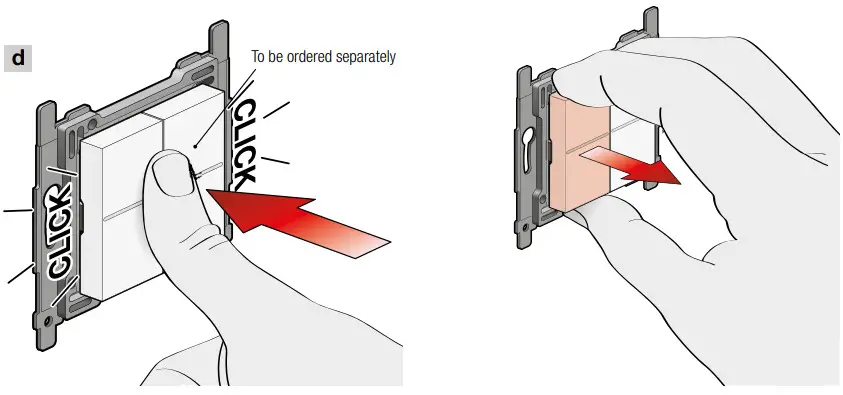

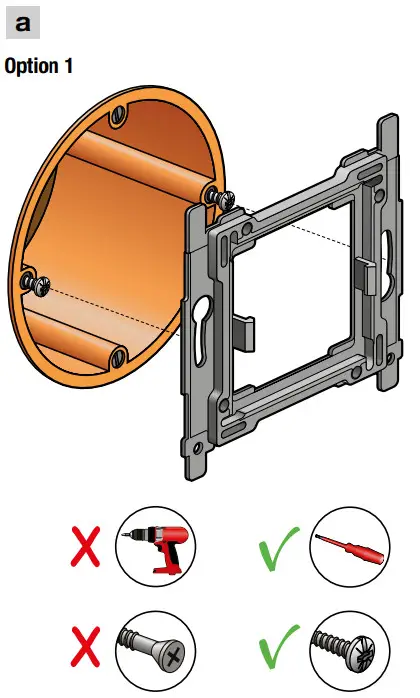

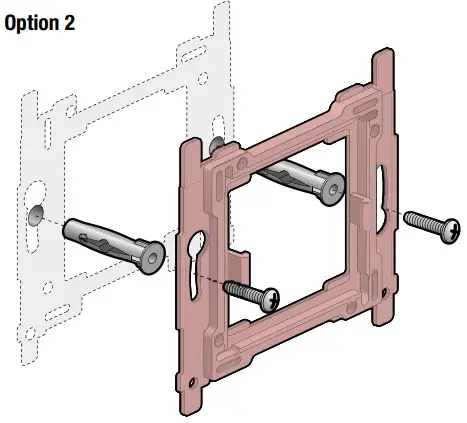

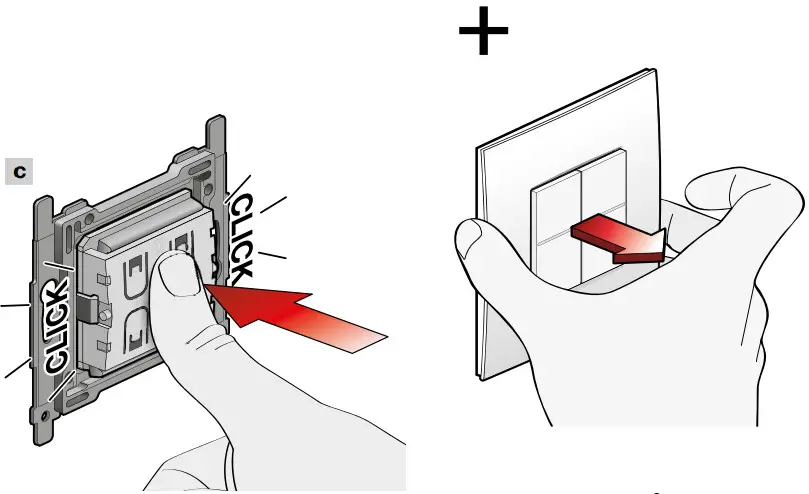

Installation
 |  |
 |  |
 |  |
 | |

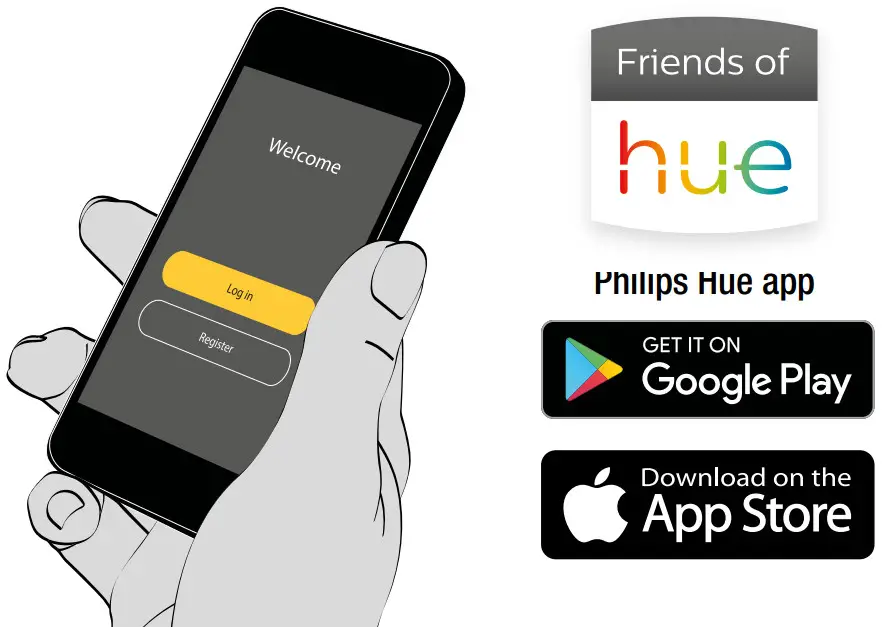

Configuration
- Select the Niko dimmer switch in the Hue app via the settings. Subsequently, click Accessory setup > Add accessory.
In closing, go to “Friends of Hue switch” and select “Niko dimmer switch for Hue” - Pair the Niko dimmer switch with the Hue bridge 2.0 (see the Hue app instructions)
- Configure the Niko dimmer switch with the Hue app (see the Hue app instructions)
Troubleshooting
| Problem | Possible cause | Proposed solution |
| The switch is not recognized in the Philips Hue app | The switch is out of the range of the Philips Hue light | Place the switch closer to the light |
| The switch can not be configured in the Philips Hue app | The switch is mounted upside down | Rotate the switch 180° |
| The switch controls the wrong lamp | Misconfiguration in the Philips Hue app | Reconfigure the switch in the Philips Hue app |
Specifications
Article number: 360-51001
Power consumption: none (battery-free)
Power supply: integrated kinetic energy harvester
Number of configurable switches: 4
RF protocol: Zigbee® (Green Power)
Modulation / Data rate: Direct-Sequence Spread Spectrum (DSSS) with Orthogonal Quadrature Phase Shift Keying (OQPSK) / 250 kbps
Mounting method: wall mounting
Mounting height: 110 cm
Weight: 25 g +-1 g
Temperature (storage / operating): -25 – +65 °C*
Dimensions with Niko Original or Niko Pure faceplate(HxWxD): 83 x 83 x 15 mm
Dimensions with Niko Intense faceplate (HxWxD): 85 x 85 x 15 mm
Protection degree: IP20
Configuration: Philips Hue app
Maximum range (indoor): 20 m
Humidity: 0 – 95 % relative humidity, non-condensing
Operating frequency: 2.4 GHz (2404 MHz to 2481 MHz)
Maximum RF power: 7 dBm / 5 mW
Antenna: integrated antenna
Marking: CE, WEEE
* The maximum temperature difference between the Niko dimmer switch and a receiver should not exceed 40 °C
Warnings regarding the installation
The installation of products that will permanently be part of the electrical installation and which include dangerous voltages should be carried out by a qualified installer and in accordance with the applicable regulations. This user manual must be presented to the user. It should be included in the electrical installation file and it should be passed on to any new owners. Additional copies are available on the Niko website or via Niko customer services.
CE marking
This product complies with all of the relevant European guidelines and regulations. For radio equipment, Niko LLC declares that the radio equipment in this manual conforms with the 2014/53/EU directive. The full text of the EU declaration of conformity is available at www.niko.eu under the product reference, if applicable.
Environment
This product and/or the batteries provided cannot be disposed of in the non-recyclable waste. Take your discarded product to a recognized collection point. Just like producers and importers, you too play an important role in the promotion of sorting, recycling, and reuse of discarded electrical and electronic equipment. To finance the rubbish collection and waste treatment, the government levies recycling charges in certain cases (included in the price of this product).
Support & contact
NV Niko sa
Industriepark West 40
9100 Sint-Niklaas, Belgium
www.niko.eu
+32 3 778 90 80
[email protected]
Niko prepares its manuals with the greatest care and strives to make them as complete, correct, and up-to-date as possible.
Nevertheless, some deficiencies may subsist. Niko cannot be held responsible for this, other than within the legal limits.
Please inform us of any deficiencies in the manuals by contacting Niko customer services at
[email protected].
