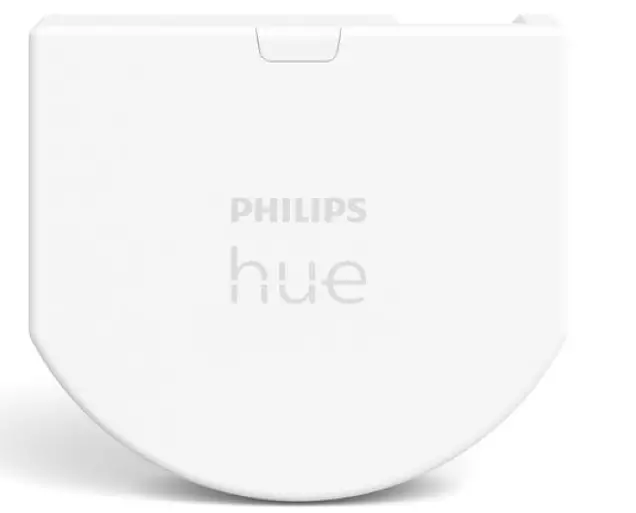

PHILIPS 8719514318045 Hue Wall Switch Module
Product Information
The Philips Hue wall switch module allows you to control your smart lights using your existing light switch. It installs behind an existing light switch and enables customised scene selection.
- Product Name: Philips Hue wall switch module
- Model Number: 8719514318045
- Required Accessory: Hue Bridge
Easy smart lighting
Installed behind light switches, the Philips Hue wall switch module lets you use existing switches with your Philips Hue smart lights. Your lights always stay powered on and reachable – and you can even use the switch to set multiple scenes on an individual light or in a Room or Zone.
Personal scene setting
- Control lights, rooms or zones
- Cycle through scenes by toggling the light switch
Full control from a smart device with the Hue bridge
- Hue Bridge required
Always connected to power
- Ensures that your smart lights are always connected to power
Product Usage Instructions
- Ensure that you have a Hue Bridge and smart lights installed in the room or zone where you want to use the wall switch module.
- Turn off the power to the existing light switch.
- Remove the cover plate from the existing light switch and unscrew the switch from the wall.
- Install the wall switch module behind the existing light switch using the provided screws.
- Screw the existing light switch onto the wall switch module.
- Turn on the power to the existing light switch.
- Open the Hue app and set up the wall switch module with the lights you’d like it to control in the Room or Zone.
- Cycle through scenes by toggling the light switch. The wall switch module ensures that your smart lights are always connected to power, even when someone uses the standard light switch to turn off the lights.
Highlights
Control lights, rooms or zones
Use your existing light switch to control the smart lights in a Room or Zone. Simply set up the wall switch module with the lights you’d like it to control in the Hue app.

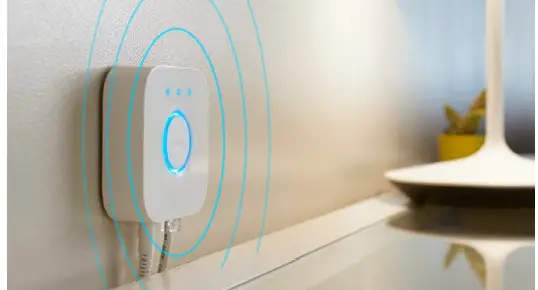

Hue Bridge required
The Philips Hue wall switch module requires a Hue Bridge (sold separately). The Hue Bridge also allows you to add up to 50 lights and 12 accessories throughout your entire home, create timers and routines, and control your lights from anywhere – inside or outside your home – with the Hue app.
Ensures that your smart lights are always connected to power
Never let your smart lights become ‘unreachable’ when someone uses the standard light switch to turn off the lights. With the wall switch module, your lights are always connected to power.
Cycle through scenes by toggling the light switch
Use your switch to set up to three different light scenes – just toggle the switch on and off to cycle through the scenes you choose.
Specifications
- Model Number: 8719514318045
- Dimensions: 43.6 x 38.2 x 18.2 mm
- Weight: 23 g
- Power Consumption: 0.5 W
- Wireless Connectivity: Zigbee Green Power (IEEE 802.15.4)
Design and finishing
- Colour: white
- Material: plastic
Environmental
- Operational humidity: 0%<H<80% (non-condensing)
- Operational temperature: 0 °C – 35 °C
Extra feature/accessory incl.
- Batteries included: Yes
- ZigBee Light Link: No
- Centrepiece: Yes
- Centrepiece: Yes
Guarantee
- 2 years: Yes
Miscellaneous
- Especially designed for: Living Room and Bedroom
Product dimensions and weight
- Height: 4.3 cm
- Length: 1.0 cm
- Width: 3.8 cm
Service
Warranty: 2 year(s)
Technical specifications
- IP code: IP20
- Class of protection: Class III
The switch
- IP rating: IP20
Packaging dimensions and weight
- EAN/UPC – product: 8719514318045
- Net weight: 0.025 kg
- Gross weight: 0.057 kg
- Height: 17.000 cm
- Length: 5.800 cm
- Width: 9.000 cm
- Material number (12NC): 929003017101
© 2022 Signify Holding. All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. www.lighting.philips.com
