PHILIPS 929003053001 Hue Sana Wall Light
PRODUCT OVERVIEWS
Warnings
Always make sure the luminaire is detached from the mains socket Always make sure the DC cable is detached from the power supply Staring at the operating light source may cause eye injury
| # | Disassemble/dismantle steps | Tools needed |
| a | Remove braket (15) by removing screws (6) | CROSSHEAD SCREWDRIVER PZ |
| b | Remove base (14) by unscrewing screws (2) and (8) | TORXHEAD SCREW DRIVER no and CR0SSHEAD SCREWDRIVER PZ |
| C | Remove screw (5) | TORXHEAD SCREW DRIVER no |
| d | Remove low voltage wires of the LIGHT SOURCE – LED STRIP (13) | – |
| e | Remove low voltage wires from LIGHT SOURCE – HUE CONNECT (12). | FLATHEAD SCREWDRIVER OR WAGO TOOL #206- |
| f | Remove the diffuser by unscrewing screw (4) | CROSSHEAD SCREWDRIVER PZ |
| g | Remove LIGHT SOURCE – LED STRIP | See document: 200604 – Instruction LED Strip Removal Procedure |
– A specific Wago tool #2065 can be ordered separately for wire insertion and release tool:

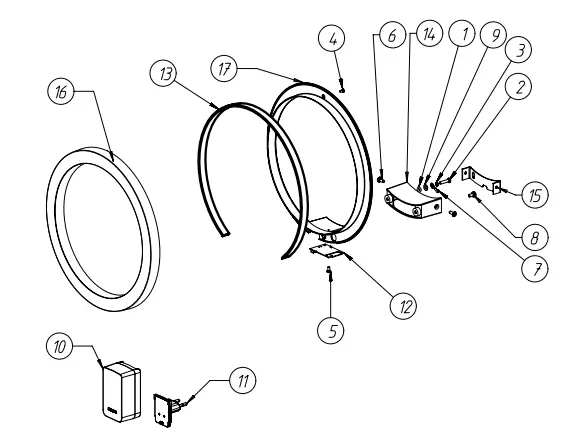

| IJ | COMPONENT | 1..111 |
| 1 | 0 -RING | 1 |
| 2 | SCREW | 1 |
| 3 | TOO THED WASHER | 1 |
| 4 | SCREW | 1 |
| 5 | SCREW | 1 |
| 6 | SCREW | 2 |
| 7 | RING TERMINAL | 1 |
| SCREW | 1 | |
| 9 | WASHER | 1 |
| 10 | ..,ONTROL GEAR- PSU | 1 |
| 11 | ‘ LUG | 1 |
| 12 | IGHTSOURCE-HUECONNECT | 1 |
| 13 | IGHT SOURCE – LED STRIP | 1 |
| 14 | jASE | 1 |
| 15 | jRACKET | 1 |
| 16 | ..,OVER | 1 |
| 17 | JIFFUSER | 1 |
| SKU | Color | Country |
| 929003053001 | White | EU |
| 929003053101 | Black | EU |
| STATUS | DESCRIPTION | DESIGN ID 01 | 2021-06-25 |
| SANA Hue wall 20W 24V Disassembly instruction | |||
| NAME He Go | LOCAL PART ID SH. 3 | ||
| CHECKED | DATE 2021-06-25 | A3-L |
