Niko dimmer switch, KNX ®
360-31001
User Manual

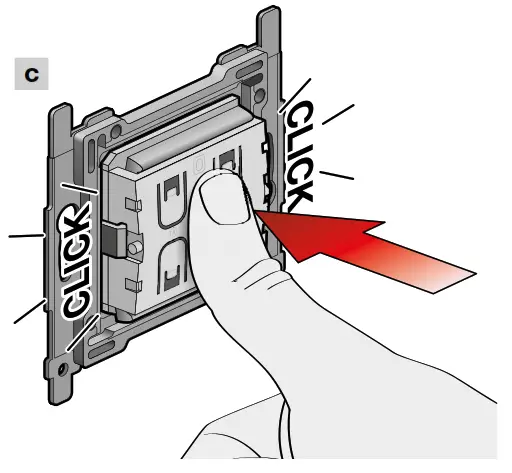

Installation
A

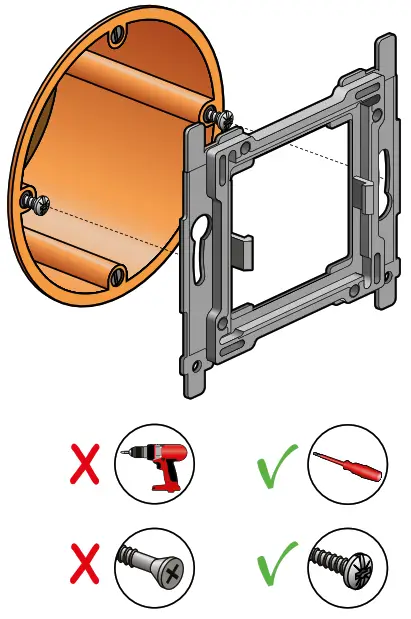

Option 1

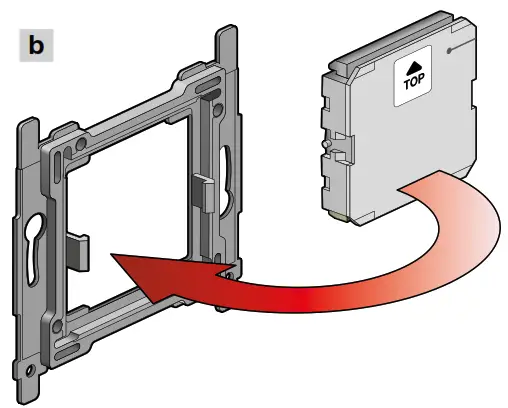

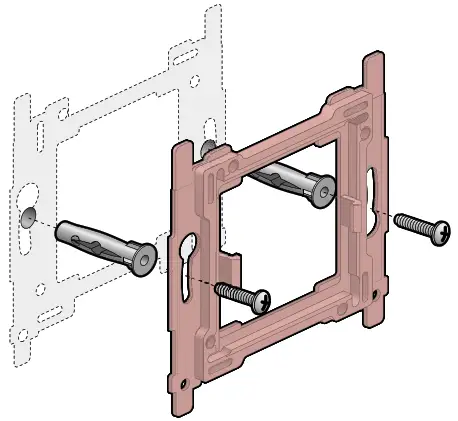

Option 2

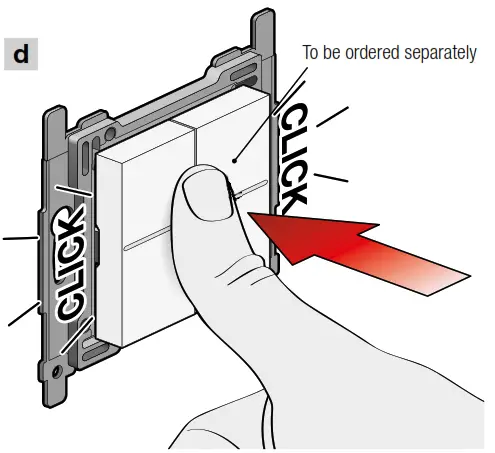

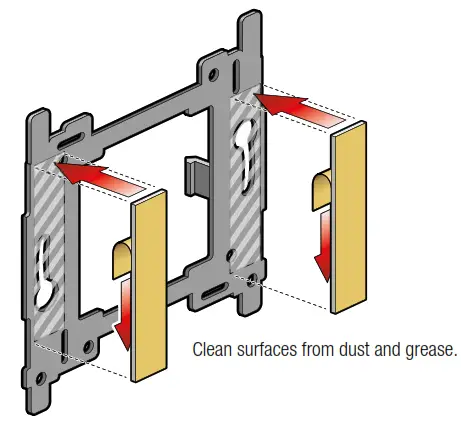

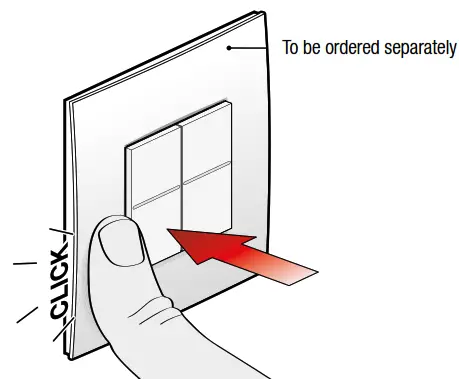

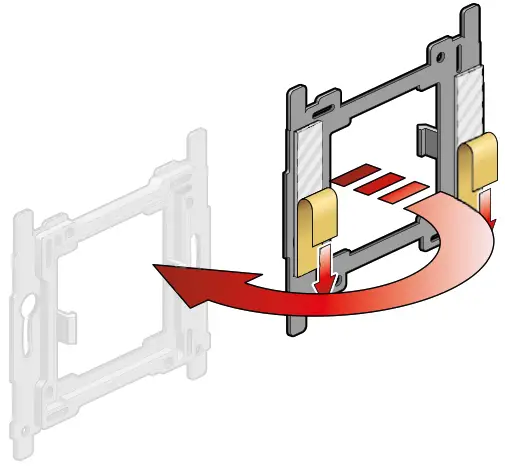

Option 3

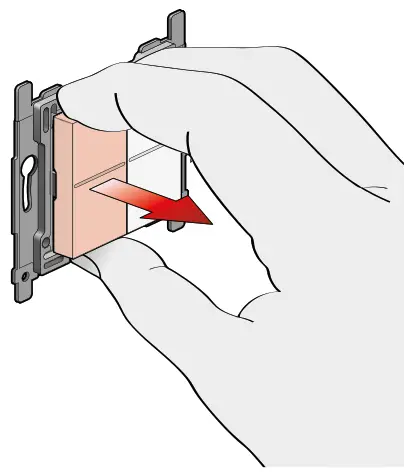

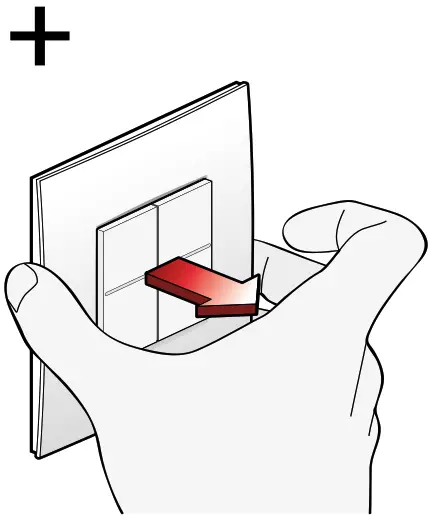

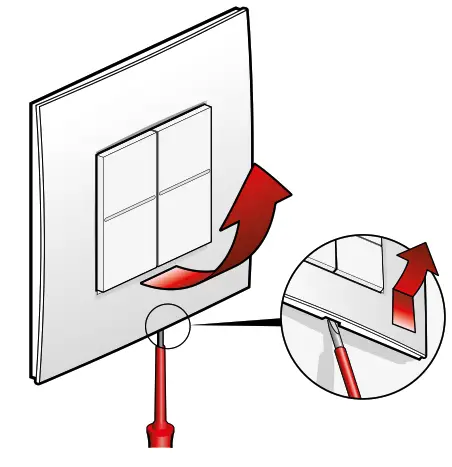

Dismantling
Configuration
Consult the online Niko manual (www.niko.eu/article/ 360-31001) for more information about the configuration.
Radio planning guide

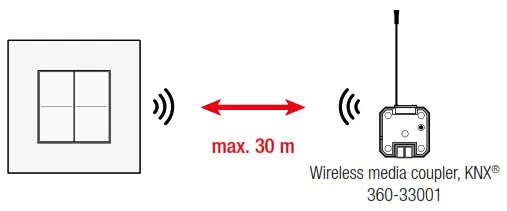

As a rule of thumb, try to achieve a direct line of sight between the Niko dimmer switch and the KNX ® media coupler. If this is not possible, and there are one or more walls between the devices, the RF signal should penetrate the wall(s) as straight as possible. We recommend using a KNX ® diagnostics tool to determine the optimal indoor mounting position. When the radio coverage is not sufficient, try relocating the Niko dimmer switch or using a KNX ® RF repeater. Consult the online Niko manual (www.niko.eu/article/360-31001) for more information about radio planning.
Specifications
Article number 360-31001
Power supply integrated kinetic energy harvester
The operating force is typically 10 N (at room temperature)
RF protocol KNX ® RF1.R S-Mode
Modulation / Data rate Frequency-Shift Keying (FSK) / up to 16.384 Kbps
Configuration ETS5 software
Mounting method wall mounting
Mounting height of 110 cm
Weight 22 g ±1 g
Temperature (storage / operating) -20 °C – +45 °C*
Dimensions with Niko Original or Niko Pure face plate (HxWxD) 83 x 83 x 15 mm
Dimensions with Niko Intense faceplate (HxWxD) 85 x 85 x 15 mm
Protection degree IP20
Operating frequency 868.3 MHz
Antenna integrated antenna
Maximum range (indoor) up to 30 m **
Maximum RF power -2 dBm / 0.63 mW
Mar king CE
* The maximum temperature difference between the Niko dimmer switch and a receiver should not exceed 40 °C
** Depends on the indoor environment. Consult § Radio planning guide in this manual.
Troubleshooting
Consult the online Niko manual (www.niko.eu/article/360-31001) for troubleshooting.
Warnings regarding installation
The installation of products that will permanently be part of the electrical installation and which include dangerous voltages should be carried out by a qualified installer and in accordance with the applicable regulations. This user manual must be presented to the user. It should be included in the electrical installation file and it should be passed on to any new owners. Additional copies are available on the Niko website or via Niko customer services.
CE marking
This product complies with all of the relevant European guidelines and regulations. For radio equipment, Niko LLC declares that the radio equipment in this manual conforms with the 2014/53/EU directive.
The full text of the EU declaration of conformity is available at www.niko.eu under the product reference, if applicable.
Environment
This product and/or the batteries provided cannot be disposed of in the non-recyclable waste. Take your discarded product to a recognized collection point. Just like producers and importers, you too play an important role in the promotion of sorting, recycling, and reuse of discarded electrical and electronic equipment. To finance rubbish collection and waste treatment, the government levies recycling charges in certain cases (included in the price of this product).
Support & contact
Niko prepares its manuals with the greatest care and strives to make them as complete, correct and up-to-date as possible.
Nevertheless, some deficiencies may subsist. Niko cannot be held responsible for this, other than within the legal limits. Please inform us of any deficiencies in the manuals by contacting Niko customer services at [email protected].
NV Niko sa
Industriepark West 40
9100 Sint-Niklaas, Belgium
www.niko.eu
+32 3 778 90 80
[email protected]
PM360-31001R22042
