Niko 91004 Dimmer Switch For Hue System User Manual

niko 91004 Dimmer Switch For Hue System

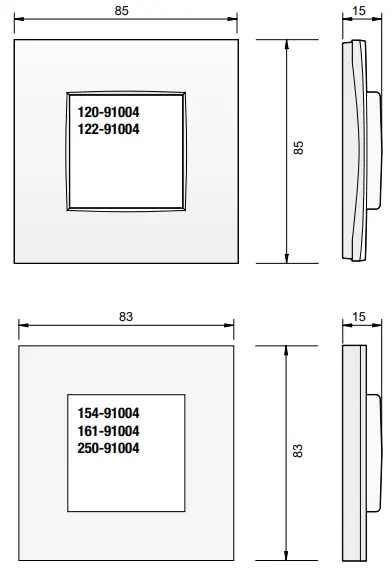

Dimensions

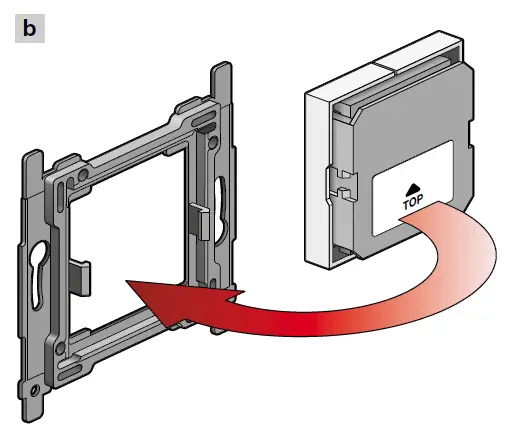

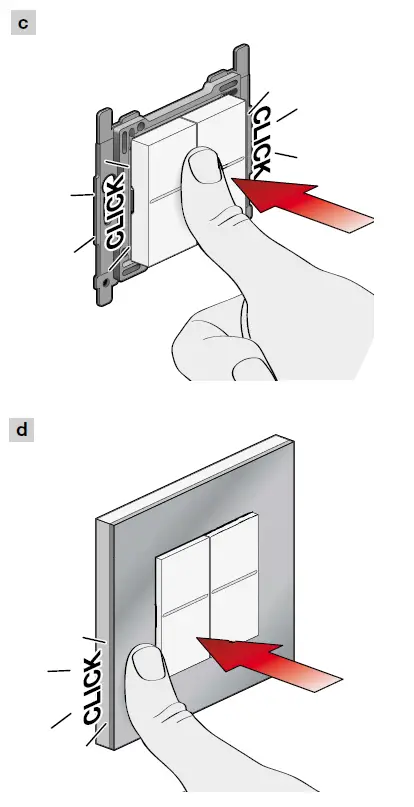

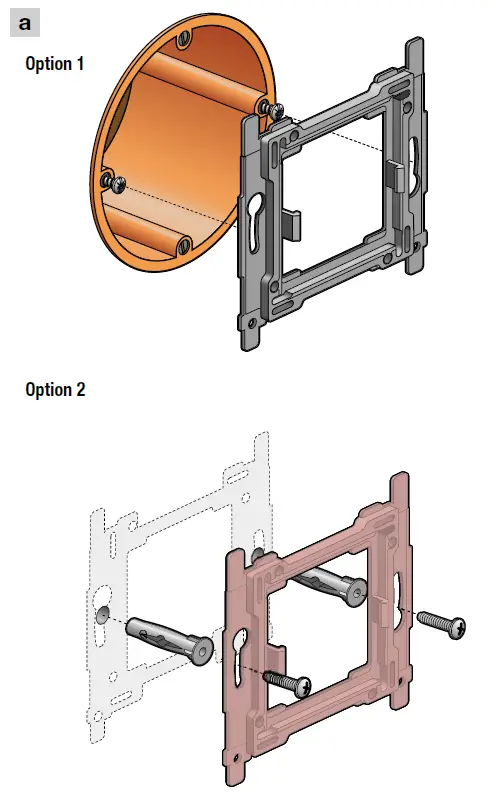

Installation

Settings

Specifications

• Article number XXX-91004
• Power consumption none (battery-free)
• Power supply Integrated Kinetic Energy Harvester
• Number of configurable switches 4
• Protocol ZigBee
• Mounting method wall mounting
• Mounting height 110 cm
• Weight (120-91004, 122-91004) 45,6 g
• Weight (154-91004, 161-91004, 250-91004) 119,8 g
• Ambient temperature 0 – 40 °C
• Dimensions (HxWxD) (120-91004, 122-91004) 85 x 85 x 15 mm
• Dimensions (HxWxD) (154-91004, 161-91004, 250-91004) 83 x 83 x 15 mm
• Protection degree IP20
• Modification of settings Philips Hue app
• Maximum range (from switch to lamp) 10 m
• Operating frequency 2.4 Ghz
• Maximum frequency power 7 dBm / 5 mW
• Marking CE, WEEE

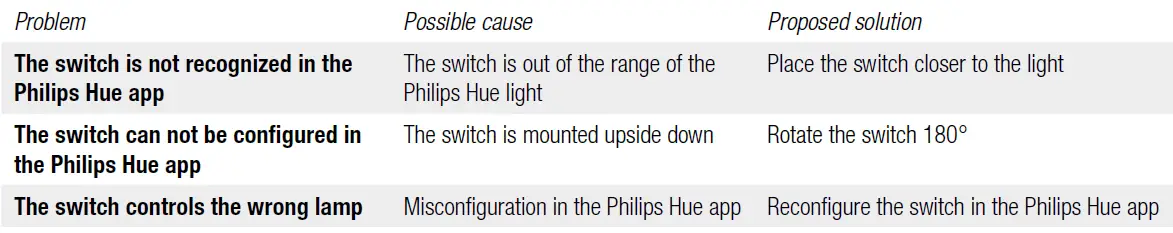

Troubleshooting

Support & contact

nv Niko sa
Industriepark West 40
9100 Sint-Niklaas, Belgium
[email protected]
www.niko.eu

+32 3 778 90 80
[email protected]
